QuickSpecs

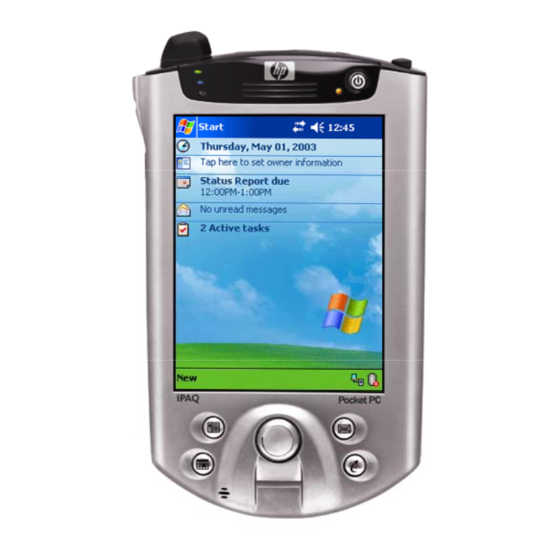

Overview
1. Speaker
2. Power Indicator
3. Stylus
4. Power Button
5. Colour Display
6. Inbox Button
7. iTask Button
8. 5-Way Navigation Button
9. Fingerprint Reader
DA - 11646 Canada — Version 9 — August 19, 2005
HP iPAQ Pocket PC h5500 Series
10. Microphone
11. Calendar Button
12. Contacts Button
13. Volume/Record
14. Light Sensor
15. Active Bluetooth Indicator
16. Wireless LAN Indicator
17. Antenna
18. SD Slot
Page 1
Advertisement
Related Manuals for HP iPAQ h5500 Series
Summary of Contents for HP iPAQ h5500 Series
- Page 1 QuickSpecs HP iPAQ Pocket PC h5500 Series Overview 1. Speaker 10. Microphone 2. Power Indicator 11. Calendar Button 3. Stylus 12. Contacts Button 4. Power Button 13. Volume/Record 5. Colour Display 14. Light Sensor 6. Inbox Button 15. Active Bluetooth Indicator 7.
- Page 2 QuickSpecs HP iPAQ Pocket PC h5500 Series Overview At A Glance Windows® Mobile 2003 software Integrated Wireless LAN 802.11b Integrated Bluetooth™ Integrated Biometric Fingerprint Reader Removable/Rechargeable Battery Dazzling Transflective TFT colour liquid crystal display Integrated Secure Digital slot Intel® XScale processor...
- Page 3 QuickSpecs HP iPAQ Pocket PC h5500 Series Standard Features Models iPAQ Pocket PC h5550– 48-MB ROM/128-MB RAM WLAN/BT/Biometrics/SD FA107A#8ZQ (English) FA107A#ABC (French Canadian) Processor 400 MHz Intel® XScale™ technology-based processor Memory 128-MB SDRAM; 48-MB Flash ROM Memory Input Method Handwriting recognition, soft keyboard, character recognition, voice recorder, inking...
- Page 4 Touch-sensitive display for stylus or fingertip Microphone and Speaker on front-side of unit HP Exclusive Applications These are the extras that HP put in ROM (On device) iPAQ Fingerprint Reader: enhanced security iPAQ File Store: non-volatile storage in flash ROM...
- Page 5 QuickSpecs HP iPAQ Pocket PC h5500 Series Standard Features Companion CD from HP APPLICATIONS Full Versions Trial Versions Jeode Java Virtual Machine Xcellenet Afaria Device Management Agent Westtek ClearVue Suite Margi Presenter-to-Go (requires purchase of additional hardware) F-Secure FileCrypto Data...
- Page 6 QuickSpecs HP iPAQ Pocket PC h5500 Series Standard Features Applications from Additional Software from Microsoft Microsoft on Companion Outlook 2002, Microsoft ActiveSync 3.7 (Desktop device synchronization), Microsoft Reader eBooks, Links to Microsoft websites for additional downloadable applications (some programs may require purchase of...
- Page 7 QuickSpecs HP iPAQ Pocket PC h5500 Series Standard Features Certifications All necessary regulatory approvals for countries we support including: WECA Wi-Fi approval FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark NOTE: * A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with a wireless airtime provider may be required for applicable wireless communication.
- Page 8 One-year parts and labour in most regions; two-year warranty in Europe (one-year warranty for rechargeable battery pack) 90 days technical support for software in all regions. Optional HP Care Pack available in North America for Next Business Day replacement (at additional charge) Certain restrictions and exclusions apply.
-
Page 9: Technical Specifications
QuickSpecs HP iPAQ Pocket PC h5500 Series Technical Specifications System Unit Dimensions 5.43 x 3.3 x 0.63 in. (138 x 84 x 15.9 mm) Length of Unit 5.23 in (133.0 mm) (without LAN antenna) Length of Unit 5.43 in (138.0 mm) - Page 10 QuickSpecs HP iPAQ Pocket PC h5500 Series Technical Specifications Battery Life Estimations Usage Scenarios using Slim Removable 1250 mAh battery Idle Mode (screen active Up to 12 hours with no user Input or Output) Active Mode, Backlight off Up to 10 hours...
- Page 11 QuickSpecs HP iPAQ Pocket PC h5500 Series Options Expansion Packs CF Card Expansion Pack Plus 249709-B21 FA121A#AC3 PC Card Expansion Pack Plus 249708-B21 FA120A#AC3 CF Card Expansion Pack 170339-B22 FA115A#AC3 Dual-Slot PC Card Expansion Pack 216198-B21 FA116A#AC3 Style Packs Cover Pack...
- Page 12 The information in this document is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
