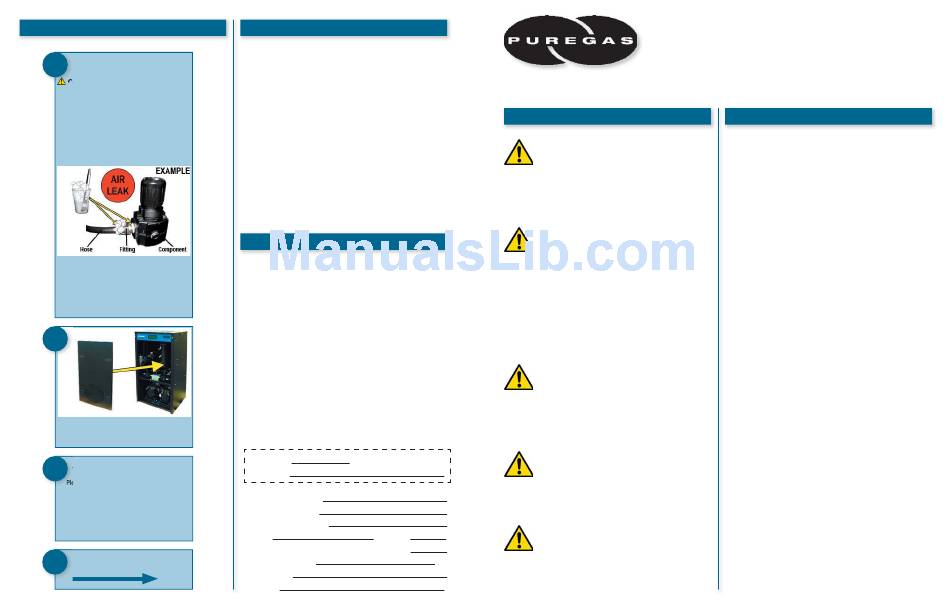

Puregas P6500W Installation Manual

Installation Steps cont.
14
• Check for air leaks.
CAUTION: DO NOT SOAP TEST THE
HUMITTER FITTING. DAMAGE TO THE
HUMITTER MAY OCCUR.
With Compressor NOT RUNNING:
Listen for 'hissing' sounds which may indicate a
fi tting or hose air leak.
With Compressor RUNNING:
Use a 1-inch brush to dab soapy water on all
air fi ttings and hose connections.
If air bubbles appear, this is an indication that
air is leaking.
Take steps to seal the leak:
• Tighten the fi tting
• Re-connect / tighten the hose end
• Replace the fi tting / hose / component
15
• Re-install the front panel.
16
• Connect alarm hookups (if applicable).
Please refer to the P6500W User's Guide
section on Operating Your Dryer.
Specifi cally, sub-sections:
Connecting to Common Alarm Terminals
Connecting to Discrete Alarm Terminals
17
• REGISTER YOUR DRYER.
Installation Checklist
No shipping damage was detected.
Dryer location meets the following
requirements:
o Well ventilated
o Free from abrasive dust or chemicals
o Ambient temperature is between 40°
and 85° F (optimum)
Shipping block removed from compressor
trays.
System Pressures are set to 50 PSI.
Static Pressure is set to 17 PSI.
No air leaks are present in the system.
No alarms are present on the Display Panel.

Registering Your Dryer

Please take a moment to register your PUREGAS
P6500W Air Dryer. Registering is necessary to
activate the Limited Warranty on your product.
Once you register, you are eligible to receive free
technical support, as well as updates concerning
your PUREGAS products.
Register Online at
www.puregas.com/registration
Or by Phone
1-800-521-5351 (option 2)
Have the following information available:
Model #: P6500W
Serial #:
Company Name:
Location Name:
Shipping Address:
City: State:
Zip Code:
Contact Name:
Phone #: ( ) - ext.
Email:
This guide covers basic air dryer installation and setup only. Once installation is complete, please
refer to the P6500W User's Guide for more advanced setup and confi guration options (if applicable).
Safety & Warning Information
WARNING!
Internal surfaces may be hot. Use care
when coming into contact with internal
components as there is a potential for
some of these components to become
hot when in operation or standby.
WARNING!
Extreme care should be exercised to
avoid contact with live electrical circuits.
Many procedures performed during
installation of this air dryer require the
equipment to be running, creating a
situation for potential electrical shock.
It is highly recommended that you
remove all jewelry before performing
any procedures.
WARNING!
High Noise. Puregas air dryers are
meant to be installed in an unattended
area and are intended for network
telecommunication facilities (non-
customer premises) only.
CAUTION!
This Air Dryer does not contain an
internal Surge Protection Device (SPD).
If an SPD is required it must be supplied
by the user.
IMPORTANT!
Performing procedures not described
in this User's Guide or installing
components not supplied by PUREGAS
is NOT RECOMMENDED AND MAY VOID
THE WARRANTY.
P6500W Air Dryer
Installation Guide

Before You Begin

1. Carefully inspect the unit, including
the shipping box as well as the air dryer,
for ANY DAMAGE CAUSED BY SHIPPING.
If any shipping damage is detected,
it is important to fi le a claim with the
shipping company prior to continuing the
installation procedures.
2. Read the entire Installation Guide to familiarize
yourself with the components and procedures
before performing the air dryer installation.
3. Verify the installation location of the air
dryer:
• Well ventilated and free from abrasive
dust or chemicals.
• Ambient temperature is between 40°
and 85° F (optimum).
NOTE: Higher temperatures will
decrease component lifespan.
• Meets the following power
requirements:
• 240 VAC (+/-10%), 1 Phase,
50 / 60 Hz
• Minimum 20 amp service
(3-wire, nub-out receptable) with
a 20 amp circuit breaker or slow
blow fuse
• If hard-wiring directly, minimum of
12 AWG wire must be used
4. Notify the alarm center of the installation
and potential for alarms during the process (if
applicable).
P011992
