Summary of Contents for FirmTek SeriTek
-

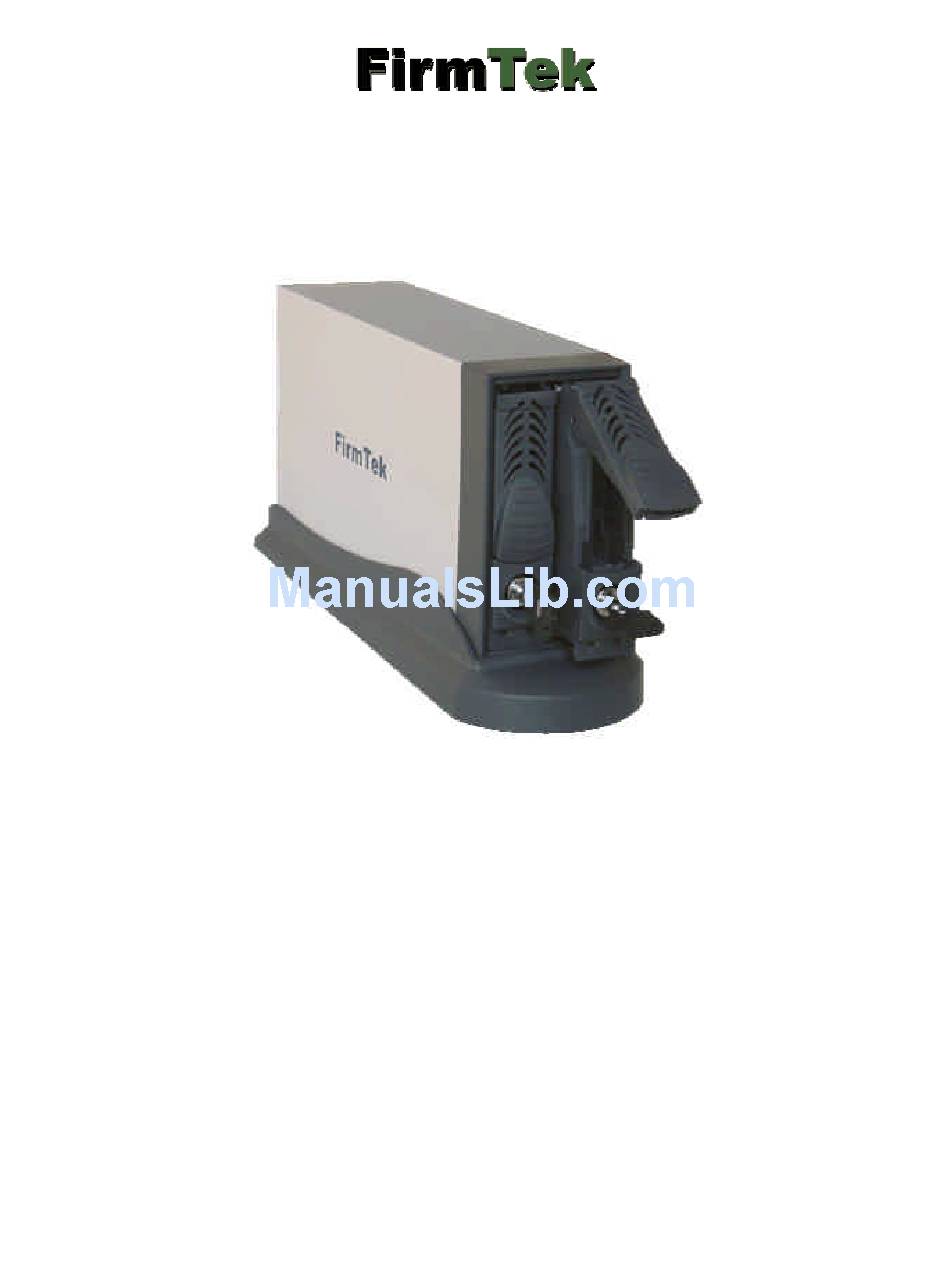

Page 1: User Manual
SeriTek /1EN2 ™ Dual-bay Hot-Swap External Serial ATA Enclosure User Manual... - Page 2 After hardware or software installation, you are responsible for backing up data on any storage devices at frequent intervals. FirmTek, LLC is not liable for any loss of data or damage to equipment resulting from the use of FirmTek products. External Shielded Serial ATA Cables The SeriTek/1SE2 uses specially shielded external Serial ATA cables to ensure integrity during data transfers.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction................... 1 Preparing the SeriTek/1EN2............5 Introduction................5 Hard Drive Installation..............6 Enclosure Placement..............10 Connecting the Shielded Data Cables and Power Adapter....12 III. Hot-Swapping Hard Drives ............13 Introduction................13 General Hot-Swap Guidelines ............. 13 IV. -
Page 4: Introduction
This product is yet another innovative solution from the innovative folks at FirmTek. About This User Manual This user manual will introduce you to the SeriTek/1EN2 enclosure. Please read it carefully and familiarize yourself with the proper operation of SeriTek/1EN2. About Serial ATA Technology An evolutionary replacement for the Parallel ATA storage interface, Serial ATA (Advanced Technology Architecture) provides greater speed, simpler upgrades and easier configuration. - Page 5 Four clear rubber feet Two external shielded Serial ATA data cables, 1-meter each One universal power adapter One CD-ROM containing the SeriTek/1EN2 user manual Part number SATA-1SEN2 also includes: One SeriTek/1SE2 two-port external Serial ATA host adapter - 2 -...
- Page 6 SeriTek/1EN2 Highlights Expand storage without overloading the computer’s power supply or increasing heat within its chassis A true native Serial ATA solution, no master/slave settings Integrated with a specially-designed Serial ATA backplane, no need for internal cabling Cross-platform, PC and Macintosh compatible, operating system independent...
-
Page 7: Hardware Requirements
(European Community) FCC Part 15 Class B (US) SeriTek/1EN2 System Requirements Hardware Requirements SeriTek/1SE2 two-port external host adapter or other external Serial ATA adapter with shielded Serial ATA receptacles 3.5” Serial ATA hard drive RAID or non-RAID configurations Materials Required... -
Page 8: Preparing The Seritek/1En2
II. Preparing the SeriTek/1EN2 Caution: Please make sure your data is backed up before attempting to use the SeriTek/1EN2 external enclosure. Your SeriTek/1EN2 enclosure, hard drive and computer contain sensitive components that can be permanently damaged by Static Electric Discharge. Be sure you’re working in an area free of static electricity to prevent them from being damaged. -
Page 9: Hard Drive Installation
Rear view of the SeriTek/1SE2 enclosure: Shielded data Power s witch connectors DC Power Receptacle Hard Drive Installation There are three steps to install a hard drive. 1. Remove a tray from the enclosu re On the front side of the tray, press down the slide lock (bottom, where the key hole... - Page 10 Lift up the tray latch, then pull out the tray: Lift and Pull Attach the hard drive to the tray Place your hard drive on a flat surface with the printed circuit board facing up: Position the tray over the hard drive and align the four screw holes on the drive to the countersunk screw holes on the tray.
- Page 11 3. Insert the drive tray into the enclosure There are two sets of tray rails inside the SeriTek/1EN2 enclosure, at the top and bottom of slots 1 (left) and 2 (right) Position the tray with the hard drive between the tray rails and carefully slide it into...
- Page 12 Carefully push the tray into the enclosure while pressing the tray latch down. This will lock the tray and hard drive into position. Note: If there is any resistance, ensure the tray is positioned properly as shown in the previous step, and that the hard drive was properly attached to the tray.
-
Page 13: Enclosure Placement
Enclosure Placement The SeriTek/1EN2 external enclosure may be seated in the included enclosure stand or can be used with the supplied clear rubber feet. When using the clear rubber feet, multiple enclosures may be set next to each other side-by-side or stacked with each enclosure placed horizontally on top of each other. - Page 14 Horizontal position: Peel and place the four clear rubber feet onto one side of the enclosure (Please do not stack more than two enclosures): Attaching the clear rubber feet for the horizontal position - 11 -...
-
Page 15: Connecting The Shielded Data Cables And Power Adapter
The SeriTek/1EN2 shielded Serial ATA data cables have keyed L-shaped 7-pin connectors at each end. Be sure to connect the cable using the proper orientation to the computer Serial ATA receptacle and the SeriTek/1EN2 external enclosure. -
Page 16: Hot-Swapping Hard Drives
Introduction The SeriTek/1EN2 external enclosure extends Serial ATA’s storage capabilities outside of the computer chassis. Serial ATA Hard drives can be swapped in and out of the SeriTek/1EN2 enclosure within seconds. While hard drives may be easily inserted and removed, some operating systems do not support the removal and addition of hard drives while the computer is running. - Page 17 (Removing, waiting a few seconds, and reinserting the hard drive into the SeriTek/1EN2 external enclosure will effectively power-cycle the drive. If both drives were removed/disabled, then the external enclosure itself may be power-cycled).
-
Page 18: Troubleshooting
Serial ATA. Does the SeriTek/1EN2 work with all Power Macintosh computers? No, SeriTek/1EN2 only works with Power Macintosh computers with at least one PCI slot available. If your system lacks PCI slots you cannot use SeriTek/1SE2. -
Page 19: Product Warranty And Disclaimers
FirmTek, LLC reserves the right to refuse shipments missing a valid RMA number. VI. Product Warranty and Disclaimers FirmTek warrants to the original buyer only that this product shall be free from defects in material and workmanship for a period of one year from the original date of purchase. This warranty is valid only when the original purchase invoice is provided. - Page 20 CE European Union Compliance Statement EMC compliance: Emissions: EN55022: 1998, Class B Immunity: EN55024: 1998 EN61000-4-2: 1995+A1: 1998 EN61000-4-3: 1995+A1: 1998 EN61000-4-4: 1995 EN61000-4-6: 1996 EN61000-4-8: 1993 SeriTek/1EN2 TSLKC2KD1106 - 17 -...
