Clutch Lever Free Play Adjustment - Yamaha Raptor YFM660RT Owner's Manual

EBU00741

Clutch lever free play adjustment

The clutch lever free play should be adjusted
to 5–10 mm (0.20–0.39 in).
1. Loosen the locknut at the clutch lever.
2. Turn the adjusting bolt at the clutch lever
in direction a to increase the free play or
in direction b to decrease the free play.
3. Tighten the locknut at the clutch lever.
NOTE:
If the specified free play cannot be obtained,
proceed with the following steps.
4. Loosen the locknut at the clutch lever.
5. Turn the adjusting bolt at the clutch lever
in direction a to loosen the cable.

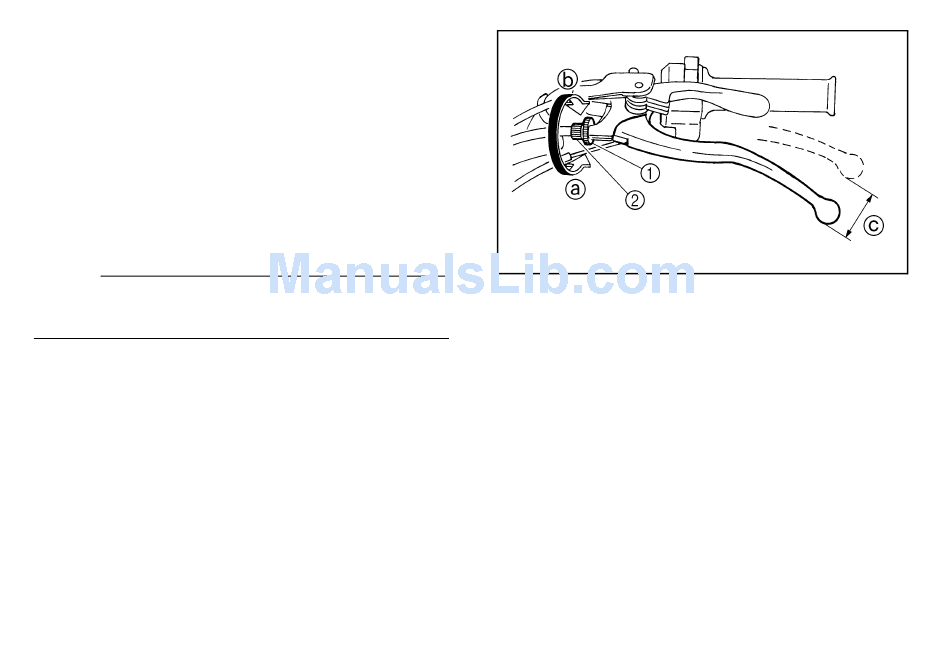

1. Locknut
c. Clutch lever free play
8-35
2. Adjusting bolt
