This document, along with the images, will provide direction for the adaptation of the HUMAN Heart Rate Monitor chest
strip transmitter. The purpose of this kit is to adapt the human 'chest-belt' style transmitter for use with the saddled horse.
NOTE: THIS KIT DOES NOT CONTAIN A TRANSMITTER. YOU APPLY THE LEADS TO YOUR
TRANSMITTER
.
If the leads are properly connected to the transmitter and a good solid wet connection is made under the saddle and girth,
the heart rate monitor will function properly. The Garmin transmitter is very sensitive to movement or a loose girth. It is
VERY important to make sure the girth is secure and the electrode site is wet with electrode gel, aloe gel or water.
NOTE TO GARMIN 310XT USERS
TEST THE GARMIN CHEST BELT TRANSMITTER ON YOU BEFORE YOU MODIFY THE TRANSMITTER WITH THE
ADAPTER KIT.
Read the GARMIN USER GUIDE for directions how to place it on you and setup the Garmin device. Make sure you can
obtain a heart rate. If you cannot observe YOUR heart rate, there is an issue with the Garmin unit. Refer this back to the
dealer who sold you the Garmin system.
The complete kit consists of:
2 white 4" pigtail lead wires, snap-clip to alligator clip
•
2 black electrodes, placed under the girth and saddle, attached to the white 26" & black coil leads
•
1 black coil lead wire – snapped to the pigtail lead attached to the transmitter, and routed to the girth black
•
electrode
1 Standard white 26" lead – snapped to the 4" white pigtail lead attached to the transmitter and routed under the
•
saddle pad
Velcro girth strip- placed around the girth to hold the black electrode in place.
•
User Guide, EKG gel small tube
•
Transmitter elastic sleeve– to put your block transmitter & wires into
•
Strip Transmitter Pouch rollup w/clips
•
NOTE: NO TRANSMITTER INCLUDED. YOU PROVIDE THE TRANSMITTER.
•
MODIFICATION DIRECTIONS FOR THE GARMIN 310XT HUMAN STRIP STYLE TRANSMITTER

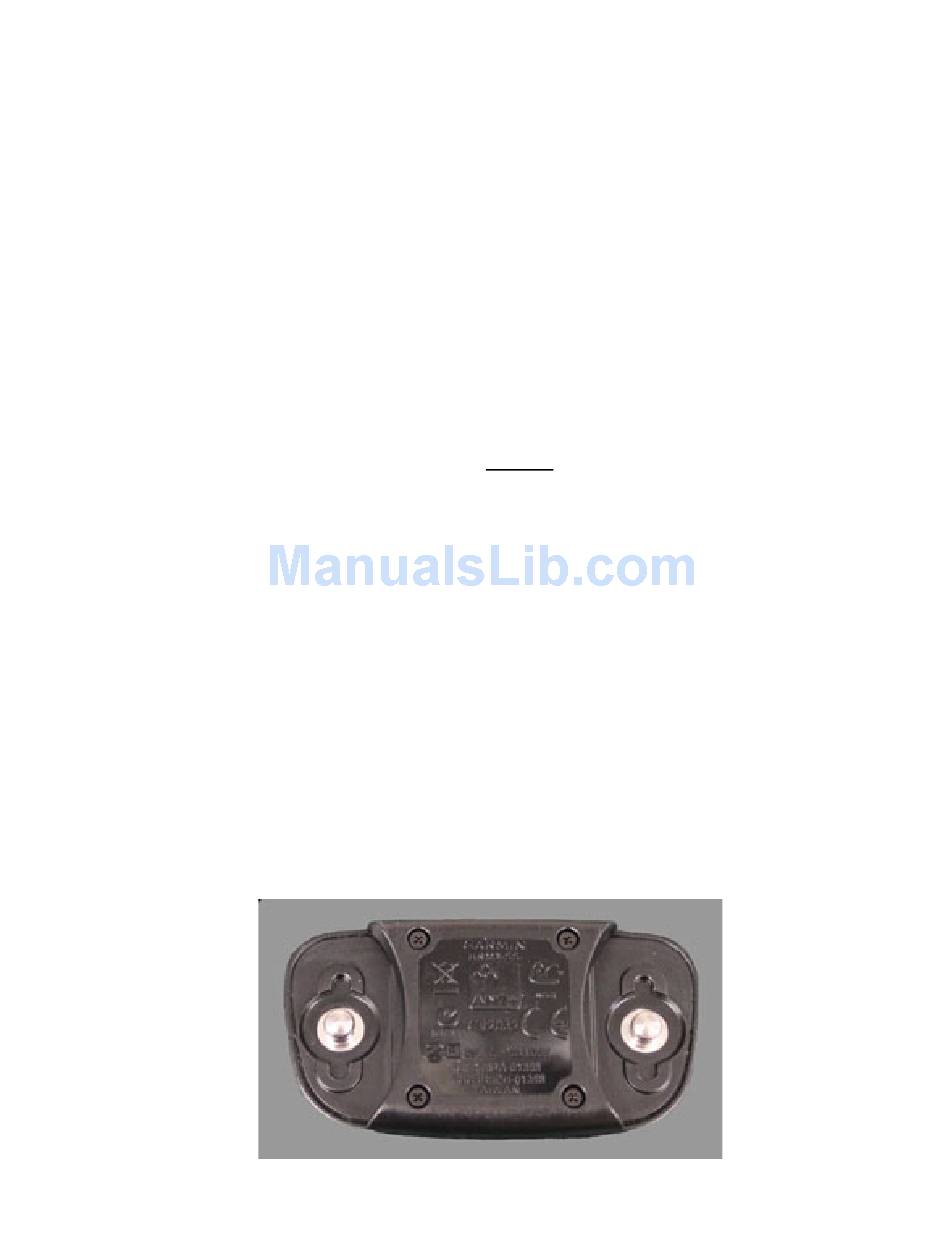

1. Garmin 310XT Transmitter, disconnected from the Garmin chest belt
V-MAX
310XT ADAPTER KIT
for the Garmin 310XT Transmitter
User Guide
HOW TO APPLY THE LEAD WIRE KIT (REFER TO THE PHOTOS)
®
1
Advertisement
Table of Contents
Summary of Contents for V-max 310XT
-
Page 1: User Guide
NOTE: NO TRANSMITTER INCLUDED. YOU PROVIDE THE TRANSMITTER. • MODIFICATION DIRECTIONS FOR THE GARMIN 310XT HUMAN STRIP STYLE TRANSMITTER HOW TO APPLY THE LEAD WIRE KIT (REFER TO THE PHOTOS) 1. Garmin 310XT Transmitter, disconnected from the Garmin chest belt... - Page 2 V-MAX ® 2. Connect the alligator clip of the 4” white pigtail leads to the transmitter. Squeeze the small clip on the lead wires and slide over the snap-stud of the transmitter. 3. Place the transmitter in the elastic sleeve. This will help insure the clips remain attached and protect the transmitter.
- Page 3 V-MAX ® 6. Attach the transmitter to the saddle using the 'roll-up' transmitter pouch with clips. Make sure the transmitter is held very tight and secure in the 'roll-up' transmitter holder 7. Place one of the black electrodes under the saddle and 1 to the girth as shown in the Lead Connection section.
- Page 4 *At Right: The strip transmitter in the clip on pouch, attached to the front of the saddle D-rings. www.v-maxheartratemonitors.com For Limited Warranty Information – please visit our website. If you have questions about your V-MAX® product please contact your local V-MAX® Dealer for support or visit our website. 4 ...
