Summary of Contents for Windchaser WDH-928
-

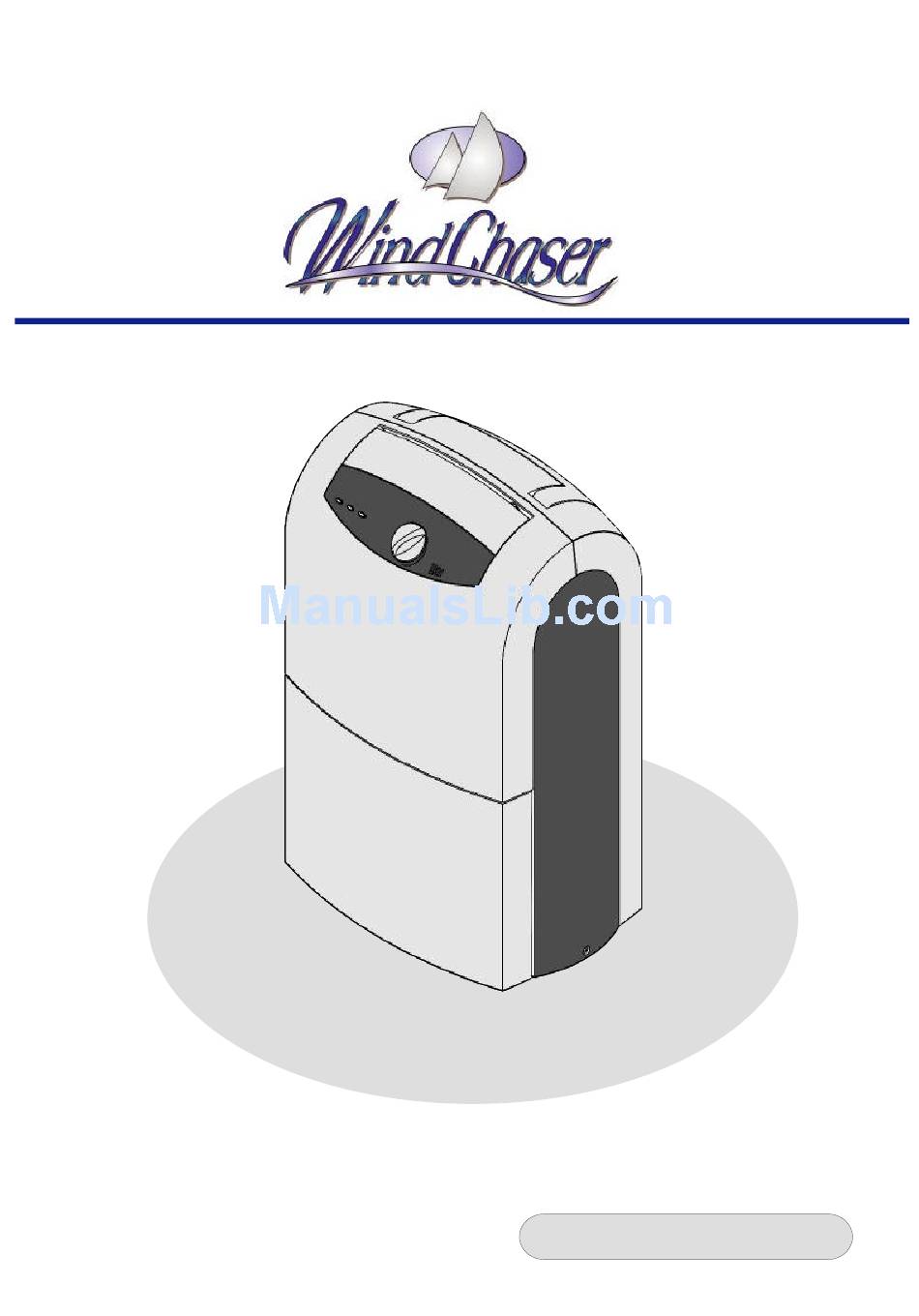

Page 1: Instruction Manual
® ® ® ® ® INSTRUCTION MANUAL Model:WDH-928 Please read this manual before use. Caution: Operate only with 115V,60Hz current... -
Page 2: Before Initial Use
BEFORE INITIAL USE Attach your purchase receipt here For your reference: Date of Purchase Serial No. Name and Address of Dealer UNPACKING INSTRUCTIONS 1. Place the unit in an upright position before unpacking. 2. Carefully lift the unit out of the box. 3. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS When using electrical appliances basic precautions should always be followed including the following: Do not damage the power cord. Never lay down the unit while it is working. Always keep unit in an upright position to avoid any damage to the cooling system. Operate this unit in an ambient temperature of 90 or lower. - Page 4 Component Air Outlet Cover Handle Control Panel Rear air vent Filter Water Tank Permanent Drain Hole Operating guide Setting for Humidity Level Defrost Indicator Light- Operation Indicator Light Between 50% to 60% Will Illuminate and the compressor will -Illuminates when dehumidifier shut off when the room temperature is operating.
-
Page 5: Operation
Operation Insert the power plug securely. Rotate the humidity dial to the desired setting, and the dehumidifier will automatically come on if the humidity level inside the room exceeds the selected setting. Upon reaching the desired humidity level, the dehumidifier will automatically stop. -
Page 6: Safety Precaution
Hooking up a Continuous Drain Hose: For continuous drainage via gravity, use a flexible PVC tube approx. 0.5 inches (1.3cm) in diameter, commonly found at home furnishing stores, cut to the required length. Lightly tap open the drain hole on the left of the housing. Insert the flexible PVC tube into the drain hole on the unit. - Page 7 Warning: Never insert any foreign objects into Keep all combustibles, such as Keep the electrical plug clean at the unit to avoid hazards. gasoline, away from the unit. all times. Never drape clothing over the Never spray insecticide or apply grease paint near the unit dehumidifier for drying.
-
Page 8: Operating Precaution
Operating precaution: Allow adequate clearance around Refrain from operating the Refrain from operating the all sides of the dehumidifier. dehumidifier near the sink. dehumidifier in a confined closet. Maintenance tips: Always make sure the power plug has been removed prior to maintenance or repair. 1) Caring for housing: A. -
Page 9: Electrical Specifications
Electrical specifications Model WDH-928 Current feed 115V, 60Hz Dehumidifying Capacity 30 PINTS 80.6 F 60%RH (27 C 60%RH) Power rating 570 watts Dimensions (WxHxD) 15.35 in x 24.09 in x 12.36 in (39.0 cm x 61.2 cm x 31.4 cm) Gross weight 46.29 lbs. -
Page 10: Product Limited Warranty
PRODUCT LIMITED WARRANTY This warranty applies to new product only and excludes optional accessories and attachments. Extended compressor warranty applies only to product with manufacturing dates beginning January 1,1998. During the first year from the date of original purchase, this product is warranted to be free from defects in materials or workmanship under normal use, service and maintenance. - Page 11 WindChaser Products, Inc. 4130 Del Rey Avenue, Marina Del Rey, CA 90292 (800) 405-2943, 310-827-8615 Fax: 310-827-8566 E-Mail: customerservice@windchaserproducts.com...
