SoundMax SM-2409 Instruction Manual

Cd/mp3 radio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-2409
CD/MP3 radio player
Instruction manual
CD/MP3-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-2409 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-2409

Summary of Contents for SoundMax SM-2409

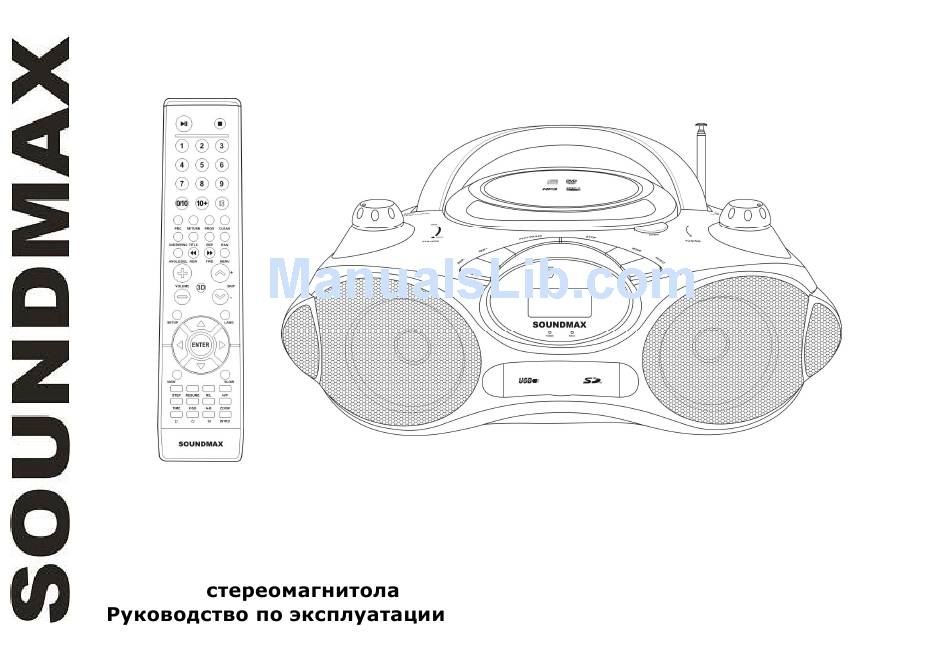

  • Page 1 SM-2409 CD/MP3 radio player Instruction manual CD/MP3-...

  • Page 2: Important Safeguards

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Important safeguards Utilization of the product If you want to dispose this product, do not mix it with general household waste.

  • Page 3: Power Supply

    When the device is moved from cold premises to the warm room or vice versa, condensate may form on the laser head and the device may not operate properly. In this case please turn the device on for 1-2 hours without disc before playback to heat it to a proper operation temperature.
  • Page 4 Connection Headphones For private listening, insert 3.5-mm headphone into the headphone jack on the back panel. Adjust volume control to the appropriate level as desired. When the stereo headphone jack is plugged, speakers will disconnect automatically. Video output Use the cable with yellow plug of an AV cable to connect the video output of this unit to the video input of a TV/monitor. S-video Use an S-video cable to connect the S-Video output of this unit to the S-Video input of your TV/monitor.
  • Page 5 Description Case controllers 1. VOLUME regulator 2. Handle 3. SKIP- button 4. SKIP+ button 5. PLAY/PAUSE button 6. IR sensor 7. Disc compartment cover 8. STOP button 9. MODE button 10. REPEAT button 11. OPEN button 12. Telescopic FM antenna 13.
  • Page 6 Rear panel 1. S-VIDEO output 2. MIC jack 3. Right audio output 4. Left audio output 5. VIDEO output 6. Phone jack Not indicated: Battery compartment (bottom), power cord socket (back panel), dial scale (left panel)
  • Page 7 Remote controller 1. PLAY/PAUSE button 2. Number buttons 3. RETURN button 4. PBC button 5. TITLE button 6. SUB/RIPPING button 7. REW button 8. ANGLE/DEL button 9. VOLUME+/- buttons 10. 3D button 11. SETUP button 12. ENTER button/cursor (UP/DOWN/LEFT/RIGHT) buttons 13.
  • Page 8 Battery installation 1. Remove the battery compartment cover on the back of the RC. 2. Insert the batteries into the battery compartment making sure that the correct polarity is observed. 3. Install the cover back. Use two AAA/1.5V batteries for the RC. The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.

  • Page 9: General Operations

    General operations Mute function Press MUTE button on the RC to turn off the sound. Press the button again or adjust volume to resume the sound output. Volume control Press VOLUME+/VOLUME- buttons on the RC or rotate VOLUME regulator on the unit to decrease or increase sound volume level.
  • Page 10 MP3/DivX/JPEG file playback When you insert a storage containing MP3/DivX/JPEG file, the screen will show following interface: 1. Storage folder list 2. Scroll bar 3. Current playback info 4. Current folder content (current file is highlighted) 5. Scroll bar 6. Audio track selection 7.
  • Page 11 Random playback Press RAN button on the RC to activate random playing mode. Press one more time to return to normal playing. Intro playback Press INTRO button on the RC to activate intro playing mode, beginning of each track will be played for several seconds. Press one more time to return to normal playing.
  • Page 12 Step playback During playback press repeatedly STEP button on the RC for frame-by-frame playback. While step playback, press PLAY/PAUSE button on the RC to resume normal playback. A-B repeat During playback press A-B button on the RC to set the beginning point of the fragment to repeat. Press A-B button again to set the final point.
  • Page 13 Selecting audio language (for DVD only) During DVD disc playback, press LANG button on the RC repeatedly to select the audio language to listen. This function will not work if a disc does not support multi-language audio. Selecting subtitle language (for DVD only) If your DVD disc supports multi-language subtitle, press SUB/RIPPING button on the RC repeatedly to switch among disc-supported languages.

  • Page 14: Usb/Sd/Mmc Operation

    After ripping is started, a menu will appear showing the progress of the procedure. In this menu you can change the ripping speed or cancel ripping. Notes: A folder named RIPPING is created on the USB-drive or memory card for the ripped files. If such a folder already exists on the storage, ripping operation is unavailable.

  • Page 15: System Setup

    System setup Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup page. Use LEFT/RIGHT cursor buttons to choose a setup page. Press DOWN cursor button to enter the setup page selected. U se UP/DOWN cursor buttons to select the option you want to adjust.
  • Page 16 Language setup OSD language: Select the language to be used for the on-screen display. Audio language: Select the language to be used for the audio. You can select a preferred audio from those included in the disc. Subtitle language: Select the language to be used for the Subtitles. You can select a preferred subtitle from those included in the disc.
  • Page 17 Speaker Setup DOWNMIX: LT/RT, STEREO, VSS. Dolby Digital setup OP mode: Line out/RF Remod Dynamic range (available in Line Out mode) If watching large dynamic scope movie program at night, selecting this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sound.

  • Page 18: General Information

    General information Handling compact discs Do not insert anything other than a CD into the disc tray. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause damage to the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 19: Specification

    Specification Playback formats CDDA/MP3/DVD-video/Super VCD/VCD/HDCD/Kodak Picture/JPEG Supported storages CD/CD-R/CD-RW, USB, SD, DVD/DVD±R/DVD±RW Audio CD ripping into MP3 format to USB flash drive and SD/MMC card Nominal voltage 220 V, 50 Hz Battery operation 12 V (1.5 V x 8 pcs UM2 batteries) Output power, RMS 2 x 3 W Nominal power consumption...
  • Page 21 (UM1),...
  • Page 22 VOLUME S-video S-video- S-video- –...
  • Page 23 VOLUME SKIP- SKIP+ PLAY/PAUSE STOP MODE REPEAT OPEN TUNING FM ST 17. USB-...
  • Page 24 S-VIDEO...
  • Page 25 PLAY/PAUSE RETURN TITLE SUB/RIPPING ANGLE/DEL VOLUME+/- SETUP ENTER/ VIEW STEP RESUME TIME PITCH NORMAL STOP MUTE PROG CLEAR MENU SKIP+/- LANG SLOW ZOOM INTRO...
  • Page 26 AAA/1.5V...
  • Page 27 MUTE VOLUME+/VOLUME- VOLUME FUNCTION Radio. BAND AM, FM FM ST AM,, FM FM-stereo FM ST FM ( TUNING, FUNCTION DVD/USB/SD.
  • Page 28 MP3/DivX/JPEG MP3/DivX/JPEG, ENTER AVI- PLAY/PAUSE STOP STOP SKIP- SKIP+ (0-9) SKIP- SKIP+ PREVIOUS NEXT : x2 => x4 => x8 => x20 => PLAY/PAUSE...
  • Page 29 REPEAT INTRO TIME; ENTER PROG, PLAY/PAUSE, » ENTER « », ENTER PROG,...
  • Page 30 ZOOM : X2 => X3 => X4 => X1/2 => X1/3 => X1/4 => SLOW PLAY/PAUSE STEP PLAY/PAUSE. (A-B) PBC ( VCD) VCD- PBC. PBC. VCD) RETURN VCD, PBC). ENTER. RESUME...
  • Page 31 CLEAR PITCH NORMAL. DVD) ANGLE/DEL DVD) LANG DVD) SUB/RIPPING => => => => (NTSC/PAL). DVD) MENU ENTER TITLE ID3- ID3-tag,...
  • Page 32 Ripping RIPPING, CDDA USB- RIPPING RIPPING SUB/RIPPING USB- ENTER. « » (bitrate), ID3- (CD text info) « » ENTER « » ENTER. USB- RIPPING. USB- USB/SD/MMC USB- ANGLE/DEL USB- SD/MMC USB/SD/MMC- USB: USB 2.0. SD/MMC:...
  • Page 33 USB/SD/MMC- FUNCTION DVD/USB/SD. MODE SD/MMC USB- « ».
  • Page 34 SETUP, SETUP. ENTER, , USB : PAL NTSC. : S-Video. 4:3/PS: 4:3/LB: 16:9: – 0000. 0000.
  • Page 36 , VSS OP mode: /RF Remod “ ”): – – – –...
  • Page 38 CDDA/MP3/DVD-video/Super VCD/VCD/HDCD/Kodak Picture/JPEG CD/CD-R/CD-RW, USB, SD, DVD/DVD±R/DVD±RW USB/SD/MMC- , 50 (1,5 UM2) S-Video 64 - 108 526,5 – 1606,5 2,55 /3,25 352 x 262 x 150...
