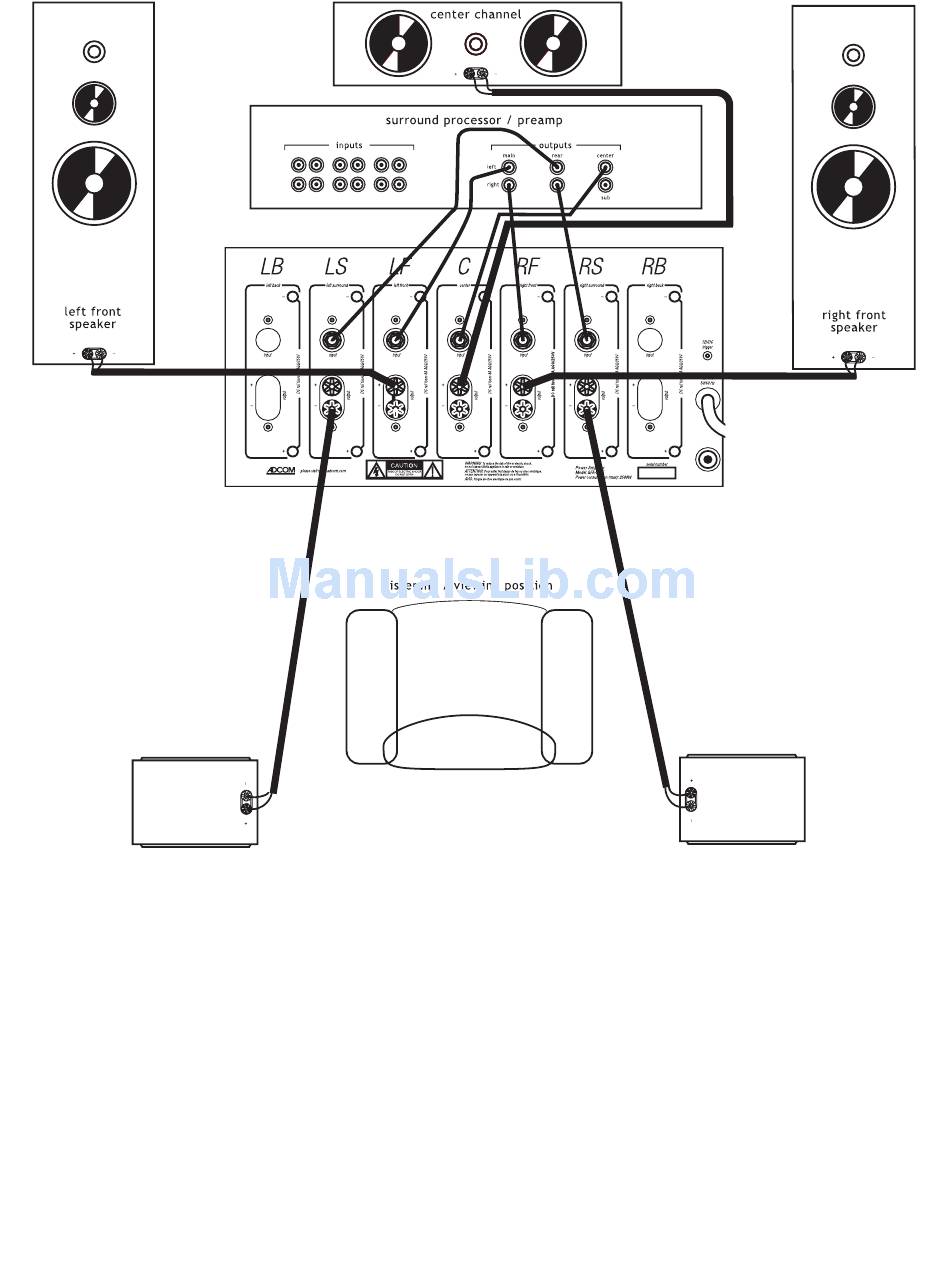

Connecting the GFA-7705/07

Remember, that the Left and Right designations are as you are sitting down in your listening/viewing area.
On the rear panel, the inputs and outputs are grouped in 5 or 7 bracketed sets, one set for each channel.
They are as follows:
LB — Left Back (GFA-7707 only)
LS — Left Surround
LF — Left Front
C — Center
RF — Right Front
RS — Right Surround
RB — Right Back (GFA-7707 only)
