Accell UltraAV DisplayPort Setup Instructions

Ultraav displayport to displayport multi-monitor adapter

Advertisement

Quick Links

Introduction:

The Accell UltraAV DisplayPort to DisplayPort multi-monitor adapter allows you to connect up to three DisplayPort monitors
using only one DisplayPort connector on your graphics card. Once connected, you have the freedom to configure the
monitors as a single unified display (expanded mode), or three identical displays (clone mode) by simply changing the
output resolution of your graphics card. This adapter is plug-and-play-ready, requiring no additional software or driver.

Features:

-Fully HD compatible supporting resolutions up to 3840x1024/60Hz/32bit color.
-No additional software to install, just Plug-and-Play.
-Works with any desktop or notebook computer (PC or Mac) that has a DisplayPort output.
-Designed to work with monitors that have DisplayPort input, and it works best if the monitors are of the same native
resolution, up to 1280x1024 per monitor.
-If monitors are of different native resolutions, the adapter will display at a resolution common to the monitors.
-If your graphics card has two DisplayPort ports, they can output to six monitors with two of these adapters!

Specifications:

• Connectors: Built-in 45" locking DisplayPort cable (to video card)
• 3 DisplayPort outputs (to monitors) - DisplayPort cables not included
• Max resolution: 3 monitors @1280x1024/60Hz/32bit color (3840x1024)*
• Latency: Near zero**
• Approximate dimensions: 6.5"(W) x 4"(L) x 1.5"(H)
• Power: Bus-powered via video card
• DisplayPort 1.1a compliant
• Maximum supported monitor frequency: 60Hz

Package Contents:

• DP to 3x DP Monitors Adapter
• Instructions
*Recommended: Same type DisplayPort monitors used, having the same native resolution, not exceeding 60Hz refresh rate.
**Features are subject to the capabilities of the computer and graphics card specification.

Installation Overview:

Follow the steps below to install the DisplayPort-to-3xDisplayPort adapter. It is recommended that monitors have the native
resolution (up to 1280x1024) and refresh rate (up to 60 Hz).

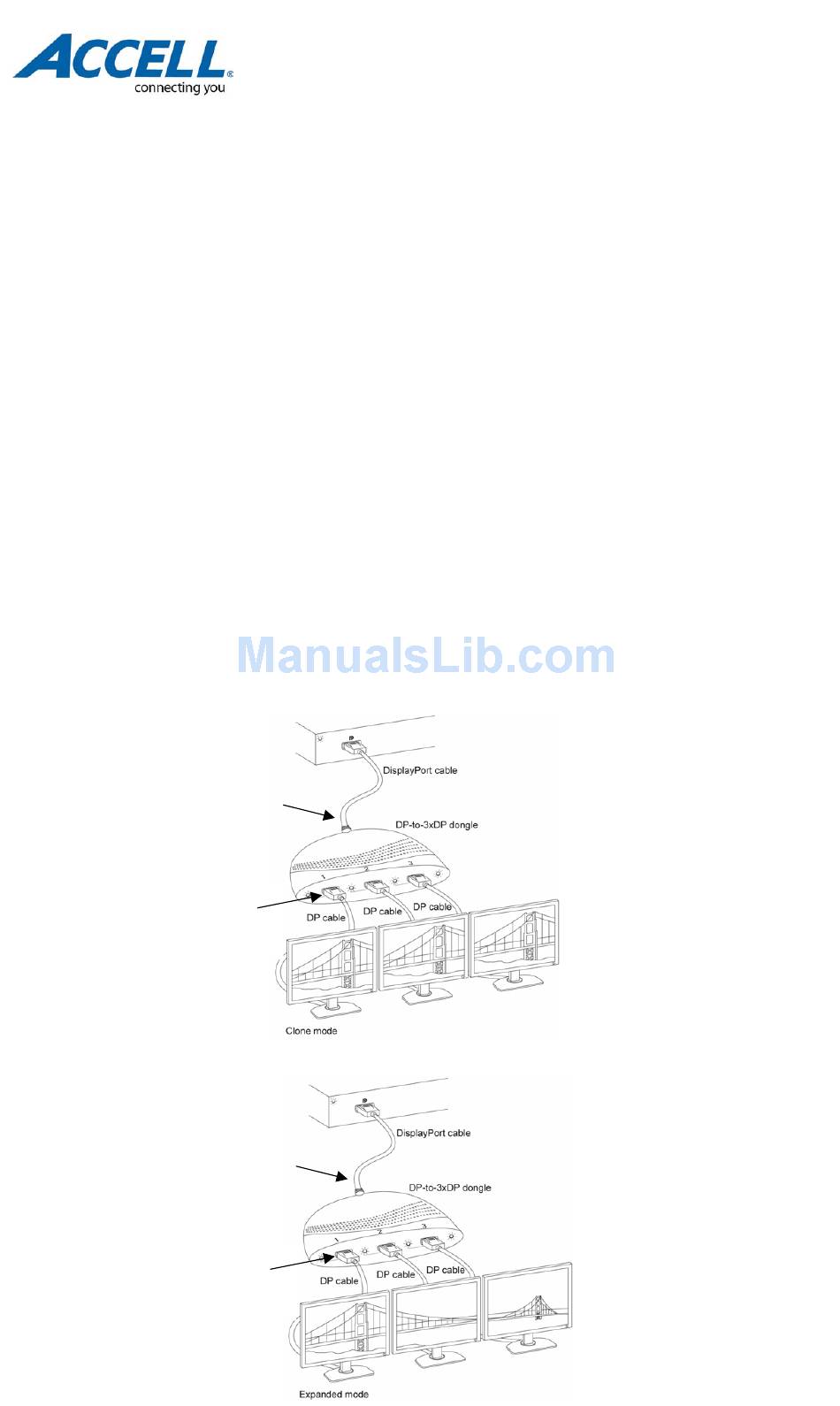

Clone Mode
Installation Procedure:
Step 1: Connect integrated DisplayPort
(DP) input cable to desktop or notebook
graphics card connector.
Step 2: Connect DisplayPort output
ports 1, 2 and 3 to up to three
monitors respectively, according to
the monitors' display sequence.
Expanded Mode
Step 1: Connect integrated DisplayPort
(DP) input cable to desktop or notebook
graphics card connector.
Step 2: Connect DisplayPort output
ports 1, 2 and 3 to up to three
monitors respectively, according to
the monitors' display sequence.
UltraAV DisplayPort
Adapter - Set-Up Instructions
Installation Procedure:
to DisplayPort

PC System Requirements:

•DisplayPort video card and DisplayPort
monitors**
•Microsoft® Windows® 7, Windows Vista™
(32/64bit), Windows XP
Windows Server 2003/2008 (32/64bit),
Windows 2000

Macintosh System Requirements:

•DisplayPort video card and DisplayPort
monitors** (note: mini DisplayPort video card
requires Mini-DP to DP adapter - not included)
•Mac® OS X v10.4, Mac OS X v10.5, Leopard
(32/64bit)
Step 3: Select monitors' input
port to DP
see the same image on all
monitors (clone mode) or a
single image spread across
multiple monitors (expanded
mode).
Step 4: To change the display to
clone mode, change the output
resolution on your computer and
select the horizontal resolution
equivalent to native resolution (or
lower) for one (1) of the monitors
i.e. 1280x1080 (horizontal x
vertical)
Step 3: Select monitors' input
port to DP
see the same image on all
monitors (clone mode) or a
single image spread across
multiple monitors (expanded
mode).
Step 4: To change the display to
expanded mode, change the output
resolution on your computer and
select the horizontal resolution
equivalent to three times the native
horizontal resolution of one monitor
i.e. 3840x1080 (horizontal x
vertical).
Multi-Monitor
(32/64bit),
1
. You will either
1
. You will either
