  • Page 1: Table Of Contents

    Warning! It will cause malfunction if the monitor is operating with unspecified power supply unit or incorrect power voltage. Do not exposure this unit in the rain or moisture environment to reduce the risk of fire or electric shock. Content: Introduction Features Unpack the monitor...

  • Page 2: Introduction

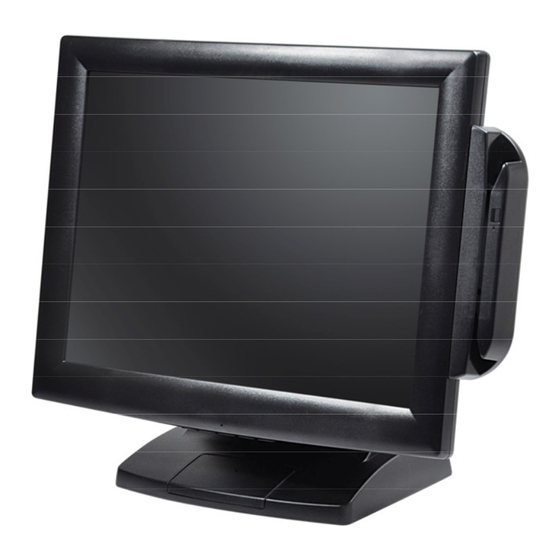

    Introduction OT15T is color TFT LCD monitor, integrate with Elo or TWN resistive touch, suitable for many types of application. Optional MSR and 2 display , please contact regional distributor for further information. Features Optimal display resolution 1024 * 768...

  • Page 3: Control Buttons

    Please refer to driver CD attach to product. MSR installation (optional) 1. Get MSR and screw ready 2. Attach MSR to monitor 3. Organize cables 4. Tighten 2 screws Control Buttons Use the power switch to turn the power ON or OFF. We recommend to turn your Power system power on first, then the LCD monitor.
  • Page 4 Press “UP” key to shift screen right, “DOWN” key to H. Position shift screen left. Press “UP” key to shift picture upward, “DOWN” key V. Position to shift picture downward. Geometry Adjust sampling clock of analog to digital converter Clock until clock is equal to pixel frequency of video input.

  • Page 5: For Your Safety

    Recall All Exit Sharpness Press “UP” key to increase sharpness, “DOWN” key to Display decrease sharpness. Miscellaneous Information Exit Exit III. For your safety 1. When move the monitor, always switch off power and disconnect all cables to avoid any danger. 2.

  • Page 6: Mechanical Dimension

    V. Mechanical Dimension: VI. FCC Warning Statement WARNING Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 7: Product General Specification

    VII. Product General Specification Model OT15T Display size 15" Display Area 304.1 * 228 mm Optimal Resolution 1024 * 768 Brightness 250 cd/m²s (typ) Contrast Ratio 600:1(typ) Response Time 8 ms (typ) Viewing Angle(L/R/U/D) 80 / 80 / 80 / 80 (typ)
