RCA TV REMOTE Installation And Operation Manual

Tv remote ho switch controller
Hide thumbs

Advertisement

Quick Links

TV REMOTE
HO SWITCH CONTROLLER
INSTALLATION AND OPERATIONS MANUAL
Computer Products for Education
PO Box 1694
Kingston, Pennsylvania 18704
www.cp4e.com
July, 2006

Advertisement

loading

  Also See for RCA TV REMOTE

  Related Manuals for RCA TV REMOTE

  Summary of Contents for RCA TV REMOTE

  • Page 1 TV REMOTE HO SWITCH CONTROLLER INSTALLATION AND OPERATIONS MANUAL Computer Products for Education PO Box 1694 Kingston, Pennsylvania 18704 www.cp4e.com July, 2006...
  • Page 2: Using The Remote

    There would be a high controller Controller (TVHOSC) system uses and a low controller. Select the a universal TV remote to control high or low controller using the 10 HO turnouts or switches. The Channel + or Channel – buttons universal TV remote is pictured respectively.
  • Page 3: Setting The Time Delay

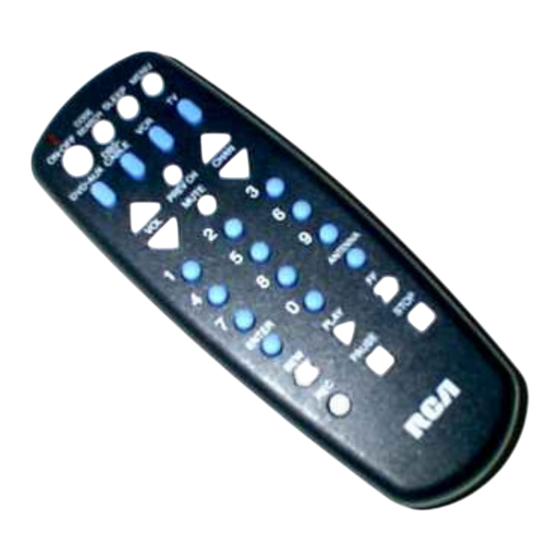

    The included remote is a universal type which has to be configured for a Sony TV. You can in fact use any universal remote programmed for a Sony TV. You must also have the TV button pressed to tell the remote to use TV codes. Most universal remotes can control several devices such as a TV, VCR, and DVD.
  • Page 4 You want to apply power to a switch for just long enough so the switch switches. Once this blue control has been set, the unit will keep using this setting in applying power to all switches connected to the unit. The unit comes with the blue dial of the pot, set in its center position.
  • Page 5 3 screws. There is a center common terminal with the other two screws being attached to the two switch coils. Here is a wiring diagram: TO AC ACCESSORY TO COMMON POWER TERMINAL ON ALL SWITCHES C B A C SCREW IR REC This table shows the connections: SWITCH...
  • Page 6 The lengths of wire used to connect the switches should be kept as short as possible. Use at least 22 gauge wire. The local train club has such a large layout that they use 14 gauge wire to connect their switches. As the wire gauge number gets smaller, the wire gets larger.
