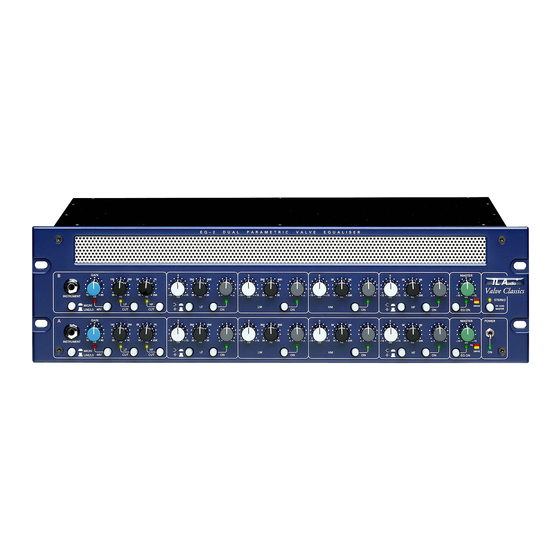

- Page 1 T L Audio User Manual EQ2 VALVE EQUALISER Tony Larking Professional Sales Limited, Letchworth, England. Tel 01462 490600, Fax 01462 490700.
- Page 3 Q controls. A total of six twin triode valves are employed in the EQ2: one valve stage per EQ band, plus a two stage post EQ driver circuit. Master level controls are provided, post EQ. These controls are also centre-detented...
- Page 4 Please read this manual fully before installing or operating the Equaliser. PRECAUTIONS The T L Audio EQ2 Parametric Valve Equaliser requires very little installation, but like all electrical equipment, care must be taken to ensure reliable, safe operation. The following points should always be observed:...
- Page 5 INSTALLATION AC Mains Supply. The equaliser is fitted with an internationally approved 3 pin IEC connector. A mating socket with power cord and mains plug is supplied. All mains wiring should be performed by a qualified electrician with all power switched off, and the earth connection must be used.
- Page 6 When using unbalanced signals, the signal ground may be obtained by linking pins 1 and 3 in the mating XLR connector. Good quality screened cable should be used, particularly for microphone or low level sources, to prevent hum or noise pickup. Unbalanced Line Inputs.
- Page 7 - Pin 2 = Signal Phase (“+” or “hot”), - Pin 3 = Signal Non-Phase (“-” or “cold”). If an unbalanced output is required, pins 1 and 3 should both be connected to ground. Nominal Output Level. A switch on the rear panel allows the output to be matched to equipment at a nominal operating level of +4dBu or -10dBu.
- Page 10 OPERATION. Front Panel. The front panel controls are identified in fig.3 Input Stage. Ensure that the correct input connector, mic or line, is being used and that the front panel switch is set to the appropriate position. Note that both mic and line inputs may be connected at the same time, but only one is selected.
- Page 11 Stereo Switch. Most two channel equalisers require the time consuming and inaccurate practice of attempting to match settings on two sets of controls. The EQ2 provides a simple and quick means of ganging the controls into a full stereo equaliser.
- Page 12 8u!n~s qOR~ 'pUBq ~UOfB q:l.!M. ~q:l. Aou~nb~lJ 10J:l.UOO 'S~U!~S AI~:I.'e!P~WW! UOWWOO 0:1. q:l.oq fBu3'!S 'sq:l.'ed NI-oa ~l(l. O~J~:l.S ~U!~UR~ s~pnl~U! ~l(:I. pURq JJOfUO 'q~:I.!M.S :l.nq S~A'e~1 ~q:l. nRJ~AO S~qO:l.!MS '~:l.RIBd~s wnW!XRW A:I.!I!q!X~IJ ~U!JRdwo~ ~q:l. :l.O~JJ~ ~q:l. UO!:I.'eS!IRnb~ ~U!~q 'P~!ldd'e ~ql. :l.ndU! :l.nd:l.no SU!'e~...
- Page 13 EQ2 Parametric Equaliser Technical Specification. Inputs: Line level balanced @ +4dBu nominal, via XLR sockets, plus unbalanced on jack sockets. Maximum input +24dBu, input impedance greater than 5Kohm. Instrument input on front panel jack, switchable to high/low gain for guitar or keyboard.
- Page 14 .l3}S~ 13A3'J :1°.l}ooJ SI-/+ ':)~U~J :s}nd}no P;)':)u~l~g S"lIlX snld ){':)~f~:)U~I~qun 'S};)){':)Os I;)u~d ~lq~q':)}!/I:\S ngpt+ ngpOI- Itrn!Ul°U 1~~1 wnw~ I~~I ngp9'l+ '(P;)':)u~~q) :S3AIWA LXV'lI/£8J;)3: 's:)PO!J:) ~~u~Jrn ;)UO ~A~A ;)~~S 'J~IY SRld Oft\t ;)~mS }nd.}no J;)A!lp l;)UU~':) A303nb3.l.!l :3Soods3.1 ZHOI :ZH)IOt 'gp'l- SJ~ijY 'uno :3S!ON...
- Page 19 SERVICE Should the equaliser require service, it must be taken or posted to an authorised dealer with a description of the fault. Please retain the original packing for possible future use, and ensure the unit is suitably protected during transit. The manufacturer cannot accept responsibility for damage caused during transportation.
