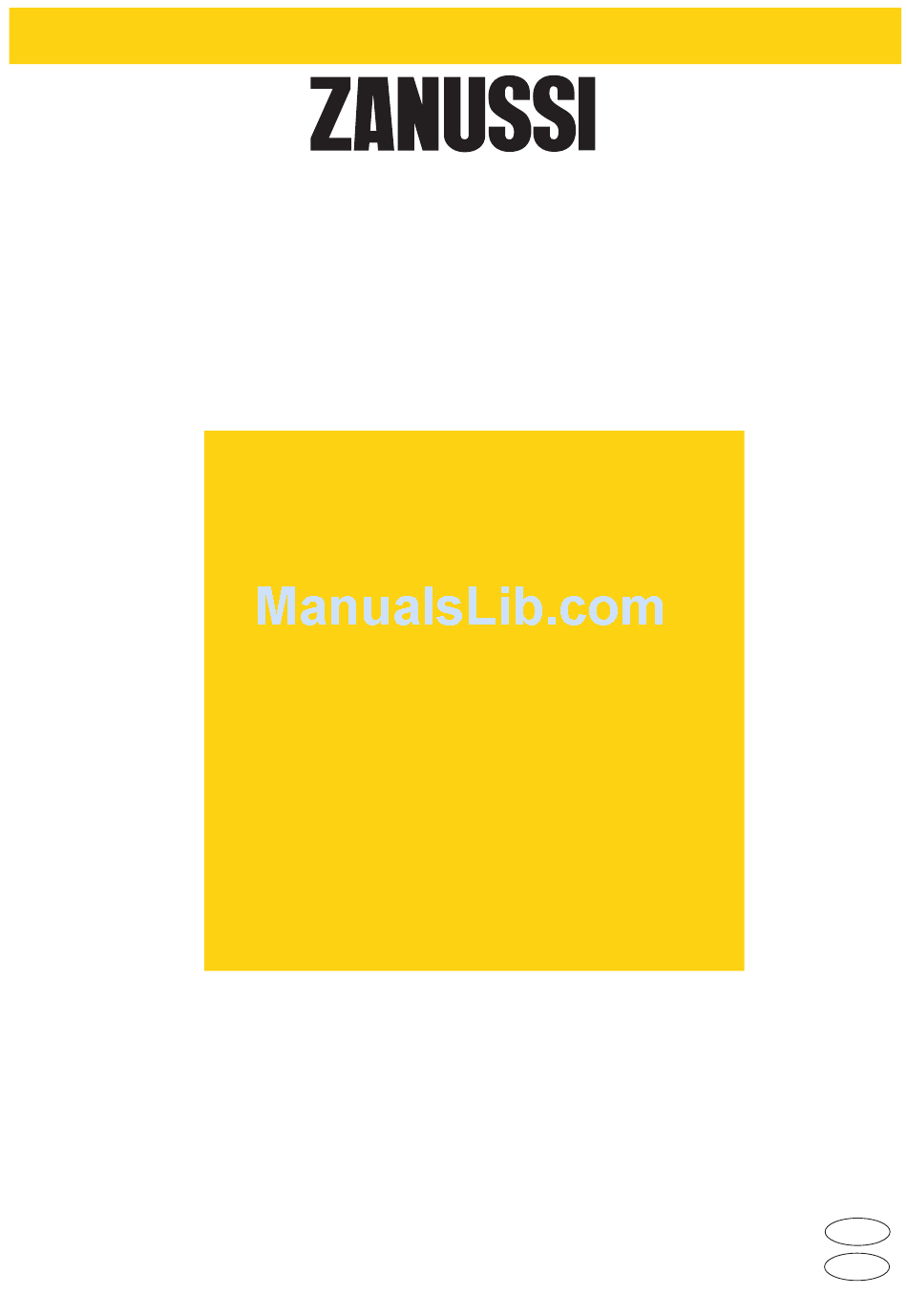

- Page 1 GESCHIRRSPÜLER DISHWASHER ZTI 6100 GEBRAUCHSANWEISUNG INSTRUCTION BOOKLET 152983 87/0...
-
Page 2: Table Of Contents
Contents For the user For the installer Important safety information Installation instructions Water supply connections Description of the appliance Water outlet hose connection The control panel Electrical connection Before use Building-in Setting the water softener Rinse aid Using your appliance Loading your appliance Adjusting the height of the upper basket Use of detergent... -
Page 3: Important Safety Information
Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 4: Description Of The Appliance
Description of the appliance Levelling spacers Upper basket stop Upper spray arm Salt container Large filter Detergent dispenser Control panel Rating plate Rinse aid dispenser 10. Central filter 11. Lower spray arm 12. Upper basket 13. "SID" detergent dispenser IN84 The control panel 9 10 On/Off push button... -
Page 5: Audible Signals
Eco drying push button Audible signals By pressing this push button you can opt to Audible signals have been introduced to help shorten (Eco dry) or completely eliminate (No indicate which operations the dishwasher is dry) the heating phase during the last rinse, so performing. -
Page 6: Before Use
Before use Before using your dishwasher for the first time: 1. Ensure that the electrical and water connections comply with the installation instructions 2. Remove all packaging from inside the appliance 3. Set the water softener 4. Pour 1 litre of water inside the salt container and then fill with salt 5. -
Page 7: Filling With Salt
Filling with salt Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme). -
Page 8: Rinse Aid
Rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting. -
Page 9: Using Your Appliance
Using your appliance Loading your appliance Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance. Do not load very small items which can fall through the baskets. Open the door and slide out the baskets to load the dishes. -
Page 10: The Cutlery Basket
The cutlery basket Long bladed knives stored in an upright position are a potential hazard. These items should only be placed in the removable knife basket. Take care when loading or unloading sharp items such as knives. Removable knife basket Long and/or sharp items of cutlery such as carving knives must be placed horizontally in the removable knife basket, which is positioned at the rear of the... -
Page 11: Adjusting The Height Of The Upper Basket
The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the fold-down cup racks so that water can reach all surfaces. Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so they do not move. -
Page 12: Use Of Detergent
Use of detergent Only use detergents specifically designed for use in dishwashers. If using powder detergents proceed as follows: Min = 15 g Max = 30 g 1. Open the dispenser lid by pulling the catch (D). 2. Add the detergent. As all detergents are not the same, you should consult the instructions on the packet. -
Page 13: Hints And Tips
Hints and tips To save energy Items not suitable for dishwashers Place dishes in the machine immediately after every meal and wait until the dishwasher is full before The following items should not be washed in washing. the dishwasher (unless they are sold as If necessary run the Rinse and Hold programme (see dishwasher proof): "Washing Programmes"... -
Page 14: Washing Programmes
Washing programmes Programme Degree of soil Cycle description type of load Any. 1 cold rinse Partial load (to be completed later in RINSE AND (to avoid food scraps from sticking the day). HOLD together). Hot prewash Main wash up to 70°C Heavy soil. -
Page 15: Operating Sequence
Operating sequence Check the filters 7a. Setting and starting the programme without "delay Ensure they are clean and properly positioned (see "Maintenance and cleaning"). start" The selection of the programme occurs with the door partially opened. Press the On/Off push button Press the "programme selector"... -
Page 16: At The End Of The Washing Programme
7b. Setting and starting the At the end of the washing programme with "delay start" programme Once a programme and required options The dishwasher will automatically stop and have been selected (see point 7a.) to use an intermittent audible signal will sound DELAY proceed as follows: when the programme has ended (with the delay start the audible signal is... -
Page 17: Maintenance And Cleaning
Maintenance and cleaning Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend every 3 months to run a 65°C wash programme without dishes using detergent. Cleaning the central filter (After each wash) Scraps of food may accumulate in the drain filter (A) -
Page 18: External Cleaning
Check that the SID is not clogged with detergent residue. If necessary rinse it under running water after having removed it from the basket by twisting it anticlockwise and pulling it upwards. Fasten it back onto the support by turning it clockwise. Never use your dishwasher without the SID dispenser. -
Page 19: Something Not Working
Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. The dishwasher is fitted with a number of alarm systems which can help you to quickly determine the cause of any problems. -
Page 20: Service And Spare Parts
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door (see picture). Service and spare parts Prod.No. -
Page 21: Hints For Test Centres
Hints for test centres Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser. Test standard EN 50242 Reference programme: Bio 50°C with prewash Load: 12 standard place settings Rinse aid selector: position 5 Detergent dosage :... -
Page 22: Installation Instructions
Installation instructions Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 23: Water Outlet Hose Connection
Water outlet hose connection The end of the drain hose can be connected in the following ways: 1. To the sink outlet siphon, securing it if necessary with a clip. 2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm. The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher. -
Page 24: Building-In
Building-in This dishwasher is designed to be fitted under a kitchen counter or worksurface. It is essential that the recess dimensions indicated in the diagram are followed. No further openings for venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through. -
Page 25: The Furniture Door
The furniture door The door on this appliance is designed for the overlay of a panel having the following dimensions: Width 596 mm Height 644 - 724 mm max Thickness 20 mm max 596 max 596 max Weight 2 - 7.5 kg max The height of the panel depends on the height of adjacent kitchen units (see kitchen plinth adjustment). -
Page 26: Noise Protection
Noise protection Adhesive noise protection ensures excellent noise insulation. This should be fitted when the dishwasher has been mounted in the recess and the height adjusted. Apply the protection as shown in the drawing, making sure that the non-adhesive section reaches right down to the floor.
