Summary of Contents for APELL AWM128ES1
-

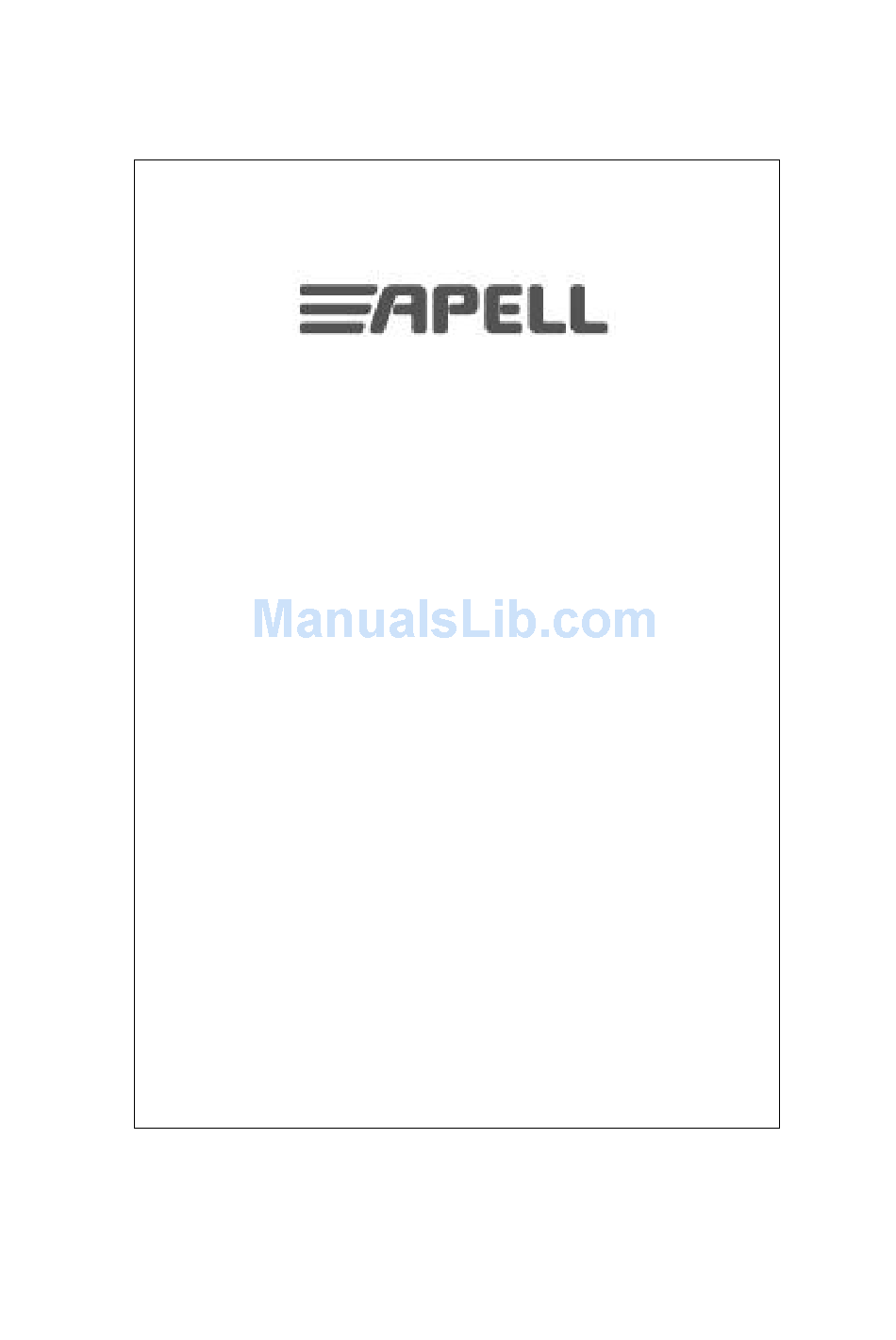

Page 1: Washing Machine
LAVABIANCHERIA MANUALE DELL’UTENTE WASHING MACHINE USER MANUAL MANUAL DE INSTRUCCIONES DE LAVADORA ELECTRONICA... -
Page 2: Table Of Contents
THE CONTENTS SECTION 1:BEFORE USING Safety warnings Recommendations SECTION 2:INSTALLATION Removal of transportation screws Adjustment of feet Electrical connection Water supply connection Water drain connection SECTION 3:TECHNICAL SPECIFICATIONS SECTION 4:CONTROL PANEL Start/Pause button Function indicator lights Function buttons Spin speed selector Program knob SECTION 5:WASHING YOUR LAUNDRY Before washing... -
Page 3: Section 1:Before Using
SECTION 1:BEFORE USING SAFETY WARNINGS Do not use a multiple socket or extension cord. Do not insert a plug with damaged or broken cord into the socket. If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard. -
Page 4: Section 2:Installation
If you will not use your machine for a long time, unplug your machine, close the water supply and leave the door open in order to keep the inside of the machine dry and for prevention from unpleasant odour. As a result of the quality control procedures, a certain amount of water may remain in your machine. -
Page 5: Electrical Connection
You can adjust the balance of your machine from its feet. First, loosen the plastic adjustment nut. Adjust by rotating the feet upwards or downwards. After the balance has been reached, tighten the plastic adjustment nut again by rotating it upwards. Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground. -
Page 6: Water Drain Connection
Water pressure of 0,1-1 MPa from your tap will enable your machine to work more efficiently.(0,1 MPa pressure means water flow of more than 8 liters in 1 minute from a fully opened tap) After connections are completed, check for the non-leakage of the connection joints by turning on your tap completely. -
Page 7: Section 3:Technical Specifications
SECTION 3:TECHNICAL SPECIFICATIONS Maximum dry laundry capacity (kg) Recommended loading (kg) Height (cm) Width (cm) 59,6 Depth (cm) Maximum spin 1200 cycle ( rpm ) (*) Maximum spin cycles depend on the model you’ve chosen... -
Page 8: Section 4:Control Panel
SECTION 4:CONTROL PANEL 1-Detergent drawer 6-Program knob 2-Start/pause light 7-Start/pause button 3-Function indicator lights 8-Function buttons 4-Spin speed selector 9-Program end light 5-Program ready light... -
Page 9: Start/Pause Button
START/PAUSE BUTTON Used to start a selected program or pause during running. WARNING! It is required for the program knob to be brought to O(off) position before selecting the program or changing a continuing program. FUNCTION INDICATOR LIGHTS When the start/pause button or any function button is pressed,the corresponding light turns on.The light turns off when the function button or start/pause button is re-pressed, or when the process the selected function is completed. - Page 10 If you do not want your sensitive clothes to be spinned or you want them to be spinned sensitively, turn the program knob to O (off) position. Bring the program knob on one of the draining or spinning programs you desire and press the start/pause button.
-
Page 11: Spin Speed Selector
SPIN SPEED SELECTOR By the spin speed selector knob, you can make the adjustment of speed for the process of spinning your clothes.The speed adjustment interval is between O (No spin) and the maximum spinning speed of your machine. NOTE: Do the spinning process of your sensitive and delicate clothes in the most appropriate mode. -
Page 12: Section 5:Washing Your Laundry
SECTION 5: WASHING YOUR LAUNDRY Plug the machine. Open the tap water. First wash cycle There may be water left inside your machine after factory tests and trials.It is recommended that the first wash cycle should be made without any laundry so that carry out this water;... - Page 13 Pull the textiles like trousers,knitted fabric,t-shirt and sweat shirt inside out. Wash your small clothes like socks and handkerchiefs in a washing bag. Wash up tol 90 C Wash up to 60 C Wash up to 30 C Not washable in washing machine Placement of the clothes into the machine Open the door of your machine.
-
Page 14: Running The Machine
You can use fluid detergents in all programs without pre-washing. For this, mount the fluid detergent level plate in the second compartment of the detergent drawer and arrange the amount of fluid detergent according to the levels on this plate. RUNNING THE MACHINE Program selection and features Select the program and additional functions appropriate for your clothes from... - Page 15 The door will be unlocked in approximately two minutes after the program ends.You can open the door by pulling the handle of the door towards yourself and take out your clothes. After you unload your clothes leave the door open to dry the interior of your machine.
- Page 16 MAX DRY LOAD DETERGENT CAPACITY (kg) PROGRAM TYPE OF LAUNDRY EXPLANATIONS COMPART. Dirty, boil, cotton and 1-COTTON 90 linen textile 2-COTTON 60 Very dirty, cotton, (PREWASH) coloured and linen textile Dirty, cotton, coloured 3-COTTON 60 and linen textile Slightly dirty, paint to get 4-COTTON 40 out, cotton, coloured and linen textile...
- Page 17 DETERGENT MAX DRY LOAD PROGRAM TYPE OF LAUNDRY EXPLANATIONS COMPART. CAPACITY (kg) 13-SPORT All spore clothes and Sport clothes CLOTHES jeans Slightly dirty, synthetic or 14-SYNTHETIC synthetic mixture sensitive Nylon socks, blouse laundry.Washed without COLD heating the tap water. 15-CURTAIN Tulle and curtain as Tulle, curtain, diolen, WASH...
-
Page 18: Section 6:Maintenance And Cleaning
SECTION 6: MAINTENANCE AND CLEANING Unplug your machine. Close the water tap. WATER INLET FILTERS On the tap part of your machine’s water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. -
Page 19: Detergent Drawer
WARNING! Danger of being scalded! Since the water inside the pump maybe hot, wait for it to cool. DETERGENT DRAWER Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time.To pull out the detergentdrawer: Pull the detergent drawer to the end.(DIAGRAM-1) Siphon plug to tread of the drawer, continue to pull until the drawer is pull... -
Page 20: Siphon Plug
SIPHON PLUG Pull out the detrgent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if it placed properly. Siphon plug THE CABINET Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not irritate the cabinet. -
Page 21: Section 7:Practical Information
SECTION 7:PRACTICAL INFORMATION Alcoholic beverages: The stain point, should first be washed with cold water, than should be wiped with glycerine and water and be rinsed with water mixed with vinegar. Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. -
Page 22: Section 8:Avoiding Minor Faults
Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%). Ink: Hold the stained area under cold water and wait until the inky water completely runs off. - Page 23 METHODS OF FAILURE PROBABLE CAUSE ELIMINATION Insert the plug into the It is unplugged. socket. Your fuse is defected. Change your fuse. The electric power is Check the electric off. power. Start/pause button has Press the start/pause Your machine does not not been pressed.
- Page 24 METHODS OF FAILURE PROBABLE CAUSE ELIMINATION There is a small It does not prevent amount of clothes in operation of the the device. machine. Do not exceed the Excessive amount of recommended quantity clothes are filled in the Your machine is of clothes and spread machine or the clothes vibrating.
- Page 25 METHODS OF FAILURE PROBABLE CAUSE ELIMINATION Clothes exceeding the Put the clothes in your maximum capacity machine in a manner has been filled in your not to exceed its machine. maximum capacity. Use the amount of The washing result is Your water may be detergent according to not good.
-
Page 26: Section 9:Automatic Failure Detection System
METHODS OF FAILURE PROBABLE CAUSE ELIMINATION The unbalanced load control system will try to distribute your clothes in a homogenous manner. No failure. The The spining process is After your clothes are unbalanced load not done or starts with distributed, passage to control may works in delay . - Page 27 FAILURE FAILURE PROBABLE THE PROCESS CODE INDICATOR FAILURE TO BE DONE Turn on the tap to the end.Water may be cut, check it.If the problem is still The water level continuing,your in your machine machine will The program is below heater. automatically Err 02 ready light...
- Page 28 FAILURE FAILURE PROBABLE THE PROCESS CODE INDICATOR FAILURE TO BE DONE Shut down your The heater of your machine and The start/pause machine or the unplug. Turn off Err 05 light and program heat sensor has your tap and apply end light blink.
-
Page 29: Section 10:International Washing Signs
SECTION 10: INTERNATIONAL WASHING SIGNS Washing Do not wash Lukewarm iron. Medium hot iron. temparature. (hand wash) Do not tumble Hot iron. Do not iron. Hang to dry. dry. Drip dry. Dry flat. Do not bleach. Handy to bleach. All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used.
