VARIZOOM VZ-WFF Instruction Manual

Wireless follow focus

Advertisement

Quick Links

VZ-WFF
(Wireless Follow Focus)
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VZ-WFF and is the answer not in the manual?

Questions and answers

Summary of Contents for VARIZOOM VZ-WFF

  • Page 1 VZ-WFF (Wireless Follow Focus) Instruction Manual...
  • Page 2 Technical Support Address any technical question to: VariZoom Tel: (512) 219-7722 (M-F 8:30 am/ 4:30 pm Central) Website - www.varizoom.com pg. 23...
  • Page 3: Table Of Contents

    Table of Contents Resolution: 12-bits (4096 steps), all steps always used. Data Update Rate: 300 transmissions/second Transmission Delay: 2.7 milliseconds Introduction………..…………………………………………………..4 Transmitter…………………………………………………………….5 Receiver/Amplifier Specifications Dimensions/Weight: approx. 4½" by 3½” by 1½” / approx. 11 oz. Transmitter Controls…..……………………………………………...6 Power Consumption: 50 milliamps @ 11-17VDC (Motor off) up to 3 amps max when driving a motor Transmitter Indicators….………………………………….………….8 Power Output to Motor: 2 amps maximum @ 18 VDC (36 watts)
  • Page 4: Transmitter

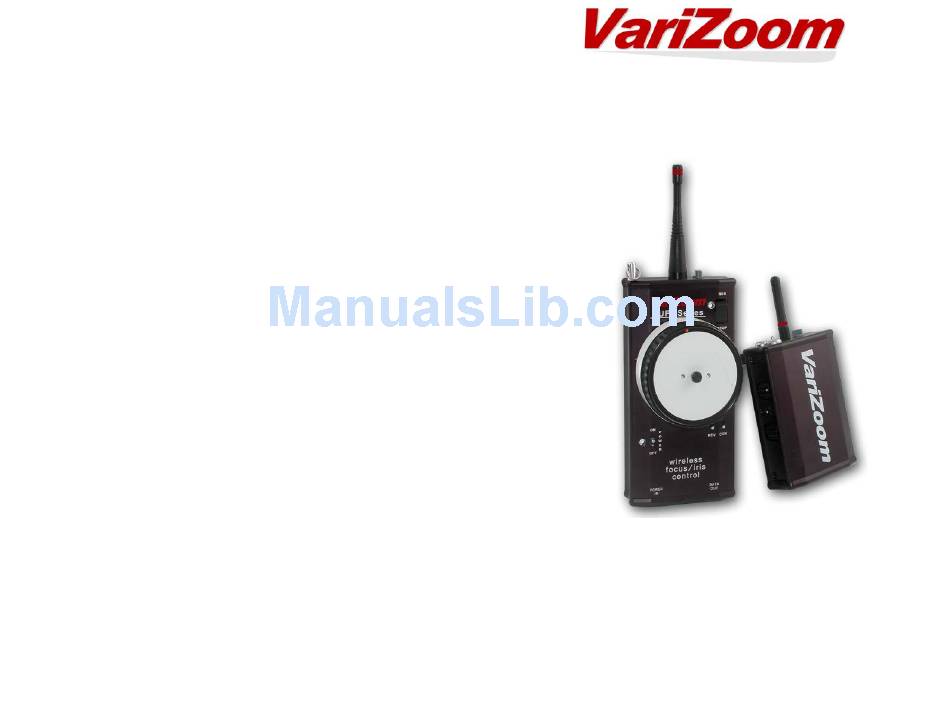

    The WFF Unit RECEIVER BACK A WFF unit consists of a hand-held Transmitter control, a Receiver/Amplifier motor driver unit, and a power cable. To control a lens, a lens drive motor and motor cable are required. To start and stop a camera a remote control, or “run/stop” cable is required. The Transmitter The transmitter control unit, called just the ”Transmitter”, is a small, lightweight, hand-held unit that enables the operator to remotely...
  • Page 5 Connector Pinout TRANSMITTER BOTTOM POWER IN (p. 4) DATA OUT (p. 4) 1: +7 TO 15 VDC 1: GROUND 2: GROUND 2: RF SHUTDOWN (SHORT TO GROUND) 3: DATA OUT RECEIVER FRONT PWR (p. 7) DATA IN (p. 7) 1: +11 TO 17 VDC 1: GROUND 2: GROUND 2: RF SHUTDOWN (SHORT...
  • Page 6: Transmitter Controls

    When I switch the transmitter on the light on the receiver turns Transmitter Controls green but moving the knob on the transmitter doesn’t make Control Knob: Each Transmitter has one main control knob, the motor move. either a rotary knob or a linear slider. Once the lens The most likely cause of this is that both calibration knobs are in drive motor has been calibrated to the lens at the the start position (rolled all the way towards each other).
  • Page 7 Troubleshooting Other cameras, such as the Moviecam Compact, I cannot get the receiver/amplifier to receive the signal from require a momentary contact closure to start the the transmitter (receiver/amp LED stays red or flickers camera and another momentary closure to stop the between red and green).
  • Page 8: Transmitter Indicators

    Green: Unit on and transmitting, battery voltage component failure under normal operation for 1 year from the date of purchase. VariZoom will pay shipping UPS ground within the Flashing Green: The unit has not been used for United States to return the unit after repairs.
  • Page 9: Transmitter Battery

    Other Things to Know DATA OUT Connector: This 3-pin connector is provided to allow direct connection of the Transmitter and the Interference from Video Transmitters: UHF video Receiver/Amplifier unit. When connected, the transmitters, such as the Modulus 2000 or 3000, tend to broadcast RF sections in both the transmitter and on other frequencies than the intended frequency.
  • Page 10 The calibration knobs still set the ends of lens travel, but the calibration is slightly different. The calibration toggle switch has no effect and should be set in the middle position. Simply move the remote pot control all the way to one end of its travel. At this point, one of the calibration wheels will have a large effect on its operation, and one will have little effect.
  • Page 11: Receiver/Amplifier

    Either one may be used for connection to an external 11 to 17VDC power source. If two WFF’s are being used and only one power source exists, Receiver/Amplifier Controls plug the second Receiver/Amplifier’s cable into the ON/OFF Switch: This switch controls power to the unused power connector on the first one.
  • Page 12: Receiver/Amplifier Led

    WFF CALIBRATION PROCEDURE Receiver/Amplifier LED STATUS LED: This red/green has three modes of operation: Red: The unit is on but not receiving a signal from the Transmitter Green: The unit is on and receiving a signal from the Transmitter Flashing Red/Green: In calibration mode (the toggle switch is not in the center “operate”...
