Sinetic PM-150 User Manual

Lcd color monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

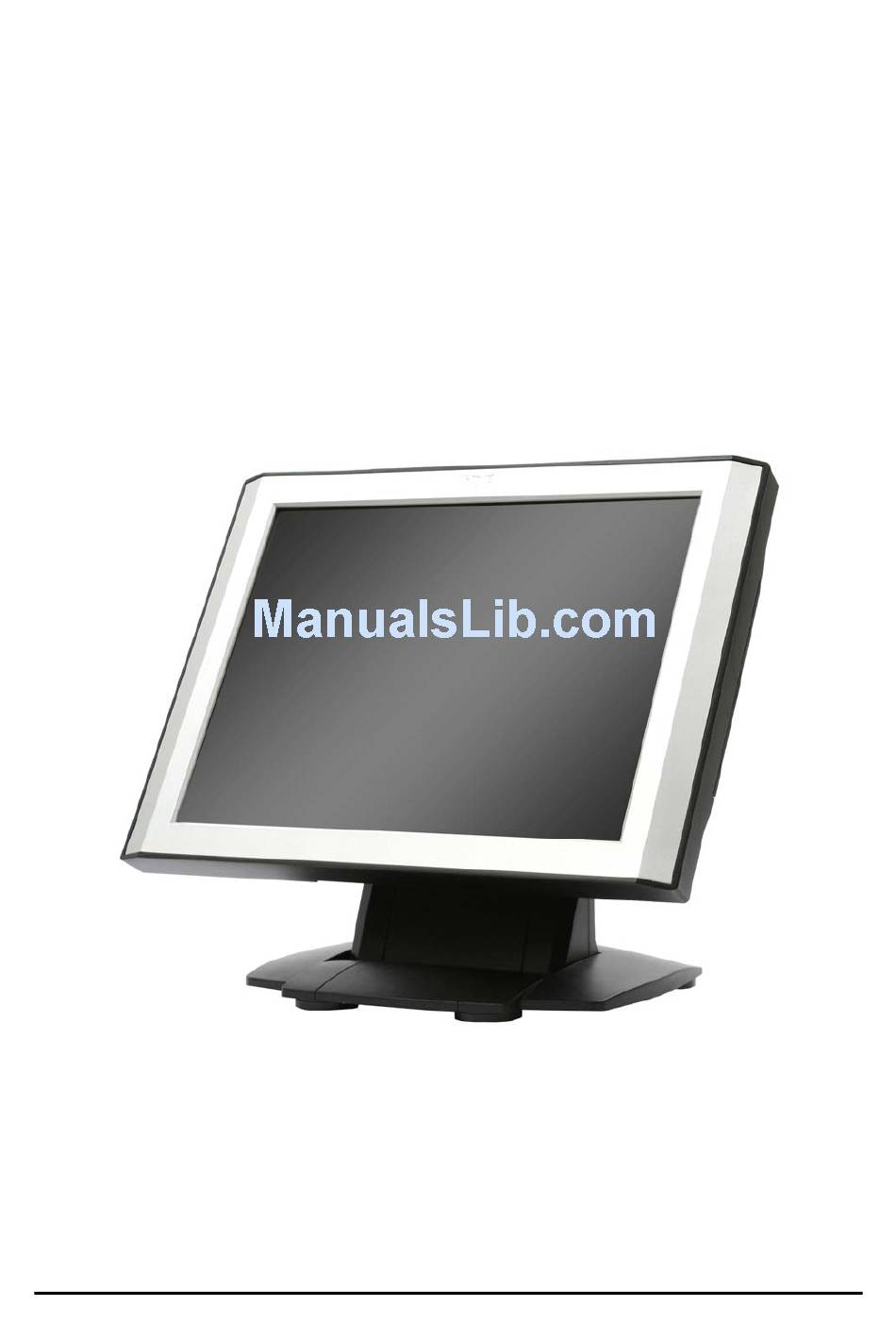

PM-150

LCD Color Monitor

User Manual

1
Manual Version: 3.0
Release Date: 10/28/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sinetic PM-150

  • Page 1: Lcd Color Monitor

    PM-150 LCD Color Monitor User Manual Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 2: Table Of Contents

    Index of Contents 0. Before Installation……………………………………………………………...3 1. Appearance…………………………………………………………………..4 2. Control Panel…………………………………………………………………..6 2.1 Push Button………………………………………………………………6 3. Rare Panel I/O Connector……………………………………………………...7 4. Hardware Installation..................8 5. Touch Driver Installation………………………….…………………………..9 5.1 Liyitec Touch……………………………………………………………..9 5.2 ELO Touch………..................14 6. OSD Function………………………………………………………………...21 6.1 Color......................21 6.2 Image Setting....................22 6.3 Position.....................22 6.4 OSD Menu....................23 6.5 Language....................23...

  • Page 3: Before Installation

    0. Before Installation When unpacking please check you have the following items. ♦ PM-150 LCD Color Monitor ♦ Accessory Package User Manual Driver CD-ROM AC/DC adaptor and Power cord D-Sub VGA cable D-Sub Touch cable (for touch panel model only) Manual Version: 3.0...

  • Page 4: Appearance

    1. Appearance Front View Back View Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 5: Left View

    Left View Right View Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 6: Control Panel

    2. Control Panel 2.1 Push Button Push Button Description of Function Power On/Off ▲ Auto Setting ▼ OSD Menu & Confirmation Change and Selection for Detail of Each Setting ＋－ Reserved Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 7: Rare Panel I/O Connector

    3. I/O Connector Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 8: Hardware Installation

    4. Hardware Installation 1. Connect VGA signal cable to PM-150 2. Connect Touch signal cable to PM-150 (for touch panel model only) 3. Connect the AC/DC adaptor to PM-150 4. Connect the other end of signal cables to the signal connectors of your computer 5.

  • Page 9: Touch Driver Installation

    5. Driver Installation 5.1 Liyitec Touch 1. Double click on “setup.exe” in driver folder and then press “Next” button to start driver installation. 2. Press “Next” to continue. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 10 3. Press “Next” to continue. 4. Press “Next” to continue. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 11 5. Press “Next” to continue. 6. Wait the setup program copying files. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 12 7. Your Touch will be shown in this form. 8. Press the “Calibration” button to process the four points calibration. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 13 9. Press “OK” to finish. Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 14: Elo Touch

    5.2 ELO Touch 1. Insert Driver CD-ROM into CD-ROM driver. The setup program will auto run. If the setup program does not auto run, click the “EloCD.exe” program in the Driver CD-ROM. Press “Install Driver For This Computer” to start driver installation.
  • Page 15 3. Read the License Agreement and then press the “yes” button. 4. Wait the setup program checking serial ports. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 16 5. Check “Auto-detect Elo devices” to select the COM port that connected to Elo devices. 6. Wait the setup program searching for connected touchscreen. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 17 7. Choose one COM port and press ”Next” to continue. 8. Make sure the COM port listed and press “Next” button. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 18 9. Wait setup program to complete. 10. Check “Calibrate Elo Touchscreen Monitors” and press “Finish” button to complete driver setup and start to calibrate touchscreen. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 19 11. Press the targets with one finger to calibrate touchscreen. Manual Version: 3.0 Release Date: 10/28/2007...
  • Page 20 12. Press the “ˇ” button to finish calibration. Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 21: Osd Function

    6. OSD Function Color It can be adjust image get distinct or Contrast vague It can be adjust image get dark or bright Brightness Set favorite color of red, green, and Color Adjust blue Set color to 9300,6500,5500 Color Temp Go back MENU Back Manual Version: 3.0...

  • Page 22: Image Setting

    Image Setting Adjust frequency to fill display Clock Adjust remove noise and sharpen the Phase image Set gamma (0) 1.0, (1) 1.1, (2) 1.2, (3) Gamma Correct To mark the image become soft Sharpness Go back MENU Exit Position It can be moved to left or right side of H.

  • Page 23: Osd Menu

    OSD Menu It can be moved to left or right side of OSD H. Position It can be moved to up or down side of OSD V. Position It can adjust OSD display time OSD Time Go back MENU BACK Language English English...

  • Page 24: Misc

    MISC. D-SUB or DVI(Optional) Signal Source Recall Default value Reset Go back MENU BACK Manual Version: 3.0 Release Date: 10/28/2007...

  • Page 25: Cleaning And Safety

    7. Cleaning and Safety 7.1 Cleaning Touch LCD Monitor Before cleaning, please power off the computer system and disconnect the monitor from the AC outlet to prevent the damage. After finishing of cleaning, please make sure the monitor is completely dry before you reconnect the cables and power it on.

  • Page 26: Care And Handling Of Your Touch Monitor

    Care and handling of your touch monitor The following tips will help you keep your touch monitor functioning at the optimal situation: Please protect your touch monitor away from extremely high or low temperatures. Please keep your touch monitor dry and away from humid environment. Please do not wash with a wet cloth or pour fluid on it.

  • Page 27: Troubleshooting

    Troubleshooting No image can be seen Check if the power cord is properly connected. If not, connect it again. Check if the VGA signal cable is properly connected. If not, connect it again. Check if the power is on. If not, press the “P＂ button to turn it The image is distorted, flashes or flickers Read the “OSD Function”...

  • Page 28: Specifications

    9. Specifications Display Type Active Matrix TFT LCD LCD Size 15" 304x228 Display Area (mm) W x H 381x312.5x172 mm Monitor Dimensions W x H x D Max. Resolution 1024 x 768 Colors 16.7 million Brightness 200-400 cd/m2 Contrast Ratio 200-400 : 1 Input Signal RGB Analog...
