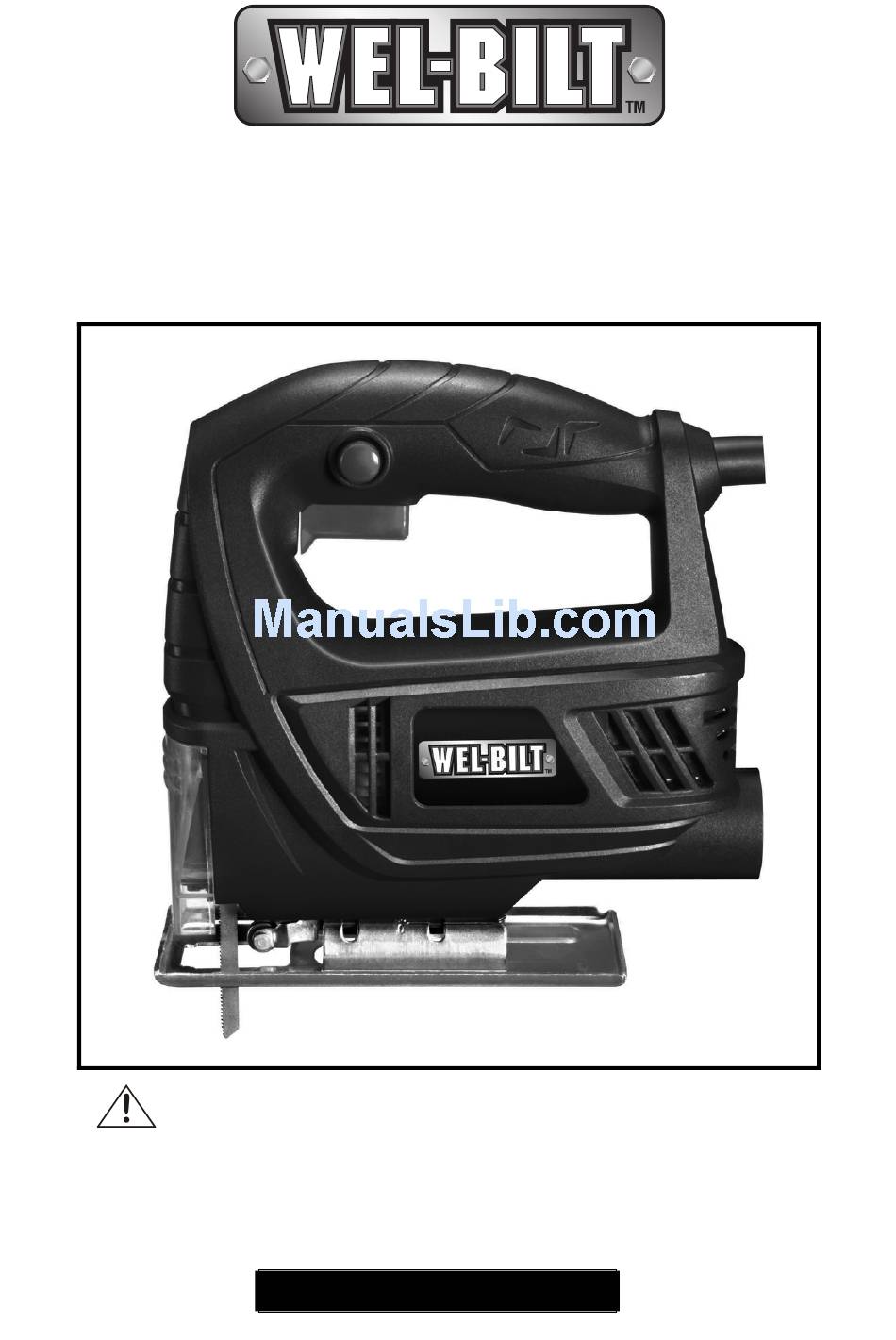

- Page 1 JIG SAW OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 21405...
-
Page 2: Intended Use
For technical questions please call 1-800-222-5381. INTENDED USE: Your Wel-Bilt Jig Saw has been designed to cut accurately through plastic, wood and thin metals. It allows you to make straight or curved cuts when used in a DIY (Do It Yourself) context or for hobbyist purposes. -
Page 3: Important Safety Considerations
IMPORTANT SAFETY CONSIDERATIONS • Stay alert, watch what you are doing and use common sense when operating the Jig Saw. Do not use the Jig Saw while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating the Jig Saw may result in serious personal injury. - Page 4 ASSEMBLY The shoe of this Jig Saw can be tilted up to 45º to the left or to the right, allowing the Jig Saw to cut at any angle between these two limits. Page of 10...
- Page 5 The Jig Saw is supplied with a hex key housed in an on board storage clip. This hex key is the only tool required to adjust the angle of the shoe and to fit or remove a blade. Fig A Before using the machine, carefully read these instructions, especially the safety rules to help ensure that your machine always operates properly.
-
Page 6: Operation
clockwise. 6. Check that the back edge (non-serrated edge) of the blade is within the groove of the blade guide wheel. If it is not, use the hex key to loosen the two bolts that secure the shoe and adjust the position of the shoe so that the back of the blade is firmly supported by the blade guide wheel. -
Page 7: Maintenance
4. For sustained cutting, you can press the lock-on switch to keep the trigger switch engaged. To release the lock on switch press the trigger switch then release it. Fig I Cutting metal 1. Your Jig Saw can be used for cutting light gauge ferrous sheet and non-ferrous metals such as copper, brass and aluminum. - Page 8 PART LIST Part# Description Part# Description Cord Cropper sinter Cord sleeve Flat washer Cord clamp Sliding block Screw Bearing Switch Rotor Left housing Brush holder Square nut Brush Roller support Bearing Baseplate securing Stator Baseplate Hex screw Slide block Spring washer Flange Blade holder screw...
- Page 9 For replacement parts and technical questions, please call 1-800-222-5381. Page of 10...
- Page 10 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, •...
