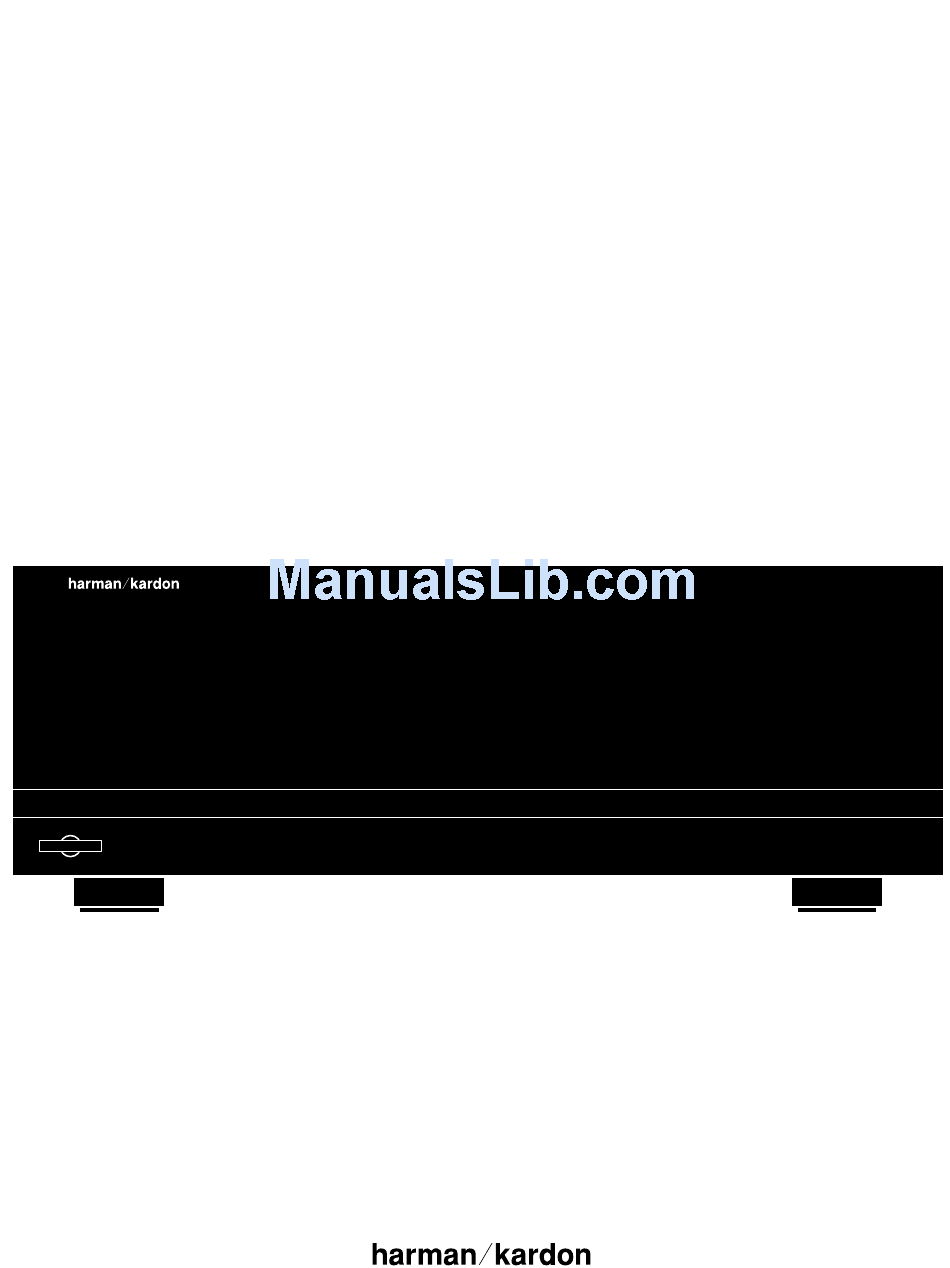

- Page 1 Harman Kardon PA5800 Multichannel Amplifier PA5800 Power Owner’s Manual...
-
Page 2: Table Of Contents
PA5800 Multichannel Amplifier 80 Crossways Park West Woodbury, NY 11797 ©1996 Harman Kardon, Incorporated Owner’s Manual Table of Contents Introduction ........1 Safety Information . -
Page 3: Introduction
Congratulations! As the owner of a Harman Kardon PA5800 Multichannel Power Amplifier, you have at your com- mand a unique product. The PA5800 has been carefully designed to deliver the best possible sonic performance, along with outstanding industrial design that matches other Harman Kardon products or complements any interior design. -
Page 4: Safety Information
Important Safety Information Verify Line Voltage Before Use Your new Harman Kardon PA5800 amplifier has been factory-configured for use with 120-volt AC line current. Connecting the amplifier to a line volt- age other than that for which it is intended can create a safety and fire haz- ard, and may damage the amplifier. -
Page 5: Unpacking And Installation
£ AC Power Cord: Connect this plug to a wall-mounted AC outlet. Due to the current draw of the PA5800, it is NOT recommended that the accessory outlets on the back of the audio/video components be used to power this product. -
Page 6: Installation And Connections
Installation and Connections Remote Turn-On Using an External AC- to-DC Converter If the PA5800 is not used with a compati- ble Harman Kardon product, it is still possible to activate the unit for auto- matic turn-on. To control the amplifier in this manner... - Page 7 Connections may also be made using standard 4mm OD banana plugs. Before using a banana-type jack, make certain that the plastic screw caps on the PA5800 are firmly tightened by turning them clockwise until they are snug against the chassis. This will ensure that the maxi- mum surface area of the plug is in con- tact with the jack.
-
Page 8: Operation
AC outlet. Make certain that the PA5800 power switch is in the off position before plugging in the power cord. At this point you are almost ready for lis- tening. -
Page 9: Service Information
Troubleshooting Chart The items listed below are a brief guide to minor problems that may arise with audio equipment such as the PA5800. Before taking a unit in for service, you should check to see if any of these hints solve the problem. If these solutions do not rectify the problem or if the problem reoccurs, contact your dealer or an authorized Harman Kardon service depot for assistance. -
Page 10: Technical Specifications
Technical Specifications Power Output: High Current Capability: Frequency Response: Signal to Noise: THD/IMD: Power Bandwidth: Input Impedance: Input Sensitivity: Remote Trigger Voltage: Remote Trigger Impedance: Dimensions (HxWxD): Weight: Power Requirements: 5 x 80 watts @ 8 ohms FTC: 20 - 20kHz, .03% THD, All Channels Driven 5 x 110 watts @ 4 ohms FTC: 20 - 20kHz, .03% THD, All Channels Driven ±... - Page 11 Staple or clip original invoice here.
