Summary of Contents for Manhattan 154109
-

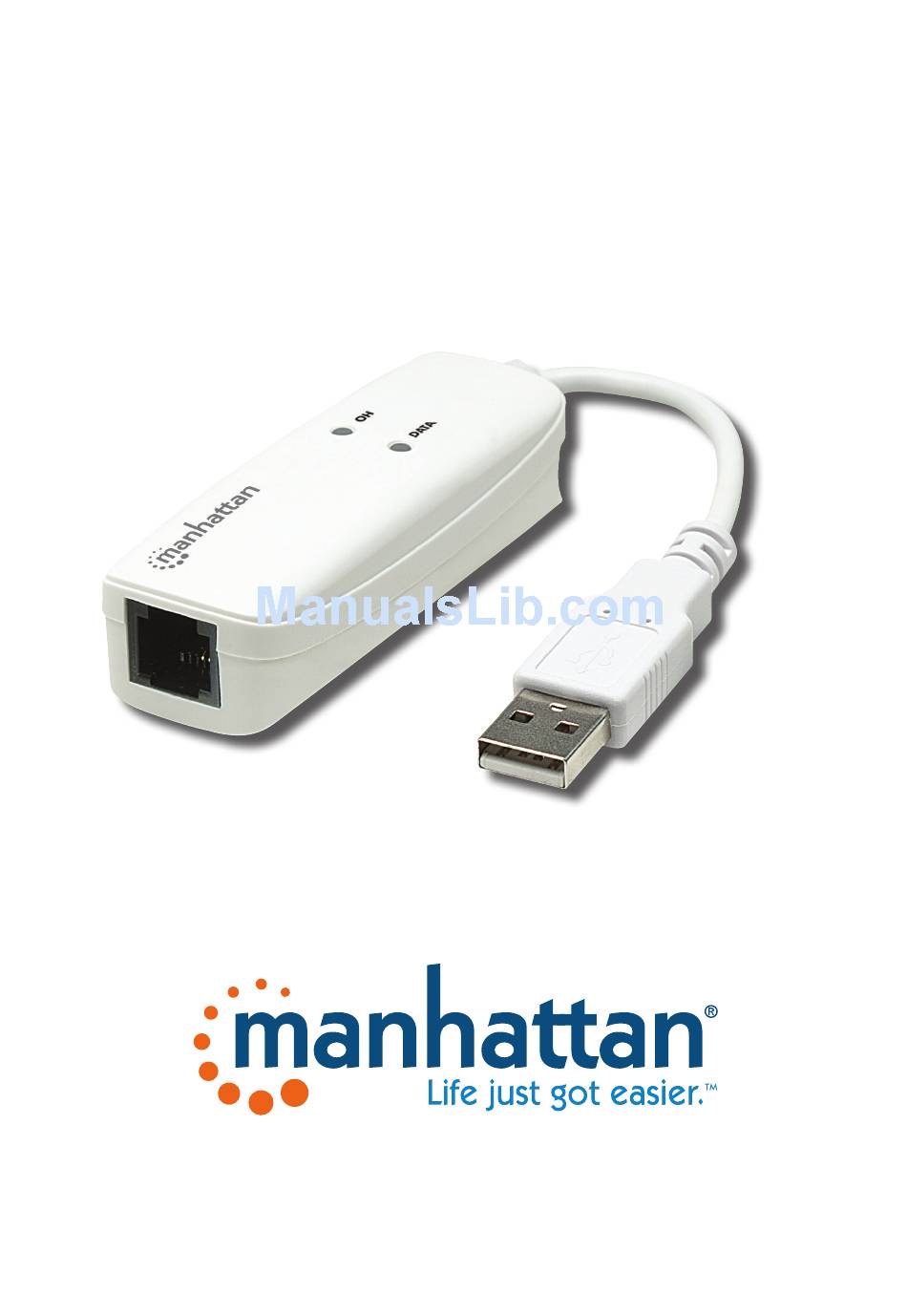

Page 1: Usb Modem
USB MODEM USER MANUAL MODEL 154109 MAN-154109-UM-0413-05... -
Page 2: Specifications
INTRODUCTION Thank you for purchasing the Manhattan USB Modem, Model 154109. Just plug ® the modem into a USB port for the fastest and easiest route to the Web using a standard phone line, then enjoy these popular features: • Quick Connect, auto dial/answer, tone/pulse dialing, improved download speeds •... -
Page 3: Device Installation
DEVICE INSTALLATION 1. Connect the modem to an active USB port on the computer (A). 2. Connect your RJ11 phone jack to the modem (B). When the Welcome to the Found New Hardware Wizard screen displays, click “Cancel.” • The OH LED (C) lights during dial-up and connection; off when disconnected. •... -
Page 4: Driver Installation
DRIVER INSTALLATION 1. Load the included Driver Installation CD. It will automatically activate the auto- run instllation program and display the menu screen below. Click “Driver Installation.” 2. Select/click your operating system. - Page 5 3. When the Welcome screen displays, click “OK.” 4. Click “Continue Anyway.” ...
-
Page 6: Manual Dial-Up Connection Settings
5. When the driver installation is complete, click “OK.” ay B lave/target) MANUAL DIAL-UP CONNECTION SETTINGS 1. On the Control Panel, go to Network Connections and click “Create a new connection.” ... - Page 7 2. When the Welcome to the New Connection Wizard screen displays, click “Next.” 3. When the Network Connectiion Type screen displays, select “Connect to the Internet” and click “Next.” ...
- Page 8 4. When the Setting Ready screen displays, select “Set up my connection manually” and click “Next.” 5. When the Internet Connection screen displays, select “Connect using a dial-up modem” and click “Next.” ...
- Page 9 6. When the Connection Name screen displays, enter the name of your Internet service provider in the ISP Name field and click “Next.” 7. When the Internet Account Information screen displays, enter your information in the text fields and select “Use this account name and password when anyone connects to the Internet from this computer.”...
- Page 10 8. When the Completing the New Connection Wizard screen displays, click “Finish” to complete the manual dial-up connection. 9. When the final screen displays, click “Dial” to connect to the Internet. ...
-
Page 11: Warranty Information
ITALIANO: Per informazioni sulla garanzia, accedere a manhattan-products.com/warranty. EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. •... - Page 12 © IC Intracom. All rights reserved. Manhattan is a trademark of IC INTRACOM, registered in the U.S. and other countries.
