ALADIN PRO NITROX Operating Manual

Diving system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THE SYSTEM
Feet
®
SWISS MADE BY UWATEC AG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALADIN PRO NITROX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALADIN ALADIN PRO NITROX

Summary of Contents for ALADIN ALADIN PRO NITROX

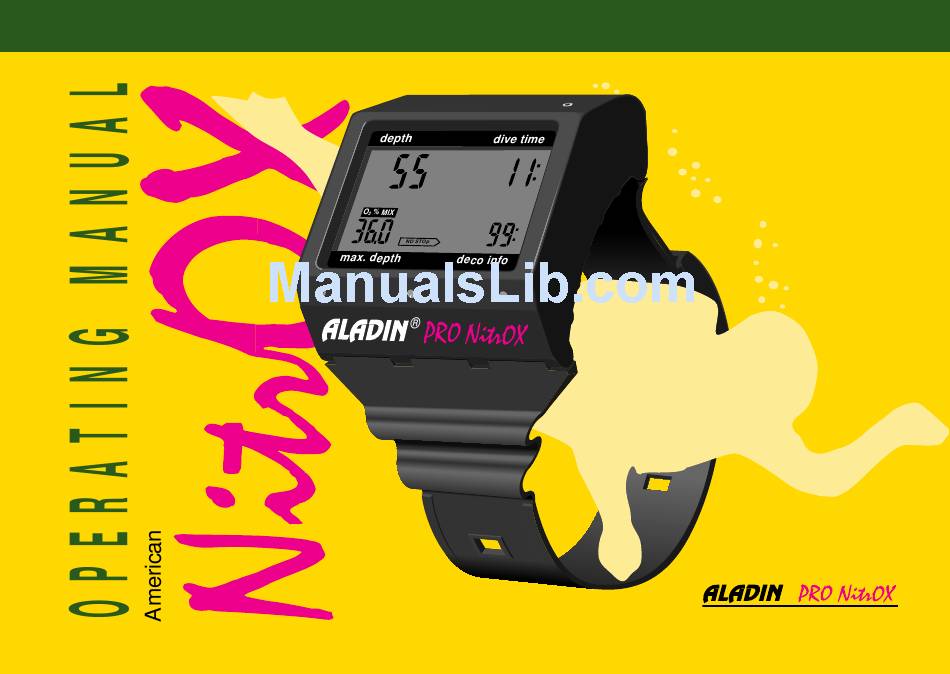

  • Page 1 THE SYSTEM Feet ® SWISS MADE BY UWATEC AG...

  • Page 2: Safety Considerations

    Safety considerations You must carefully read this entire manual before using your Aladin ® Pro Nitrox. Diving has many inherent risks. Even if you follow the instructions of this manual in a careful fashion, it is still possible that you may be seriously injured or die from decompression sickness, oxygen toxicity or WARNING some other inherent risk of scuba nitrox.
  • Page 3 Aladin ® Pro Nitrox–The Diving System – Interface and logbook-software DataTrak (Option) Dive Computer Aladin ® Pro Nitrox ® Operating Manual Aladin Pro Nitrox...
  • Page 4 ® Operating Manual Aladin Pro Nitrox...

  • Page 5: Important Remarks Concerning Signal Words And Symbols

    Important remarks concerning signal words and symbols This operating manual makes use of the following icons to indicate especially important comments: Remarks: Informations and tips which are important for optimal use of the functions of your Aladin ® Pro Nitrox. Indicates a potentially hazardous situation which, if not avoided, could result in WARNING death or serious injury.
  • Page 6 Safety considerations ® Guidelines for the use of Aladin Pro Nitrox: The following guidelines for using Aladin ® Pro Nitrox are derived from the latest medical research and the recommendations of the American Academy of Underwater Sciences for diving with diving computers. Following these guidelines will greatly increase your safety while diving, but cannot guarantee that decompression sickness will not occur.
  • Page 7 Safety considerations ® – On all dives with the Aladin Pro Nitrox, make a safety stop for three to five minutes within the ten to thirty feet zone. – Never use the Aladin ® Pro Nitrox for repetitive, “square“ dives deeper than 60 feet. A square dive is a dive that is performed for its duration at a uniform depth.
  • Page 8 Safety considerations ® – You MUST follow the ascent rates as indicated by the Aladin Pro Nitrox, and should the computer fail for any reason, you must ascend at a rate of no greater than 60 feet per minute. – You MUST be familiar with all signs and symptoms of decompression sickness before using the Aladin ®...
  • Page 9 LIST OF CHAPTERS INTRODUCTION ® ALADIN PRO NITROX – THE SYSTEM DIVING WITH ALADIN ® PRO NITROX IV DIVING AT REDUCED RISK WITH ALADIN ® PRO NITROX LOGBOOK VI DIVE PLANNER VII INTERFACE VIII TROUBLE SHOOTING VIII IX APPENDIX, Maintenance, Technical Information, Warranty...

  • Page 10: Table Of Contents

    I INTRODUCTION ® 1. Aladin Pro Nitrox: Your Personal Companion ______________________________________ 2 2. Aladin ® Pro Nitrox ______________________________________ 3 3. Aladin ® Pro Nitrox – Reducing Risks of Decompression Sickness ______________________________________ 7 4. The Calculation Model ZH-L8 ADT 4.1 Description _________________________ 9 4.2 Advantages _______________________ 11 5.

  • Page 11: Aladin Pro Nitrox: Your Personal Companion

    1. Aladin ® Pro Nitrox – Your Personal Companion What can further increase your diving pleasure? The both your diving pleasure and safety by reducing good feeling of having the highest possible safety and your risk of decompression sickness provided you freedom to move.

  • Page 12: Aladin Pro Nitrox

    2. Introduction Aladin ® Pro Nitrox CNS damages: Nitrox is a gas mixture consisting of nitrogen and Symptoms of poisoning occuring at short notice in oxygen. The kind of air used for diving with the central nervous system(CNS). Such symptoms compressed air is the same as the normal air of the are: irritations of the respiratory organs, sickness, earth‘s atmosphere (78% nitrogen, 21% oxygen and...
  • Page 13 2. Introduction Aladin ® Pro Nitrox the central nervous system). CNS O 0% corresponds we recommend to adhere to the following guidelines to the normal state before the first dive, and CNS O by all means. 100% corresponds to the critical upper limit. The list, initially published by the US Navy, is nowadays known by the names IANTD- orNOAA-list.
  • Page 14 2. Introduction Aladin ® Pro Nitrox WARNING WARNING 1. Only dive with nitrox if you have been trained 4. Aladin ® Pro Nitrox always calculates consider- thoroughly by a recognised institution. ing the gas mixture set by the user. It is absolu- tely necessary to check the set mixture before ®...
  • Page 15 2. Further Remarks on Aladin ® Pro Nitrox WARNING WARNING 6. Frequently check the „oxygen-clock“ (CNS O and then also includes the calculation of the Limit), especially in the range higher than 1.5 CNS O Limit in the same way as with any other bar ppO .

  • Page 16: Aladin Pro Nitrox - Reducing Risks Of Decompression Sickness

    3. Aladin ® Pro Nitrox–Reducing Risks of Decompression Sickness By considering your individual gas mixture, depth and time profile and water temperature, the Aladin ® WARNING Nitrox can be considered a personal diving control instrument. Relying on the latest results of medical You must strictly observe all optical and acoustic and physiological research for its decompression alarms and take appropriate action based upon...
  • Page 17 3. Aladin ® Pro Nitrox - Reducing Risks of Decompression Sickness WARNING ® Although the Aladin Pro Nitrox can be used to plan decompression dives, such dives are beyond the realm of recreational or sport diving and must not be attempted by recreational or sport scuba divers.

  • Page 18: The Calculation Model Zh-L8 Adt

    4. The Calculation Model ZH-L8 ADT 4.1 Description according to the diver‘s individual behavior and ® The Aladin Pro Nitrox uses a new decompression decrease in skin temperature. The decrease in calculation model known as the ZH-L8 ADT. This skin temperature is based upon the water model uses eight compartments or “tissue“...
  • Page 19 4. The Calculation Model ZH-L8 ADT 2. The decompression model used by the Aladin ® blood as well as in the body‘s tissues. If these Nitrox considers nitrogen in both its dissolved as microbubbles partially impair circulation, the rate well as its gaseous phase (microbubbles). Formati- of gas diffusion and saturation tolerance for those on of microbubbles is considered to be a strong tissues immediately surrounding this area of...

  • Page 20: Advantages

    4. The Calculation Model ZH-L8 ADT 4.2 Advantages • Flying within 24 hours after diving. On the first dives following responsible diving procedures, a diver using the Aladin ® Pro Nitrox should If a diver experiences any of these risk factors while ®...

  • Page 21: Safety In Diving

    5. Safety in Diving With its new decompression model, the Aladin ® thorough understanding of decompression theory and Nitrox is an extremely versatile tool which can increase dive table use, and every diver must have a set of your diving comfort and safety. As with any diving decompression tables with him on every dive.
  • Page 22 ® II ALADIN PRO NITROX – THE SYSTEM 1. Description _____________________________________ 14 2. Dive Computer 2.1 Operation _____________________________ 16 2.2 Operating scheme for surface functions ____ 17 2.3 Operating modes _______________________ 23 ® II Aladin Pro Nitrox - The System...

  • Page 23: Aladin ® Pro Nitrox - The System

    1. Description ® The Aladin Pro Nitrox system consists of three units: 1 The dive computer displays only the important general dive- and decompression data. depth dive time CNS O LIMIT NO STOP max. depth deco info ® II Aladin Pro Nitrox - The System...
  • Page 24 1. Description 2 The dive computer has a data memory which stores the dive data. The data can be transmitted to a MS- DOS personal computer with the logbook program DataTrak via an interface (available as an option). ® II Aladin Pro Nitrox - The System...

  • Page 25: Dive Computer

    2. Dive Computer 2.1 Operation Switching on display: – automatically, on submerging in water or when adaptation to atmospheric pressure is necessary. – manually by manipulating contacts on housing. Switching off display: – automatically, after three minutes without operation. ® Aladin Pro Nitrox has 4 operating contacts B, E, +, –...

  • Page 26: Operating Scheme For Surface Functions

    2. Dive Computer 2.2 Operating scheme for surface functions B and E B and + B and – Sleep Surface Sleep Input stage Input stage Input stage Ready or % MIX Surface DIVEPLAN LOGBOOK (or 3min) (or 3min) (or 3min) 5sec % MIX Battery...
  • Page 27 2. Dive Computer ® Aladin Pro Nitrox is in a state of rest; no depth dive time information is displayed (-> sleep-mode or -> surface-sleep-mode). max. depth deco info 2. Bridging B and E activates the display -> ready- depth dive time depth dive time...
  • Page 28 2. Dive Computer depth dive time depth dive time DO NOT FLY CNS O LIMIT % MIX % MIX DESATURATION max. depth deco info max. depth deco info Ready-mode Surface-mode 4.a) Selecting the logbook function: B and + Cancel: B and – depth dive time or automatically after three minutes...
  • Page 29 2. Dive Computer depth dive time LOGBOOK max. depth deco info 4.c) Leaving the logbook: B and E or automatically after three minutes. depth dive time depth dive time DO NOT FLY CNS O LIMIT % MIX % MIX DESATURATION max.
  • Page 30 2. Dive Computer 5.b) Activating the O % Mix function: B and E By B and + or B and – the portion of oxygen is set. depth dive time max. depth deco info 5.c) Leaving the O % Mix function: depth dive time depth...
  • Page 31 2. Dive Computer 6.a) Selection of dive-plan function From ready or surface mode: Twice B and – depth dive time ancel: Twice B and + DIVEPLAN or automatically after three minutes without operation. max. depth deco info 6.b) Activating the dive-plan ®...

  • Page 32: Operating Modes

    2. Dive Computer ® 2.3 Operating modes Aladin Pro Nitrox works in various operating modes: Sleep-mode: depth dive time Activation: automatically ® When Aladin Pro Nitrox is not used, it is in the sleep-mode. The display does not show any information. The computer is briefly activated once every minute to measure atmospheric pressure.
  • Page 33 2. Dive Computer ® After activation the Aladin Pro Nitrox switches into ready-mode. Once in ready- depth dive time mode, the display is switched on, the set portion of oxygen and altitude sections are eventually displayed. % MIX ® By touching contacts B and E in the ready-mode once more, Aladin Pro Nitrox max.
  • Page 34 2. Dive Computer Dive-mode: depth dive time Activation: automatically at depth of about 2 ft. In dive-mode, all diving functions are monitored, i.e. depth and dive time displayed, maximum depth stored, saturation of tissues calculated, no-stop time or % MIX decompression prognosis determined, ascent rate controlled and displayed and max.
  • Page 35 2. Dive Computer Surface-mode: depth dive time DO NOT FLY Activation: automatically after a dive or when changing altitude. ® CNS O LIMIT After a dive has been completed, Aladin Pro Nitrox is in surface-mode. All data belonging to the surface interval are calculated and displayed: simulation of % MIX DESATURATION microbubble formation, actualization of oxygen toxicity and nitrogen saturation...
  • Page 36 2. Dive Computer Logbook-mode: depth dive time DO NOT FLY Activation: manually by contacts LOGBOOK CNS O LIMIT Data of 19 past dives can be called up in the logbook-mode. It shows maximum depth, dive time, preceding interval, altitude sections and possible alarms. A dive % MIX is entered in the logbook if it has lasted more than 2 minutes.
  • Page 37 2. Dive Computer Diveplan-mode: Activation: manually by contacts depth dive time DO NOT FLY The diveplan-mode serves the planning of a future dive. It allows the planning of DIVEPLAN no-stop dives with determinable depth, dive time and composition of the gas CNS O LIMIT mixture.
  • Page 38 ® III DIVING WITH ALADIN PRO NITROX 1. Terminology/Symbols 1.1 Display during no-stop phase ____________ 30 1.2 Display during decompression phase ______ 31 1.3 Nitrox information _____________________ 32 2. Attention Messages and Alarms 2.1 Attention messages ____________________ 34 2.2 Alarms _______________________________ 37 2.3 Alarm low battery _____________________ 39 3.

  • Page 39: Display During No-Stop Phase

    1. Terminology/Symbols ® The information on the display of the Aladin Pro Nitrox varies depending on the kind of dive and the dive phase. 1.1 Display during no-stop phase No-stop phase: Dive phase during which ascent is allowed without decompression stops. Dive time: Time of the dive below depth of 4 ft.

  • Page 40: Display During Decompression Phase

    1. Terminology/Symbols Decompression diving should not be attempted by recreational or sport scuba WARNING ® divers. Do not use the Aladin Pro Nitrox for intentional decompression diving. 1.2 Display during decompression phase Decompression depth: Lowest stage is displayed. Decompression time: Prescribed duration of the decompression stop at the displayed decompression stage.

  • Page 41: Nitrox Information

    1. Terminology/Symbols 1.3 Nitrox information (O information) For dives with compressed air in normal recreational diving nitrogen is the decisive gas for the decompression calculations. When diving with nitrox, the toxicity of oxygen rises with the increase of the portion of oxygen ®...
  • Page 42 1. Terminology/Symbols WARNING Nitrox diving may only be attempted by experienced divers with special training. toxicity decreases 0.5 bar toxicity increases CNS O LIMIT ® III Diving with Aladin Pro Nitrox...

  • Page 43: Attention Messages

    2. Attention Messages and Alarms ® Aladin Pro Nitrox draws the diver’s attention to certain situations and warns the diver of unsafe diving practices. Attention messages and alarms are always optical and acoustic under water, only optical at the surface except the decompression alarm. The acoustic attention messages (but not the alarms) can be switched off (see chapter VII Interface page 84).
  • Page 44 2. Attention Messages and Alarms 4 sec Partial pressure of oxygen reaches limit The partial pressure of oxygen reaches the set value (setting not higher than 1.6 bar depth dive time by interface and DataTalk-software) % MIX NO STOP max. depth deco info 4 sec Oxygen toxicity...
  • Page 45 2. Attention Messages and Alarms depth dive time Warning of bubbles DO NOT FLY Extension of the surface interval is recommended. See pages 54 and 77. CNS O LIMIT % MIX DESATURATION max. depth deco info ® III Diving with Aladin Pro Nitrox...

  • Page 46: Alarms

    2. Attention Messages and Alarms Serious injury or death may result from failing to immediately respond to alarms WARNING ® given by Aladin Pro Nitrox. 2.2 Alarms Alarms are given to the diver optically by flashing symbols, letters or figures and symbols. In addition, an depth dive time Excessive ascent rate.
  • Page 47 2. Attention Messages and Alarms Oxygen toxicity depth dive time The oxygen toxicity reaches 100%. Start ascent at once! CNS O LIMIT % MIX NO STOP max. depth deco info WARNING Oxygen toxicity reaching 100% can lead to dangerous neurological symptoms. ®...

  • Page 48: Alarm Low Battery

    2. Attention Messages and Alarms Ignoring decompression stop depth dive time WARNING Descend to the prescribed decompression depth at once! CNS O LIMIT DECOSTOP max. depth deco info 2.3 Alarm low battery Computer battery low: depth dive time depth dive time In dive-mode, <bAT>...

  • Page 49: Switching On

    3. Preparation for the Dive 3.1 Switching on 1. Switching on Aladin ® Pro Nitrox manually: Bridge contacts B and E with moistened fingers. Check test display: are all displays lit? depth dive time DO NOT FLY DIVEPLAN LOGBOOK CNS O LIMIT % MIX SPEED...

  • Page 50: Setting Gas Mixture

    3. Preparation for the Dive 3.2 Setting the gas mixture Before every dive, you must check if the setting of the gas mixture (portion of ® oxygen) on your Aladin Pro Nitrox corresponds to the mixture in your tank. Reset the mixture if necessary: 1 Switch on computer manually and check the portion of oxygen (O %MIX).

  • Page 51: Dive Time

    4. Functions during the Dive 4.1 Dive time The whole time spent below a depth of 4 feet is displayed as dive time in minutes. While the dive time is running, the colon on the right of the figures is flashing in one second intervals. Maximum dive time displayed is 199 minutes.

  • Page 52: Maximum Depth

    4. Functions during the Dive 4.3 Maximum depth Maximum depth is displayed if it is lower than the current depth (maximum indicator function). To prevent the display changing very frequently when diving in the vicinity of maximum depth, it is only displayed if it exceeds the current depth by more than three feet.

  • Page 53: Ascent Rate

    4. Functions during the Dive 4.4 Ascent rate Optimal ascent rate varies depending on depth between 23 and 67 ft/min. It is displayed in percent of the reference variable. If the ascent rate is greater than 100% of the set value, the black arrow <SLOW> appears. If the ascent rate exceeds depth dive time 140%, the arrow starts flashing.
  • Page 54 4. Functions during the Dive Messages: WARNING Ascent rate Optical Acoustic alarm alarm SPEED SPEED SPEED SPEED Excessive ascent rates of longer periods are entered in the logbook. Response: Reduce ascent rate ® III Diving with Aladin Pro Nitrox...

  • Page 55: Partial Pressure Of Oxygen

    4. Functions during the Dive 4.5 Partial pressure of oxygen The tolerable partial pressure of oxygen can be set by means of an interface cable and the DataTalk-software between 1.2 and 1.95 bar (see page 84). The set value or the information about the actual ppO are not displayed.

  • Page 56: Oxygen Toxicity

    4. Functions during the Dive 4.6 Oxygen toxicity Oxygen toxicity is calculated from depth values and the gas mixture by the calculation model and displayed in place of the ascent rate in percent of a maximum depth dive time value tolerated (O clock).

  • Page 57: Decompression Information

    4. Functions during the Dive 4.7 Decompression information No-stop time is displayed if no decompression stops are necessary. The arrow <NO STOP> is visible if no decompression stops are necessary. The figures indicate no-stop time in minutes. No-stop display <99:> means remaining time of 99 minutes or depth dive time more.
  • Page 58 4. Functions during the Dive Decompression values On entering the decompression phase, the arrow <NO STOP> disappears. The arrow <DECOSTOP> appears. Right beside the arrow, the deepest decompression depth dive time stage in feet is displayed. Beside the decompression depth, the decompression CNS O LIMIT time of the displayed stage in minutes appears.
  • Page 59 4. Functions during the Dive ® Total time of ascent As soon as decompression stops are necessary, Aladin Pro Nitrox shows the total time of ascent. The time of ascent to the first decompression stage and all decompression stops are included. depth dive time CNS O...

  • Page 60: End Of A Dive

    5. Functions at the Surface 5.1 End of a dive ® After reaching the surface, Aladin Pro Nitrox switches into wait-mode depth depth dive time dive time automatically for five minutes. This is the time span necessary to recognize the end of the dive. The delay allows the surfacing for a short period for orientation or for a % MIX % MIX...

  • Page 61: Desaturation Time

    5. Functions at the Surface 5.2 Desaturation time ® When <DESATURATION> appears, the Aladin Pro Nitrox is in surface-mode. depth dive time Desaturation time in hours and minutes, the set mixture (portion of oxygen) and, DO NOT FLY if available, oxygen toxicity is displayed next to that. Desaturation time is continually CNS O LIMIT indicated until the next dive or until it reaches zero.

  • Page 62: No Fly Time

    5. Functions at the Surface 5.3 No fly time The waiting period until the next flight is indicated as follows:<DO NOT FLY>. depth dive time Beside this indicator is the time in hours that should pass before a flight. DO NOT FLY CNS O LIMIT Next to that display the time in hours until it is considered appropriate to fly is...

  • Page 63: Warning Of Bubbles

    5. Functions at the Surface 5.4 Warning of bubbles Through repetitive dives microbubbles may accumulate in the lungs if the surface depth dive time interval is not long enough. Ignoring decompression stops or an excessive ascent DO NOT FLY rate can also lead to bubbles in tissues. In order to reduce the risk of decompression CNS O LIMIT sickness for future repetitive dives, the surface interval should be planned long...

  • Page 64: Diving In Mountain Lakes

    6. Diving in Mountain Lakes ® Aladin Pro Nitrox measures the atmospheric pressure even while in sleep-mode. depth dive time If the computer detects a higher altitude, it switches into surface-mode automatically. Desaturation time indicated at this moment refers to adaptation ®...
  • Page 65 6. Diving in Mountain Lakes In order to assure optimal decompression even at higher altitudes, the 10 ft decompression stage is divided into a 13 ft stage and a 7 ft stage (the pescribed decompression depths are, in sequence, 7 ft, 13 ft, 20 ft, 30 ft). ®...
  • Page 66 ® IV DIVING AT REDUCED RISK WITH ALADIN PRO NITROX ® 1. Diving at Reduced Risk with Aladin Pro Nitrox 1.1 Diving at r educed risk __________________ 58 1.2 Minimizing risk on r epetitive dives ________ 60 1.3 Response in incr eased risk situations ______ 61 ®...
  • Page 67 1. Diving at Reduced Risk with Aladin ® Pro Nitrox 1.1 Diving at reduced risk Analyzing the most r ecent r esults of decompr ession r esear ch and statistical analysis of diving accidents involving decompr ession sickness allows for the cr eation of guidelines for diving at r educed risk for decompr ession ®...
  • Page 68 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin ® • Never use the Aladin Pro Nitr ox for r epetitive, “squar e“ dives deeper than 60 feet. A squar e dive is performed for its duration at a uniform depth. •...
  • Page 69 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin ® • You MUST be familiar with all signs and symptoms of decompr ession sickness befor e using the Aladin Air X Nitr ox! Seek IMMEDIA TE tr eatment for decompr ession sickness should any of these signs or symptoms occur after a dive! Ther e is a dir ect cor relation between the ef ficacy of tr eatment and the delay between the onset of symptoms and the tr...
  • Page 70 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin • Always make your first dive the deepest dive of the day • Always make the deepest descent of each given dive on a particular day at the beginning of that dive. •...
  • Page 71 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin Situation: The diver ascends too rapidly: Reaction of computer: The model calculates the formation of bubbles due to the excessively rapid ascent. No-stop time is shor tened or a longer (and eventually at gr eater depth) decompr ession pr escription is displayed in or der to assur e incr eased decompr ession.
  • Page 72 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin Situation: The diver disregards the prescribed decompression depth. Reaction of computer: The model calculates the for mation of bubbles due to ignoring decompr ession. A longer (and eventually at gr eater depth) decompr ession is displayed in or der to assur e suf ficient time for desaturation.
  • Page 73 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin Situation: It is very unlikely to have a surface interval long enough to clear the <Atn> prior to the next dive during an organized dive trip from a boat. This previous buildup of nitrogen must be taken into consideration for the next dive.
  • Page 74 ® Pro Nitr ox 1. Diving at Reduced Risk with Aladin Situation: <CNS O LIMIT> r eaches 100% Reaction of computer: An acoustic and visual war ning is given. Recommended response of the diver - Ascend immediately until ppO is less then 0.5 bar and the buzzer stops Situation: reaches the set value.
  • Page 75 ® IV Diving at Reduced Risk with Aladin Pro Nitrox...
  • Page 76 V LOGBOOK 1. Survey _____________________________________ 68 2. Selection and Activation _____________________________________ 69 3. Selection of Dive _____________________________________ 70 4. Leaving the Logbook-Mode _____________________________________ 71 5. Output on PC _____________________________________ 72 V Logbook...

  • Page 77: Logbook

    1. Survey ® Aladin Pro Nitrox features a logbook with the last 19 dives. A dive is only entered in the logbook if dive time is longer than 2 minutes. Displayed information of the dive: – alarms during the dive depth dive time –...

  • Page 78: Selection And Activation

    2. Selection and Activation depth dive time depth dive time 1. The logbook is selected by bridging contacts B DO NOT FLY DO NOT FLY and + in ready- or surface-mode. Indication ® CNS O LIMIT <LOGBOOK> appears. If Aladin Pro Nitrox has % MIX % MIX...

  • Page 79: Selection Of Dive

    3. Selection of Dive depth dive time 1. Bridge contacts B and + to get the information of the dive preceding the most DO NOT FLY recent one. Display <DIVE 2> appears. LOGBOOK 2. On additional bridging of B and + the logbook jumps to the next older dive max.

  • Page 80: Leaving The Logbook-Mode

    4. Leaving the Logbook-Mode Touch contacts B and E. depth dive time ® DO NOT FLY Aladin Pro Nitrox switches back into ready- or surface- mode. This also happens 3 minutes after activating logbook-mode. max. depth deco info or after 3 minutes depth dive time depth...

  • Page 81: Output On Pc

    5. Output on PC With the optional DataTrak interface and software information on the last 37 dives can be read out. The dive profiles of the last dives, up to a total of 200 minutes, can be represented. Time and date of the dive are entered automatically, based on the clock of the PC-system when the data are transferred via interface.
  • Page 82 VI DIVE PLANNER 1. Survey _____________________________________ 74 2. Selection and Activation from Ready-Mode _____________________________________ 75 3. Selection and Activation from Surface-Mode _____________________________________ 76 4. Planning a No-Stop Dive _____________________________________ 77 5. Planning a Decompression Dive _____________________________________ 79 6. Planning a Nitrox-dive 6.1 Calculation of maximum depth _______ 80 6.2 Calculation of mixture for a given depth 80 7.
  • Page 83 1. Survey ® The Aladin Pro Nitrox is equipped with a dive planner which allows the planning of no-stop dives with freely determinable surface interval for the portion of oxygen set at the moment. The water temperature of the most recent dive and eventual altitude sections <...
  • Page 84 2. Selection and Activation from Ready-Mode depth dive time 1. From ready-mode, you switch into the diveplan input stage by twice bridging max. depth deco info contacts B and –. 2. The display shows <DIVEPLAN>. depth dive time You return to ready-mode by B and + twice. DIVEPLAN max.
  • Page 85 3. Selection and Activation from Surface-Mode 1. From surface-mode, you switch into the diveplan input stage by twice bridging depth dive time B and –. 2. The display shows <DIVEPLAN>. % MIX DESATURATION You return to surface mode by B and +. max.
  • Page 86 4. Planning a No-Stop Dive After confirming the surface interval (if possible), no-stop times are displayed in depth dive time 10-ft-increments. The process starts with 30ft. The no-stop time for every 10-ft- increment is displayed for about 3 seconds (scrolling no-stop times). DECOSTOP NO STOP max.
  • Page 87 4. Planning a No-Stop Dive Diving with the display <Atn>, a clear shortening of the no-stop time and/or an extension of decompression has to be expected. WARNING If a dive is made during <Atn>-time, the <Atn>-time following the dive can increase considerably.

  • Page 88: Planning A Decompression Dive

    5. Planning a Decompression Dive depth dive time Planned decompression dives violate the responsible DIVEPLAN WARNING diving practice standards of every major diving organization. They are not to be attempted by recreational or sport scuba divers. Only professional divers with extensive NO STOP experience, training and the appropriate equipment for decompression diving max.
  • Page 89 6. Planning a Nitrox-dive ® The dive-planner of the Aladin Pro Nitrox always plans dives under the consideration of the set portion of oxygen. This can be used to – calculate maximum depth to be reached with the given mixture –...
  • Page 90 7. Leaving the Diveplan-Mode ® If the contacts B and E are touched for about 3 seconds, Aladin Pro Nitrox falls depth dive time back into ready- or surface-mode. This also occurs three minutes after the activation DIVEPLAN of the diveplan-mode. DECOSTOP ®...
  • Page 91 VI Dive Planner...
  • Page 92 VII INTERFACE 1. Interface 1.1 Personal programming of the dive computer __ 84 1.2 Analysis and storage of real dives ____________ 85 VII Interface...
  • Page 93 1. Interface ® The Aladin Pro Nitrox is able to communicate with a personal computer. The connection is established by contact sensors. A special interface cable and the necessary PC-software DataTrak/DataTalk (MS-DOS) is available on the market. Communication via interface has a number of advantages: 1.1 Personal programming of the dive computer Several parameters can be set individually by the user, e.g.: –...
  • Page 94 1. Interface ppO2 max must not be set higher than 1.6 bar WARNING If you switch off the acoustic alarm of the Aladin Nitrox you must pay careful attention to the visual alarms on the face of the Aladin Nitrox. Failure to follow WARNING all alarms whether audible or not may lead to serious injury or death due to decompression sickness, and/or drowning.
  • Page 95 VII Interface...

  • Page 96: Viii Trouble Shooting

    VIII TROUBLE SHOOTING 1. Trouble Shooting _____________________________________ 88 symptom possible reason(s) response VIII VIII Trouble Shooting...

  • Page 97: Trouble Shooting

    1. Trouble Shooting symptom possible reason(s) response Altitude section does not Atmospheric pressure is especially high Check barometric information. correspond to the current or low. altitude. Gas mixture pressure measured by the Send in dive computer for servicing computer is wrong. (only if altitude section is wrong by more than one section, see chapter III 6).Re- view chapter III 5 very carefully.
  • Page 98 1. Trouble Shooting symptom possible reason(s) response .An unexpected decom- Too rapid an ascent or ignoring decom- Plan sufficiently long surface interval pression stop appears in pression stops have caused a and dives at lower risk. Review chapters place of no-stop time or largenumber of microbubbles, which III 5 and IV very carefully.
  • Page 99 symptom possible reason(s) response VIII Trouble Shooting...
  • Page 100 IX APPENDIX ® 1. Maintenance of Aladin Pro Nitrox Dive Computer _____________________________________ 92 2. Technical Information _____________________________________ 94 3. Warranty 3.1 Recognition of warranty ________________ 95 3.2 Scope of the warranty __________________ 95 3.3 Warranty period and claim ______________ 96 IX Appendix...

  • Page 101: Appendix

    1. Maintenance of Aladin ® Pro Nitrox Dive Computer ® Your Aladin Pro Nitrox is virtually maintenance free. All you need to do is to rinse it carefully with fresh water ® after each use and to have the batteries changed when needed. To avoid possible problems with your Aladin Pro Nitrox, the following recommendations will help assure that it will give you years of trouble free service: ®...
  • Page 102 1. Maintenance of Aladin ® Pro Nitrox Dive Computer There are borings in two of the contacts for the reception of the PC interface connection. Free these borings from dirt with a needle if necessary. Take the dive computer to an authorized Uwatec dealer in order to change the batteries.

  • Page 103: Technical Information

    2. Technical Information Operating altitude: with decompression information: sea level up to approx. 13300 ft without decompression information: unlimited Clock: quartz timer, display up to 199 minutes Operating temperature: 14 F to 122 F Power supply: Special battery Uwatec LR07 Life of the battery: (standard values) For an average diving time of 60 minutes and a surface interval of 20 hours after...

  • Page 104: Warranty

    3. Warranty Please pay attention to the following remarks on warranty claims: 3.1 Recognition of The warranty only covers dive computers which have been provably bought from warranty an authorized retailer or from the manufacturer. 3.2 Scope of the The manufacturer will repair all defects which are provably retraceable to defects warranty of material or faults in production.

  • Page 105: Warranty Period And Claim

    3. Warranty 3.3 Warranty period The warranty is given for a period of 12 months. and claim Repairs or replacements during the warranty period do not increase the warranty period. In order to put forward a warranty claim, send the dive computer together with a dated receipt of the purchase to your authorized retailer or an authorized servicing point.
