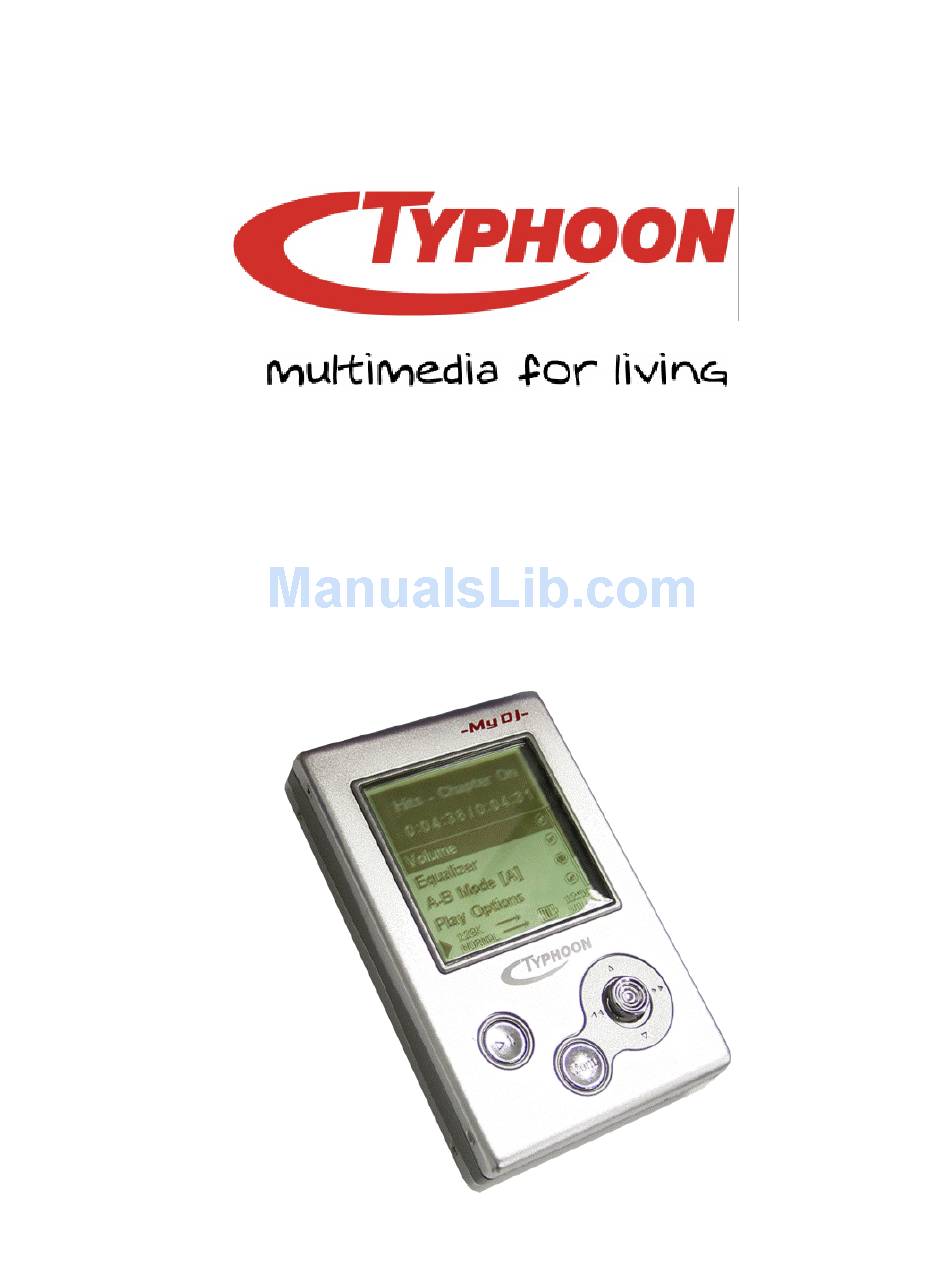

TYPHOON MP3 DIGITAL JUKEBOX

"MyDj"

(1/8" 20GB HDD MP3 PLAYER PLUS PIM)

Instruction Manual

Article Number: 83073

Version 2.0

http://www.typhoonline.com

Need help?

Do you have a question about the MP3 DIGITAL JUKEBOX MYDJ and is the answer not in the manual?

Questions and answers

Summary of Contents for TYPHOON MP3 DIGITAL JUKEBOX MYDJ

Page 1 TYPHOON MP3 DIGITAL JUKEBOX “MyDj” (1/8" 20GB HDD MP3 PLAYER PLUS PIM) Instruction Manual Article Number: 83073 Version 2.0 http://www.typhoonline.com...
Page 2: Declaration Of Conformity
66130 Saarbrücken Germany Declare that the product HDD DIGITAL JUKEBOX Brand: TYPHOON Model NO: 83073 Designated in this Declaration complies with the following specifications and bears CE mark in accordance with the provisions of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
Page 3 WHAT IS TYPHOON HDD DIGITAL JUKEBOX PLAYER? The Typhoon HDD Digital Jukebox Player is a portable MP3 / WMA / FM Radio / Games player with PIM functions all roll into one slim compact casing. It consists of an extremely slim 1/8" Hard Disk, ideal for traveling and Notebook users.
Page 4 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Specifications · Data transferring interface: USB 2.0 · Storage media: 1.8" HDD (10/20GB) · USB 2.0 Hi-Speed interface · Noise ratio: 90dB · Earphones output power: 50mW · Frequency response: 20~20kHz · LCD: 37 x 37 mm, 160 X 160 STN dot matrix ·...
Page 5 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Illustrations Note: the SEL joystick works in 2 modes. Pushing the sides to go in 4 directions as in a joystick to move the onscreen selector. Pressing the SEL button itself makes the onscreen selection as an Enter key.
Page 6 · Microsoft Windows® 98,Me, 2000 or XP · Internet connection recommended Installing HDD Jukebox; AudioPhile software DO not connect the Typhoon HDD Digital Jukebox player to the computer prior to installing the driver. Place the installation CD into CD-ROM Drive and the "Install For Audio Devices"...
Page 7 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 The Jukebox Management Tool Setup welcome screen will appear, click on "Next" to begin. Click on Next button to use the default path or click on Browse to assign your preferred path.
Page 8 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Once completed, the AudioPhile folder will appear, and the applet icon placed on the desktop. Installing the Musicmatch Jukebox Software From the Main menu, click on the "Musicmatch Jukebox" button. Click on the Next button in the Welcome window.
Page 9 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Choose the Destination folder for the installation or click on Next button for the default folder. Next set up the Radio Cache for improved performance or select No to leave it alone. Click on Next button to continue.
Page 10 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Select the Program folder to install to or select Next button to use the default folder. Next select the 3 options for placing your shortcuts and click on Next button to proceed.
Page 11 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Running the Applications 1. AudioPhile, the music management software for organizing and transferring music files to the HDD Digital Jukebox Player. 2. Music files can be sort, search, transfer to-and-fro between the HDD Digital Jukebox and the computer.
Page 12 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 To Upload and Download files to/fro your computer system Select the desired MP3 file (s) stored in the "music" tab, these are the MP3 files listed in the MP3 player. Click on the "Back to PC" button to upload to the PC system. Again a progress bar...
Page 13 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Click the "Add to Collection" button to add your favorite song to your appointed folder listed on the "My Collection" box. iii. Choose the item shown on the "My Collections" box Click the "TAG" button to edit the ID3 Tag information, including the title, album, artist, and genre for the selected song.
Page 14 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 From the "PIM" tab, you can enter / edit Contact, Addresses, and Calendar appointment data for transfer to the Digital Jukebox player. Vcard (Contact Data): · Press the New button, and the "FormCardEdit" dialog box appears as below.
Page 15 Text Edit From the "Text Edit" tab, you can import text notes or type in your memo notes, have it transfer to the Typhoon HDD Jukebox Digital Player and read while on the move. Press the Open icon, to open a new file and fill the words in the blank section on the right column.
Page 16 If the song is downloaded through Audiophile, it must be deleted from Audiophile. Using as a Computer Disk Drive To use the Typhoon HDD Digital Jukebox Player as a system disk drive, please use the steps below. Connect the HDD Digital Jukebox to your Desktop or Notebook's USB port with the supplied USB cable.
Page 17 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Drag and drop the file(s) to-or-fro the Jukebox, as you would do so with Windows Explorer. Onscreen Messages During Connection The diagram of “USB MODE” will show up on the screen of the MP3 player to indicate the player has been connected to the USB port of PC.
Page 18 Exit current state and return to previous state NOTE: Key Lock function To prevent accidental activations of buttons during transportation or carriage, the Typhoon HDD Digital Jukebox Player has a Keylock function to disable all buttons or keys. Version 2.0...
Page 19 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Press "MENU" button, for more than two seconds, and the Player will prompt to press "? ¦ " for lock all buttons. Press "? ¦ " to confirm lock all buttons. To unlock the hold setting, repeat same process as step 1. Press MENU"...
Page 20 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Playing Play Lists Scroll • or ‚ to "Play Lists", then press "SEL" button, My Music Menu (Idle) Choose the favorite play list using • or ‚ to move up or down the list, then press "SEL"...
Page 21 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 During playback, press "MENU" to navigate among songs in the album or execute other functions. While navigating is underway, use navigating function to My Music Menu. Scroll indicating bar to Now Playing, then press "SEL" or idle for 18 seconds to Song Content Display.
Page 22 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 · Select a play list you want to delete and press "SEL" to delete the play list. While you press the "SEL", the system will automatically pop up a dialog box to confirm the deletion instruction, then just choose and hit "yes"...
Page 23 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Songs playback Scroll • or ‚ to "Songs", then press "SEL" My Music Menu Move „ or ƒ to select the alphabet or numerical sorting order preferred, then press "SEL" to confirm. Note: the first box icon sort the entire list in alphabet and numerical order.
Page 24 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 2. Scroll • or ‚ or „ or ƒ to select the first character of each music title, then press "SEL" to confirm, and so do other successive characters. 3. Scroll • or ‚ or „ or ƒ, press "SEL" to select single song from current list.
Page 25 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Song Content Display During playback, the song content information will be display above in the LCD screen. Scroll • or ‚ to adjust volume, change equalizer settings, activate A -B mode or search for upcoming songs.
Page 26 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 FM Radio Scroll to "FM Radio", then press "SEL" Main Menu Volume control Scroll • or ‚ to "Volume", then press "SEL" Scroll „ or ƒ to adjust volume level, press "SEL" to confirm or "MENU" to cancel FM Record Scroll •...
Page 27 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Set Channel Scroll • or ‚ to "Set Channel", then press "SEL" Scroll • or ‚ to reset the current FM frequency to appointed channel, then press "SEL" to confirm or "Menu" to exit Search Channel Scroll to "Search Channel", then press "SEL"...
Page 28 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Scroll • or ‚ to "Music Record", then press "SEL" Scroll to "Record", then press "SEL" To Pause, scroll • or ‚ to "Pause" and press "SEL" to pause recording. During pause, scroll to "Resume"...
Page 29 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 To Play the recorded file, in the main menu, go to Play My Music and select Play List. Next select Recorded Songs and the files will be displayed for playback. To record each song with each filename, go to Preferences in the Main Menu and select the CD Sync menu.
Page 30 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Scroll to "PIM", then press "SEL" Main Menu Contacts Scroll • or ‚ to "Contacts", then press "SEL". Scroll • or ‚ to select and press the ''SEL'' to read. Press "MENU" to exit.
Page 31 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Game Main Menu Tetris Scroll • or ‚ to "Tetris", then press "SEL" Press „ or ƒ to adjust the speed level Scroll ‚ to "Key Setup ", then press "SEL" to the "Keys Define'' display.
Page 32 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Main Menu Settings Menu Volume Preset Scroll • or ‚ to "Volume Preset", then press "SEL" Press „ or ƒ to change the default volume level when powered on, then press "SEL" to confirm or "MENU"...
Page 33 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Play Options Scroll • or ‚ to "Play Options", then press "SEL" Scroll to these options, "Sequence Playlist", "Repeat Title", "Repeat Playlist", "Random" or "Repeat & Random", then press "SEL" to confirm or "MENU" to exit Date/Time Scroll •...
Page 34 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Installation checks After installing the HDD Digital Jukebox Player, Go to the Start menu – Control Panel – System applet – under the Hardware tab, click on the Device Manager button. Expand the list under the Disk Drives line. Your should see the “Toshiba MK1003GAL USB Device”...
Page 35 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 What are the differences between MP3 and WMA? MP3 / WMA format files are compressed digital audio files, which consumers can listen to with near CD quality. Commercial CD audio files can be compressed to MP3 / WMA format files, which are suitable for internet transmission due to their compact size and can be stored in a portable audio device.
Page 36 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Does the player support Mac OS? If you use the player as the removable drive, the player will work well with Mac OS 9.04 or above. If you play music with the player, please note the following limits: ·...
Page 37 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 How do I sort the Play list? Choose "Songs" menu in the "Play My Music" main menu. The top row of characters is the sort and search instructions. Use the Selector joystick to move left and right to list.
Page 38 TYPHOON HDD DIGITAL JUKEBOX PLAYER Article number: 83073 Warranty Card Version 2.0 All specifications and information are subject to changes without further notice...
