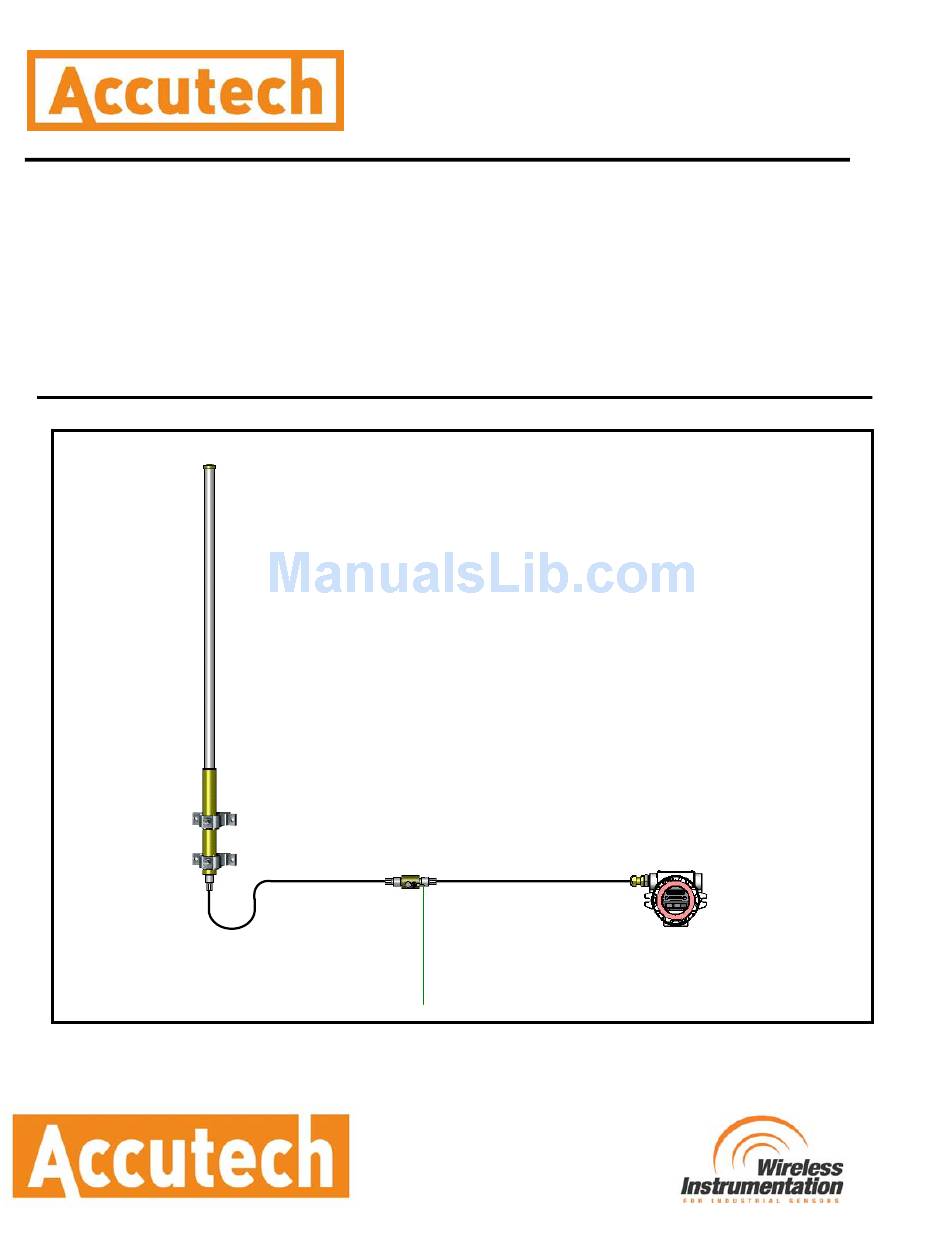

High Gain Omni-Directional
Antenna User Guide
WI-ANT-P6
WI-ANT-P6-A-10
WI-ANT-P6-A-25
Accutech High Gain Omni-Directional Remote Antenna
_______ _____ ______ _____ _____ _____ _____ _____ ______ _____ _____ _____ _____ ______ _____ _____ _____ _____ _____ ______ _____ _____ _____ _____ _____ ___
for Models:
Omni-Directional 6 dBd Pole remote antenna
Omni 6 dBd remote antenna w/lightning arrestor & 10 ft cable
Omni 6 dBd remote antenna w/lightning arrestor & 25 ft cable
A Division of Adaptive Instruments Corp.
577 Main Street
·
Hudson, MA 01749 U.S.A.
TEL: 800-879-6576
·
FAX: 978-568-9085
Email: support@accutechinstruments.com
www.accutechinstruments.com
User Guide Rev 0505
978-568-0500
Rev 0505
Advertisement
Table of Contents
Summary of Contents for Accutech WI-ANT-P6
- Page 1 WI-ANT-P6-A-25 Omni 6 dBd remote antenna w/lightning arrestor & 25 ft cable Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505 _______ _____ ______ _____ _____ _____ _____ _____ ______ _____ _____ _____ _____ ______ _____ _____ _____ _____ _____ ______ _____ _____ _____ _____ _____ ___ A Division of Adaptive Instruments Corp.
- Page 2 Updated format, changed an installation picture. Accutech A Division of Adaptive Instruments Corp. 577 Main Street · Hudson, MA 01749 USA TEL: 800-879-6576 · 978-568-0500 FAX: 978-568-9085 support@accutechinstruments.com Email: Web: www.accutechinstruments.com Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505...
-
Page 3: Table Of Contents
INSTALLING THE HIGH GAIN ANTENNA ......................6 3.1. Package Contents..............................6 3.2. Antenna Connection............................7 TECHNICAL SPECIFICATIONS........................... 9 4.1. High Gain Omni-Directional Antenna ........................ 9 4.2. Mounting bracket dimensioned drawing......................10 Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505... - Page 4 Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505...
-
Page 5: About The High Gain Omni-Directional Antenna
1. About the High Gain Omni-Directional Antenna High gain and remote antennas can increase the transmission distance of the Accutech Wireless Sensors. For even greater transmission distance, a high gain directional antenna (Yagi) may be purchased as an integral part of a field unit. -
Page 6: Installing The High Gain Antenna With The Lightning Arrestor
Waterproofing material for the antenna coaxial connection The following comes attached to the Base Radio: Coaxial cable assembly: 10’ length for WI-BR-R10-4X and WI-BR-R10-4X-MOD 25’ length for WI-BR-R25-4X and WI-BR-R25-4X-MOD Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505... -
Page 7: Antenna & Lightning Arrestor Connection
2.2. Antenna & Lightning Arrestor Connection Attention! For installation in ordinary locations only! Antenna connected to Lightning Arrestor and Base Radio Accutech High Gain Omni-Directional Remote Antenna User Guide 0505... - Page 8 Make sure this connection conforms to electrical code requirements. Connect the lightning arrestor coaxial cable to the antenna and hand-tighten. Install a drip loop in the cable to insure proper drainage. Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505...
- Page 9 Wrap the antenna connection with the supplied waterproofing material. Note Do not cover the drain holes on the bottom of the antenna as they provide drainage for moisture. Finished. Accutech High Gain Omni-Directional Remote Antenna User Guide 0505...
-
Page 10: Installing The High Gain Antenna
Waterproofing material for the antenna coaxial connection The following comes attached to the Base Radio: Coaxial cable assembly: 10’ length for WI-BR-R10-4X and WI-BR-R10-4X-MOD 25’ length for WI-BR-R25-4X and WI-BR-R25-4X-MOD Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505... -
Page 11: Antenna Connection
3.2. Antenna Connection Attention! For installation in ordinary locations only! Antenna connected to Base Radio Accutech High Gain Omni-Directional Remote Antenna User Guide 0505... - Page 12 Install a drip loop in the cable to insure proper drainage. Wrap the connection with the supplied waterproofing material. Note Do not cover the drain holes on the bottom of the antenna as they provide drainage for moisture. Finished. Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505...
-
Page 13: Technical Specifications
6 dBd (less cable loss ≈ 0.04 dBd/ft) Gain Weight 6 lbs Polarization Vertical Mounting Heavy wall gold anodized 1 ¼” aluminum with brackets included Base Radio coaxial 10’ or 25’ cable length Accutech High Gain Omni-Directional Remote Antenna User Guide 0505... -
Page 14: Mounting Bracket Dimensioned Drawing
4.2. Mounting Bracket Dimensioned Drawing Mounting bracket dimensioned drawing Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505... - Page 16 We give companies the tools to reduce costs, save time, enhance safety, improve environmental performance and cut waste. The next industrial revolution is right now. Let Accutech show you how to realize gains in operating efficiency. Visit us at: www.accutechinstruments.com Or call us at +1 800 879-6576 Specifications subject to change without notice.
