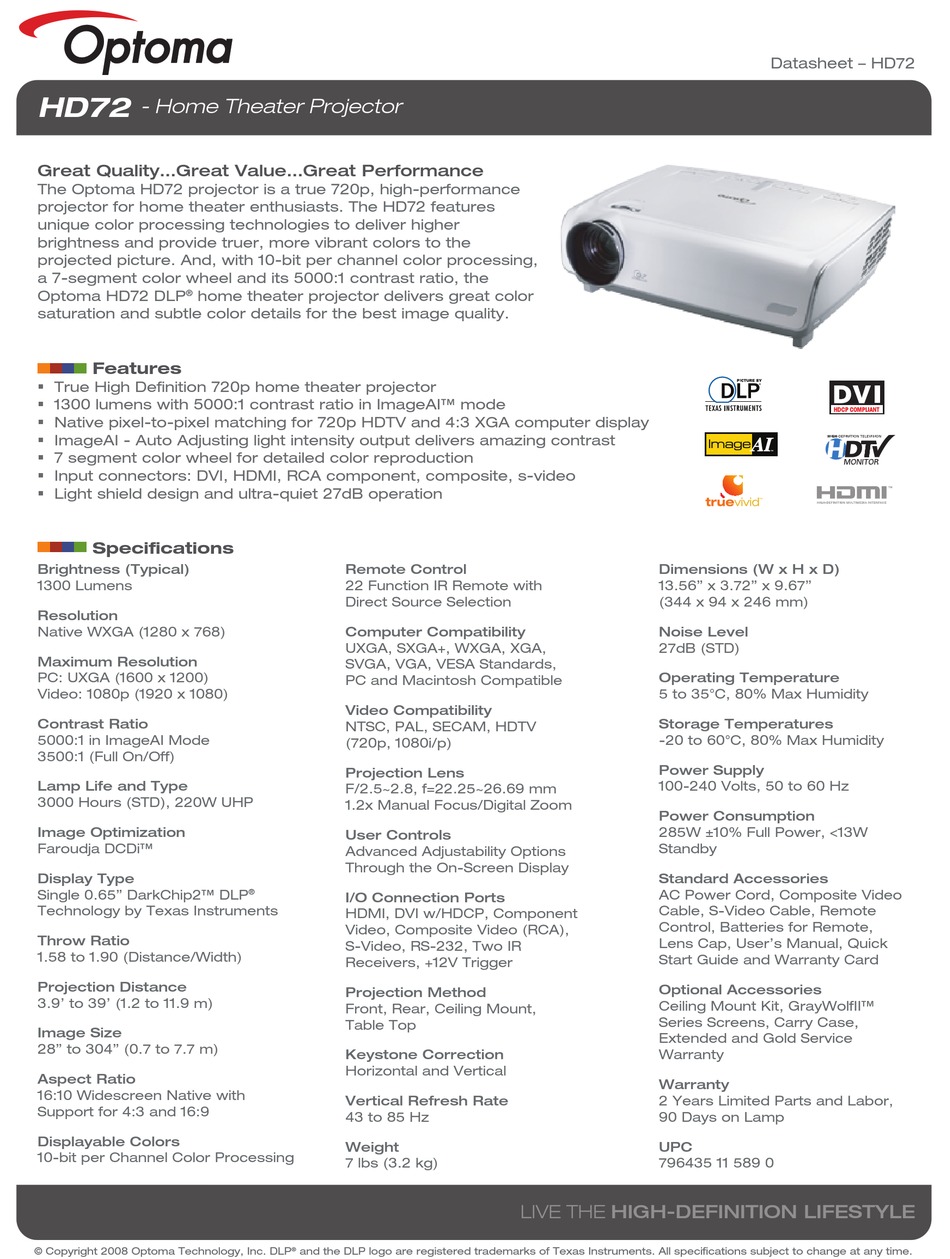

Optoma HD72 Datasheet

HD72
- Home Theater Projector
Great Quality...Great Value...Great Performance
The Optoma HD72 projector is a true 720p, high-performance
projector for home theater enthusiasts. The HD72 features
unique color processing technologies to deliver higher
brightness and provide truer, more vibrant colors to the
projected picture. And, with 10-bit per channel color processing,
a 7-segment color wheel and its 5000:1 contrast ratio, the
Optoma HD72 DLP home theater projector delivers great color
®
saturation and subtle color details for the best image quality.
Features
 True High Definition 720p home theater projector
 1300 lumens with 5000:1 contrast ratio in ImageAI™ mode
 Native pixel-to-pixel matching for 720p HDTV and 4:3 XGA computer display
 ImageAI - Auto Adjusting light intensity output delivers amazing contrast
 7 segment color wheel for detailed color reproduction
 Input connectors: DVI, HDMI, RCA component, composite, s-video
 Light shield design and ultra-quiet 27dB operation

Specifications

Brightness (Typical)
1300 Lumens
Resolution
Native WXGA (1280 x 768)
Maximum Resolution
PC: UXGA (1600 x 1200)
Video: 1080p (1920 x 1080)
Contrast Ratio
5000:1 in ImageAI Mode
3500:1 (Full On/Off)
Lamp Life and Type
3000 Hours (STD), 220W UHP
Image Optimization
Faroudja DCDi™
Display Type
Single 0.65" DarkChip2™ DLP
Technology by Texas Instruments
Throw Ratio
1.58 to 1.90 (Distance/Width)
Projection Distance
3.9' to 39' (1.2 to 11.9 m)
Image Size
28" to 304" (0.7 to 7.7 m)
Aspect Ratio
16:10 Widescreen Native with
Support for 4:3 and 16:9
Displayable Colors
10-bit per Channel Color Processing
© Copyright 2008 Optoma Technology, Inc. DLP
Remote Control
22 Function IR Remote with
Direct Source Selection
Computer Compatibility
UXGA, SXGA+, WXGA, XGA,
SVGA, VGA, VESA Standards,
PC and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, HDTV
(720p, 1080i/p)
Projection Lens
F/2.5~2.8, f=22.25~26.69 mm
1.2x Manual Focus/Digital Zoom
User Controls
Advanced Adjustability Options
Through the On-Screen Display
®
I/O Connection Ports
HDMI, DVI w/HDCP, Component
Video, Composite Video (RCA),
S-Video, RS-232, Two IR
Receivers, +12V Trigger
Projection Method
Front, Rear, Ceiling Mount,
Table Top
Keystone Correction
Horizontal and Vertical
Vertical Refresh Rate
43 to 85 Hz
Weight
7 lbs (3.2 kg)
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Dimensions (W x H x D)
13.56" x 3.72" x 9.67"
(344 x 94 x 246 mm)
Noise Level
27dB (STD)
Operating Temperature
5 to 35°C, 80% Max Humidity
Storage Temperatures
-20 to 60°C, 80% Max Humidity
Power Supply
100-240 Volts, 50 to 60 Hz
Power Consumption
285W ±10% Full Power, <13W
Standby
Standard Accessories
AC Power Cord, Composite Video
Cable, S-Video Cable, Remote
Control, Batteries for Remote,
Lens Cap, User's Manual, Quick
Start Guide and Warranty Card
Optional Accessories
Ceiling Mount Kit, GrayWolfII™
Series Screens, Carry Case,
Extended and Gold Service
Warranty
Warranty
2 Years Limited Parts and Labor,
90 Days on Lamp
UPC
796435 11 589 0
LIVE THE HIGH-DEFINITION LIFESTYLE
Datasheet – HD72
