3M 1600 Series Illustrated Parts Breakdown

3M 1600 Series Illustrated Parts Breakdown

Overhead projector
Hide thumbs Also See for 1600 Series:

Advertisement

Table of Contents

See also: Operator's Manual

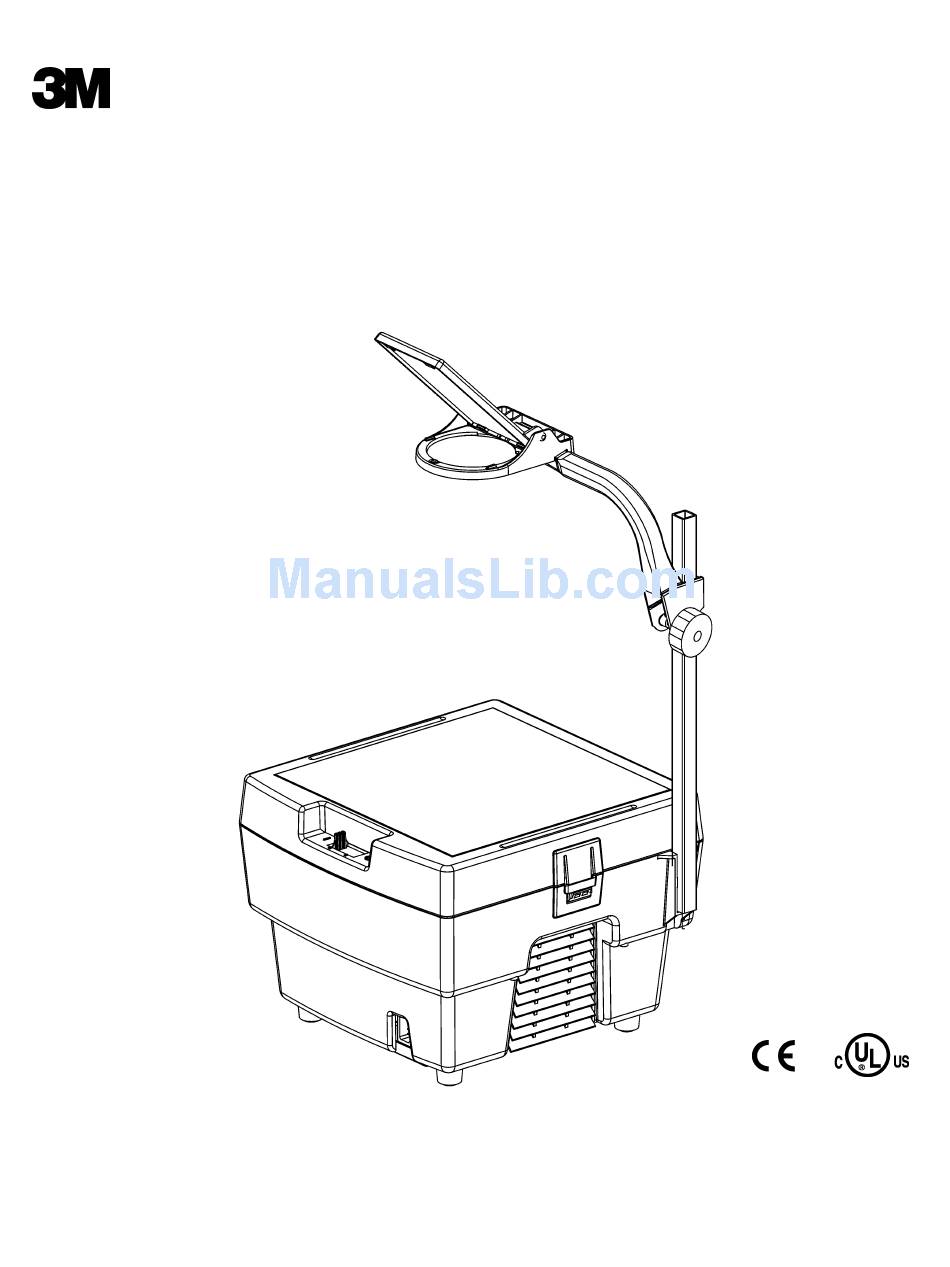

1600 Overhead Projector
Illustrated Parts Breakdown
3M Visual Systems Division
6801 River Place Boulevard
Austin, Texas 78726-9000
O.H.P. Service Documentation Resource
Copyright © 2002, 3M IPC. All Rights Reserved
78-6970-7536-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for 3M 1600 Series

Summary of Contents for 3M 1600 Series

  • Page 1 1600 Overhead Projector Illustrated Parts Breakdown 3M Visual Systems Division O.H.P. Service Documentation Resource 6801 River Place Boulevard Copyright © 2002, 3M IPC. All Rights Reserved Austin, Texas 78726-9000 78-6970-7536-0...

  • Page 2: Revision History

    Revision History Original Issue date: 8/2002 The release date, revision level, pages changed and a description of the modifications are listed below. Revision Date Page(s) Changed Description Rev A 4/2001 All pages First edition released Rev B 8/2002 Table Of Contents, Removed reference Quick Reference for 230V Electrical...

  • Page 3: Illustrated Parts Breakdown (Ipb)

    1600 Overhead Projector. Part Numbers All components available on a replacement basis are listed with their 3M identification number. The parts identification list opposite each illustration provides the description adequate to identify components. If the component is available only as part of the next higher assembly, the description column provides the next higher assembly description or identification number.
  • Page 4 .......................18 PPENDIX PECIFICATIONS ..................22 HERE DDITIONAL NFORMATION IMPORTANT NOTICE 3M reserves the right to sell or furnish NEW OR RECONDITIONED PARTS. New and reconditioned parts are covered by the same 3M new parts limited warranty. © 3M IPC 2002...
  • Page 5 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Quick Reference Parts Index Description Part Figure Item Number Mirror Module (10 inch and A4 Stage) 78-8120-8444-6 1 and 2 Head Module (10 inch and A4 Stage) 78-8120-8478-4 1 and 2 Arm/Post Module (A4 Stage)
  • Page 6 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 0. Machine Overview Mirror Module Focus Arm Spare Parts Spare Parts (See Figures 1 and 2) (See Figures 1 and 2) Head Module Spare Parts (See Figures 1 and 2) Fresnel Lens...
  • Page 7 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 1. Head and Focus Arm Assembly (10 inch Stage) © 3M IPC 2002...

  • Page 8: List

    Figure 1. Head and Focus Arm Assembly (10 inch Stage) Parts List Item Description Qty. Part Number 78-8120-8444-6 Mirror Module 78-8120-8478-4 Head Module (See Note 1) Arm, Focus (See Note 1) Post NOTE 1: Please contact the 3M Parts Center for ordering information on these items. © 3M IPC 2002...
  • Page 9 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 2. Head and Focus Arm Assembly (A4 Stage) © 3M IPC 2002...

  • Page 10: Mirror Module

    3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 2. Head and Focus Arm Assembly (A4 Stage) Parts List Item Description Qty. Part Number 78-8120-8444-6 Mirror Module 78-8120-8478-4 Head Module 78-8120-8465-1 Arm/Post Module (Includes Focus Kit, item #4) 78-8120-8466-9 Focus Kit...
  • Page 11 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 3. Top Cover Assembly * Part of Hardware Kit 78-8120-8477-6 © 3M IPC 2002...

  • Page 12: List

    3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 3. Top Cover Assembly Parts List Item Description Qty. Part Number 78-8120-8468-5 Stage Module (10 inch) 78-8120-8469-3 Stage Module (A4) 78-8120-8487-5 Fresnel Lens, Single Element (10 inch Stage) 78-8120-8488-3 Fresnel Lens, Dual Element, 300mm (A4 Stage)

  • Page 13: List

    3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 4. Base Assembly Internal Components See Figures 5 and 6 Figure 4. Base Assembly Parts List Item Description Qty. Part Number 78-8120-3035-7 Base Assembly © 3M IPC 2002...
  • Page 14 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 5. Internal Components (10 inch Stage) Latin America only © 3M IPC 2002...
  • Page 15 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 5. Internal Components (10 inch Stage) Parts List Item Description Qty. Part Number 78-8120-2997-9 Power Cord, 10 ft. 78-8120-3026-6 Lamp, Projection, FCS, 150W, 24V 78-8120-8474-3 Lamp Module (U.S. version with On/Off Switch)
  • Page 16 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 6. Internal Components (A4 Stage) © 3M IPC 2002...

  • Page 17: Tage

    3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 6. Internal Components (A4 Stage) Parts List Item Description Qty. Part Number 78-8120-8476-8 Condenser Module 78-8120-3026-6 Lamp, Projection, FCS, 150W, 24V RO-0-3-0--221-0 Reflector, Aluminized Glass 78-8120-8475-0 Lamp Module (with Interlock Switch)
  • Page 18 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 7. Hardware Kit (No Picture) Item Description Qty. Part Number 78-8120-8477-6 Hardware Kit Kit Includes: - - - Screw, Plastite, 6-19x5/16, Zn - - - Screw, Taptite, M3.5x6, Zn - - -...
  • Page 19 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown Figure 8. Small Parts Kit (No Picture) Item Description Qty. Part Number 78-8120-8486-7 Small Parts Kit Kit Includes: 78-8120-2992-0 Socket, F511470 78-8120-3001-9 Thermostat - - - Connector, IEC - - - Fuse...
  • Page 20 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown APPENDIX A – 1600 SERIES SPECIFICATIONS Model 1610 AJA 1612 AAAL 1612 AAAM 1615 AHGS 1615 AHGU 1615 AAGP Alpha United States United States United States Country United States United States United States...
  • Page 21 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown APPENDIX A – 1600 SERIES SPECIFICATIONS (Continued) Model 1615 AAGT 1615 AHGA 1615 AHGC 1615 AHGE 1615 AHGF 1615 AHGG Alpha Country Taiwan Australia Chile United Europe India Power Kingdom Cord 78-9236-6546-3...
  • Page 22 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown APPENDIX A – 1600 SERIES SPECIFICATIONS (Continued) Model 1615 AHGI 1615 AHGN 1615 AHGR 1615 AHGX 1615 AHGV 1615 AHGK Alpha Country South Africa Taiwan United Europe Power Kingdom Cord 78-9236-6552-1 78-9236-6553-9...
  • Page 23 3M™ Overhead Projector 1600 Series Illustrated Parts Breakdown APPENDIX A – 1600 SERIES SPECIFICATIONS (Continued) Model 1615 AHGL 1620 AJCW 38900 AJAW Alpha (Universal) United States United States Country United United States United States Power Kingdom Cord 78-9236-6607-3 78-9236-6544-8 78-9236-6534-9...
  • Page 24 You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M.
