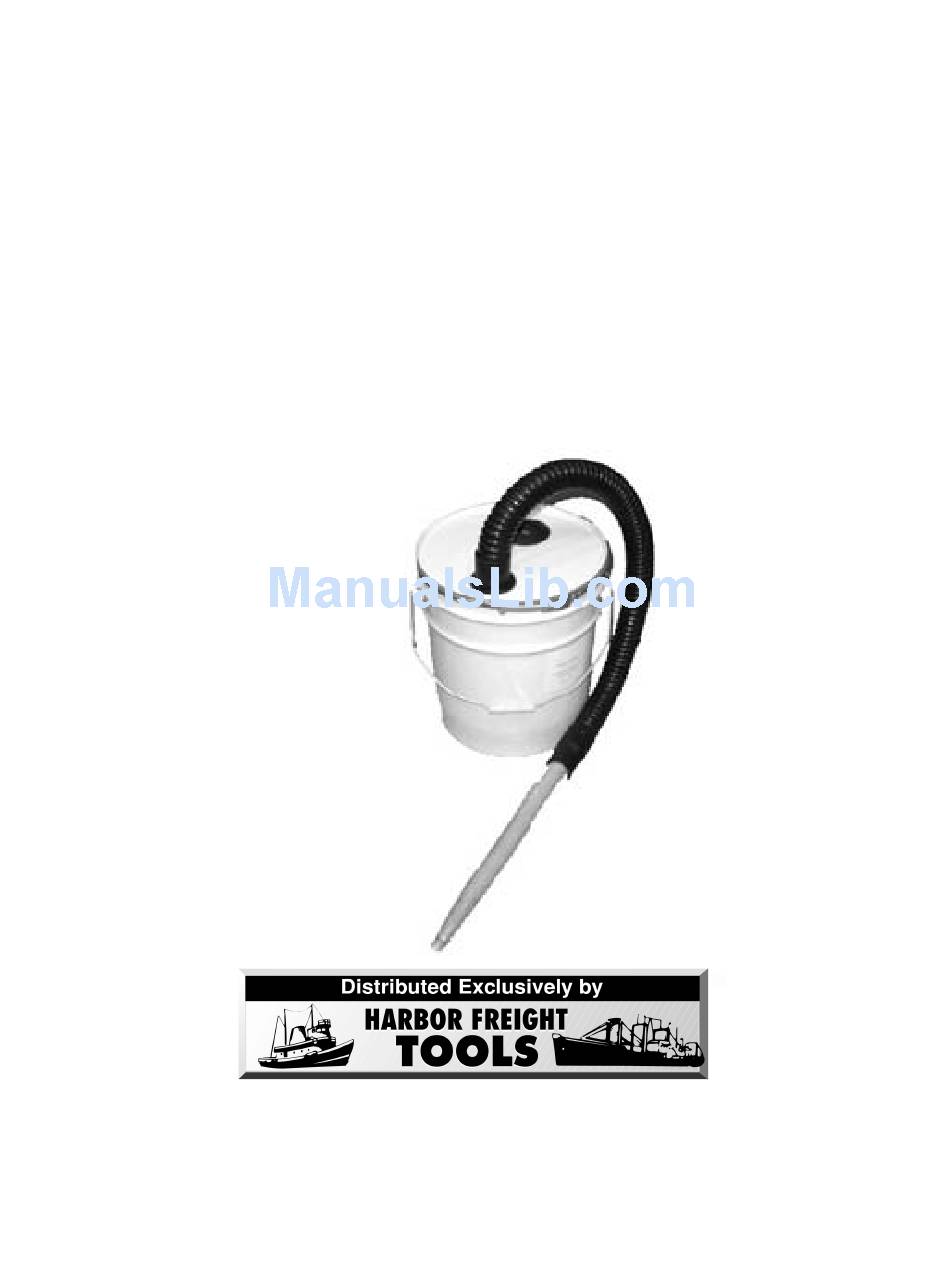

ASH CLEANER
VACUUM ATTACHMENT
Model 03394
ASSEMBLY and OPERATING
INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2003 by Harbor Freight Tools
®
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
Advertisement
Related Manuals for Harbor Freight Tools 3394
Summary of Contents for Harbor Freight Tools 3394
-
Page 1: Vacuum Attachment
. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353... - Page 2 Flex Hose Suction Nozzle Clean fireplaces, stoves, and barbecues with any household vacuum cleaner. You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual.
- Page 3 When unpacking, check to make sure the parts listed on page 6 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual as soon as possible.
- Page 4 Note: On the inside of the Cover (#2), underneath the Rubber Gasket (#5) is the Wire Cage Filter. FIGURE 1 Rubber Gasket (#5) Vacuum Cleaner Hose (not included) intake Ring (#1) Grooves on Cover (#2) Flex Pipe (#4) intake Grooves on Canister (#3) 2.
- Page 5 Wire Cage Filter. Gently tap on the Cover (#2) and the top of the Vacuum Cleaner Hose (not included) to loosen the debris. If power does not increase, you will have to open the unit and clean out the filter.
-
Page 6: Parts List
Dispose of them in a safe manner. 1. Never attempt any maintenance when the unit is warm or hot to the touch, or when it is attached to a vacuum cleaner. 2. Before operation, and periodically during operation, you must check that the Wire Cage Filter is clear. - Page 7 Assembly Drawing Hose From Vacuum (not included) Wire Cage Filter Page 7 SKU 03394...
