WLR-1000/2000/3000
Wireless Broadband Router
(802.11b/g/n)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLR-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sitecom WLR-1000

Summary of Contents for Sitecom WLR-1000

  • Page 1 WLR-1000/2000/3000 Wireless Broadband Router (802.11b/g/n)

  • Page 2: Table Of Contents

    NETWORK + SYSTEM REQUIREMENTS................9 WLR-1000/2000/3000 PLACEMENT ..................9 SETUP LAN, WAN ........................10 PC NETWORK ADAPTER SETUP (WINDOWS XP) ............11 BRING UP WLR-1000/2000/3000 .................... 15 INITIAL SETUP WLR-1000/2000/3000 .................. 15 CONFIGURATION WIZARD ....................24 WIRELESS SETTINGS......................26 FIREWALL SETTINGS ......................36 ADVANCED SETTINGS ......................
  • Page 3 Introduction...

  • Page 4: Key Features

    1 Key Features * Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. All specifications are subject to change without notice.

  • Page 5: Package Contents

    2 Package Contents...

  • Page 6: Product Layout

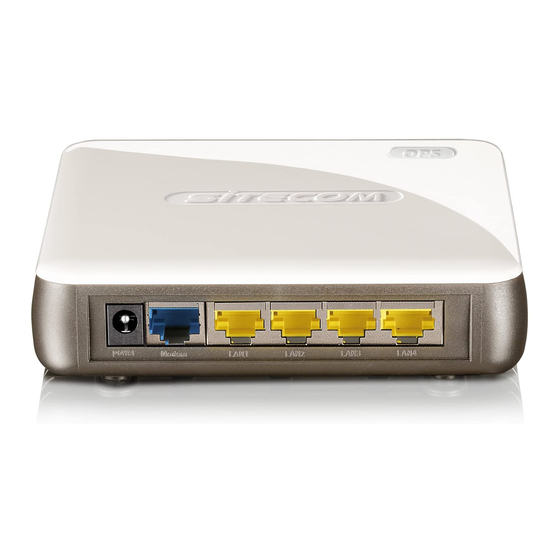

    3 Product Layout Port Description Power connector Connect the 5V DC adapter to this port WAN (Blue) Connect your ADSL/Cable modem to this port LAN (Yellow) Connect your PC’s or network devices to this port...
  • Page 7 Backlabel Button Description Press 2 seconds for WPS mode WPS BUTTON Press 10 seconds to reset the router Press 15 Seconds to reset the router to factory defaults.
  • Page 8 LED Definition Port Description...

  • Page 9: Network + System Requirements

    4 Network + System Requirements 5 WLR-1000/2000/3000 Placement...

  • Page 10: Setup Lan, Wan

    6 Setup LAN, WAN...

  • Page 11: Pc Network Adapter Setup (Windows Xp)

    7 PC Network Adapter setup Windows XP...
  • Page 13 Windows Vista/Seven...

  • Page 15: Bring Up Wlr-1000/2000/3000

    8 Bring up the WLR-1000/2000/3000 9 Initial Setup WLR-1000/2000/3000 LOGIN procedure 1. OPEN your browser (e.g. Internet Explorer). 2. Type http://192.168.0.1 in the address bar and press [Enter]...
  • Page 16 4. Click OK. 5. You will see the home page of the WLR-1000/2000/3000. The System status section allows you to monitor the current status of your router the UP time, hardware information, serial number as well as firmware version...

  • Page 17: Lan Settings

    LAN settings The LAN tab gives you the opportunity to change the IP settings of the WLR- 1000/2000/3000. Click <Apply> at the bottom of this screen to save any changes. IP address 192.168.0.1. It is the router’s LAN IP address (Your LAN clients default gateway IP address).
  • Page 18 Lease Time Forever. In the Lease Time setting you can specify the time period that the DHCP lends an IP address to your LAN clients. The DHCP will change your LAN client’s IP address when this time threshold period is reached. IP Address Pool You can select a particular IP address range for your DHCP server to issue IP addresses to your LAN Clients.

  • Page 19: Device Status

    Device Status View the Broadband router’s current configuration settings. Device Status displays the configuration settings you’ve configured in the Wizard / Basic Settings / Wireless Settings section.

  • Page 20: Internet Status

    Internet Status This page displays whether the WAN port is connected to a Cable/DSL connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP Gateway as well as MAC address, the Primary DNS. Press Renew button to renew your WAN IP address.

  • Page 21: Dhcp Client Status

    DHCP Client Status DHCP This page shows all DHCP clients (LAN PCs) currently connected to your network. The table shows the assigned IP address, MAC address and expiration time for each DHCP leased client. Use the Refresh button to update the available information.
  • Page 22 WLR-1000/2000/3000 Log View the operation log of the WLR-1000/2000/3000. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save> to a local file for further processing or the system log can be cleared <Clear>...
  • Page 23 WLR-1000/2000/3000 Statistics Shows the counters of packets sent and received on WAN, LAN & WLAN.

  • Page 24: Configuration Wizard

    10 Configuration Wizard...

  • Page 26: Wireless Settings

    11 Wireless Settings Wireless Function...
  • Page 27 Basic Settings...
  • Page 28 Advanced Settings...
  • Page 30 Security Disable When you choose to disable encryption, it is very insecure to operate the WLR- 1000/2000/3000. Enable 802.1x Auth...
  • Page 32 WPA Pre-shared Key WPA-Radius...

  • Page 36: Firewall Settings

    12 Firewall Settings Note: To enable the Firewall settings select Enable and click Apply...
  • Page 38 Denial of Service (DoS)
  • Page 39 Access...
  • Page 41 URL block...

  • Page 42: Advanced Settings

    13 Advanced Settings Port Forwarding...
  • Page 44 Virtual Server...
  • Page 46 Special Applications...
  • Page 49 UPNP...

  • Page 52: Toolbox Settings

    14 TOOLBOX Settings Password change options...
  • Page 53 Time Zone...
  • Page 54 Remote Management...

  • Page 55: Firmware Upgrade

    Firmware Upgrade This page allows you to upgrade the router’s firmware.
  • Page 56 Backup Settings...
  • Page 57 Reset...
  • Page 58 DDNS...
  • Page 59 Appendix A: Licensing Information Availability of source code No Warranty Appendix B: GNU GENERAL PUBLIC LICENSE Preamble...
  • Page 60 TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION...
  • Page 62 NO WARRANTY END OF TERMS AND CONDITIONS...
