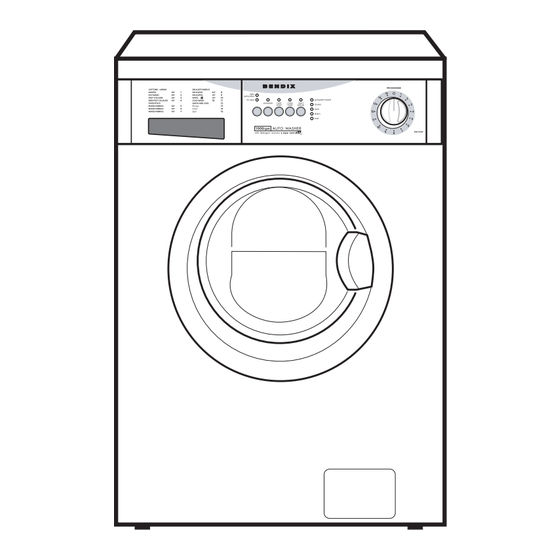

Page 1: Washing Machine
35.292.962…BIW 105.qxd 27/11/2004 13:31 Página 1 OPERATING & INSTALLATION INSTRUCTIONS WASHING MACHINE BIW 105 W 35.292.962/0... -
Page 2: Important Safety Information
35.292.962…BIW 105.qxd 27/11/2004 13:31 Página 2 Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
35.292.962…BIW 105.qxd 27/11/2004 13:31 Página 3 Contents Maintenance and Cleaning For the User 17-18 Descaling Important Safety Information After each wash Maintenance Wash Your New Washing Machine External cleaning Description of the Appliance Cleaning the dispenser drawer Detergent dispenser drawer Cleaning the drawer recess Cleaning the pump The Control Panel... -
Page 4: Your New Washing Machine
35.292.962…BIW 105.qxd 27/11/2004 13:31 Página 4 Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The programme selector dial combines the In the interest function of programme and temperature selection, of the environment making it easier to set the programme. -
Page 5: Description Of The Appliance
35.292.962…BIW 105.qxd 27/11/2004 13:31 Página 5 Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Control panel 4 Door opening handle 5 Drain pump 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: The Control Panel
35.292.962…BIW 105.qxd 27/11/2004 13:31 Página 6 The Control Panel 1 Detergent dispenser drawer 4 Half Load button Select this button to reduce water consumption on the Programme Option buttons rinse cycle when washing a smaller load of cottons or linens (maximum load size = 2.25 kg). Depending on the programme, different functions can The machine will perform 2 rinses instead of 3. -
Page 7: Programme Information
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 7 ATTENTION! If you turn the programme selector dial to another programme when the machine is working, the lights of the programme progress display start to flash. The machine will not perform the new selected programme. Programme information After the machine has started, only the running phase 10 = Wool... -
Page 8: Operating Sequence
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 8 Operating Sequence Before the first wash, we recommend that you pour 2 3. Select the required programme litres of water into the main wash compartment Turn the programme selector dial to the programme 1. the detergent drawer in order to activate the ECO valve. -
Page 9: Start The Programme
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 9 6. Start the programme 10.Opening the door after the programme has started Before starting up the machine check that: the appliance is plugged in First set the machine to pause by pressing the “start pause”... -
Page 10: Washing 2 Kg Of Mixed Fabrics At 50°C
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 10 WASHING 2 KG OF MIXED FABRICS AT 50°C 4. Select the required programme Suppose you have 2 kg of lightly soiled mixed fabrics to wash. They are rather delicate fabrics and should not be Turn the programme selector dial to the programme 6. -
Page 11: At The End Of The Programme
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 11 To start the selected programme, press the “start pause” button; the corresponding light stops flashing. Only the “prewash/wash” pilot light stays on. The machine starts operating. 8. At the end of the programme The machine stops automatically. If the “rinse hold”... -
Page 12: Washing Hints
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 12 Washing Hints Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children. -
Page 13: Which Detergent
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 13 And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended... -
Page 14: Wash Care Symbols
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 14 Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 15: Washing Programmes
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 15 Washing Programmes Programmes for cotton and linen Progr. Wash programme/ Degree of soil Programme Possible Max. Description time Washing symbol and type of laundry dial position options load mins. PREWASH Wash at 90°C HALF LOAD For heavy soiled cotton 5 kg WHITES... -
Page 16: Washing Programmes
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 16 Washing Programmes Programmes for synthetics, mixed fabrics, delicates and wool Progr. Programme Wash programme/ Degree of soil Possible Max. Description time dial position Washing symbol and type of laundry options load mins. Wash at 60 °C Synthetic or mixed Wash at 50 °C PREWASH... -
Page 17: Maintenance And Cleaning
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 17 Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 18: Cleaning The Water Inlet Filter
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 18 • When no more water comes out, unscrew the pump Clean the filter using a hard bristle brush. cover and remove it. Always keep a cloth nearby to Tighten up the inlet hose. dry up spillage of water when removing the cover. The dangers of freezing Remove any objects from the pump impeller by •... -
Page 19: Something Not Working
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 19 Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. During machine operation it is possible that the “end”... -
Page 20: Service And Spare Parts
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 20 Symptom Possible causes The internal packing has not been removed. The machine vibrates when spinning The machine is in contact with the wall or furniture. The machine is not stable and level (check diagonally). The washing load is badly distributed in the drum. -
Page 21: Guarantee Conditions
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 21 Customer Care Customer Care Department Bendix For general enquiries concerning your Bendix appliance or for further information on Bendix products, please 55-77 High Street contact our Customer Care Department by letter or Slough telephone as follows: Berkshire SL1 1DZ Tel 08705 950 950*... -
Page 22: Installation Instructions
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 22 Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 23: Unpacking
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 23 Unpacking Plug the 3 holes with the plastic plugs which you All transit bolts and packing must be removed can find in the envelope containing the instruction before using the appliance booklet. You are advised to keep all the packaging for re-use in case the appliance has to be transported again. -
Page 24: Water Inlet
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 24 Water inlet Water drainage Connect the hose to a tap with a 3/4” thread. This appliance is designed to be permanently plumbed Do not use previously used hoses for water connection. into your home's drainage system using one of the following methods. -
Page 25: Levelling
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 25 2. Onto a sink outlet spigot. Levelling If the outlet spigot has not been used before, remove Level the washing machine by raising or lowering the any blanking plug that may be in place. feet. -
Page 26: In The Interest Of The Environment
35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 26 The wires in the mains lead are coloured in accordance In the interest of the with the following code: environment Green and Yellow - Earth Washing machines and dishwashers should be Blue - Neutral connected to the FOUL drainage system, the water will Brown - Live... - Page 27 35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 27...
- Page 28 35.292.962…BIW 105.qxd 27/11/2004 13:32 Página 28 Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ Consumer care telephone number 08705 950 950 Electrolux plc 2004/11...
