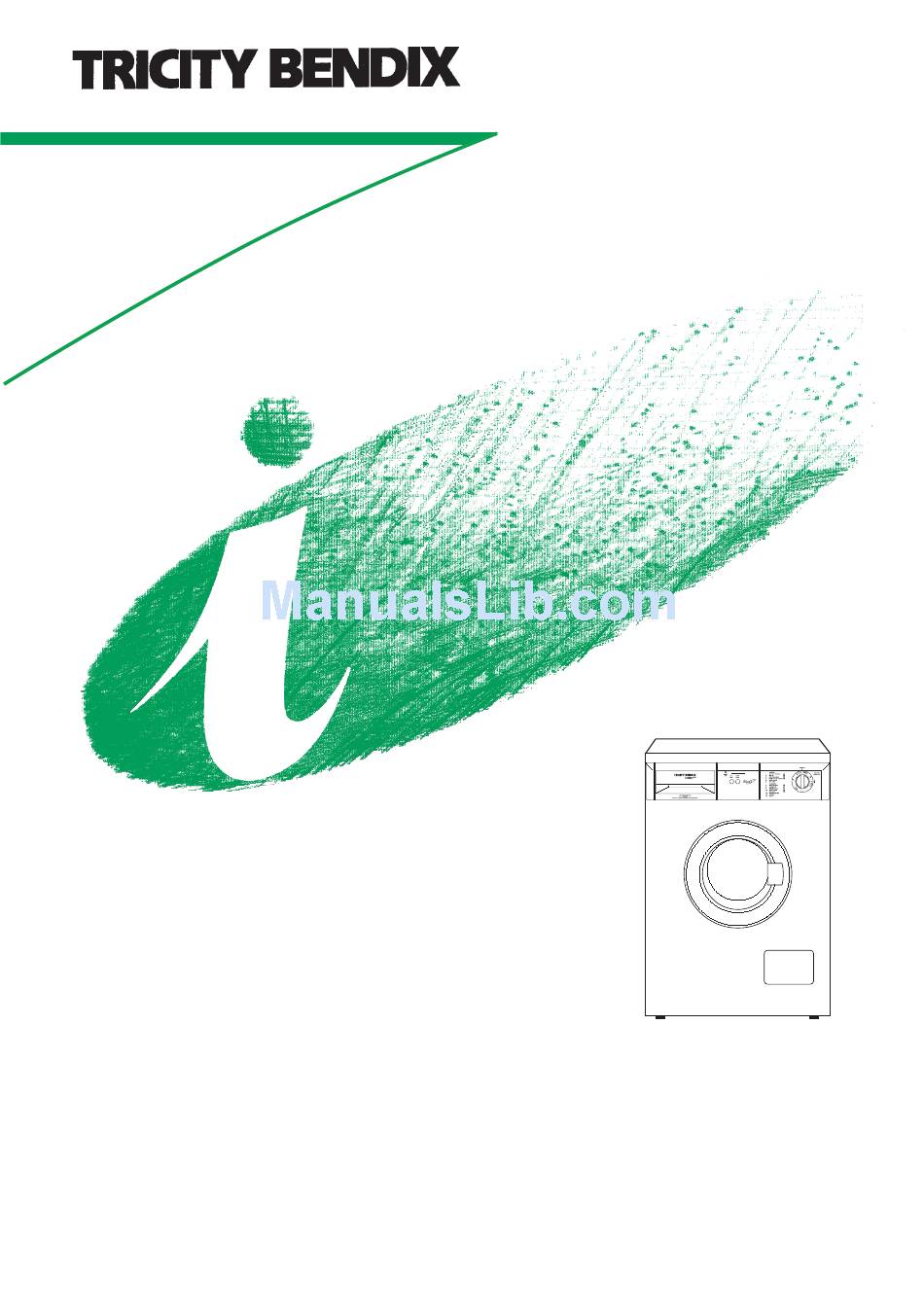

Page 1: Washing Machine
OPERATING & INSTALLATION INSTRUCTIONS WASHING MACHINE AW 1053 W 35.292.494/0... -
Page 2: Important Safety Information
Keep all detergents in a safe place out of children’s machine yourself. Repairs carried out by inexperienced reach. persons may cause injury or serious malfunctioning. Contact your local Tricity Bendix Service Centre. Always insist on genuine Tricity Bendix spare parts. -
Page 3: Your New Washing Machine
Your New Washing Machine Your new washing machine, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60°C In the interest of the before draining, with the 90°C programme. This environment reduces thermal shock to fabrics, helping to prevent any creasing. -
Page 4: Table Of Contents
Measure out the detergent Electrical connections Measure out the additive Permanent connection Select the required programme Tricity Bendix Service Force Addresses 29-30 Start the machine At the end of the programme Washing 2 kg of mixed fabrics at 50 °C... -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 “Mains-on” light 3 “Options” buttons 4 Programme guide 5 Program selector dial & ON/OFF switch a d v a n c e d SHOWER system 6 Door opening handle 7 Filter 8 Adjustable feet Detergent dispenser drawer Prewash... -
Page 6: The Control Panel
The Control Panel a d v a n c e d SHOWER system 1 Detergent dispenser drawer 4 HALF LOAD button Available for programmes 1 to 5. 2 Mains-on light Pressing this button before starting the programme there will be one rinse less which leads to energy and water This light illuminates when the appliance is operating. -
Page 7: Operating Sequence
Operating Sequence Before your first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 8: Start The Machine
5. Select the required programme Turn the programme selector dial CLOCKWISE to the required programme. P0215 6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the door and the detergent dispenser drawer are closed. -
Page 9: Washing 2 Kg Of Mixed Fabrics At 50 °C
WASHING 2 KG OF MIXED FABRICS AT 50 °C Suppose you have 2 kg of MIXED FABRICS to wash. They are rather delicate fabrics and should not be washed at a high temperature. 1. Load the laundry Open the door. Place the laundry in the drum, one item at a time, shaking out as much as possible. -
Page 10: Select The Required Programme
5. Select the required programme Turn the programme selector dial CLOCKWISE to the required programme P0215 6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the door and the detergent dispenser drawer are closed. -
Page 11: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the Some stains such as fruit, wine, grass, rust etc. are first few times you use the appliance. difficult to remove and should be treated before washing with specific products, which can be found The average weights of the most common items are in most household shops. -
Page 12: Which Detergent To Use
Delicate Items Which detergent to use?..When washing delicates such as woollens, you should To ensure you obtain the best wash results from your use a product which is specially designed to care for appliance, it is important to use the right detergent in fine fabrics. -
Page 13: And In Which Form
And in which form? Bounce conditioning sheets for use in a tumble dryer. We recommend the conditioning sheets are pinned Not only are there different types of detergent, but they (using a safety pin) to an article of laundry and placed in are also available in different forms. -
Page 14: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 15: Washing Programmes
Washing Programmes Programmes for cotton and linen Degree of soil and type Programme dial Possible Max. Wash programme Description of laundry position options load White cotton, Prewash at 40 ˚C example heavy soiled Wash at 90˚C Whites+Prewash garments, sheets, 4.5 kg 4 rinses household linen,... -
Page 16: Washing Programmes
Washing Programmes Programmes for synthetics, delicates and wool Degree of soil and type Programme dial Possible Max. Wash programme Description of laundry position options load Synthetic or mixed Prewash fabrics, underwear, Wash at 50˚C Mixed fabrics 2 kg coloured garments, non- 3 rinses shrink shirts, blouses. -
Page 17: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply Descaling The water we normally use contains lime. It is a good idea to periodically run a high temperature wash with detergent or use a descaler in the machine. -
Page 18: Cleaning The Filter
Cleaning the filter The water drain filter A clean filter is important for the correct functioning of the machine, and should therefore be cleaned after every washing programme. Open the filter door and place a container underneath to catch any spillage. If the filter is blocked and the machine is unable to drain you will need to drain the water manually from the machine at this stage. -
Page 19: Something Not Working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your Tricity Bendix Service Force Centre, please carry out the checks listed below. Important: If you call out an engineer to a fault if listed below or to repair a fault caused by incorrect use or installation a charge will be made even if the appliance is in guarantee. -
Page 20: Service & Spare Parts
If after the above checks, there is still a fault , call your local Tricity Bendix Service Force Centre. For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix Service & Spare Parts products, please contact our Customer Care Department... -
Page 21: Peace Of Mind For Twelve Months
We, Tricity Bendix, undertake that if, within 12 months of the date of the purchase, this TRICITY BENDIX Costs incurred for calls to put right an appliance... -
Page 22: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 23: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance You are advised to keep all the packaging for re-use in case the appliance has to be transported again. Unscrew and remove the three rear transit bolts (using a spanner). -
Page 24: Positioning
Positioning Your new Tricity Bendix washing machine has been designed to be permanently plumbed in to your home’s water supply and drainage system. However, if this is not possible, it may be connected to suitable existing taps, with the drain hose discharging into the sink. -
Page 25: Water Drainage
Water drainage This appliance is designed to be permanently plumbed into your home's water supply and drainage system. 3 pin The appliance drain hose should hook (use the plastic “U-piece” supplied) into a standpipe with an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe. -
Page 26: Levelling
Levelling Level the washing machine by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts against the base of the case. Accurate levelling prevents vibration, noise and displacement of the machine during operation. After levelling the machine, secure the feet by tightening the ring nuts with the aid of a screwdriver. -
Page 27: Electrical Connections
The cover/carrier is indicated by the coloured insert at the base of the plug. A replacement cover/carrier must be obtained from your local Tricity Bendix Service Centre, whose address are listed at the back of this instruction manual. Permanent connection... -
Page 28: Tricity Bendix Service Force Addresses
TRICITY BENDIX SERVICE FORCE 0990 929929 To contact your local Tricity Bendix Service Centre telephone CHANNEL ISLANDS ISLE OF LEWIS ND Macleod NORTH EAST (M69) 16 James Street Stornoway GATESHEAD Unit 356a GUERNSEY Guernsey Electricity Isle of Lewis PA87 2QW... - Page 29 TRICITY BENDIX SERVICE FORCE 0990 929929 To contact your local Tricity Bendix Service Centre telephone MIDLANDS LONDON & EAST ANGLIA SOUTH EAST BIRMINGHAM 66 Birch Road East, CANVEY ISLAND 2-4 Sandhurst ASHFORD Unit 2 (M18) Wyrley Road Industrial Kings Road...
- Page 31 Tricity Bendix, 99 Oakley Road, Luton, Beds LU49QQ Consumer care telephone number 01635 525 542 1 2 3 4 5 6 7 8 9 10 11 12/98...
