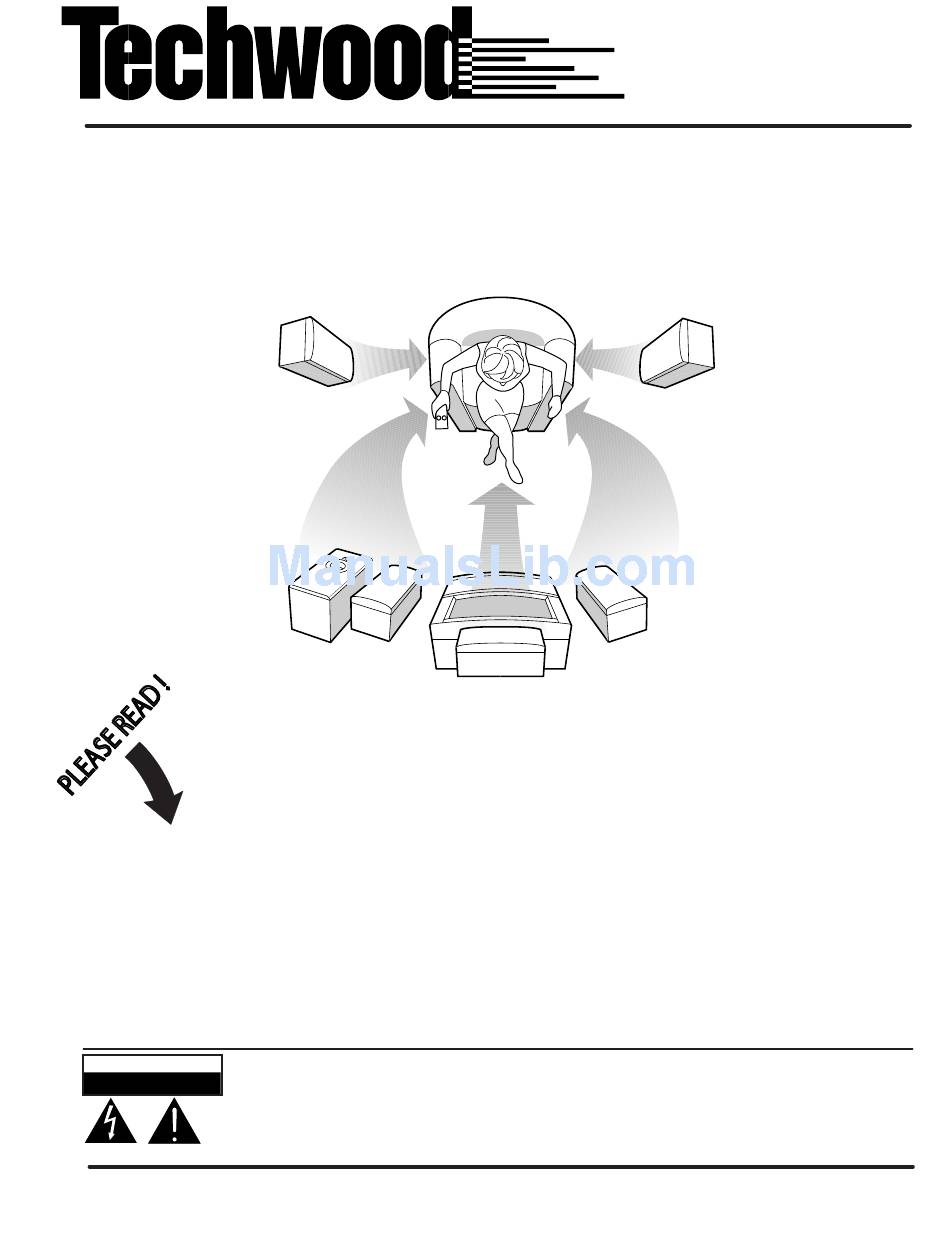

HOME THEATER
QUICK-START
This "QUICK-START GUIDE" will get you started without reading the complete own-
er's manual. However, we recommend you take time to read the owner's manual
completely to learn about all of the features and operating instructions for the
DVR99. The Quick Guide covers only basic connections and operating instructions.
The owner's manual includes important safety information and describes in detail,
the advanced features and operating instructions of the DVR99.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WELTON U.S.A.
11625 Columbia Center Drive Suite 100 Dallas, Texas 75229
SYSTEM
GUIDE
DVR99
972-243-5602
weltonusa.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TECHWOOD DVR99
Summary of Contents for TECHWOOD DVR99
-
Page 1: Home Theater
However, we recommend you take time to read the owner's manual completely to learn about all of the features and operating instructions for the DVR99. The Quick Guide covers only basic connections and operating instructions. The owner's manual includes important safety information and describes in detail, the advanced features and operating instructions of the DVR99. - Page 3 SATELLITE SYSTEM IMPORTANT NOTE: When connecting components to the DVR99 make sure that the AUDIO/VIDEO cables are properly connected (white audio plugs to white audio jacks, red audio plugs to red audio jacks and yellow video plugs to yellow video jacks).
-
Page 4: Playing The Radio
Press the MEMORY button on the front of the DVR99 or on the remote and MEMO will appear and flash in the display for 5 sec- onds. While MEMO is flashing in the display select a preset number by pressing the TUNING/PRE- SET ....or... -
Page 5: Playing A Cd
. IMPORTANT NOTE: Most CD’s are recorded in 2 channel stereo so it is recommend- ed that when you are playing a CD that you select the STEREO button on the front of the DVR99. To skip to a specific track on a disc, press the UP/DOWN buttons on the front of the DVR99 or on the remote repeatedly until the desired track appears in the display. -
Page 6: Playing A Dvd
Disc 3 DOWN Press the power button on the front of the DVR99 or on the remote. Turn on your TV and select the vid- eo input on your TV that is connected to the DVR99. Turn the function knob on the front of the DVR99 until DVD/CD appears on the display or press the DVD/CD button on the remote. - Page 7 DOWN STEPS Press the power button on the front of the DVR99 or on the remote. Turn on your TV and select the vid- eo input on your TV that is connected to the DVR99. Turn the function knob on the front of the DVR99 until VCR appears on the display or press the VCR but- ton on the remote.
- Page 8 DOWN STEPS Press the power button on the front of the DVR99 or on the remote. Turn on your TV and select the vid- eo input on your TV that is connected to the DVR99. If you want to watch a TV or cable program and you used the suggested method of connection under section 2 turn the function knob on the front of the DVR99 until TV appears on the display or press the TV button on the remote.
-
Page 10: Read This First
READ THIS FIRST This audio system is made and tested to meet exacting safety be determined by turning the equipment off and on, the user is standards. It meets both UL and FCC requirements. encouraged to try to correct the interference by one or more of the following measures: W W W W A A A A R R R R N N N N I I I I N N N N G G G G : : : : To reduce the risk of fire or shock hazard, do not •... -
Page 11: Placing The Receiver
protection technology must be authorized by Macrovision This section lists important information that will help you Corporation, and is intended for home and other limited properly use and enjoy your system. Read all the included viewing uses only, unless otherwise authorized by Macrovision safety and operating instructions before using your system. - Page 12 14. Ventilation — Slots and openings in the cabinet provide damage and will often require extensive work by a qual- ventilation, ensure reliable operation, and protect from ified technician to restore the product to normal opera- overheating. Do not block or cover these openings, and do tion.
-
Page 13: Table Of Contents
CONTENTS Features 6 Repeat Play ..............16 Programming Tracks ............16 Preparation 7 Modifying the Program and Adding a Track ....16 Connecting Components ..........7 Random Play ..............16 Connecting a TV ............7 DVD Player Operation 18 Connecting a Cassette Deck ......... 8 Basic Playback .............. -
Page 14: Features
FEATURES Dolby Digital, Dolby Pro Logic and DTS Surround Settings Lets you use the Home Theater Audio System for a movie-theater surround sound experience when viewing DVD's. Built-in, 3-Disc DVD/CD Changer Plays audio and video discs including CD, CD-R, MP3 AND DVD. Adjustable Speaker Size, Channel Level and Distance Lets you customize your setup for a true surround sound experience. -
Page 15: Preparation
If your TV has an S-Video jack, connect receiver’s DVD player. You can connect other audio and audio/ to the [DVD] S-video Out jack on the rear of the DVR99. visual components to the receiver in order to use the Home Theater Audio System’s surround sound capabilities. -
Page 16: Connecting A Cassette Deck
Connecting a Cassette Deck Connecting an Auxiliary Audio Component Use audio cables (not supplied) to connect a cassette You can also connect an audio Component that does not require deck to the receiver. Connect red plugs to the right a Toslink Optical cable (such as an MP3 player, playback cassette A UDIO jacks and white plugs to the left jacks. -
Page 17: Am Outdoor Antenna
PLACING THE SPEAKERS Connect the loop antenna’s wires to . Place the antenna in a location (for example, on a shelf or window frame) that gives the best reception. 1. Place the front left and right speakers at equal distances from the TV. -
Page 18: Receiver Operation
RECEIVER OPERATION A QUICK LOOK AT THE RECEIVER’S CONTROLS T UNING MODE In tuner mode, pres s to s witc h between pres et and manual tuning (s ee “ S witc hing B etween P res et S tations and Manual T uning” P age 11). -
Page 19: Using The Tuner
MEMORY but- USING THE CD PLAYER ton on the front of the DVR99 or on the remote and MEMO will appear and flash in the display for 5 seconds. W hile You can use the receiver’s 3-DVD changer to listen to audio... -
Page 20: Continuous Play
TONE ON appears in the display. Press N N N N o o o o t t t t e e e e : : : When the DVR99 finishes playing an audio CD, it TONE button again and BAS 0dB will appear in the display. -
Page 21: Remote Control Operation
REMOTE CONTROL OPERATION A QUICK LOOK AT THE REMOTE CONTROL T E S T TONE — T urns on or off the tes t tone func - tion in DT S , DOL B Y DIG IT A L , or P R O L OG IC mode. T he tes t tone is output from F ront L s peaker, C en- ter s peaker, F ront R s peaker, S urround R s peaker, S urround L s peaker, (optional s ubwoofer s peaker... -
Page 22: Setting Up The Surround Sound System
SPEAKER LEVEL again and FR 0dB appears. sizes. The DVR99 comes from the factory pre-set for use with To change the front right speaker’ s level, repeatedly press small front, center and rear speakers and a powered subwoofer. +10dB until you reach the desired level ( If you purchased the DVR99 with large floor standing speakers 5. -
Page 23: Surround Effects
Stereo broadcasts or recordings will produce some rear channel effects when played in a surround mode. However, • The buttons on the DVR99 remote control may not work mono sources will not produce any sound from the rear correspondingly with those on the components. -
Page 24: Repeat Play
3. Insert a CD into one of the three DVD/CD trays on the DVR99 receiver and press the play button for the tray you 2. To change the selected programmed position to another have put the CD in. -
Page 25: Basic Playback
DIS C 1 DIS C 2 DIS C 3 player. control or on the DVR99 receiver. 5. Press the receiver’s proper button or the remote control’s P L A Y play button. The disc tray... -
Page 26: Dvd Player Operation
Using GUI Menu Icons Playing in Slow-Motion For DVD Mode Press the remote’s during playback. SLOW – /+ GUI menu icons show disc information (for example, title or To decrease the playback speed, repeatedly press . As chapter number, elapsed playing time, audio/subtitle language, SLOW –... -
Page 27: Using A Title Menu
Using a Title Menu NOTES: • When the desired language is not shown even after pressing the button several times, it means the language Some DVDs may contain two or more titles. If the disc has a is not available on the disc. title menu recorded on it, you can use to select the movie TITLE... -
Page 28: Zooming In
Zooming In • If you change the level and enter a password, playback of all DVDs with ratings higher than your selection will be Zoom allows you to zoom in and enlarge the picture on the blocked, unless you enter the correct password again. For screen to either 4 times (4X) or 16 times (16X) its normal size. -
Page 29: Selecting Digital Audio Out
16:9 WIDE (Widescreen) — If you have a widescreen TV set, use this setting. The DVD plays in full size. (You must also set your widescreen TV to “full size”). SELECTING DIGITAL AUDIO OUT Each DVD has a variety of audio output options. If you connected a Component to the receiver’s digital optical jacks (see “Connecting a Digital (Optical) Audio Component”... -
Page 30: Troubleshooting
To determine any problem with your receiver, always check the most obvious possible causes first. If any problem still remains after your have checked the items below, consult your nearest TECHWOOD dealer. Incorrect operation is often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. - Page 31 Symptom C ause R emedy Considerable noise in Incorrect frequency. Tune in the correct frequency. radio broadcasts. The antenna is not connected. Connect the antenna. RF (AC-3) and/or digital cables are Route RF (AC-3) and digital cables away from the near the antenna terminals and wires.
-
Page 32: Care
CARE Modifying or tampering with the receiver’s internal components can cause a malfunction and might invalidate its warranty and void your FCC authorization to operate it. If your Keep the receiver dry; if it gets wet, wipe it dry immediately. receiver is not performing as it should, take it to your local Use and store the receiver only in normal temperature store for assistance. -
