Kamesan KS-6002 Operating Manual

Eq/compressor
Hide thumbs

Advertisement

Quick Links

Download this manual
KS-6002
EQ / Compressor
Operating manual
EQ1
ON
L
-12
+12
-12
I
+12
N
K
EQ
ON
200
3.2K
12K
15K
EQ2
ON
COMP
-12
+12
-12
-12
+12
EQ
ON
200
3.2K
12K
15K
200
EQ3
EQ4
ON
L
+12
-12
I
-12
+12
+12
N
K
EQ
ON
3.2K
12K
15K
200
3.2K
POWER
ON
COMP
-12
+12
EQ
ON
12K
15K

Advertisement

loading
Need help?

Need help?

Do you have a question about the KS-6002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kamesan KS-6002

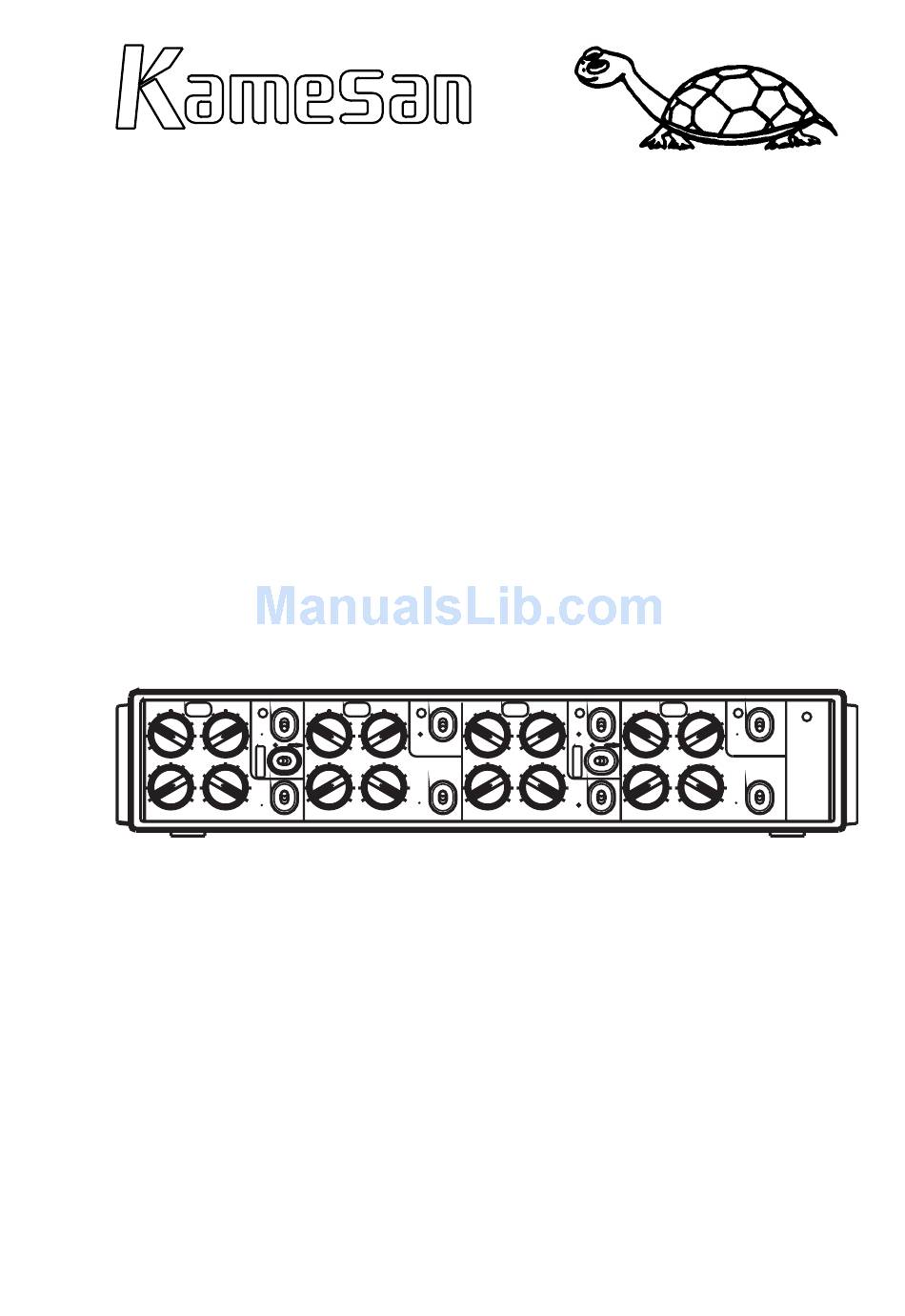

  • Page 1 KS-6002 EQ / Compressor Operating manual POWER COMP COMP 3.2K 3.2K 3.2K 3.2K...
  • Page 3 KS-6002 EQ Compressor Thank you for your purchase of the Kamesan KS - 6002 integrat- ed 4-channel EQ unit and compressor, which integrates with Kamesan mixer units such as the KS -342 and extends their capabilities. The key features of this unit include switchable 2-band EQ on...

  • Page 4: Side View

    You should also note that there is also a plate on the top surface of the KS-6002 which can be removed and used to connect the KS-6002 to other...

  • Page 5: Front Panel Features

    KS-6002 EQ Compressor equipment (in which case, the KS-6002 becomes the “jam in the sandwich” between the KS-342 and another unit such as the KS- 6001 sub-mixer). THRESHOLD LEVEL: Use these controls to set the individual threshold levels of the four compressor units for each channel of the mixer connected to the KS - 6002.
  • Page 6 KS - 6002 is switched on and supplying power to the KS - 6002. Note that the KS-6002 does not have its own power switch. Power is supplied only through the connector linking the KS- 6002 to the other unit.
  • Page 7 KS-6002 EQ Compressor Specifications, etc. Compression performance The graph below shows the output level relative to various input levels with the compressor enabled, and the threshold set to different values. ��� �� Output level Threshold �� (relative to nominal) level ��...

  • Page 8: Physical, Etc. Specifications

    KS-6002 EQ Compressor Specifications Equalizer Equalizer type 2-band, peaking type, sweepable fre- quency Center frequency ranges 200 Hz to 3.2 kHz, HIGH 1.2 kHz to 15 kHz Cut and boost ±12 dB Compressor Threshold level Settable from 0 dB through +12 dB...
  • Page 9 KS-6002 EQ Compressor Block diagram...

  • Page 10: About Kamesan

    Visit both of our Web sites at http://www.kamesan.co.jp and http://www.kamesan.info in order to find out more about what we’re doing, and to let us know what you are doing with Kamesan prod- ucts.
  • Page 12 Sigma Systems Engineering Co. Ltd. 3 -5-2 Okubo Shinjuku-ku Tokyo 169- 0072 JAPAN Tel: +81 3 3204 2611 Fax: +81 3 3204 2250 e-mail: sales@kamesan.co.jp...
