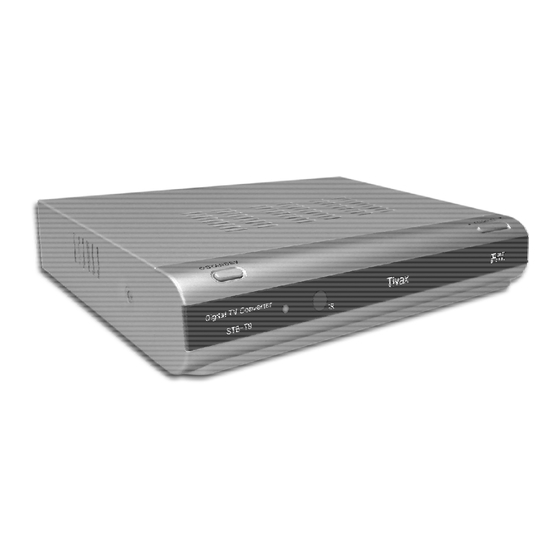

- Page 1 USER MANUAL STB-T9 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
-
Page 2: Tivax Digital Tv Converter User Manual- Important Safety Instructions
The Tivax Guarantee Tivax is dedicated to bring the world of digital televisio n to you, no matte r if your TV set is an older model. For questions or t echn ical issues, p leas e visit: www.tivax. com... -
Page 3: Important Safety Information
Instead, use a dry cloth. ü Your Tivax generates a small amount of heat, so do not block the vents or inhibit normal air circulation. To protect your Tivax from overheating, place it on a flat smooth surface, such as a shelf. -
Page 4: Welcome To The World Of Digital Tv
Some experimenting may be required to obtain the best results. Than k you for choo sing a Tivax Se t Top Box and enjoy the new world of Digital Te levision. PDF 文件使用 "pdfFactory Pro" 试用版本创建... - Page 5 Bienvenido al mundo de Digital TV Todas las cajas encima del televisor (STB) se han p robado en la fįbrica para la o peración apropiada. En caso de que usted encuentre cualquier problema, por favor siga estos paso s simples para localizar las averķas de sus problema s. Por favor asegu rece que su TV y STB estén conectado y encendido, y qu e el STB es conectado correctamente con su TV por un cable RF o cable A/V (conecta dores rojos amarillos blancos en cada extremo) que sigue la pauta de abajo.
- Page 6 Power 示 标 示 。 TIVAX 由 于不 同 的地 区有 不 同的 频 道节 目， 您必 须 使用 自 动搜 索功 能来 设 置您 机 顶盒 的频 道 。 请 确认 您 已将 适合 的 天线 连 接到 机顶 盒的 天 线输 入 端（ 标示 为...
-
Page 7: Table Of Contents
Table of Contents Tivax Digital TV Converter User Manual- Important Safety Instructions ....1 Important Safety Information ................2 Welcome to the world of Digital TV ..............3~5 Tivax Set Top Box User Manual - Let's Get Started........7~9 How to Receive the Best Digital TV Signal with Your Antenna......10 1.1 Remote control ..................11... -
Page 8: Tivax Set Top Box User Manual - Let's Get Started
Connect t he antenna to your Analog TV. If you can rece ive a picture, your Tivax will work. Don't wo rry if the p icture is n ot perfect. That's a not her specia l feature of Digital TV. It's BETTER! Digita l TV signals d on't ha ve the same problems Analog TV sig nals d o. - Page 9 1 . You must have a Digita l TV set . Your Analog TV cann ot receive th e amazing wor ld o f digital t elevision 2 . You must have a Digita l TV tune r. Tivax is a Digital TV tuner. …...
- Page 10 Day Time. Imagine signal #1 is dedicated to a soap opera, signal #2 is dedicated to a documentary, signal #3 is dedicated to a talk show and signal #4 is dedicated to a medical program. Only Digital TV can do this and Tivax can decode this for you! Standard Definition Television This refers to a TV picture that is NOT High Definition.
-
Page 11: How To Receive The Best Digital Tv Signal With Your Antenna
1.How t o find Digital TV channels in your area 2.How t o se lect the best an te nna for your Tivax 3.How t o scan and store Digita l TV ch annels wit h yo ur Tivax How to find Digital TV channels in your area... -
Page 12: Remote Control
Press to increase the output Digita l TV CONV ERTER volume level. Tivax 15. VOL-: Press to decrease the output STB-T9 volume level. Press to move around the menu screens 17. MENU: Press to display the main menu or to switch back to the previous menu screen that was displayed. -
Page 13: Installing The Batteries
1.1.1 Installing the Batteries Remove the battery co ver from the remote con trol a nd pu t 2xAAA size batt er ies inside th e compa rtment. The d iagram inside the ba ttery comp artmen t shows the correct way to install the batte ries. -
Page 14: Front Panel And Rear Panel Illustration
Used to receive the signal from the remote control. CHANNEL UP/DOWN: Use d to chang e the chan nels in the no n-menu state. 1.2.2 Rear Panel MODEL: STB-T9 Tivax C ONF ORM S T O UL DIGITAL TV CONVERTER... -
Page 15: Connecting Your Atsc Converter Box
1.3 Connecting The Digital Converter Box The following diagrams are of typical configurations only, and may differ slightly to your existing external equipment. If you are unsure how to connect to your Digital Converter Box , always consult your manufacturer's user manual supplied with your equipment. -
Page 16: Connecting To A Tv Set
1.3.2 Connecting to a TV TV Aerial (For smart antenna only) ATSC NTSC VIDEO Video Out 100-240V~ RF IN RF OUT CH 3 CH 4 50/60Hz SERVICE SMART ANT. I/F Audio Out Composite Video White Yellow VIDEO IN VIDEO AUDIO IN RFIN PDF 文件使用... -
Page 17: Connecting To An Audio System
1.3.3 Connecting to an Audio System ATSC NT SC VIDE O Video Out 100-240V~ R F IN RF OUT CH 3 CH 4 50/60Hz SERVICE SMART AN T. I/F Audio Out Am plifier VOLUME INPUT SELECTOR P OW E R BYPASS PRO LO G IC 3 STERE O... -
Page 18: On-Screen Menus
2. On-Screen Menus Ensure all connections have been made following the diagrams on the previous pages for reference. When you plug the power cord of this set-top box into a power outlet and press POWER switch on the front panel, the box will be turn on for the first time. Press STANDBY button on the remote control will switch the set-top box to or... -
Page 19: Manual Channel Set
2 .2 Ma nual Chan nel Set ou ca n h ighlig ht this item and press butt on to con firm it, yo u will se e be low “ ” menu showing on screen. You ca n sp ecific t he selected cha nn el Viewable “... -
Page 20: Advanced Closed Caption
2 ),The TV Ra ti ng sys te m inclu de th e fo llo wing ratin gs: TV-Y ( all child re n) an d TV-Y7 (d irected to old er children ), TV- G (ge neral audience), TV-PG (p arental g uida nce sug gest ed), TV-14... -
Page 21: Language
2.6 Language When this item is h ighlig hted, you ca n pre ss bu tton t o ch an ge the OSD men u lan gu age as yo u want, there a re 3 options: English, Spa nish, Fre nc h. 2.7 Auto Power Down Timer When this item is h ighlig hted, press th e butto n yo u can cho ose th e o ption s:... -
Page 22: Troubleshooting
3. Troubleshooting Q: It tak es a wh il e to d isplay picture o n the s creen af te r tu rni ng power on or af te r changing channel . It will ta ke several seco nds for this re ceiver to sho w the logo or pi cture after p owe r on sincee t he system have to finished the initialization of t he main chip a nd de mo du lator. -
Page 23: Specifications
4. Specifica tion Product Name Digital TV Converter Power Supply Input Voltage: 100 - 240V~ 50/60Hz Power Consumption:Maximum 8W,Standby <1W. Decoder Video Format: Standard definition CVBS. Audio Format: Dolby Digital audio Signal Input/Output ATSC Antenna/Cable RF In: F-Connector NTSC Ch3/4 RF out: F-Connector Antenna Impedance: 75 Ohms Channels: VHF 2 -13 , UHF 14 - 69... -
Page 24: Glossary
5. Glos sary ATSC: “ ” Advanced Television Systems Committee. Formed to establish technical standards for U.S. advanced television systems. Also, the name given to the 8-VSB transmission standard itself. NTSC: "National Television Systems Committee" and the name of the current analog transmission standard used in the U.S., which the committee created in 1953. -
Page 25: Tivax Limited Warranty To Original Purchaser
Tivax agrees to r epair or replace this unit at no charge, within the warranty period, providing that the prod uct is delivere d to Tivax in its original pa ckage o r equivalent, fully insured, with all shipping ch arges prepaid and a return authorization number listed on the outside of the packaging. - Page 26 Michley Electronics Inc. U.S.A www.tiv ax.com PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
