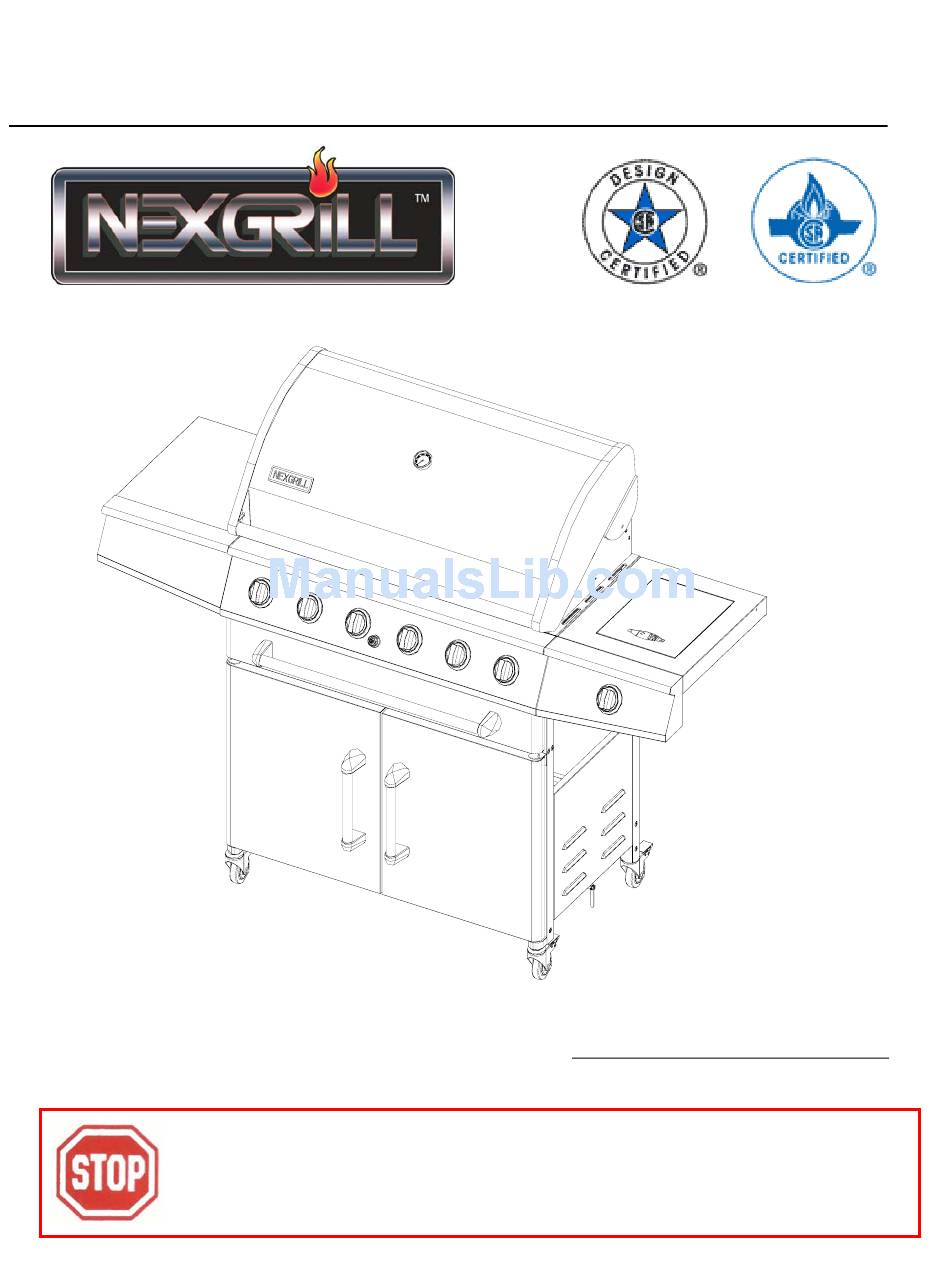

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS Model: 720-0419 FOR OUTDOOR USE ONLY FOR PROPANE GAS USE ONLY I21Y06P-2 PLEASE CONTACT 1-800–648–5864 FOR ASSISTANCE ABOUT ASSEMBLY OR GRILL OPERATION DO NOT RETURN TO THE PLACE OF PURCHASE...
- Page 2 MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not be found on other grills, we recommend that you read this entire booklet before your first use. Keep it in a handy place as it has answers to questions that may occur during future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION ONE SECTION FOUR Table of Contents & Importance Care & Maintenance-------------------24-25 Precautions----------------------------------------1-2 Placement of the Grill--------------------------- 3 SECTION FIVE Trouble Shooting-------------------------26-27 SECTION TWO Exploded View---------------------------28 Assembly Instructions---------------------------4-12 Part List -----------------------------------29 To Match Light The Grill------------------------13 Ordering Parts & Grilling Hints ----------30 Gas Hook Up----------------------------------- 14-15 Installer Final Check List------------------------15 SECTION SIX... -
Page 4: Precautions
PRECAUTIONS SAFETY PRACTICES TO AVOID PERSONAL WARNING INJURY Do not try to light this appliance without first reading the “LIGHTING When properly cared for, your stainless INSTRUCTIONS” section in this manual. steel grill will give safe, reliable service for many years. However, extreme care must be used since the grill produces intense TESTED IN ACCORDANCE WITH ANS heat and that can increase accident... -
Page 5: I21Y06P
PRECAUTIONS Moist or damp potholders on hot surfaces DO NOT STORE ITEMS OF INTEREST may cause burns from steam. Do not use a TO CHILDREN AROUND OR BELOW towel or bulky cloth in place of potholders. THE GRILL OR IN THE CART. NEVER Do not let potholders touch hot portions of ALLOW CHILDREN TO CRAWL INSIDE the grill rack. -
Page 6: Placement Of The Grill
PRECAUTIONS Do not use the grill for cooking outside in a well ventilated area, out of the excessively fatty meats or products which reach of children. promote flare-ups. Do not operate the grill DO NOT USE BRIQUETTES OF ANY under unprotected combustible KIND IN THE GRILL. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS PLEASE READ THE INSTURCTION CAREFULLY AND FOLLOW STEP BY STEP ●Propane Tank is not included ●Philips head Screwdriver (not provided) ●The following hardware is provided D escr i pt i on Speci f i cat i on Q uant i t y It em phi l i ps head scr ew 8pcs... - Page 8 ASSEMBLE INSTRUCTIONS ASSEMBLY INSTRUCTIONS PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. TOOLS REQUIRED: (1) PHILIPS HEAD SCREWDRIVER – NOT PROVIDED STEP 1: Attach bottom panel to side panel with 4 pieces 1/4x50mm philips head screws with 4 pieces locking washer as shown figure below. STEP 2 Attach the back panel to the two side panels with 4 pieces 1/4x15mm philips head screws and 4 pieces 1/4 locking washers, and attach the...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 3: Attach 4 pieces swivel casters with brake to the legs of the bottom. Tighten caster bolts securely using hex nut wrench provided in parts pack. STEP4: Attach door shaft to the outside of cart legs with 4 pieces 1/4x50mm philips head screws and 4 pieces 1/4 locking washer then using 2 pieces 1/4x15mm head screws and 2 pieces ¼’’...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 5: Remove the grill head unit from carton, place onto cart from above as shown on diagram (below). And secure to cart frame. Caution!!! Head unit is heavy, to avoid injury, we strongly recommend 2 or more people for this step. STEP 6: Secure the head unit to cart with 4 pieces 1/4”...
- Page 11 ASSEMBLY INSTRUCTIONS STEP 7: Attach the left door handle using 4pieces 3/16x10mm philips head screws. Then attach right door handle using 4 pieces 3/16x10mm philips head screws. STEP 8: Attach the hinge pin in bottom of right side door into hole at the bottom right front cart leg, then align door with right side door bracket.
- Page 12 ASSEMBLY INSTRUCTIONS STEP 9: •Insert 4pieces ¼’’x15mm philips head screws with 4pieces ¼’’ locking washers halfway to the right side grill body panel. •Place side burner assembly keyholes over bolts and slide dowm,then tighten securely. •Fasten side burner front panel to grill body with 1pieces 5/32’’x10mm philips head screws and 1pieces 5/32’’...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 11: Attach the grease collector into slide rails under firebox from back of grill. Place the grease tray into rails on grease slide. STEP 12: Attach the tool drawer into front opening under control panel by dropping roller wheels into side channels.
- Page 14 ASSEMBLY INSTRUCTIONS STEP 13: Place the heat distribution plates on lower level of grill body assembly directly above burners. Place porcelain cast iron cooking grills on support ribs directly above heat distribution plates. Place warming rack in grooves so that it sits above the cooking grills. STEP 14: Unscrew the ignition battery cap.
- Page 15 ASSEMBLY INSTRUCTIONS STEP 15: Attach propane gas tank to regulator inlet fitting by turning the regulator clockwise as shown in figure below. LP gas cylinder must be fitted with a listed overfill prevention device (OPD). Secure liquid propone gas cylinder to the slide out tray using the gas cylinder retention screw.
-
Page 16: To Match Light The Grill
TO MATCH LIGHT THE GRILL 1. If the burner will not light after several attempts then the burner can be match lit. 2. If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Keep your face and hands as far away from the grill as possible. -
Page 17: L.p. Gas Hook-Up
GAS HOOK-UP NEVER CONNECT AN UNREGULATED QCC1 in the standard for compressed gas GAS SUPPLY LINE TO THE APPLIANCE. cylinder valve outlet and inlet connection USE THE REGULATOR/HOSE ANSI/CGA-V-1. ASSEMBLY SUPPLIED. Manifold pressure: 11 inches water column This is a liquid propane configured grill. (W.C.). -
Page 18: Installer Final Check List
GAS HOOK-UP 5. When connecting regulator assembly to To disconnect L.P. gas cylinder: the valve, hand tighten the quick 1. Turn the burner valves off. coupling nut clockwise to a complete stop. Do not use a wrench to tighten. 2. Turn the tank valve off fully (turn Use of a wrench may damage the quick clockwise to stop). -
Page 19: Leak Testing
LEAK TESTING GENERAL Only those parts recommended by the manufacturer should be used on the grill. Although all gas connections on the grill are leak tested at the factory prior to shipment, a Substitution will void the warranty. Do not use complete gas tightness check must be the grill until all connections have been performed at the installation site due to... - Page 20 CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane. The gas must be turned off at the supply cylinder when the unit is not in use.
-
Page 21: Operating Instruction
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND WARNING: IMPORTANT! ROTISSERIE USING THE SIDE BURNER: Each main burner is rated at 10,000 Inspect the gas supply hose prior to Btu/hr. The main grill burners encompass turning the gas “ON”. If there is evidence the entire cooking area and are side of cuts, wear or abrasion, it must be ported to minimize blockage from falling... -
Page 22: Grill Lighting Instruction
OPERATING INSTRUCTIONS CAUTION: PLEASE TAKE OFF THE WARMING RACK WHEN USING THE ROTIS BURNER. THE HIGH HEAT COMING FROM THE ROTIS BURNER MAY CAUSE THE WARMING RACK TO BEND. GRILL LIGHTING INSTRUCTIONS WARNING: IMPORTANT! TO LIGHT THE GRILL BURNER: BEFORE LIGHTING… Make sure all knobs are “OFF”... - Page 23 GRILL LIGHTING INSTRUCTIONS WARNING: Always keep your face and body as far away from the burner as possible when lighting. TO LIGHT THE SIDE BURNER TO MATCH LIGHT THE SIDE BURNER To light the side burner, remove any Hold a lit extended match or lighter near cooking utensils from the burner grate.
- Page 24 GRILL LIGHTING INSTRUCTIONS I21Y06P-2...
-
Page 25: Grill Lighting Instruction
GRILL LIGHTING INSTRUCTIONS FLAME CHARACTERISTICS flame is noisy and tends to lift away from the burner, it indicates too much air. Check for proper burner flame characteristics. Burner flames should be blue and stable Each burner is adjusted prior to with no yellow tips, excessive noise, or shipment;... -
Page 26: Lighting Illustration
LIGHTING ILLUSTRATION Main & Side Burner Lighting Illustration Step 1. Make sure the Lid is open Step 2. Push and turn Main Burner Knob(s) or Side Burner Knob to "IGNITE/HI". While continue to hold, push electronic igniter for 3 to 4 seconds to light the burner. -
Page 27: Care & Maintenance
CARE AND MAINTENANCE STAINLESS STEEL MAIN GRILL BURNER CLEANING The grill is made from non-rusting and Ensure the gas supply is off and the knobs non-magnetic stainless steel. There are are in the “OFF” position. Make sure the grill many different stainless steel cleaners is cool. -
Page 28: Care & Maintenance
CARE AND MAINTENANCE HOW TO REPLACE MAIN BURNER STAINLESS STEEL : Step 1. Locate the burner onto the orifice. There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first, scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface. -
Page 29: Trouble Shooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! WHEN TO LOOK FOR SPIDERS Spiders and small insects occasionally You should inspect the burners at least spin webs or make nests in the grill burner once a year or immediately after any of the tubes during transit and warehousing. - Page 30 TROUBLE SHOOTING CHECK LIST WHAT TO DO PROBLEMS Check to see if LP tank is empty. Grill won’t light when the control knob is rotated. Clean wire(s) and /or electrode by rubbing with alcohol and clean swab. Wipe with dry cloth. Make sure the wire is connected to electrode assembly.
-
Page 31: Exploded View
EXPLODED VIEW I21Y06P-2... -
Page 32: Part List
PARTS LIST Q’TY Q’TY DESCRIPTION REF# DESCRIPTION Main Lid Front Trim Piece,Right Temperature Gauge Regulator ,LP Logo Condiment Rack Side Panel ,Left Side Shelf,Left Swivel Caster With Brake 3’’*1’’ Side shelf Supporting Bracket,Rear Side shelf Supporting Bracket,Front Cart Frame, Front Side Shelf Front Panel, Left Drawer Side shelf trim panel,left... -
Page 33: Ordering Parts & Grilling Hints
ORDERING PARTS IMPORTANT REPLACEMENT HOW TO ORDER PARTS Use only factory authorized parts. The use of any part that is not factory authorized To make sure you obtain the correct can be dangerous. This will also void your replacement part(s) for your gas grill, warranty. -
Page 34: Grill Cooking Chart
GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS AND FOOD THICKNESS FLAME SIZE TIME TIPS VEGETABLES Slice.Dot with butter or margarine Wrap in heavy-duty foil.Grill,turning occasionally Fresh Beets Medium 12 to 20 minutes Carrots Grill,turning once.Brush Occasionally Turnips With melted butter or margarine Onion 1/2 inch slices Medium... - Page 35 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS FLAME SIZE TIME AND TIPS Tenderloin, Porterhouse, Remove excess fat from edge. Slash T-Bone, Sirloin remaining fat at 2-inch intervals. Rare 1 inch High 8 to 14 minutes Grill, turning once. 1-1/2 inch High 11 to 18 minutes...
- Page 36 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FLAME SIZE FOOD THICKNESS TIME AND TIPS FISH AND SEAFOOD Grill,turning once.Brush with melted butter,margarine or oil Steaks To keep moist. Halibut 3/4 to 1 inch Medium to 8 to 15 minutes Salmon High Swordfish...
-
Page 37: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS BBQ SALMON TANGY SEAFOOD KABOBS Half hour before cooking, turn the burner to the grill on full. Drain 1 lb. Large shrimp, shelled & 2 large salmon steaks deveined seafood reserving marinade. On 2 tbs. Oil each of twelve 10” skewers, ¾... - Page 38 GRILL RECIPE SUGGESTIONS Preheat grill. Combine cheese, Pound flank steak to ¼ inch In blender, process 1/3 c. water, condensed soup, milk, BBQ thickness or flatten chicken onion, soy sauce, 2 tsp. oil and sauce, oregano, salt and pepper breasts. Mix oil, lime juice and the next 8 ingredients until in a large mixing bowl.
-
Page 39: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS CHICKEN TANDOORI STYLE Marinade ribs for 3 hours. Use TURKEY marinade for basting by adding 8 large chicken thighs or 12 lb. turkey drumsticks beer to it. Place pan under the Beer basting sauce: ribs and baste frequently. To 1 c. -
Page 40: Limited Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage...
