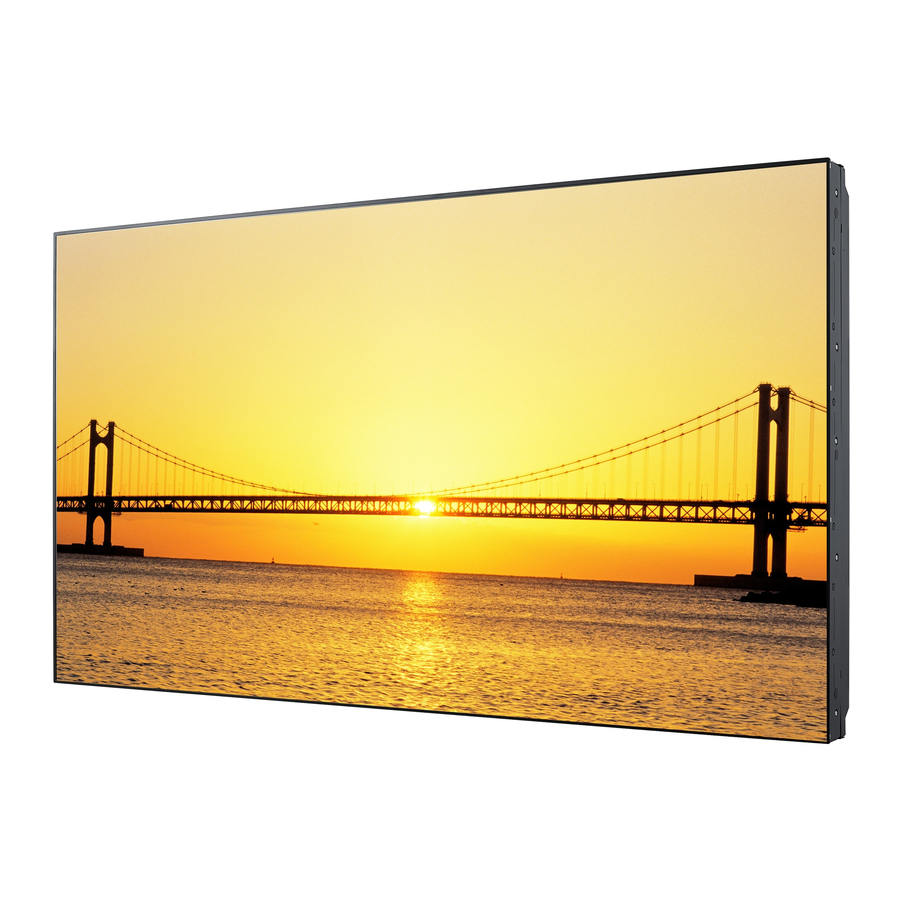

SyncMaster 460UTn-2, 460UT-2, 460UTn-B, 460UT-B LCD Display User Manual The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
Safety Instructions Notational Note These safety instructions must be followed to ensure your safety and prevent property dam- age. Make sure to read the instructions carefully and use the product in the correct manner. Warning / Caution Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.
Safety Instructions Ensure that the power plug is plugged into the power outlet firmly and correctly. • Otherwise, this may result in fire. Do not forcefully bend or pull the power plug and do not place any heavy material on it. •...
Page 4
Safety Instructions DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIG- ARETTES AND ANY HEATING APPLIANCES NEAR THE PRODUCT. • Otherwise, this may result in fire. Keep heating appliances as far away from the power cord or the product as possible. • Otherwise, this may result in electric shock or fire.
Page 5
Safety Instructions When cleaning the power plug pins or dusting the power outlet, clean it with a dry cloth. • Otherwise, it may result in fire. When cleaning the product, make sure to disconnect the power cord. • Otherwise, it may result in electric shock or fire. When cleaning the product, disconnect the power cord and clean it with a soft, dry cloth.
Page 6
Safety Instructions If thunder or lightning is occurring, do not touch the power cord or antenna cable. • Otherwise, this may result in electric shock or fire. Do not try to move the monitor by pulling only the wire or the signal cable.
Page 7
Safety Instructions To avoid eyestrain, do not sit too close to the product. Take a rest for at least five (5) minutes after using the monitor for one (1) hour. This reduces eye fatigue. Do not install it in an unstable location such as an unstable rack or uneven surface or a location exposed to vibrations.
Page 8
Safety Instructions The batteries (and rechargeable batteries) are not ordinary re- fuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling. • The customer can return used or rechargeable batteries to a nearby public recycling center or to a store selling the same type of the battery or rechargeable battery.
Page 9
Safety Instructions Do not put any heavy objects on the product. • This may result in personal injury and/or damage to the prod- uct.
Introduction Package Contents Checking the Contents of the Package Remove the lock from the package box, as shown in the figure above. Lift up the package box by Check the contents of the Remove the Styrofoam holding the grooves on package.
Page 11
Introduction Manuals Quick Setup Guide Warranty Card User Manual (Not available in all loca- tions) MagicInfo Software CD, MagicInfo Manual CD (Applicable to the 460UTn-2, 460UTn2-UD2, 460UTn-B model only) Cables Power Cord D-Sub Cable Others Remote Control Batteries (AAA X 2) (BP59-00138B) (Not available in all loca- tions)
Introduction Sold separately RGB to BNC Cable RGB to Component Cable Network Box (Applicable to the 460UT-2, 460UT-B model only) Wall Mount KIT TV Tuner Box Note Accessories that can be purchased with the product vary by country. Your LCD Display Front SOURCE button Switches from PC mode to Video mode.
Page 13
Introduction Power indicator Shows PowerSaver mode by blinking green Note See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your LCD Display OFF when it is not needed or when leaving it unattended for long periods. Remote Control Sensor Aim the remote control towards this spot on the LCD Display.
Page 14
Introduction • Connect a monitor to another monitor through a DVI, DVI to HDMI cable. • Connect a DVI or DVI-HDMI cable to [DVI OUT (LOOPOUT)] on the product and [DVI IN] or [HDMI IN] on another monitor. • HDMI and network signals sent via the [DVI OUT(LOOPOUT)] port are dis- played on the second display which has the [DVI IN] port.
Page 15
Introduction output terminal of your computer's sound card using a stereo cable (sold separately). DP IN Receives a signal from the Display port. Connect a DP cable to [DP IN] on the product and DP IN on another display. AV/COMPONENT AUDIO IN [R-AUDIO- Connect the [AV/COMPONENT AUDIO IN [R-AUDIO-L]] port on the monitor to the audio output port on the PC or on the external de-...
Page 16
Introduction HDMI IN 2 (MAGICINFO) • Connect the [HDMI IN 2 (MAGICINFO)] terminal at the back of your LCD Display to the HDMI terminal of your digital output device using a HDMI cable. • Up to HDMI 1.3 can be supported. Note The MAGICINFO OUT port must be connec- ted to the [HDMI IN 2 (MAGICINFO)] port.
Page 17
Introduction LAN (LAN Connection Terminal) Connects to a LAN cable to allow Internet or network access in MagicInfo mode. Note Applicable to the 460UTn-2, 460UTn2-UD2, 460UTn-B model only. USB (USB Connection Terminal) Keyboard / Mouse, Mass Storage Device Compatible. Note Applicable to the 460UTn-2, 460UTn2-UD2, 460UTn-B model only.
Introduction • You can purchase the locking device from an electronics store, an online shop, or our service center. Note See the "Connections" section for details about cable connections. Remote Control Note The performance of the remote control may be affected by a TV or other electronic device operating near the LCD Display , causing a malfunction due to interference with the frequen- POWER Number Buttons...
Page 19
Introduction Used to enter the password during the OSD adjustment or Number Buttons to use MagicInfo. Press to change the channel. The "-" button is used to select Digital channels. / GUIDE button Electronic Program Guide (EPG) display. - This function does not work for this LCD Display. Adjusts the audio volume.
Page 20
Introduction STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM MONO/NICAM STEREO can be operated depending on the broadcasting type by using the DUAL button on the remote control while watching TV. - This is activated when a TV tuner box is installed. This button is used to return to the immediately previous ENTER/PRE-CH channel.
• At least 2 persons are needed in order to move the LCD Display. • SAMSUNG is not responsible for any product damage or any injury caused by installation at customer's discretion.
• Contact a technician for installing the wall bracket. • SAMSUNG Electronics is not responsible for any damages to the product or harm to customers when the installation is done by the customer. • This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
Introduction Wall Bracket(1) Hinge(Left 1, Right Plastic Screw Screw Anchor Hanger (A)(11) (B)(4) (11) Wall Bracket Assembly Note There are two hinges(left and right). Use the correct one. Insert and tighten the Captive Screw in the direction of the arrow. When done, mount the wall bracket on the wall.
Introduction Length between the two locking holes Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws A.
Page 25
Introduction Insert the screw B into the plastic hanger. Notice • Mount the product on the wall bracket and make sure it is properly fixed to the left and right plastic hangers. • Be careful when installing the product on the bracket as fingers can be caught in the holes.
Introduction LCD Display Wall Bracket Wall Wall Bracket Angle Adjustment Adjust the bracket angle to -2° before installing it on the wall. Fix the product to the wall bracket. Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the angle.
Connections Connecting a Computer There are several ways to connect the computer to the monitor. Choose one from the following options. Using the D-sub (Analog) connector on the video card. • Connect the D-sub to the 15-pin, [RGB/COMPONENT IN] port on the back of your LCD Display and the 15 pin D-sub Port on the computer.
Connect the power cord for your LCD Display to the Power port on the back of the LCD Display. Turn on the power switch. Note Contact a local SAMSUNG Electronics Service Center to buy optional items. Connecting to Other devices Note •...
Connections Connect between the [DVI OUT(LOOPOUT)] port on the LCD Display and the input port on another monitor using a DVI cable. Connect between the [AUDIO OUT] port on the LCD Display and the audio input port on another monitor using a stereo cable. Note Select DVI Mode as an input source for the external monitor connected to [DVI OUT].
Connections Connecting to a Camcorder Locate the AV output jacks on the camcorder. They are usually found on the side or back of the camcorder. Connect a video cable between the VIDEO OUTPUT jack on the camcorder and the [AV IN] on the LCD Dis- play .
Connections Connecting Using a HDMI Cable Connect an HDMI cable to [HDMI IN 2 (MAGICINFO)] (only with a 460UT-2, 460UT-B model) or [HDMI IN 1] on the product and the HDMI output port on a digital device. Press SOURCE on the product or remote control and select "HDMI1 / HDMI2(only with a 460UT-2, 460UT-B model)"...
Connections nect the opposite jack to the [RGB/DVI/DP/HDMI AUDIO IN] terminal of the LCD Display. Press SOURCE on the product or remote control and select "HDMI1 / HDMI2(only with a 460UT-2, 460UT-B model)" Connecting a DVD Player Connect a RGB to Component cable between the [RGB/COMPONENT IN] port on the LCD Display and the P , Y, P jacks on the DVD player.
Connections Connecting a DTV Set Top (Cable/Satellite) Box Connect a RGB to Component cable between the [RGB/COMPONENT IN] port on the LCD Display and the P , Y, P jacks on the Set Top Box. Connect a set of audio cables between the [AV/COMPONENT AUDIO IN [R-AUDIO-L]] on the LCD Display and the AUDIO OUT jacks on the Set Top Box.
Connections Connecting a LAN Cable Connect the LAN cable between the [LAN] port on the product and the [LAN] port on your PC. Note Applicable to the 460UTn-2, 460UTn2-UD2, 460UTn-B model only. Connecting a USB devices You can connect USB devices such as a mouse or keyboard. Note Applicable to the 460UTn-2, 460UTn2-UD2, 460UTn-B model only.
Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ Installing the Monitor Driver (Automatic) Insert CD into the CD-ROM drive. Click "Windows". Choose your monitor model in the model list, then click the "OK" button.
Using the Software Note This monitor driver is certified by Microsoft, and installing it will not damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ Installing the Monitor Driver (Manual) ® Microsoft Windows Vista™‚ Operating System Insert your Manual CD into your CD-ROM drive.
Page 37
This monitor driver is under certifying MS logo, and this installation will not damage your system. The certified driver will be posted on Samsung Monitor homepage. Click "Update Driver..." in the "Driver" tab. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".
Using the Software Select the model that matches your monitor from the list of monitor models on the screen, and click "Next". 10. Click "Close" !’ "Close" !’ "OK" !’ "OK" on the following screens displayed in sequence. ® ® Microsoft Windows XP Operating System...
Page 39
Using the Software Insert CD into the CD-ROM drive. Click "Start" !’ "Control Panel", then click the "Appearance and Themes" icon. Click "Display" icon and choose the "Settings" tab then click "Advanced...". Click the "Properties" button on the "Monitor" tab and select "Driver" tab. Click "Update Driver..."...
Page 40
Then click "OK" button. Note This monitor driver is certified by Microsoft, and this installation will not damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ Click the "Close" button, then click the "OK" button continually.
Using the Software 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. Choose "OK" button on the "Insert disk" window. Click the "Browse" button on the "File Needed" window. Choose A:(D:\Driver), then click the "Open"...
Using the Software If you can see the "Digital Signature Not Found" window, then click the "Yes" button. Then click the "Finish" button and the "Close" button. ® ® Microsoft Windows Millennium Operating System Click "Start", "Setting", "Control Panel". Double click the "Display" icon. Select the "Settings"...
Page 43
Using the Software Set a Keyboard for your computer. The next screen is for setting your monitor. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.) Set a vertical frequency for your monitor. (You can enter the frequency directly.) Enter the model name of your monitor.
Using the Software 10. If the installation is successfully completed, the quick MDC System execution icon will appear on the desktop. MDC execution icon may not appear depending on specification of computer sys- tem or monitor. If that happens, press F5 Key. Installation Problems The installation of MDC can be affected by such factors as the video card, motherboard and the network environment.
Therefore, a serial cable should be connected between the serial port on a PC and the serial port on a display. Main Screen Click Start > Program > Samsung > MDC System to start the program. Select a set to see the volume of the selected set within the slider.
Main Icons Remote control Selection Buttons Safety Lock Refresh Port Selection Display Selection Lamp Control Info Grid Option... Control Tools Dropdown Selectors OSD Display Use the main icons to switch into each screen. Allows you to enable or disable the remote control signal receiving function of the display unit. Set the Safety Lock function.
Page 47
1. The Multiple Display Control is originally set to COM1. 2. If any port other than COM1 is used, COM1 through COM4 can be selected in the Port Selection Menu. 3. If the exact port name that is connected to the LCD Display using a serial cable is not selected, communication will be unavailable.
Page 48
3) Image Size 4) On Timer 5) Off Timer 2. Selects displays you want to adjust using the Select button or checkboxes. System allows controlling some of the functions of the selected display. 1) Power On/Off - Turns the power of the selected display On/Off. 2) Volume - Controls the volume level of the selected display.
1) Source OSD - Sets whether the Source OSD will be displayed to indicate when the Source is changed. 2) Not Optimum Mode OSD - Sets whether the Optimum Mode OSD will be displayed to indicate if the current mode is not supported. 3) No Signal OSD - Sets whether the No Signal OSD will be displayed to indicate when there is no signal.
Page 50
• PC Mode Info Grid shows some basic information necessary to Input Source Control. - Changes the Input Source of the selected display to PC. - Changes the Input Source of the selected display to BNC. - Changes the Input Source of the selected display to DVI. - Changes the Input Source of the selected display to TV.
S-Video - Changes the Input Source of the selected display to S-Video. Component - Changes the Input Source of the selected display to Component. MagicInfo - The Input source of MagicInfo works only on MagicInfo model. HDMI1/HDMI2 - Changes the Input Source of the selected display to HDMI. - Switches the input source for the selected Display to DP.
Page 52
DP may not be supported depending on the product. The Input source of MagicInfo works only on MagicInfo model. The Input source of TV works only on TV model. Image Size Control is available only for the displays for which power status is ON. Image Size TV, AV, S-Video, Component, DVI(HDCP), HDMI1, HDMI2, DTV.
Page 53
Info Grid shows some basic information necessary to Time Control. 1) Set clock - Set the current time for the selected display (PC Time). - To change the current time, first change the PC Time. 2) Timer - Sets up Timer1, Timer2, Timer3 and Holiday Management. 3) Shows whether Timer is activated.
- Selects the volume when the selected monitor is turned on. 4) Source - Selects the external input source that will be displayed when the selected monitor is turned on. 5) Holiday - Applies the Holiday Management function to the Timer. 6) Repeat - Available selections include Once, EveryDay, Mon~Fri, Mon~Sat, Sat~Sun, and Manual.
Info Grid shows some basic information necessary to PIP Size Control. 1) PIP Size - Shows the current PIP Size of the display in use. 2) OFF - Turns off the PIP of the selected display. 3) Large - Turns on the PIP of the selected display and changes the size to Large. 4) Small - Turns on the PIP of the selected display and changes the size to Small.
Page 56
Info Grid shows some basic information necessary to PIP Source Control. 1) PIP Source - PIP Source can be controlled with turning on the LCD Display power. 2) PC - Changes the source of the PIP of the selected display to PC. 3) BNC - Changes the source of the PIP of the selected display to BNC.
Page 57
Basic information required to adjust the Picture is displayed in the main menu. Settings for the selected monitor will be displayed if one of the connected monitors is selected, and the default settings will be displayed if all monitors are selected by clicking All and Select. If a value is changed in this screen, the current mode will automatically switch to custom mode.
Page 58
1. Click Settings of the main icons and the Settings Control screen appears. Basic information required to adjust settings is displayed. Settings for the corresponding SET will be imported and displayed on the slider if a display ID is selected, and the default settings will be displayed if all display IDs are selected by clicking All and Select.
Settings Audio 1. Click Settings of the main icons and the Settings Control screen appears. Basic information required to adjust Audio is displayed in the display window. Settings for the corresponding SET will be imported and displayed on the slider if a display ID is selected, and the default settings will be displayed if all display IDs are selected by clicking All and Select.
Info Grid shows some basic information necessary to Settings Control. 1) Image Lock - Available only for PC, BNC. 2) Coarse - Adjusts Coarse of the selected display. 3) Fine - Adjusts Fine of the selected display. 4) Position - Adjusts Position of the selected display. 5) Auto Adjustment - Self-Adjust to the incoming PC signal.
Page 61
An "Info Grid" showing several basic data items appears. 1) Maintenance - Allows the Maintenance Control function for all input sources. 2) Lamp Control - Automatically adjusts the backlight of the selected display at a specified time. The Manual Lamp Control automatically turns off if you adjust using the Auto Lamp Control. - Allows you to adjust the backlight of the selected display regardless of the time.
1) Scroll - This function is used to remove the afterimages that occur when a still screen is displayed on the selected display for a long time. 2) Pixel Shift - This allows the screen to be moved finely at the specified time interval. 3) Safety Screen - The Safety Screen function is used to prevent afterimages from occurring when a still screen is displayed on the monitor for a long time.
Page 63
1) Video Wall - A Video Wall is a set of video screens that are connected together, so that each screen shows a part of the whole picture or so that the same picture is repeated on each screen. 2) Video Wall Control - Video Wall properties can be configured.
Natural 3) Video Wall (Screen divider) - The screen can be divided into. You can select a number of screens with a different layout when dividing. Select a mode from Screen divider. Select a display from Display Selection. The place will be set up by pressing a number in the selected mode. The maximum number of monitors that can be arranged: Horizontal X Vertical = 100 Up to 15 monitors can be arranged in a row.
Page 65
Settings Value Display In Multiple Display Mode When there are more than one displays connected, the settings values are displayed as follows. 1. No selection: Displays the Factory Default Value. 2. Selected one display: Fetches and displays the settings value for the selected display. 3.
Page 66
Connect the first display device and the PC by entering the IP address. To connect to another display device, use an RS-232C serial cable. Refer to the figure above. Main Screen Click Start > Program > Samsung > MDC System to start the program. Select a set to see the volume of the selected set within the slider.
Main Icons Lamp Control Add a Device Display Selection Remote Control Safety Lock Control Tools Fault Device Alert OSD Display Use the main icons to switch into each screen. You can add a device by entering the IP address configured on the monitor. Allows you to enable or disable the remote control signal receiving function of the display unit.
Page 68
1. Enter the IP address of the monitor to be connected and press the Add button to add the IP address. If you click the OK button, adding the monitor is completed. System 1. Click System in the main menu to open the system adjustment screen. Info Grid shows some basic information necessary to System.
Page 69
System allows controlling some of the functions of the selected display. 1) Power On/Off - Turns the power of the selected display On/Off. 2) Volume - Controls the volume level of the selected display. It receives the volume value of the selected display from the sets and displays it in the slider. (If you deselect a single display or all displays, the default value 10 will be restored.) (Mute On/Off) - Turns on/off the Mute function of the selected display.
Page 70
- Sets whether the Source OSD will be displayed to indicate when the Source is changed. 2) Not Optimum Mode OSD - Sets whether the Optimum Mode OSD will be displayed to indicate if the current mode is not supported. 3) No Signal OSD - Sets whether the No Signal OSD will be displayed to indicate when there is no signal.
Page 71
• PC Mode Info Grid shows some basic information necessary to Input Source Control. 1) PC - Changes the Input Source of the selected display to PC. 2) BNC - Changes the Input Source of the selected display to BNC. 3) DVI - Changes the Input Source of the selected display to DVI.
- Changes the Input Source of the selected display to Component. 9) MagicInfo - The Input source of MagicInfo works only on MagicInfo model. 10) HDMI1/HDMI2 - Changes the Input Source of the selected display to HDMI. 11) DP - Switches the input source for the selected display to DP. 12) Channel - Channel arrow appears when the Input Source is TV.
Page 73
Image Size TV, AV, S-Video, Component, DVI(HDCP), HDMI1, HDMI2, DTV 1. Click Image Size of the main icons and the Image Size control screen appears. Info Grid shows some basic information necessary to Image Size Control. 1) To adjust Image Size in TV, AV, S-Video, Component, HDMI1, HDMI2 or DTV mode, click the Video Source tab.
Page 74
Info Grid shows some basic information necessary to Time Control. 1) Clock Set - Set the current time for the selected display (PC Time). - To change the current time, first change the PC Time. 2) Timer - Sets up Timer1, Timer2, Timer3 and Holiday Management. 3) Shows whether Timer is activated.
Page 75
5) Holiday - Applies the Holiday Management function to the Timer. 6) Repeat - Available selections include Once, EveryDay, Mon~Fri, Mon~Sat, Sat~Sun, and Manual. Once : The Timer goes off only once. EveryDay : EveryDay: The Timer repeats daily. Mon~Fri : The Timer repeats from Monday through Friday. Mon~Sat : The Timer repeats from Monday through Saturday.
Page 76
Info Grid shows some basic information necessary to PIP Size Control. 1) PIP Size - Shows the current PIP Size of the display in use. 2) OFF - Turns off the PIP of the selected display. 3) Large - Turns on the PIP of the selected display and changes the size to Large. 4) Small - Turns on the PIP of the selected display and changes the size to Small.
Page 77
Info Grid shows some basic information necessary to PIP Source Control. 1) PIP Source - PIP Source can be controlled with turning on the LCD Display power. 2) PC - Changes the source of the PIP of the selected display to PC. 3) BNC - Changes the source of the PIP of the selected display to BNC.
Page 78
Basic information required to adjust the Picture is displayed in the main menu. Settings for the selected monitor will be displayed if one of the connected monitors is selected, and the default settings will be displayed if all monitors are selected by clicking All and Select. If a value is changed in this screen, the current mode will automatically switch to custom mode.
Page 79
Basic information required to adjust settings is displayed. Settings for the corresponding SET will be imported and displayed on the slider if a display ID is selected, and the default settings will be displayed if all display IDs are selected by clicking All and Select. If a value is changed in this screen, the current mode will automatically switch to custom mode.
Basic information required to adjust Audio is displayed in the display window. Settings for the corresponding SET will be imported and displayed on the slider if a display ID is selected, and the default settings will be displayed if all display IDs are selected by clicking All and Select. If a value is changed in this screen, the current mode will automatically switch to custom mode.
Info Grid shows some basic information necessary to Settings Control. 1) Image Lock - Available only for PC, BNC. 2) Coarse - Adjusts Coarse of the selected display. 3) Fine - Adjusts Fine of the selected display. 4) Position - Adjusts Position of the selected display. 5) Auto Adjustment - Self-Adjust to the incoming PC signal.
Page 82
An "Info Grid" showing several basic data items appears. 1) Maintenance - Allows the Maintenance Control function for all input sources. 2) Lamp Control - Automatically adjusts the backlight of the selected display at a specified time. The Manual Lamp Control automatically turns off if you adjust using the Auto Lamp Control. - Allows you to adjust the backlight of the selected display regardless of the time.
1) Scroll - This function is used to remove the afterimages that occur when a still screen is displayed on the selected display for a long time. 2) Pixel Shift - This allows the screen to be moved finely at the specified time interval. 3) Safety Screen - The Safety Screen function is used to prevent afterimages from occurring when a still screen is displayed on the monitor for a long time.
Page 84
1) Video Wall - A Video Wall is a set of video screens that are connected together, so that each screen shows a part of the whole picture or so that the same picture is repeated on each screen. 2) Video Wall Control - Video Wall properties can be configured.
Page 85
Natural 3) Video Wall (Screen divider) - The screen can be divided into. You can select a number of screens with a different layout when dividing. Select a mode from Screen divider. Select a display from Display Selection. The place will be set up by pressing a number in the selected mode. The maximum number of monitors that can be arranged: Horizontal X Vertical = 100 Up to 15 monitors can be arranged in a row.
Adjusting the LCD Display Input Available Modes • PC / DVI / DisplayPort • • Component • HDMI • MagicInfo • Note • A TV tuner box (sold separately) must be connected to use the TV. • For an 460UT-2, 460UT-B model, MagicInfo can only be enabled when a network box is connected.
Page 87
Adjusting the LCD Display Note The RGB/COMPONENT IN port is compatible with RGB (PC) and Component signals. However, the picture may display abnormally if the connected external input signal is different from the selected video signal. Note The PIP function is not available when Video Wall is On. When external AV devices such as VCRs or DVDs are connected to the LCD Display , PIP allows you to watch video from those devices in a small window super-imposed on the PC Video signal.
Page 88
Adjusting the LCD Display • PC : DVI / AV / HDMI1 / HDMI2 / DisplayPort • DVI : PC • AV : PC • HDMI : PC • Display Port : PC Size Changes the Size of the PIP window. Note <Size>...
Adjusting the LCD Display • Opaque Edit Name Name the input device connected to the input jacks to make your input source selection easier. VCR / DVD / Cable STB / HD STB / Satellite STB / AV Receiver / DVD Receiver / Game /Camcorder / DVD Combo / DHR / PC / DVI Devices Note •...
Adjusting the LCD Display Refer to PIP > Source for compatible signals for each primary input source. Source AutoSwitch When the Source AutoSwitch is On, the display video source will automatically be searched for active video. The Primary Source selection will be activated, if the current video source is not recognized. Secondary source selection will become active, if no primary video source is available.
Adjusting the LCD Display Primary Source Specify Primary Source for the automatic input source. Secondary Source Specify Secondary Source for the automatic input source. Picture [PC / DVI / DisplayPort / MagicInfo Mode] Available Modes • PC / DVI / DisplayPort •...
Page 92
Adjusting the LCD Display Note Not available when Dynamic Contrast is set to On. Information Recommended for communicating exact information (e.g. public information). Advertisement Recommended for displaying advertisements (e.g. videos or indoor or outdoor ads). Custom Custom By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
Adjusting the LCD Display • Mode 1 Sets the picture brighter than Natural. • Mode 2 Sets the picture darker than Mode 1. • Mode 3 Increases the contrast between dark and bright colors. Color Tone Note Not available when Dynamic Contrast is set to On. The color tones can be changed.
Adjusting the LCD Display Blue Color Temp. Color Temp. is a measure of the 'warmth' of the image colors. Note • Not available when Dynamic Contrast is set to On. • This function is only enabled if the Color Tone is set to Off. Image Lock Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images with jitters and shakiness.
Adjusting the LCD Display Auto Adjustment The values of Fine, Coarse, Position are adjusted automatically. By changing the resolution in the control panel, the auto function is performed. Note Available in PC mode only. Signal Balance This is used to make up for the weak RGB signal transmitted by a long signal cable. Note •...
Adjusting the LCD Display B-Offset Size The Size can be switched. 16:9 PIP Picture Adjusts the PIP Screen Settings. Note • Available Modes: PIP On Contrast Adjusts the Contrast of the PIP window on the screen. Brightness Adjusts the Brightness of the PIP window on the screen. Sharpness Adjusts the Sharpness of the PIP window on the screen.
Adjusting the LCD Display Note PIP input only operates in AV, HDMI, or Component mode. Tint Adds a natural tone to the PIP window. Note PIP input only operates in AV, HDMI, or Component mode. Dynamic Contrast Dynamic Contrast automatically detects the distribution of the visual signal and adjusts to create an optimum contrast.
Page 98
Adjusting the LCD Display • • Component • HDMI • MagicInfo • Note • A TV tuner box (sold separately) must be connected to use the TV. • For an 460UT-2, 460UT-B model, MagicInfo can only be enabled when a network box is connected.
Page 99
Adjusting the LCD Display Brightness Adjusts the Brightness. Sharpness Adjusts the picture Sharpness. Color Adjusts the picture Color. Tint Adds a natural tone to the display. Note Operates only if the video signal is NTSC. Color Tone The color tones can be changed. The individual Color components are also user adjustable. Note Not available when Dynamic Contrast is set to On.
Page 100
Adjusting the LCD Display Note If you set the Color Tone to Cool2, Cool1, Normal, Warm1, or Warm2, the Color Temp. function is disabled. Color Temp. Color temp. is a measure of the 'warmth' of the image colors. Note This function is enabled when Mode is set to Custom, and Dynamic Contrast and Color Tone are Off.
Adjusting the LCD Display Digital NR (Digital Noise Reduction) Turns the Digital Noise Reduction feature Off/On. The Digital Noise Reduction feature allows you to enjoy clearer and crisper images. Note Digital NR function is not available for all resolutions. HDMI Black Level When a DVD or set-top box is connected to your TV via HDMI, it may cause a degradation in the screen quality, such as an increase in the black level, a low contrast, or discoloration, etc., depending on the external device connected.
Page 102
Adjusting the LCD Display Film Mode calibrates unnatural pictures that may occur in a movie (which is in 24 frames). Moving subtitles may appear corrupted when this mode is enabled. (In HDMI mode, this function is available when the input signal is interlaced scan; it is not available in progressive scan.) PIP Picture Adjusts the PIP Screen Settings.
Adjusting the LCD Display Lamp Control Adjusts the inverter lamp in order to reduce energy consumption. Note Not available when Dynamic Contrast is set to On. Picture Reset Reset the screen settings. Sound Available Modes • PC / DVI / DisplayPort •...
Adjusting the LCD Display Selects Music when watching music videos or concerts. Movie Selects Movie when viewing movies. Speech Selects Speech when watching a show that is mostly dialog (i.e., news). Custom Selects Custom if you want to adjust the settings according to your personal preferen- ces.
Adjusting the LCD Display SRS TS XT SRS TS XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround XT delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.
Adjusting the LCD Display • HDMI • MagicInfo • Note • A TV tuner box (sold separately) must be connected to use the TV. • For an 460UT-2, 460UT-B model, MagicInfo can only be enabled when a network box is connected.
Adjusting the LCD Display Turns the LCD Display off automatically at certain times. Timer1 / Timer2 / Timer3 You can set the LCD display to automatically turn on or off at a specified time. Note • Holiday : select Apply to disable the timer on holidays and Don't apply to enable the timer on holidays.
Adjusting the LCD Display You can delete selected holidays. Note • Only enabled when registered holidays are selected. • More than one holiday can be selected and deleted. • Delete All You can delete all the registered holidays. Menu Transparency Change the transparency of the background of the OSD.
Adjusting the LCD Display Safety Lock Change PIN The password can be changed. The preset password for the LCD Display is "0000". Note If you forgot your password, press the remote buttons INFO !’ EXIT !’ MUTE to reset the password to "0000."...
Page 110
Adjusting the LCD Display Note • When a Horizontal or Vertical split is over four, use a resolution of XGA (1024 x 768) or greater to prevent any picture degradation. • Size will be disabled when Video Wall is running. •...
Adjusting the LCD Display Sets how many parts the screen should be divided horizontally. Fifteen adjustment levels: 1~15. Note If Vertical is set to 15, the maximum value for Horizontal is 6. Vertical Sets how many parts the screen should be divided vertically. Fifteen adjustment levels: 1~15.
Adjusting the LCD Display Note This function is not available when the power is turned off. Pixel Shift Pixel Shift To prevent after-images on the screen, you can use this function to have pixels move on the LCD in the horizontal or vertical direction. •...
Page 113
Adjusting the LCD Display Time Set the time interval for performing the horizontal or vertical movement, respectively. Timer Timer You can set the timer for Screen Burn Protection. If you start the operation to erase any residual image, the operation will be performed for the set period of time and then automatically finish.
Page 114
Adjusting the LCD Display Period Use this function to set the execution period for each mode set in the timer. Time Within the set period of time specify a time for execution. • Mode - Bar, Eraser, Pixel : 10~50 sec This function prevents after-images on the screen by moving long black and white vertical lines.
Adjusting the LCD Display Pixel This function prevents after-images by moving many pixels on the screen. Side Gray Select the brightness of the grey for the screen background. • • Light • Dark Resolution Select When the picture is not displayed properly on the screen when setting the graphics card resolution of the computer to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768@ 60Hz or 1366 x 768 @ 60Hz, by using this function(Resolution Select), you can have the picture displayed on the screen in the specified resolution.
Page 116
Adjusting the LCD Display 1366 X 768 Note Selecting the menu is only allowed when the graphics resolution is set to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768 @ 60Hz or 1366 x 768 @ 60Hz. Power On Adjustment Adjusts the Power On time for the screen.
Adjusting the LCD Display Selects auto or manual for the fan speed settings. Fan Speed Setting Sets the fan speed within a range of 0 and 100. Note Enabled when Fan Control is set to Manual. Temperature Control Detects the product's internal temperature and specifies the desired temperature. The product is set to 77°C by default.
Adjusting the LCD Display Auto Power Enables or disables Auto Power for the product. • • Note When Auto Power is On, the product will power on automatically as soon as it is connected to power. Button Lock Locks or unlocks the monitor control buttons on the product. •...
Adjusting the LCD Display Note Enabled only in PC mode. Standby Control Sets the standby mode, which will be activated when no input signal is detected. • A message will read <No Signal> if no input signal is detected. • Power-saving mode will be activated if no input signal is detected.
Page 120
Adjusting the LCD Display Source OSD • • Not Optimum Mode OSD • • No Signal OSD • • MDC OSD •...
Adjusting the LCD Display • Software Upgrade Performs a software upgrade. Connect the product to a computer via a digital signal such as DVI or HDMI. Click the BMP image file converted from an SW code. The image below will appear on the screen of the product.
Adjusting the LCD Display Setup Reset Reset all the values for a setting. Reset All Reset all the settings for the display. Multi Control Available Modes • PC / DVI / DisplayPort • • Component • HDMI • MagicInfo • Note •...
Page 123
Adjusting the LCD Display Use to select the transmitter functions of the individual SET. Only a SET where the ID corresponds to the transmitter setting becomes activated. • MDC Connection Selects a port to receive the MDC inputs from. • Communicates with the MDC via a RS232C MDC cable.
Page 124
Adjusting the LCD Display • The preset password for the LCD Display is "000000". • The server program's Power-On option works only if the LCD Display's power is com- pletely shut off. Please make sure not to use the Power-On option when the LCD Display is in the process of shutting down since this may cause system errors on the LCD Display.
Page 125
Adjusting the LCD Display In step 2 of MagicInfo Setup Wizard, you don’t have to go to Network Setting on the desktop to make your settings for TCP/IP. You just do that at step 2 of MagicInfo installation. 3. Select Language - step 3 When using multiple languages, you can choose and set a specific language among them.
Page 126
Adjusting the LCD Display You can select which rotation type will be applied to your device. 5. Setup Information Shows the settings that have been selected by the user. Note If the MagicInfo icon is not displayed on the notification area, double click the MagicInfo icon on the window desktop.
Troubleshooting Self-Test Feature Check Note Check the following items yourself before calling for assistance. Contact a Service Center for problems that you cannot solve by yourself. Self-Test Feature Check Turn off both your computer and the LCD Display. Unplug the video cable from the back of the computer. Turn on the LCD Display.
Troubleshooting • Do not use benzene, thinner or other flammable sub- stances. 2) Maintaining the Flat Panel Display Screen. Clean with a soft cloth (cotton flannel). • Never use acetone, benzene or thinner. (They may cause flaws or deformation of the screen surface.) •...
Troubleshooting Check if the signal cable between the computer and the LCD Display is securely con- nected. (Refer to Connecting a Computer) Problems related to the Screen Note Problems related to the LCD Display screen and their solutions are listed. The screen is blank and the power indicator is off.
Troubleshooting The screen color is inconsistent. Adjust color using Custom under OSD Color Adjustment menu. The color image is distorted by dark shadows. Adjust color using Custom under OSD Color Adjustment menu. The color white is poor. Adjust color using Custom under OSD Color Adjustment menu. The Power Indicator blinks.
Page 131
Troubleshooting Check if a special fluorescent or neon lamp is on in the vicinity. Q & A How can I change the frequency? The frequency can be changed by reconfiguring the video card. Note That video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.) How can I adjust the resolution? Windows XP:...
Specifications General General 2 / 460UT-2 / 460UTn-B SyncMaster 460UTn-2 / 460UTn - Model Name / 460UT-B LCD Panel Size 46 inches (116 cm) Display area 1018.353 mm (H) x 572.544 mm (V) Pixel Pitch 0.7455 mm (H) x 0.7455 mm (V)
Page 133
• Design and specifications are subject to change without prior notice. • Attaching a Samsung ID (videowall kit) will increase the weight of an LFD by 1.6 kg. Class A (Information Communication equipment for industrial use) : 460UTn-2, 460UTn2-UD2, 460UTn-B Attention dealers and users.
Specifications Class B(Information Communication equipment for residential use) : 460UT-2, 460UT-B This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) PowerSaver This LCD Display has a built-in power management system called PowerSaver.
Page 135
Specifications Display Mode Horizontal Vertical Fre- Pixel Clock Sync Polarity Frequency quency (Hz) (MHz) (H/V) (kHz) MAC, 832 x 624 49.726 74.551 57.284 MAC, 1152 x 870 68.681 75.062 100.000 VESA, 640 x 480 37.861 72.809 31.500 VESA, 640 x 480 37.500 75.000 31.500...
Information For a Better Display Adjust the computer resolution and screen injection rate (refresh rate) on the computer as described below to enjoy the best picture quality. You can have an uneven picture quality on screen if the best picture quality is not provided for TFT- LCD.
Page 137
Information Power Off, Screen Saver, or Power Save Mode • Turn the power off for 2 hours after 12 hours in use • Set the Monitor to power off with the PC Display Properties Power Scheme. • Use a Screen saver if possible - Screen saver in one color or a moving image is recommended.
Page 138
Information Change the characters color periodically • Use Bright colors with little difference in luminance. - Cycle : Change the characters color and background color every 30 minutes • Every 30 minutes, change the characters with movement. • Have the images and logo cycle periodically. - Cycle: Display moving image together with Logo for 60 seconds after 4 hours in use.
Page 139
Information • Apply the Screen Erasing function - Symptom: 2 Vertical blocks move while erasing the display...
Page 140
Appendix Contact SAMSUNG WORLDWIDE Note If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. North America U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com MEXICO 01-800-SAMSUNG http://www.samsung.com (726-7864) Latin America ARGENTINA 0800-333-3733 http://www.samsung.com...
Page 142
UKRAINE 0-800-502-000 http://www.samsung.com/ua http://www.samsung.com/ ua_ru UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com Asia Pacific AUSTRALIA 1300 362 603 http://www.samsung.com NEW ZEALAND 0800 SAMSUNG (0800 726 http://www.samsung.com 786) CHINA 400-810-5858 http://www.samsung.com 010-6475 1880 HONG KONG (852) 3698 - 4698 http://www.samsung.com/hk http://www.samsung.com/ hk_en/ INDIA 3030 8282 http://www.samsung.com...
Page 143
U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com Africa NIGERIA 0800 - SAMSUNG (726-7864) http://www.samsung.com SOUTH AFRICA 0860-SAMSUNG (726-7864) http://www.samsung.com Terms Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The dis- tance between two dots of the same color is called the 'Dot Pitch'.
Page 145
Appendix Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this ma- terial. Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation;...
