Summary of Contents for Vizio S5430w-C2

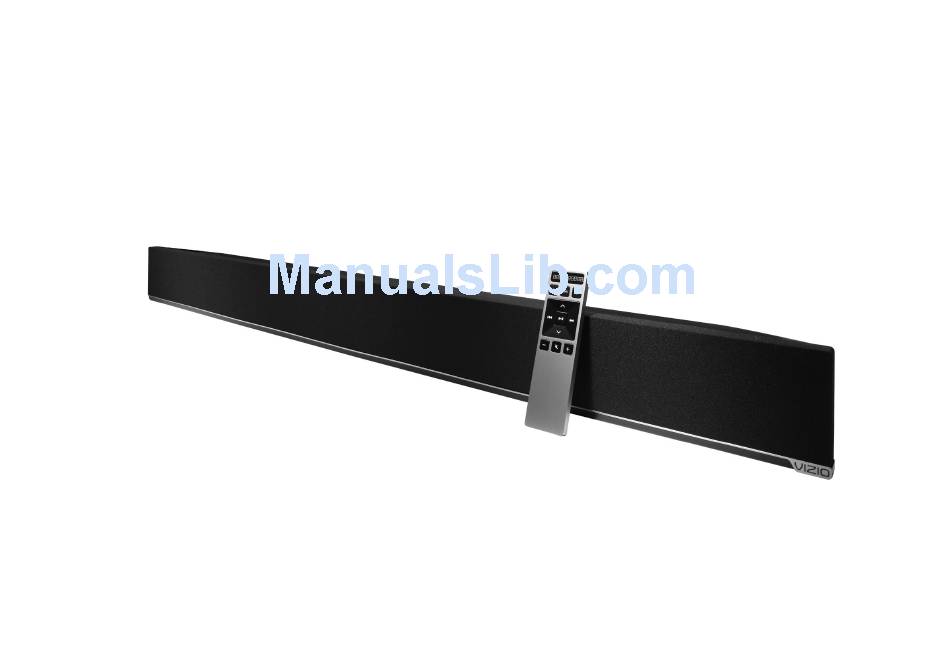

- Page 1 VIZIO QUICK START GUIDE Model: S5430w-C2...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric • Do not overload power strips and extension cords. Overloading can result in fire or electric shock shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, •... - Page 3 DO YOU HAVE QUESTIONS? LET US HELP! YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT The VIZIO support team is highly trained and is based in the United States. We can help with: • New Product Setup • Connecting Your Devices •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents ................ 5 Controls & Connections ............... 6 FIrst-Time Setup ................8 Using the Remote ................13 Settings and LED Behavior ............14 Programming the Sound Bar ............16 Resetting to Factory Default Settings ........... 17 Bluetooth Pairing ................ -
Page 5: Package Contents
PACKAGE CONTENTS VIZ IO INPUT MENU High Definition Sound Bar Remote Control This Quick with Batteries Start Guide Power Cable Stereo RCA to 3.5mm Digital Coaxial Digital Optical Audio Cable Audio Cable Audio Cable 2 x Sound Bar Wall 2 x Wall Wall Mount HDMI Cable Mount Brackets... -
Page 6: Controls & Connections
CONTROLS & CONNECTIONS Back of Sound Bar Power Port AUX (1) USB (7) RCA Analog Audio In SUB OUT OPTICAL (4) HDMI OUT Subwoofer Out Digital Optical Audio In (ARC) (6) Service Port AUX (2) HDMI IN (5) (For use by authorized 3.5mm Analog Audio In technician only) DIGITAL (3) - Page 7 Control Buttons are located here Power Input Bluetooth Input (Hold to force pair, See Bluetooth Pairing for more information.) Volume...
-
Page 8: First-Time Setup
FIRST-TIME SETUP Back of Sound Bar GOOD BETTER BETTER GOOD 3.5MM TO RCA DIGITAL OPTICAL DIGITAL COAXIAL 3.5MM TO RCA CABLE CABLE † CABLE † CABLE Note: Cables’ appearance may differ from the ones supplied. CHOOSE ONE CABLE: GOOD BETTER BEST AND CONNECT IT TO YOUR TV †... - Page 9 Do not use HDMI IN for First-Time Setup. See Advanced Setup if you would like to connect HDMI devices (such as Blu-ray ™ players, cable boxes, and game consoles) to BEST your Sound Bar. HDMI CABLE † HDMI cables send Video (Out) and Connect the Sound Bar to your TV using one receive Audio from the TV.
- Page 10 Connect the Power Cable to the back of the Sound Bar. Plug the Power Cable into a power outlet.
- Page 11 Sound Bar is centered below the TV. For the best surround sound experience, position the Sound Bar as shown. The Sound Bar should be close to ear level.
- Page 12 Turn your TV on, then press the Power button Locate the arrow on the battery cover and gently slide it away from the remote with your on the remote to turn the Sound Bar on. thumb. Insert the included AAA batteries, Turn off the TV Speakers through the Settings matching the + and - symbols.
-
Page 13: Using The Remote
USING THE REMOTE Display Menu Displays Sound Bar settings Press to access the menu settings. V I Z IO Input Power Press to change input source. Press to turn on or off. INPUT MENU Up/Down Enter/Play/Pause Press to cycle through settings Press to select an option. -
Page 14: Settings And Led Behavior
Press the Play button on the remote. The Sound Bar will be discoverable for Bluetooth Pairing Flash from Left to Right 15 minutes. You can now search for the Sound Bar (VIZIO S5430w) using your and back continuously. BT Pair Bluetooth Device. - Page 15 TV Remote On: Press the Next/Previous button to enable/disable VIZIO TV Remotes. When enabled TV Remote (On), you can use a VIZIO TV remote control to turn on the Sound Bar (using the TV VZtvRmt TV Remote Off: Volume Up button) and control volume.
-
Page 16: Programming The Sound Bar
PROGRAMMING THE SOUND BAR You can program your Sound Bar to accept TV remote IR commands. Press the MENU button on the remote, then use the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute. Function LED Behavior Description... -
Page 17: Resetting To Factory Default Settings
RESETTING TO FACTORY DEFAULT SETTINGS You can reset your Sound Bar to factory default settings. Note: All of your settings will be lost. Paired Bluetooth devices will need to be re-paired. Function LED Behavior Description Reset To reset the Sound Bar to factory default settings: Reset No Press the MENU button on the remote control. -
Page 18: Bluetooth Pairing
1. Press and hold the Bluetooth button on the Sound 2. You can now search for the Sound Bar (VIZIO S5430w) Bar for five (5) seconds or select the BT Pair option on using your Bluetooth device. For more information, see the remote. -
Page 19: Using Bluetooth Mode
USING BLUETOOTH MODE Maximizing Signal Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth A Bluetooth signal has a range of up to 30 feet. Keep capability. Device compatibility will vary, see your in mind that Bluetooth is a compressed audio format, device’s documentation for more information. -
Page 20: Advanced Setup
ADVANCED SETUP Connect up to five different devices to the Sound Bar (devices shown are examples--you can use any device). Back of Sound Bar DIGITAL DIGITAL 3.5MM TO RCA 3.5MM TO OPTICAL COAXIAL CABLE* RCA CABLE* CABLE* CABLE* Optical, Coaxial, and 3.5mm cables transmit audio only. - Page 21 Connect HDMI (ARC) to your TV HDMI cables transmit both audio and video. To view video from these devices, turn the Sound Bar on, then set the Sound Bar input HDMI to HDMI-ARC 6. Set your TV input to the HDMI port to which the CABLE* Sound Bar is connected.
-
Page 22: Connecting A Subwoofer
Back of Sound Bar RCA Subwoofer Cable* Optional Subwoofer* For best results setting up an optional subwoofer, VIZIO suggests the following procedure: Press the MENU button on the remote and use the Up/ Down Arrow buttons to cycle through the menu options until Bass. -
Page 23: Wall Mounting The Sound Bar
WALL MOUNTING THE SOUND BAR Wall-Mount Screw Holes Insert and tighten two Wall-Mount Screws with a Phillips-head screwdriver into the Wall-Mount Screw Holes. Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil. - Page 24 Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls). Wall mounting hardware is not included. 38.6 in (980 mm) Wall Mount Screw Screw Size: M4 x 10 If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.
-
Page 25: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the side of your Sound Bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 26: One-Year Limited Warranty
VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion. -
Page 27: Legal & Compliance
LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 28 © 2013 VIZIO INC. ALL RIGHTS RESERVED. 130822OC-NC...
