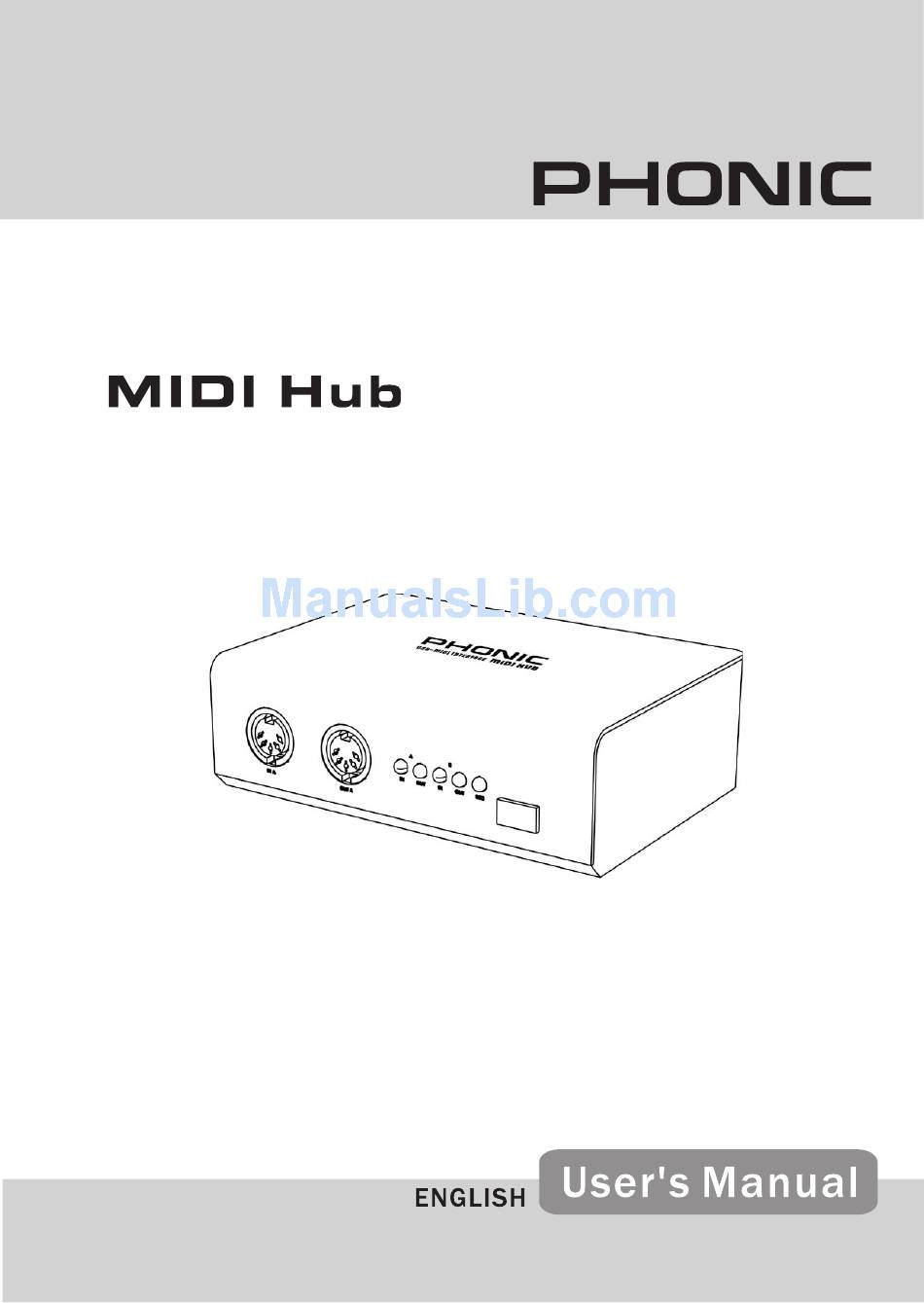

Summary of Contents for Phonic MIDI HUB
-
Page 3: Table Of Contents
INSTALLATION ......9 OPERATING SYSTEM SETUP ..9 Windows XP............9 Mac OS X ............9 SOFTWARE SETUP ....10 TROUBLESHOOTING ....11 Phonic reserves the right to improve or alter any information supplied within this document without prior notice. V1.0 MAR 31, 2005... -
Page 4: Safety Instructions
32 MIDI input channels and 32 MIDI output channels. MIDI Hub features true plug-'n- play compatibility without the need to configure IRQ, I/O addresses or DMA channels. Ease of use, power and portability all combine to make MIDI Hub a robust tool for aspiring electronic musicians and anyone who uses MIDI. -
Page 5: Box Contents
Two outputs 32 MIDI input channels 32 MIDI output channels Input/Output signal indicators "MIDI Thru" button allows throughput even when MIDI Hub is not turned on USB bus powering No drivers required to operate Compact and lightweight Optional power adapter... -
Page 6: System Requirements
OS X 10.x or later with native USB support G3 or newer processor (excluding the original PowerBook G3) 256 MB or more of RAM Note: MIDI Hub may have problems interfacing properly with computers that have older motherboards that use OHCI (open host controller interface). page 6... -
Page 7: Front Panel Description
1) MIDI In A Port The LED will illuminate to indicate that This is a standard MIDI port. It accepts MIDI Hub is powered on and ready to input from MIDI devices using a 5-pin send and receive signals. The computer MIDI DIN connector. -
Page 8: Rear Panel Description
Please use a DC power adapter with a 5-9V, 500mA-1A power output. (DC power adapter sold separately.) 8) DC Power ON/OFF Switch To power MIDI Hub from an external 10) MIDI Out B Port power source, connect a DC power adapter and turn this switch ON. When This is a standard MIDI port. -
Page 9: Installation
Use only a single cable between MIDI Hub and the computer. OPERATING SYSTEM SETUP There is no need to install drivers for MIDI Hub. It works with the core audio driver in Microsoft® Windows® and Apple® Macintosh® computers. However, please note under "System Requirements"... -
Page 10: Software Setup
SOFTWARE SETUP This section only contains basic MIDI software setup. For more detailed information on how to setup MIDI Hub to work with your software, please refer to the software's manual. Windows Cubase SX Find the 'in:' and 'out:' drop-down boxes on the left side of the application window halfway down. - Page 11 In the Track List area, select 'Port 1' or 'Port 2' from the drop-down box under 'MIDI 01'. Reason Open the 'Preferences' window and select the 'MIDI' page. Under 'Sequencer' select 'Port 1' or 'Port 2' from the 'Port' drop-down box. page 11 PHONIC CORPORATION MIDI Hub User's Manual...
-
Page 12: Troubleshooting
OPTIONAL ACCESSORIES To purchase Phonic gear and optional accessories, please contact an authorized Phonic distributor. For a list of nearby Phonic distributors please visit our website at www.phonic.com and click on Get Gear. You may also contact Phonic directly and we... -
Page 13: Customer Service And Technical Support
SERVICE AND REPAIR Phonic has over 100 service centers worldwide. Please contact an authorized Phonic distributor for service and repairs. For a list of nearby Phonic distributors please visit our website at www.phonic.com and click on Get Gear. CUSTOMER SERVICE...
