MAX-KA69
DVD MINI COMPONENT SYSTEM
WITH USB HOST
DVD/CD/MP3-CD/CD-R/RW PLAYBACK

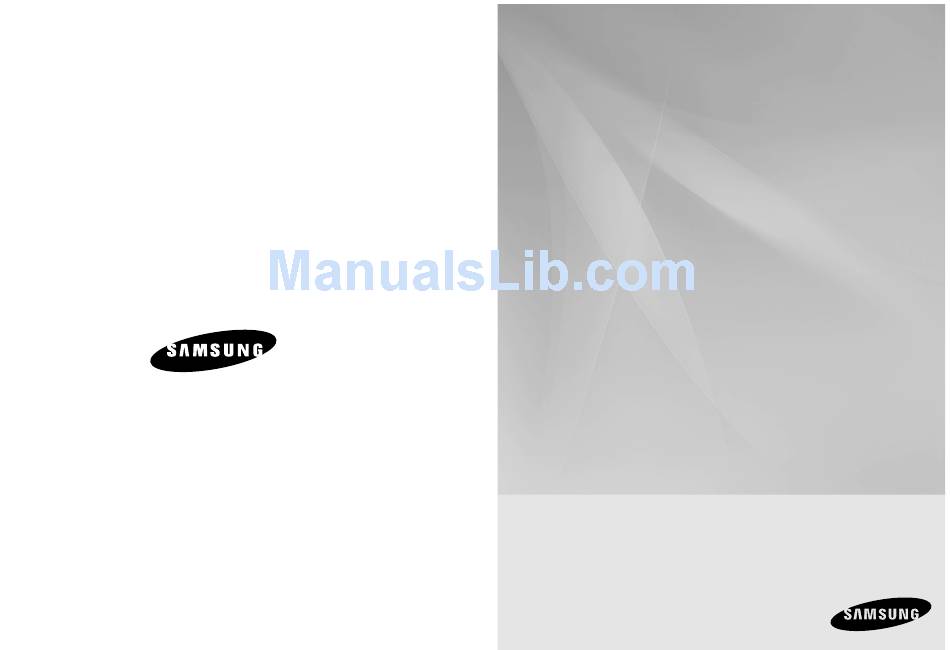

user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
AH68-02109P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX-KA69 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samsung MAX-KA69

  • Page 1 MAX-KA69 DVD MINI COMPONENT SYSTEM WITH USB HOST DVD/CD/MP3-CD/CD-R/RW PLAYBACK user manual imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register AH68-02109P...
  • Page 2: Safety Warnings

    Precautions Safety Warnings This symbol indicates “dangerous voltage” inside CAUTION the product that presents a risk of electric shock RISK OF ELECTRIC SHOCK. DO NOT OPEN or personal injury. STANDBY/ON DVD/CD TUNER TO REDUCE THE RISK OF ELECTRIC SHOCK, VOLUME DO NOT REMOVE REAR COVER (or BACK).
  • Page 3: Table Of Contents

    Setting TV Screen type....................................39 Setting Parental Controls (Rating Level) ...............................41 Setting the Password.....................................42 The MAX-KA69 allows you to select your favorite image during JPEG, DVD playback and Setting the Wallpaper ....................................43 Setting the Speaker Mode .....................................45 set it as your background wallpaper.
  • Page 4: Notes On Discs

    Notes on Discs Disc Recording Format This product does not support Secure (DRM) Media files. DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital CD-R Discs surround sound and MPEG-2 video compression technology. Now you can enjoy these •...
  • Page 5: Description

    Description —Rear Panel— —Front Panel— STANDBY/ON VIDEO OUT COMPONENT VIDEO OUT ANTENNA FM (75 ) 5.1CH SPEAKERS OUT DVD-OK TUNER FRONT -H CENTER FRONT -H REAR HDMI OUT FRONT -L SUBWOOFER FRONT -L REAR EXT(AV) IMPEDANCE FRONT/CENTER/REAR:4 SUBWOOFER:3 AUX IN 2 MIC1 MIC2 MIC VOL...
  • Page 6: Remote Control

    Description —Remote Control— Insert Remote Batteries AUX button USB button DVD button TUNER TUNER button OPEN/CLOSE button POWER Remove the battery Insert two 1.5V AAA Replace the battery DEMO/DIMMER POWER button DEMO/DIMMER button cover in the direction batteries, paying cover. of the arrow.
  • Page 7: Connecting The Speakers

    Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. 5.1CH SPEAKERS OUT FRONT -H CENTER FRONT -H REAR FRONT -L SUBWOOFER FRONT -L REAR IMPEDANCE FRONT/CENTER/REAR:4 SUBWOOFER:3 Position of the DVD Player Selecting the Listening Position •...
  • Page 8: Connecting The Video Out To Your Tv

    Connecting the Video Out HDMI Function to your TV Choose one of the four methods for connecting to a TV. Resolution Selection This function allows the user to select the screen resolution for HDMI output. VIDEO OUT COMPONENT VIDEO OUT ANTENNA FM (75 ) In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)
  • Page 9: Connecting External Components

    Connecting External Components Connecting the FM Antennas AUX1 : Connecting an External Component/MP3 player Components such as an MP3 Player AUX1 : Front Panel Connect AUX IN 1 (Audio) on the MINI COMPACT front panel to the Audio Out of the external component/MP3 player.
  • Page 10: Setting The Clock

    Disc Playback Setting the Clock For each step, you have a few seconds to set the required options. If you exceed this time, you must start again. Load a disc. Switch the system on Press TIMER/CLOCK • Insert a disc that the disc’s label facing up. by pressing twice.
  • Page 11: Mp3/Wma-Cd Playback

    MP3/WMA-CD Playback JPEG File Playback JPEG Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player. Load the MP3/WMA In Stop mode, use disc.
  • Page 12: Divx Playback

    DivX Playback 5 Minute Skip function During playback, press the button. • Go to the screen about 5 minutes after whenever you press button. • Go to the screen about 5 minutes earlier whenever you press button. Skip Forward/Back Subtitle Display During playback, press the button.
  • Page 13: Playing Media Files Using The Usb Feature

    Skip Forward/Back Playing Media Files using the USB feature During playback, press the button. • When there is more than a file, when you press the button, the next file is selected. You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, •...
  • Page 14: Displaying Disc Information

    Displaying Disc Information Fast/Slow Playback You can view playback information on the disc on the TV screen. Fast Playback Press button. Press INFO button on the remote control . • Each time the button is pressed during playback, • Each time the button is pressed, the display changes as follows: the playback speed changes as follows: TUNER POWER...
  • Page 15: Skipping Scenes/Songs

    Skipping Scenes/Songs Angle Function This function allows you to view the same scene in different angles. Press Cursor Briefly press Press INFO button. button to move to • Each time the button is pressed briefly during playback, the previous or next chapter, TUNER ANGLE display.
  • Page 16: Repeat Playback

    Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). To Select a Repeat Playback Mode in the Disc Information Screen JPEG TUNER Press Cursor button Press REPEAT button. Press INFO button POWER to move to REPEAT DEMO/DIMMER...
  • Page 17: A-B Repeat Playback

    Zoom Function A B Repeat Playback This function allows you to enlarge a particular area of the displayed image. Zoom (Screen Enlarge) Function Press the Cursor Press INFO button button to move to the REPEAT TUNER Press Cursor , , twice.
  • Page 18: Selecting Audio/Subtitle Language

    Selecting Audio/Subtitle Language Moving Directly to a Scene/Song Audio Language Selection Function Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor , TUNER Press Cursor or numeric buttons to select Press INFO button. buttons to move to Press INFO button buttons or numeric the desired title/track and then...
  • Page 19: Using Disc Menu

    Using the Title Menu Using Disc Menu For DVDs containing multiple titles, you can view the title of each movie. You can use the menus for the audio language, subtitle language, profile, etc. Depending on the disc, this function may either not work at all or may work differently. DVD menu contents differ from disc to disc.
  • Page 20: Setting The Language

    Setting the Language Language Code List OSD language is set to English by default. Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 37). Press Cursor Press ENTER In stop mode,Press Code Language Code...
  • Page 21: Setting Tv Screen Type

    Setting TV Screen type Press Cursor button to move to In stop mode,Press ‘Setup’ and then Adjusting the TV Aspect Ratio (Screen Size) MENU button. press ENTER button. The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is TUNER called the aspect ratio.
  • Page 22: Setting Parental Controls (Rating Level)

    Setting Parental Controls (Rating Level) Setting the Password Use this to restrict playback of adult or violent DVDs you do not want children to view. You can set the password for the Parental (rating level) setting. Press Cursor Press Cursor button to Press Cursor Press Cursor...
  • Page 23: Setting The Wallpaper

    Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Select this to set the Select this to set the desired Press EXIT button to exit the setup screen. Samsung Logo image as image as your wallpaper. your wallpaper.
  • Page 24: Setting The Speaker Mode

    Setting the Speaker Mode Setting the Test Tone Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not. Press Cursor In Stop mode, Press Cursor Press Cursor button In Stop mode,...
  • Page 25: Setting The Delay Time

    Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the rear speakers. Press Cursor Press Cursor button Press Cursor button In Stop mode, TUNER Press Cursor , buttons to move...
  • Page 26: Setting The Audio Quality

    Setting the Audio Quality You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen TUNER Press Cursor Press Cursor button Press Cursor In Stop mode, POWER DEMO/DIMMER button to move to to move to ‘SOUND buttons to select press MENU...
  • Page 27: Setting The Drc (Dynamic Range Compression)

    Setting the DRC AV SYNC Setup (Dynamic Range Compression) Video may look slower than the audio if it is connected with digital TV. You can use this function to enjoy Dolby Digital sound when watching movies at In this case, adjust the delay time of audio to optimal status to fit the video. low volume at night.
  • Page 28: Dolby Pro Logic Ii Mode

    Dolby Pro Logic II Effect Dolby Pro Logic II Mode This function works only in Dolby Pro Logic MUSIC mode. You can select the desired Dolby Pro Logic II audio mode. Press the PL II MODE button to select <MUSIC> mode. Press the PL II EFFECT button to select <PANORAMA>, then press the Press the...
  • Page 29: Playing Dvd-Ok Discs

    Connecting Headphones Playing DVD-OK Discs /Microphone Function You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics displayed on the TV screen with company. You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics displayed on the TV screen against the accompaniment.
  • Page 30: Reserving A Song

    Reserving A Song Priority Playing Accompaniment Music Even if there is a song already reserved, you can have the song you want to sing to be played first. Case 1> 1. In Stop / Play mode, use the number (0~9) button to select a song. 2.
  • Page 31: Karaoke Setting Function

    Karaoke Setting Function Setting the Fanfare • It consists of two modes: Karaoke and Setup. You can set Fanfare to come out after singing a song. • In Karaoke mode, you can select from Search song/ Favorite List/ Bowling game. •...
  • Page 32: Setting The Shadow

    Karaoke Setting Function (Continue) Setting the Shadow Setting the Language TUNER You can select the OSD language between English and Russian. TUNER You can set the lyrics to be displayed on the blue shadow box. POWER POWER DEMO/DIMMER DEMO/DIMMER Load a DVD-OK Press MENU Load a DVD-OK Press MENU...
  • Page 33: Searching Song Function

    Searching Song Function Searching by Language You can easily search songs on screen without viewing the song list book. Pressing the ( , ) button in Song list mode will move one page at a time. moves one song at a time. Press # button and During the stop mode, press Press the b button, use...
  • Page 34: Search Song Function

    Search Song Function (Continue) You can easily do song search on screen without viewing the song list book. Searching DUET SONG Searching by Genre During the stop mode, press During the stop mode, press Press # button and Press the b button, use Press the b button, use Press # button to the SEARCH SONG button.
  • Page 35: Favorite Song Function

    Favorite Song Function Search Song Function (Continue) You can save the song you like or sing often in the Favorite list 1,2 or 3 with which you can easily You can easily do song search on screen without viewing the song list book. find and sing a song.
  • Page 36: Lyric View Function

    Favorite Song Function Key Control / Tempo Control/ (Continue) You can save the song you like or sing often in the Favorite list 1,2 or 3 with which you can easily find Male-Female key control and sing a song. You can save 50 songs for each Favorite list. Singing FAVORITE SONG Key Control During the stop mode, press...
  • Page 37: Bowling Game Function

    Bowling Game Function Bowling Game Function (continue) • You can make a team to participate in a singing contest. • You can make the singing contest in up to 5 rounds with 3 different teams (max). • One team can select 1st, 3rd or 5th round in a 2- or 3-teams contest. reserving a song in the Bowling Game Use the , , , Press the MENU...
  • Page 38: Listening To Radio

    Presetting Stations Listening to Radio You can store up to: 15 FM stations Example : Presetting FM 89.10 in the memory Press the TUNER button to select the FM band. Remote Control TUNER TUNER Press the button to select <89.10>. Press the TUNER button to select the FM band.
  • Page 39: Timer Function

    Timer Function Canceling the Timer • The timer enables you to switch the system on or off at specific times. • After having set the timer, it will start automatically as shown by the TIMER indication on the If you no longer want the system to be switched on or off automatically, you must cancel the timer. •...
  • Page 40: Power Sound / Power Bass / Dsp/Eq Function

    Company Type Ripping file is only created when CD Ripping is stopped afters 5 seconds(ex. To obtain a... Select... SAM_0001.MP3). YP-T8 Samsung MP3 Player YP-T7F Samsung MP3 Player Normal balance (linear) PASS With external HDD,FAT format the USB can be CD Ripping,but not NTFS.The CD...
  • Page 41: Sleep Timer Function / Mute Function

    DEMO Function / DIMMER Sleep Timer Function / Function Mute Function Sleep Timer Function DEMO Function You can set the time that the DVD player will shut itself off. TUNER You can view the various functions available on TUNER your system. POWER DEMO/DIMMER Press SLEEP button.
  • Page 42: Cautions On Handling And Storing Discs

    Samsung Electronics Service Center. Small scratches on the disc may reduce sound and picture quality or cause breaks in playback.
  • Page 43: Specifications

    Specifications Power Consumption 110 W Symptom Check/Remedy Weight 5.1 Kg GENERAL Dimensions (W x H x D) 360 x 150 x 340 mm Audio language and • Operating Temperature Range +5 °C~+35 °C Audio language and subtitles will not work for DVDs not containing subtitles do not work.
  • Page 44: Usb Host Feature Supported Products

    Notes on Terminology USB Host Feature Supported Products DIGITAL CAMERA Product Company Type Product Company Type Recorded onto some DVD discs are scenes which have been simultaneously shot ANGLE from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.).
  • Page 45 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country Customer Care Center Web Site North America Latin America Europe Asia Pacifi c Middle East &...
