Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
MULTI-FORMAT PLAYBACK
Region number
The player plays DVD-Video marked with labels containing the region number "2" or "ALL".
Operations in these instructions are described mainly with the main unit, but you can do the
operations on the remote control if the remote controls are the same.
Unless otherwise indicated, illustrations in these operating instructions are of DVD-LS91.
EG
Operating Instructions

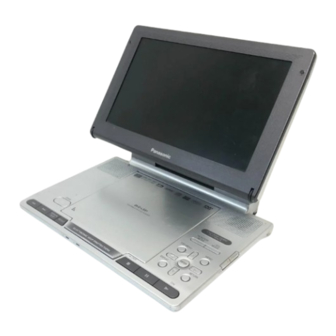

Portable DVD/CD Player
Model No.
See page 4 for details.
DVD-LS91
DVD-LS912
Example:
2
ALL
RQT8697-B
2
3
5
Advertisement
Table of Contents
Related Manuals for Panasonic DVD-LS912
Summary of Contents for Panasonic DVD-LS912
-
Page 1: Operating Instructions
Operating Instructions Portable DVD/CD Player DVD-LS91 Model No. DVD-LS912 Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference. -
Page 2: Precautions
Precautions WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC Read these operating instructions carefully SHOCK OR PRODUCT DAMAGE, DO NOT before using the unit. Follow the safety EXPOSE THIS APPARATUS TO RAIN, instructions on the unit and the applicable safety MOISTURE, DRIPPING OR SPLASHING instructions listed below. -
Page 3: Table Of Contents
(CGR-H701) with other equipment ..25 [DVD-LS912] (CGR-H712) For replacement: Available from Panasonic Frequently asked questions..26 dealers: [DVD-LS91] Maintenance....26... -
Page 4: Discs That Can Be Played
Discs that can be played Commercial discs ∫ Discs that cannot be played Indicated in Disc these Remarks DVD-Audio, Version 1.0 of DVD-RW, Logo instructions by DVD-ROM, CD-ROM, CDV, CD-G, DVD-Video High quality movie SACD and Photo CD, DVD-RAM that and music discs [DVD-V] cannot be removed from their... -
Page 5: Tips For Making Data Discs
DVD-RAM “.ASF” (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio DVD-R/RW “.asf” system] recorded with the Panasonic SD multi cameras or DVD CD-R/RW video recorders with this unit. ≥ The recording date may differ from that of the actual date. [DivX] ≥... -
Page 6: Attaching The Battery
When the unit is not going to be used for a long time, Approx. 4 hours (CGR-H701, included) disconnect the AC mains lead from the household mains [DVD-LS912]: socket. Approx. 8 hours (CGR-H712, included) The unit is in the standby condition (the [Í] indicator lights) when the AC mains lead is connected. -
Page 7: The Remote Control
LCD Off 5 (factory preset) CGR-H701 ([DVD-LS91]) CGR-H712 ([DVD-LS912]) CGR-H713 (optional) ≥ The times indicated above may differ depending on use. ≥ To change the LCD brightness (➜ page 10, Adjusting the picture quality on the LCD). Checking the remaining battery charge When the unit is on (➜... -
Page 8: Playing Discs
Headphone terminals [Ë] Open the lid. ‡ 3.5 mm stereo mini jack OPEN Insert a disc and close the lid. AV SELECT ([DVD-LS912]) Click into place Press and hold. Adjust the volume. Load double-sided discs so the label for the side you want to play is facing up. -
Page 9: Remote Control Operations
Press [:,9]. Skip [DVD-VR] Can also skip to the markers. Search Press and hold [:,9] (up to 5 steps). Press and hold [:,9] (up to 5 steps) while paused. Press [1, ON] to return to normal play. Slow play [VCD] [9] only ≥... -
Page 10: Useful Functions
Useful functions Selecting how to show 4:3 aspect pictures on the LCD Press [34] to select the monitor mode. MONITOR NORMAL: Normal FULL: Stretched horizontally MODE ENTER OFF: No picture ≥ If you are not using the LCD on this unit, select “OFF” to conserve power. Press once. - Page 11 Reviewing titles/programs to play (Advanced Disc Review) [DVD-VR] [DVD-V] (Except 1 Press [34] to select “Other Settings”. DISPLAY 2 Press [1] then [34] to select “Play Menu”. 3 Press [1] then [34] to select “Advanced Disc Review”. ENTER 4 Press [ENTER]. Press once.
-
Page 12: Changing Soundtracks
[DVD-VR] (with subtitle on/off information) Press to select “On” or “Off”. ≥On or Off only can be selected. ≥Subtitle on/off information cannot be recorded using Panasonic DVD Recorders. Angle select /Still picture rotation [DVD-V] with multiple angles... -
Page 13: Program/Random Play
Program/Random play Except [DVD-VR] [Remote\control\only] Program play ) Random play While stopped ^== Off (Normal play) !=n PLAYMODE PLAYMODE Press to change. ≥ Disable HighMAT disc play to use random and program play. Select “Play as Data Disc” in Other Menu (➜ page 19). Program play (up to 32 items) e.g. -
Page 14: Enjoying Higher Quality Audio And Video
Enjoying higher quality audio and video Reproducing more natural audio (Multi Re-master) ≥ [DVD-VR] [DVD-V] (recorded with 48 kHz only) [VCD] [CD]: This feature gives you a more natural sound by adding higher frequency signals not recorded on the disc, for example, playing DVD-Video recorded with 48 kHz at 96 kHz. -
Page 15: Playing Highmat
Playing HighMAT discs [WMA] [MP3] [JPEG] Menu: While the menu is displayed Takes you to the next menu which Press [342 1] to select items shows playlists or another menu. and press [ENTER]. ENTER Playlist: Play starts. ≥ To return to the menu screen, press [TOP MENU] then press [RETURN] several times. ≥... -
Page 16: Playing Data Discs
Playing data discs [WMA] [MP3] [JPEG] [MPEG4] [DivX] ≥ Select “Play as Data Disc” (➜ page 19, Other Menu) in the following cases: -To play HighMAT discs without using the HighMAT function -To play [JPEG], [MP3], [MPEG4] or [DivX] on DVD-RAM that contain both [DVD-VR] and another format (e.g. [JPEG]) Playing items in order (Playback Menu) While the menu is displayed Playback Menu... -
Page 17: About Divx Vod Content
About DivX VOD content DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit. Follow the on line instructions for purchasing DivX VOD content to enter the unit’s registration code and register the unit. -
Page 18: Using On-Screen Menus
Using On-Screen Menus 1 Press [34] to select the menu. DISPLAY 2 Press [1] to go to the next menu and [34] to set. Repeat step 2 if necessary. ENTER ≥ Items shown differ depending on the type of software. Press once. -
Page 19: Picture Menu
Picture Menu Picture Mode (➜ page 14, Cinema1/Cinema2/Depth Enhancer/MPEG DNR) When you select “Auto” the constructing method of the DivX contents is automatically distinguished and output. If the picture is distorted, select “I Source Select [DivX] (Interlace)” or “P (Progressive)” depending on which constructing method was used when the contents were recorded to disc. -
Page 20: Changing The Player Settings
Changing the player settings ≥ Referring to pages 20 to 21, change as required. ≥ Underlined items are the factory presets. The settings remain intact even if you switch the unit to standby. Press [3 4 2 1] to select the SETUP SETUP menu, item, content and press [ENTER]. -
Page 21: Language Code List
“Audio” tab PCM Digital Check the digital input limitations of the equipment you connect and select § the maximum sampling frequency of PCM digital output. Output ≥ Off: When not connected using a digital optical cable ≥ Up to 48 kHz: When connected to equipment compatible with 44.1 or 48 kHz ≥... -
Page 22: Enjoying In A Car
Enjoying in a car Do not leave the unit on a surface that may become hot such as a dashboard. The unit is not heat-resistant so may malfunction. The driver must not operate this unit while the vehicle is moving. Do not operate this unit where it can be viewed by the driver. - Page 23 Attaching the unit to the bracket. While holding the unit with both hands, line up the unit just below the protruding sections on the bracket. Press the unit down about 4 to 5 mm so that the protrusions on the bracket fit into the holes on the bottom of the unit.
-
Page 24: Connecting The Included Car Dc Adaptor
Enjoying in a car Connecting the included Car DC Adaptor Before connection, consult your car owner’s manual or your dealer. ≥ Connect to the cigarette lighter socket of a vehicle that has a 12 V battery. It is not compatible with a vehicle that has a 24 V battery. -
Page 25: Using This Unit With Other Equipment
≥ If you raise the volume on the television while playing this unit, the volume may abruptly become very loud when you switch to a television broadcast. Return the volume to its normal level before changing. Watching video from other equipment [DVD-LS912] Connect the equipment to this unit. e.g. Video camera... -
Page 26: Frequently Asked Questions
≥ Remove dust carefully with an air blower for camera lenses (optional). ≥ Recommended product: Lens cleaner kit (SZZP1038C) (Available from Panasonic dealers.) ≥ You cannot use a CD type lens cleaner. ≥ Be careful not to touch the lens with your fingers. -
Page 27: Troubleshooting Guide
Troubleshooting guide Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions. (Reference pages are shown in parentheses.) The following do not indicate malfunction. - Page 28 Troubleshooting guide Picture incorrect ≥ Select a monitor mode other than “OFF” (No picture). (10, Selecting No picture on the LCD. how to show 4:3 aspect pictures on the LCD). ≥ Adjust the brightness. (10) The LCD is dark. ≥ The LCD is constructed with precision technology so 99.99 % of the LCD pixels turn black or radiate different colors.
- Page 29 Recording ≥ You cannot record WMA/MP3. Cannot record to digital ≥ You cannot record DVDs that have protection preventing digital recording. recording equipment. ≥ You cannot record DVDs if the recording equipment cannot handle (Incorrect sound recorded.) signals with a sampling frequency of 48 kHz. ≥...
-
Page 30: Specifications
Mini optical terminal 4:2:0, 4:2:2 or 4:4:4) Number of terminals: 1 system §5 MPEG4 data recorded with the Panasonic SD §9 (also used for audio output/input multi cameras or DVD video recorders Headphone output: Conforming to SD VIDEO specifications (ASF ‡... - Page 31 SUOMI NORSK VAROITUS! ADVARSEL! LAITTEEN KÄYTTÄMINEN MUULLA KUIN DETTE PRODUKTET ANVENDER EN LASER. TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA BETJENING AV KONTROLLER, JUSTERINGER TAVALLA SAATTAA ALTISTAA ELLER ANDRE INNGREP ENN DE SOM ER KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 BESKREVET I DENNE BRUKSANVISNING, KAN YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE FØRE TIL FARLIG BESTRÅLING.
-
Page 32: Index
Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT (Bottom of product) (Bottom of product) (Produktets underside) (Tuotteen pohjassa) Matsushita Electric Industrial Co., Ltd. RQT8697-B Web Site: http://www.panasonic.co.jp/global/ F0106TH0...
