AUDIO / VIDEO CONNECTIONS

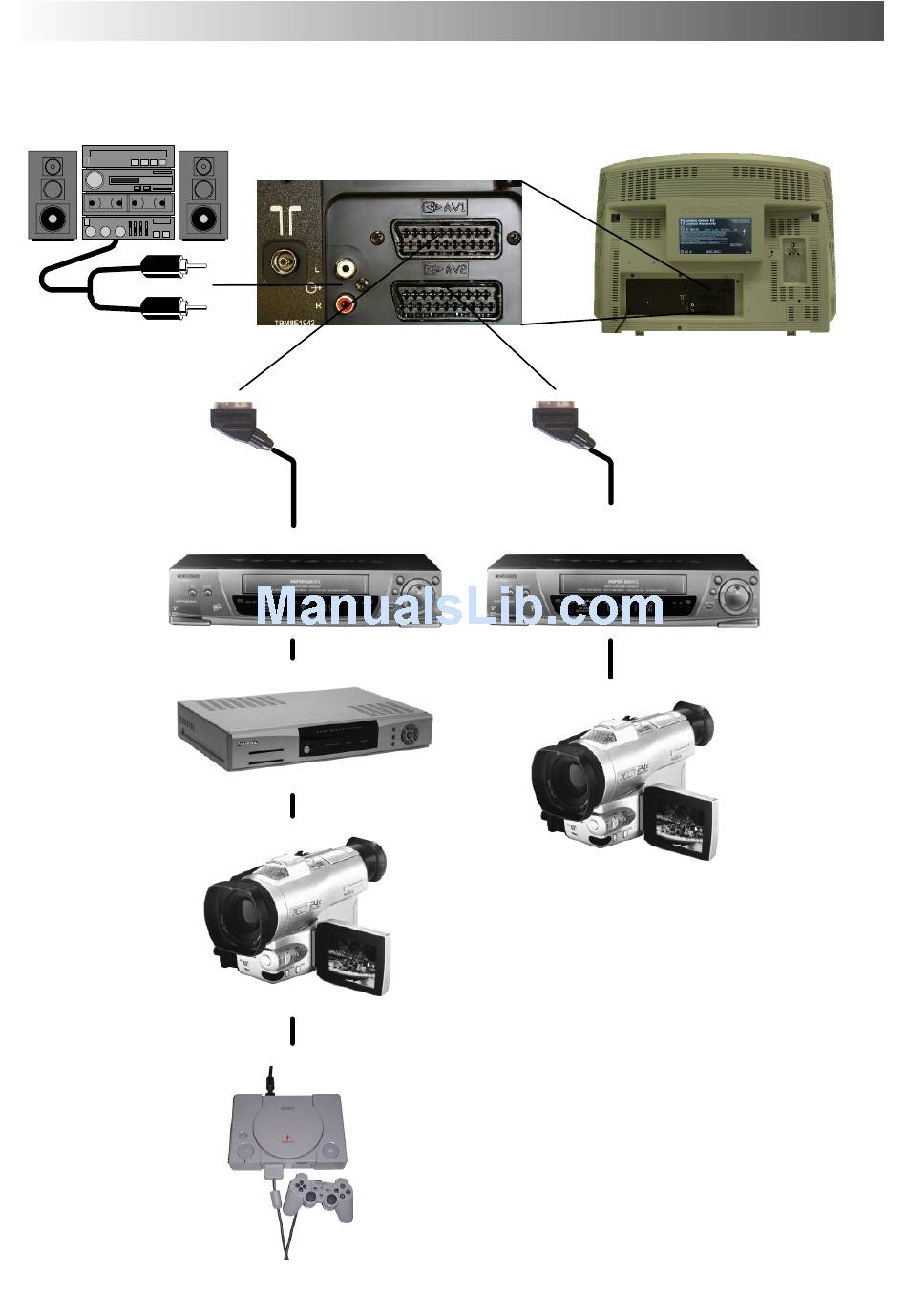

Rear AV1/AV2(S) 21 Pin Scart and RCA Audio Out terminals

HI--- FI SYSTEM
Output from
L---R AUDIO OUT
Sockets
2 x RCA Audio
Input/Output from
Input/Output from
Cables
AV2 Scart Socket
AV1 Scart Socket
Q--Link data
Scart cable
Scart cable
VCR
S- -VIDEO VCR
Q- -LINK COMPATIBLE VCR
VCR
SATELLITE RECEIVER
S- -VIDEO CAMCORDER
CAMCORDER
GAMES CONSOLE / COMPUTER (RGB)
Notes:
Additional equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this set.
36
