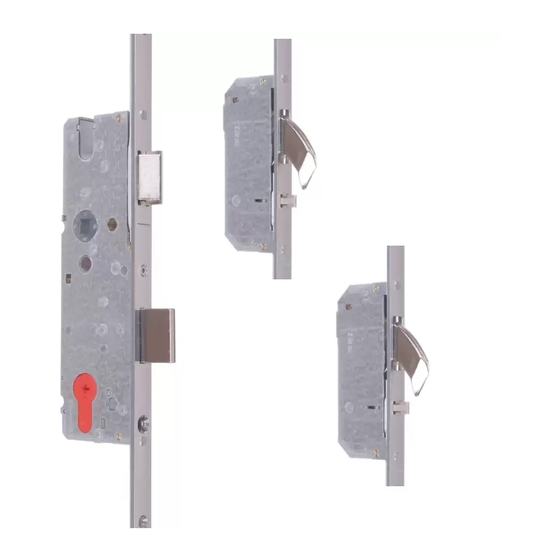

Winkhaus STV AV2 Operating Manual

Electronic automatic locking system
Hide thumbs
Table of Contents

Advertisement

Quick Links

After installation please pass on these instructions to
the end customer according to the Information Disclo-
sure Act stipulated in the Law on Product Liability!
Winkhaus STV
Operating Manual
Electronic Automatic Locking System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Winkhaus STV AV2

  • Page 1 Winkhaus STV Operating Manual Electronic Automatic Locking System After installation please pass on these instructions to the end customer according to the Information Disclo- sure Act stipulated in the Law on Product Liability!
  • Page 2 © Winkhaus STV GmbH & Co. KG. All rights reserved. Last revised: Mai/2005 Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 3: Table Of Contents

    Wireless receiver for additional applications Maintenance and care Errors/Causes/Troubleshooting Technical specifications 7.1. Antenna/Reader Unit 7.2. Wireless remote control 7.3. Cable transition Accessories Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 4: Important Information

    • only trained professionals install the door fittings, locking units and accessory parts according to the installation instructions. DIN standards, which may also apply are to be followed, too. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 5: Use Contrary To The Intended Purpose

    • the handle is not loaded in the normal sense of rotation or a power above 150 N is applied onto the handle into the direction of actuation; Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 6: Explanation Of Symbols

    • Read the operating manual and keep it easily accessible for future reference. After installing the door pass it on to the end customer. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 7: Abbreviations/Explanations

    2 massive hooks DIN-right-handed DIN-left-handed Surface mat chrome-plated stainless steel gray pulverized Reader Reader unit/control unit of the transponder set Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 8: Product Description

    In the external zone around the entry door Figure 2-1: Electronic automatic locking system with accessories Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 9 “Open” key Flush-type box [10] Handle * remaining components recommended for use, or should be used alternatively Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 10 AV2-U 2471/45 92/8 M2 rs/ls mc 123 684 3/123 685 2 AV2-U 2471/45 92/8 M2 rs/ls gr 124 026 8/124 027 7 Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 11 • If the main hook is unlocked manually, the door may not be actuated electrically. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 12 [0.433“], suited for entry doors of plastics or alumi- num (depends on the system) Cable transition KÜ-T STV 123 399 9 Cable transition KÜ-T-STV-FL 2.5 m 123 336 3 Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 13 Wireless remote control F02, dark gray, set 3 + 1 123 775 3  NOTICE! VdS acceptance: Only with VdS-tested access control systems! Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 14: Installation

    Important for wooden entry doors: Please enlarge the cut-out for the additional locking houses up to 47 mm [1.850“]! Figure 3.1-1: Dimensions for the electronic automatic locking system Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 15 It is recommended to use it always with a so called alternate furniture set (latch inside, knob outside). Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 16: Cable Transition Kü-T Stv (Plug-In)

    Recommendation: Do not mount the second retaining screw [3] before having installed the door frame into the wall reveal. CAUTION! Insulate the wires not used! Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 17: Installations

    If the operating voltage has been applied (start-up), the motor brings the closing mem- bers into the neutral position. 3.3.1. General connection diagram Figure 3.3.1-1: General connection diagram Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 18: Access Control System, Transponder Set

    • Connect the cable of the antenna to the reader/control unit. • We recommend: Lay a reserve pipe from the antenna to the reader unit. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 19 floating contact C floating contact NO Figure 3.4-1: Terminal assignment of the transponder reader Figure 3.4-2: Installation of the transponder reader Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 20: Access Control System, Wireless Remote Control

    Connect “0 V DC” - with the brown wire of the cable transition “Auxiliary antenna/ANT” (not required) “Auxiliary antenna/GND” (not required Figure 3.5.1-1: Terminal assignment of the wireless receiver Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 21 “green LED” [10] “red LED” [11] “buzzer” [12] “relay” [13] “jumper” 12 V/ 24 V Figure 3.5.1-2: Installing the wireless receiver Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 22: Wireless Receiver (Separate)

    • Insert the circuit board of the receiver according to figure 3.5.2-2 and connect it to the control of the additional application (for example to the garage door control unit). Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 23 • Deactivation by actuating the hand-held after about 1 sec. it will be deactivated transmitter once more. automatically. Figure 3.5.2-3: Setting the K4 relay Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 24: Operation/Programming

    • An acoustic signal at the reader unit will acknowledge the data transfer. • The reader checks whether this transponder chip is authorized to access and okays or denies access. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 25: Programming

    • If you do not swipe the transponder chip across the antenna for a period of 5 seconds, the teach-in mode will be stopped. The reader unit returns to operating mode. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 26 Action Acoustic Signal Result Pass the delete-all card end of delete mode over the antenna for about 1 second “All transponders” Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 27: Electronic Automatic Locking System With Wireless Remote Control

    The programming per hand-held transmitter is not possible for the wireless receiver for additional applications. Teaching a wireless hand-held transmitter directly at the hand-held trans- mitter (recommended) key A red LED key B Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 28 (pressed) key(s) is/are be deleted in succession, as continuous signal is briefly “deleted” long as the delete mode is interrupted “active” Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 29 • Insert two Lithium CR 2016.31 batteries. NOTICE! Pay attention to the correct polarity! ECO-WATCH! Properly dispose of the batteries as demanded by environmental regulation! Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 30 • Press the key again until the green and the red LED flash three times. • Now, all hand-held transmitters are deleted. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 31: Wireless Receiver For Additional Applications

    • To teach-in, press the P1 key of the circuit board of the wireless receiver. • The green LED lights up. • Release the P1 key. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 32 Now it is not possible to save additional wireless hand-held transmitters. This condition is indicated in the teach-in mode by both LED displays flashing simultaneously three times. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 33: Maintenance And Care

    • You should only use neutral cleaning agents or care products that do not contain any abrasives to protect the anticorrosion coat of the door furniture. • Clean electronic parts only in a dry state. Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 34: Errors/Causes/Troubleshooting

    (profile cylin- the M-hook, main der/handle), if motor has bolt do not lock returned to starting position completely  completely functions Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 35: Technical Specifications

    Wireless hand-held transmitter Number of operations: 2 channel Power supply: Lithium CR 2016.31 battery Service life of batteries: 18 - 24 months Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 36: Cable Transition

    4 m [4.374 yd] Max. voltage: 24 V DC Max. switching current: 2 A per connection line Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...

  • Page 37: Accessories

    (the second key at the hand-held transmitter can be used for this purpose) Wireless receiver F01 123 177 7 Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 38 Winkhaus STV GmbH & Co. KG Berkeser Str. 6 D-98617 Meiningen Germany and authorized by: Meiningen, 09 July 2004 ..............p.p. Dr. Warnow Title: Technical Director Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 39 Winkhaus STV Page 39 Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
  • Page 40 Winkhaus STV Page 40 Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de...
