DESCRIPTION

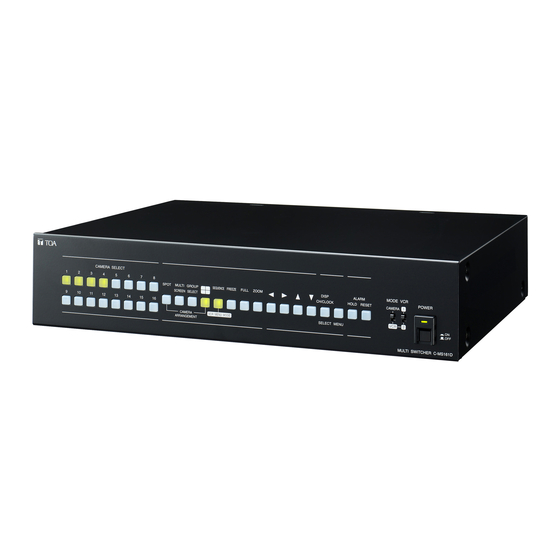

The C-MS161D and C-MS91D multiplexer allows connect-
ing multiple cameras (16 for the C-MS161D, 9 for
C-MS91D) for monitoring real-time images as well as
recording the images onto a VCR and playing them back.
Also included is a frame recording function that records
all the images from connected cameras to a VCR
sequentially while displaying real-time images on multiple
split screens (4-, 9-segment screen etc.), a full screen or
zoom screen. The recorded images can also be played
back on a split, full or zoom screen. Both offer effective
surveillance through the motion detection function which
can be selected for desired areas. While recording in this
mode, the frame rate is also increased for those areas
and when motion is detected, an alarm can be activated.
MULTIPLEXER
16-Channel Duplex Multiplexer
C-MS91D
9-Channel Duplex Multiplexer
FEATURES
Superb picture quality in a class of its own
• High resolution images
• PAL: 720 × 552 pixels
• NTSC: 720 × 464 pixels
• Proprietary LSI
• Digital filter
• V-SYNC Position Compensation Circuit (P .A.F.)
Versatile, user-friendly operation
• Illuminated keys
• Multiple display configurations
• Zoom, freeze and auto-panning functions
• Menu-driven setup
• Multi-language ability
• Various alarm functions
• Motion detection function
• 2 VCR connections
• Key-lock function
• Remote control by C-RM500
C-MS161D

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-MS161D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Toa C-MS161D

  • Page 1 ■ Superb picture quality in a class of its own The C-MS161D and C-MS91D multiplexer allows connect- ing multiple cameras (16 for the C-MS161D, 9 for • High resolution images • PAL: 720 × 552 pixels C-MS91D) for monitoring real-time images as well as recording the images onto a VCR and playing them back.
  • Page 2 SYNC signal that a time-lapse VCR can introduce. Multiple Split Screen Display Live monitoring and VCR playback can be seen in all split screen options (16 segment only with C-MS161D). 16-segment 10-segment 9-segment...
  • Page 3: Motion Detection Mode

    "Seamless Operation" by Connecting 2 Time-Lapse VCRs. Live VCR Playback C-MS161D C-MS91D C-MS161D C-MS91D • You can connect 2 time-lapse VCRs to TOA multiplexers. √ √ Sequence – – You can change or rewind a video tape without interrupting √...
  • Page 4 Versatile Alarm Functions Multi-Language Ability Offering flexible use for multi-language environments, TOA TOA multiplexers offer many alarm functions that are easily set in the setup menu. multiplexers will show onscreen information and allow menu- driven set-up and operation in English, French, and Spanish.
  • Page 5 C-MS161D/C-MS91D MULTIPLEXER The tables below indicate numbers and the interval of recorded fields using various setups for both PAL and NTSC Conventional time-lapse VCR Recording mode Standard Time-lapse mode Recording Time (hour) Number of recorded frames 4 cameras 6.25 1.79 0.96...
  • Page 6 C-MS161D/C-MS91D MULTIPLEXER MENU SELECTION Setup Screen Conveniently allows setting up a camera and making 1. USER MENU adjustments and parameter changes through a menu-driven 2. TOTAL MENU setup procedure. 3. LANGUAGE 4. INITIALIZATION Menu 1. USER MENU • Year, month, date of the...
  • Page 7 APPEARANCE AND DIMENSIONAL DIAGRAMS C-MS161D 16-Channel Duplex Multiplexer 333.9 10.6 319.8 unit: mm C-MS91D 9-Channel Duplex Multiplexer 334.1 10.6 unit: mm...
  • Page 8 Power cord (2m) × 1 Accessory Accessory Option Rack mounting bracket: MB-23B Option Rack mounting bracket: MB-23B 0dB = 1V 0dB = 1V That line-locked cameras cannot be connected to the C-MS161D. That line-locked cameras cannot be connected to the C-MS161D.
  • Page 9 C-MS91D 9-CHANNEL DUPLEX MULTIPLEXER SPECIFICATIONS (PAL) SPECIFICATIONS (NTSC) Power source 220 – 240V AC, 50/60Hz Power source 110 – 120V AC, 50/60Hz Power consumption Power consumption Video Input Camera input 9 channels, VBS 1.0V(p-p) 75Ω, BNC, 2:1 interlace* Video Input Camera input 9 channels, VBS 1.0V(p-p) 75Ω, BNC, 2:1 interlace* VCR input...
  • Page 10: Remote Controller

    1.2km away over RS-485 communication lines. It allows video images to be switched remotely and can handle a maximum of 16 cameras when used together with the TOA Multiplexer. Easy-to-see LEDs inform status of control, alarm, focus and other functions.
