Instructions - PARTS DRAWING - PARTS LIST
WARNING: READ INSTRUCTIONS BEFORE OPERATING
10. Foot controller should be at least 3 feet away from
HANDY INDUSTRIES L.L.C.
702 South 3rd Ave. Marshalltown, IA 50158

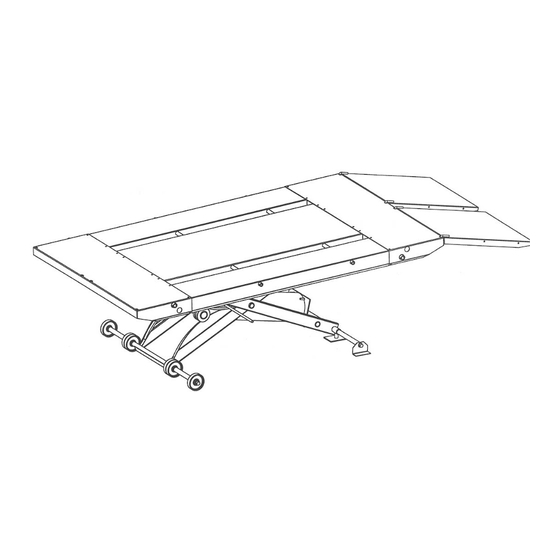

GRUNTAVORE LIFT
1. Center load on table - 1800 lb. maximum.
2. Connect to 100 psi maximum shop air.
3. Keep safety bar in position at all times - except
when lowering.
4. Keep hands and tools from under carriage.
5. Do not mount table when in elevated position.
6. Do not ride vehicle onto lift.
7. Lift must be in the lowered position when moving.
8. Only trained persons should operate Air Lift.
9. The working area should be sufficiently lit.
Air Lift during raising and lowering operation.
1-800-247-7594
Item # 16867
Fax 641-752-1205 www.handyindustries.com
Advertisement
Table of Contents
Summary of Contents for The Handy GRUNTAVORE LIFT 16867
- Page 1 GRUNTAVORE LIFT INSTRUCTIONS - PARTS DRAWING - PARTS LIST WARNING: READ INSTRUCTIONS BEFORE OPERATING 1. Center load on table - 1800 lb. maximum. 2. Connect to 100 psi maximum shop air. 3. Keep safety bar in position at all times - except when lowering.
- Page 2 GRUNTAVORE LIFT NOTE: READ ENTIRE MANUAL TO COMPLY WITH ALL SAFETY AND SERVICE PRE- CAUTIONS. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY. UNPACKING AND SET-UP 1. Open carton, then remove ramp and shipping boards. 2.
- Page 3 GRUNTAVORE LIFT MOUNTING ILLUSTRATION AND PARTS LIFT PART NO.. DESCRIPTION 11253 SPIRAL RETAINING RING 11271 10-32 HEX NUT 11358 QUIK PIN 12128 5/16-18 X ¾ HEX HD CAP SCREW 12305 5/16-18 HEX NUT 14737 CAST WHEEL 15255 DETENT HANDLE EXTENSION RETAINER 15258 DETNET HANDLE EXTENSION TUBE 15261...
- Page 4 Part # Description 10819 detent clip 14381 air hose assembly 11250 screw 3/4 -10 x 1-3/4 11253 retaining ring 1-5/16 11255 lockwasher - 3/4” 14737 wheel 12887 valve stem assembly 12937 foot valve assembly complete 11304 cylinder shaft bushing 11305 cylinder shaft seal 16764 cylinder assembly...
