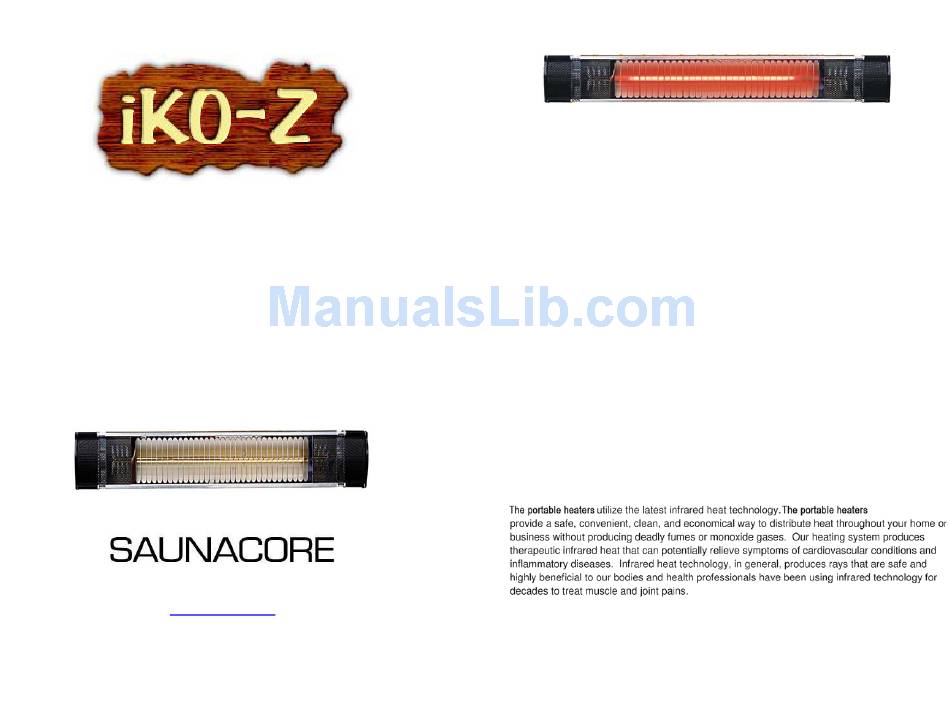

XTR Series
INFRARED PATIO HEATER
Safety Instructions
and Operation Manual
XTR3 - XTR15 - XTR25
Service Call: 905-951-6662
www.saunacore.com
iKO-Z XTR is an enjoyable comfortable infrared heat that will warm your patio area all year
round. Enjoy outdoor entertaining even during on those cool nights. This heater heats only
people and objects but not wasteful air. The iKO-Z XTR uses standard household electric
current. Made from durable weatherproof aluminum housing and with a 7000 hour life span
infrared heating bulb produces a 3m (9ft) blanket of heat. This area is not affected by wind
and there are no uv rays used or harmful toxic emissions produced. The iKO-Z XTR is less
expensive to operate tha a propane patio heater. To make this unit portable, an optional
tripod stand is available with adjustable telescopic pole
XTR3 (300
watts 120 Volts) - 31cm x 10cm x 12.5cm
XTR15 (1500 watts 120 Volts) - 46.5cm x 10cm x 12.5cm (2.5 KG)
XTR25 (2500 watts 240 Volts) - 67cm x 10cm x 12.5cm
•
Durable Black Aluminum Extruded Housing
•
Indoor/Outdoor Use
•
Weather Proof Lightweight Housing
•
Silent Operation
•
Standard Household 15 amp Plug-In (excl. XTR25)
•
Gold Coated Infrared Heater Bulb
•
Heater bulb lifespan up to 7000 hour
•
Wall mount (optional stand mount)
•
Near Infrared Rays between 5-15 microns
•
1year warranty
•
3m (9ft) blanket area of coverage
•
ETL certified for Canada & USA
(2 KG)
(2.8 KG)
1
Advertisement
Table of Contents
Summary of Contents for Iko-Z XTR3
-
Page 1: Safety Instructions
3m (9ft) blanket of heat. This area is not affected by wind and there are no uv rays used or harmful toxic emissions produced. The iKO-Z XTR is less expensive to operate tha a propane patio heater. To make this unit portable, an optional... - Page 2 Introduction they have been given supervision or instruction concerning use of the appliance by a Your infrared heater is heating in the way of radiation (no need for medium) so your person responsible for their safety. • Keep out of reach of children. In order to keep children from the dangers of electrical infrared heater is effective.
- Page 3 Connection infrared heater.The stand shall be purchased from the wall to the infrared heater. separately. Specification Voltage (V) 220-240V 110-130V XTR3 300W 120 Volts XTR15 1500W 120 Volts Power consumption (W) XTR25 2500W 240 Volts XTR25 67.0×10.0×12.5...
- Page 4 Customer Service Repairs must be carried out by authorised specialists, thus ensuring electrical safety. Please contact with the service agent or a suitably qualified electrician. Improper repairs could lead to danger to the user. This warranty does not cover damage of failure which results from alteration, accident, misuse, abuse, neglect, commercial use or improper maintenance.
