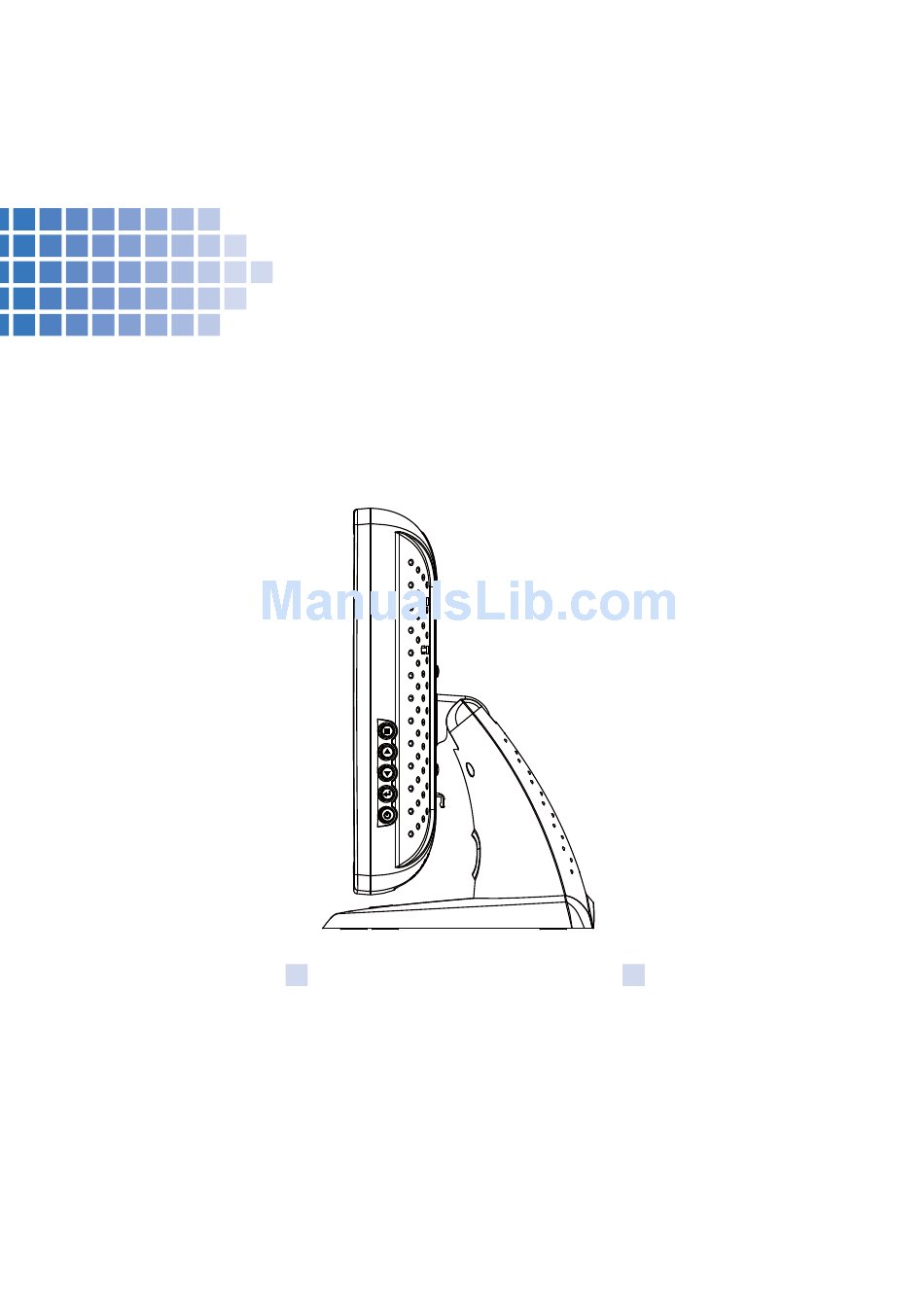

USER’s GUIDE TPM-193 Series Touch Screen LCD Monitors...
Page 2
The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. Nopart of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
Usage Notice Warning - To prevent the risk of fi re or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit.
• 100 mm VESA mount • Removable base for fl exible mounting solutions. • TPM-193R- 5-wire resistive touch screen with dual RS-232 Serial / USB controller • TPM-193W - SAW touch screen with USB controller • TPM-193C - Capactive touch screen with dual RS-232 Serial / USB controller •...
Package Overview LCD Display VGA Signal Cable Power Cord USB Cable ( A to B) Audio-in Cable RS-232 Cable USB Cable (A to A) TouchKit CD Quick Start Guide (Option for MSR) DVI-D Cable DC Power Supply (TPM-193X Series Only) (sold separately)
Product Overview • Front View • TPM-193R / TPM-193C Bottom View (Without Stand) RS-232 AC IN Audio DVI IN (Option) VGA IN DC IN • TPM-193W Bottom View (Without Stand) AC IN Audio DVI IN VGA IN DC IN...
Kensington Security Slot The monitor can be secured to your desk or any other fi xed object with Kensington lock security products. The Kensington lock is not included.
VESA Mount your monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defi nes a physical mounting interface for fl at panel monitors, and corresponding with the standards of fl at panel monitor mounting devices, such as wall and table arms.
Start Your Installation Remove the Back Cover Please follow these instructions to remove the cover on the back panel of the LCD so that you can hookup the cables to associated connector. Figure A 1. To remove the back cover, follow the arrows in fi gure A and pull out with your fi ngers and the cover should be removed from the stand.
Connecting the Display (Figure 11.1) To setup this display, please refer to the following fi gure and procedures. 1. Be sure all equipments are turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (11.1).
User Controls Front Panel Controls Icon Menu Icon Control Function Menu button Display the OSD menus Menu Brightness 1.Enter brightness of the OSD. ▲ Plus 2.To increase value of the adjustment items. Clockwise 3.Select item clockwise. Mute 1.To decrease value of the adjustment items. ▼...
How to Use the OSD Menus 1. Press the “MENU” button to pop up the “on-screen menu” and press “▲” or “▼” to select among the six functions in the main menus. 2. Choose the adjustment items by pressing the “ ”...
On-Screen Display Menus Main OSD Menu: MAIN MENU SUB Menu Function Description 0-100 Adjusts the maximum luminance level of the monitor. Contrast 0-100 Adjusts the backlight of the monitor. Brightness The screen is moved horizontally right and left (1 pixel pitch NO / YES Auto Adjust increment).
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected described in the "Installation"...
Warning Signal If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card. There may be three sources for this problem. Please check the cable connections or contact your local dealer or our service center for more information.
Compatibility Modes Mode Resolution H-Frequency (KHz) V-Frequency (Hz) IBM VGA 720 x 400 31.5 IBM VGA 640 x 480 31.5 VESA VGA 640 x 480 37.9 VESA VGA 640 x 480 37.5 VESA SVGA 800 x 600 35.2 VESA SVGA 800 x 600 37.9 VESA SVGA...
5. After installation is complete, click “Finish” and restart your computer to complete installation. TPM-193R / TPM-193C Driver Install: Please Note: The TPM-193R/TPM-193C is available with both RS232 and USB connections. If you are using RS232 connection, follow the instructions below: 1. Be sure that RS232 cable is connected from the computer.
TPM-193W Driver Install: 1. Be sure that USB cable is connected from the computer. 2. Power on the computer. 3. Load the touch screen driver CD. 4. Follow the step-by-step instructions as shown on pop-up windows. ® Please Note: The TPM-193C with Capacitive Touch Screen is Microsoft ®...
