- Page 1 DN360 OPERATORS MANUAL Klark Teknik Group, Klark Teknik Building, Walter Nash Road, Kidderminster. Worcestershire. DY11 7HJ. England. Tel:+44 1562 741515 Fax:+44 1562 745371 Email: sales@ktgplc.com Website: www.klarkteknik.com...
- Page 2 S I G N A L P R O C E S S I N G B Y D E F I N I T I O N BETTER BY DESIGN DESIGNED FOR APURE PERFORMANCE Klark Teknik Group (UK) Plc Klark Teknik Building, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ Declare that a sample of the following product:- Product Type Number Product Description...
- Page 3 THANK YOU FOR USING THIS KLARK TEKNIK PRODUCT To obtain maximum performance from this precision electronic product, please study these instructions carefully. Installation and operating the equaliser is not complicated, but the flexibility provided by its operating features merits familiarisation with its controls and connections. This unit has been prepared to comply with the power supply requirements that exist in your location.
- Page 4 If, however, the unit shows any signs of damage, notify the transportation company without delay. Only you, the consignee, may institute a claim against the carrier for damage during transportation. If necessary, contact your supplier or as a last resort, your Klark Teknik importing agent, who will fully co-operate under such circumstances.
- Page 5 For many years Klark Teknik has been at the forefront of equaliser design, and have carried our detailed research into optimum filter response characteristics, including their sonic performance.

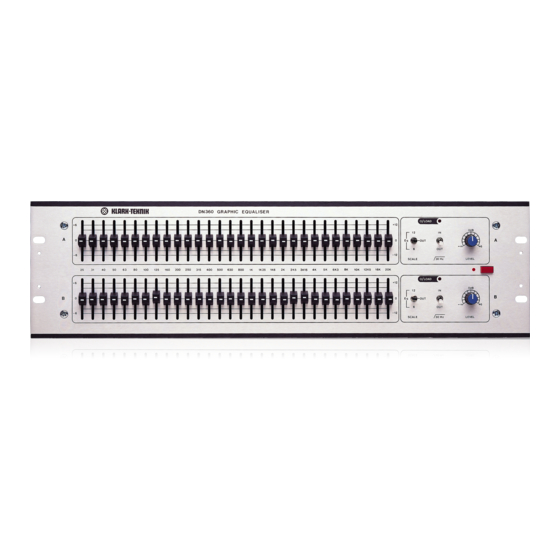

- Page 6 DN360 Graphic Equaliser The Klark Teknik DN360 is a dual channel, 30 band equaliser offering 12dB of cut or boost in 1/3 octave steps between the frequencies of 25Hz and 20 kHz. Filter Shape and Combining Action ISO CENTRE FREQUENCIES (in Hz) 1.25K...
- Page 7 This product is built to the same high electrical and mechanical standards as all Klark Teknik equipment and is both robust and stylish. It occupies a standard three units of rack space and has transformer balanced inputs and outputs.
-
Page 8: Instrument Familiarisation
Instrument Familiarisation Front Panel Functions selects maximum boost and cut The scale switch for the equaliser of either 6dB or12dB. The centre position of this switch performs the bypass function, The high quality faders used in this equaliser have an which silently removes the graphic equaliser section oil-damped action for smooth operation and feature a from the signal path. - Page 10 Specifications Input Type Transformer balanced Impedance ( alanced Unbalanced Output Transformer balanced Type Min. Load impedence Source impedance Max. Level Performance Frequency response ±0.5dB(20Hz-20kHz) Distortion (@ +4dBm) <0.01% @ 1kHz Equivalent input noise <-90dBu (20Hz-20kHz unweighted) Channel separation >75dB @ 1kHz Overload indicator +19dBu Level Control...
- Page 17 The Use of Graphic Equalisers Equalisers may be used for corrective or creative purposes and the Klark Teknik DN360 is applicable in both live sound and studio applications. For studio use, a pair of 1/3 octave equalisers might typically be used to compensate for deficiencies in the control room acoustics and in this instance, the precision allowed by 30 bands is a great advantage.
- Page 18 In live sound applications, graphic equalisation is almost always applied separately to the stage monitor of foldback system to reduce the level of those frequencies that would otherwise cause feedback problems. These problems came about due to peaks in the frequency response curves of the monitor speaker systems, monitor positioning, and sound reflected from the stage walls.
- Page 19 Table 1: Effects of Equalisation on Voice Reproduction Effect on voice 1/3 Octave centre frequency (Hz) 40, 50, 63, 80,100,125, Sense of power in some outstanding bass singers. 160, 200, 250, Voice fundamentals. 315, 400, 500 Important for voice quality. 630, 800, 1k Important for voice naturalness.
- Page 20 Equalising a Sound System When equalising a sound system you should always remember just what it is you are trying to achieve. Two fundamental reasons for equalization are:- 1. To increase the potential gain or power output of the system before feedback. 2.
- Page 21 If the Real Time Analyser you are using is the Klark Teknik DN6000 you have a powerful averaging capability which means that averaging the response throughout the coverage area becomes very much easier. The response displayed by the analyser should also become smoother as local fluctuations are averaged out whilst persistent peaks and dips clearly stand out and show where adjustment is truly required.
- Page 22 Inserting the Equaliser in the Signal Chain The exact point of insertion of an equaliser into the signal chain will very much depend on the task in hand e.g. mixer channel / line input, group insert point, group output, auxiliary send or between another signal processing device and the mixer or power amplifier, etc.
- Page 23 If you do not have one, we will provide replacement. Factory authorised service facilities are located throughout the world. Call your dealer or the factory for the location of the service facility nearest you. Klark Teknik Group. Klark Teknik Building, Walter Nash Road, Kidderminster.
- Page 24 50 63 80 100 125 160 200 250 315 400 500 630 800 1 1 25 1 6 2K 2K5 3 15 4 5 6 3 8 10 12 5 16 20 DN360 Human Hearing Range VOCAL Soprano Contralto Baritone...
