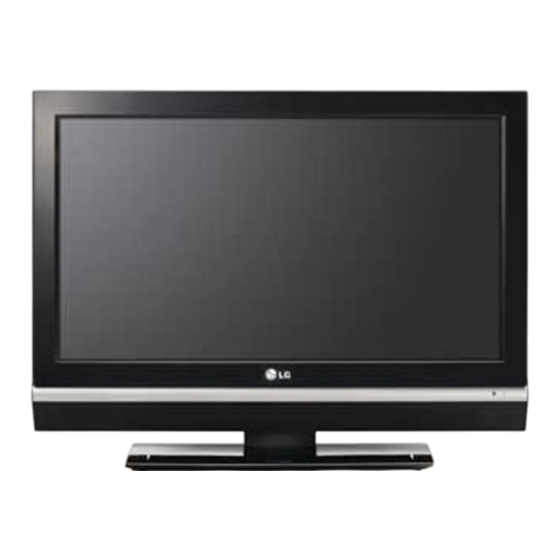

LCD TV
OWNER'S MANUAL
LCD TV MODELS
PLASMA TV MODELS
26LC2R *
42PC1RV *
27LC2R *
42PC3RV *
32LC2R *
42PC3RA *
32LC25R *
26LC3R *
32LC3R *
32LX2R *
32LE2R *
37LE2R *
42LE2R *
I I n n f f o o r r m m a a t t i i o o n n M M a a n n u u a a l l
P P l l e e a a s s e e r r e e a a d d
b b e e f f o o r r e e r r e e a a d d i i n n g g t t h h i i s s m m a a n n u u a a l l a a n n d d o o p p e e r r a a t t i i n n g g y y o o u u r r s s e e t t . .
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require service.
PLASMA TV
i i n n c c l l u u d d e e d d t t o o g g e e t t h h e e r r

Advertisement

Table of Contents
loading

Summary of Contents for LG 26LC2R Series

  • Page 1 LCD TV PLASMA TV OWNER’S MANUAL LCD TV MODELS PLASMA TV MODELS 26LC2R * 42PC1RV * 27LC2R * 42PC3RV * 32LC2R * 42PC3RA * 32LC25R * 26LC3R * 32LC3R * 32LX2R * 32LE2R * 37LE2R * 42LE2R * I I n n f f o o r r m m a a t t i i o o n n M M a a n n u u a a l l P P l l e e a a s s e e r r e e a a d d i i n n c c l l u u d d e e d d t t o o g g e e t t h h e e r r b b e e f f o o r r e e r r e e a a d d i i n n g g t t h h i i s s m m a a n n u u a a l l a a n n d d o o p p e e r r a a t t i i n n g g y y o o u u r r s s e e t t .
  • Page 3 ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the product. Owner's Manual Owner’s Manual Batteries Remote Control Power Cord F F o o r r 4 4 2 2 P P C C 1 1 R R V V * * , , 4 4 2 2 P P C C 3 3 R R V V * * , , 4 4 2 2 P P C C 3 3 R R A A * * 2-bolts for stand assembly 2-Wall brackets 2-eye-bolts...
  • Page 6 INPUT MENU INPUT MENU INPUT MENU MENU...
  • Page 7 MENU INPUT...
  • Page 8 AV IN 4 AUDIO AUDIO L/MONO VIDEO VIDEO AV 1 AV 2 AC IN COMPONENT IN COMPONENT IN RGB IN (PC/DTV) HDMI IN VIDEO VIDEO AUDIO UDIO REMOTE AUDIO IN VARIABLE CONTROL IN (RGB) AUDIO OUT AV IN 3 ANTENNA MONO RS-232C IN RS-232C IN...
  • Page 9: Front Panel Controls

    This is a simplified representation of the front panel. Here shown may be somewhat different from your TV. Front Panel Controls MENU INPUT...
  • Page 10 MENU INPUT ON/OFF MENU INPUT ON/OFF...
  • Page 11: Back Connection Panel

    Back Connection Panel Connections are available for listening stereo sound from an external device. Connects the video signal from a video AV IN 4 AV IN 4 device. AC IN AC IN RGB IN COMPONENT IN COMPONENT IN (PC/DTV) HDM IN VIDEO VIDEO AUDIO...
  • Page 12 Back Connection Panel AUDIO AUDIO L/MONO VIDEO VIDEO AV IN 4 AV IN 4 AV IN 4 AC IN AV 1 AV 2 Connections are available for listening AC IN RGB IN COMPONENT IN COMPONENT IN (PC/DTV) HDM IN stereo sound from an external device. VIDEO VIDEO AUDIO...
  • Page 13 INPUT POWER INPUT TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE TIME REVEAL INDEX...
  • Page 14: Installing Batteries

    INTRODUCTION Selects the remote operating modes. MODE INPUT These buttons are used for teletext. TELETEXT POWER BUTTONS INPUT For further details, see the ‘Teletext’ section. Allows you to navigate the on-screen menus and adjust THUMBSTICK TEXT SIZE POSTION (Up/Down/Left the system settings to your preference. PIP PR- PIP PR+ PIP INPUT...
  • Page 16: Stand Installation

    INSTALLATION STAND INSTALLATION (Only 32LC2R * , 32LC25R * ) Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage. Place the product stand on the product as shown. Install the 4 bolts securely, in the back of the product in the holes provided.
  • Page 17: Basic Connection

    BASIC CONNECTION (42PC1RV * , 42PC3RV * , 42PC3RA * ) These models have two cable arrangement methods according to the stand type. Stand type 1 Arrange the cables as shown picture. Stand type 2 Hold the C C A A B B L L E E M M A A N N A A G G E E M M E E N N T T with both hands and push it as shown.
  • Page 18: How To Remove The Cable Management

    INSTALLATION BASIC CONNECTION (Only 26LC2R * , 27LC2R * , 32LC2R * , 32LC25R * , 26LC3R * , 32LC3R * , 32LE2R * , 37LE2R * , 42LE2R * ) Connect the cables as necessary. After connecting the cables neatly, arrange the cables to the Cable Holder.
  • Page 19 Antenna...
  • Page 20 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches...
  • Page 22 ANTENNA ANTENNA ANTENNA ANTENNA ANTENNA...
  • Page 23 ANT IN S-VIDEO ANT OUT OUTPUT SWITCH (R) AUDIO (L) VIDEO HDMI IN HDMI IN VARIABLE AUDIO OUT UDIO OUT ANTENNA ANTENNA HDMI IN VARIABLE AUDIO OUT ANTENNA ANT IN S-VIDEO ANT OUT OUTPUT SWITCH (R) AUDIO (L) VIDEO AV IN 3 S-VIDEO VIDEO AUDIO...
  • Page 24 AV 1 AV 2 HDMI IN COMPONENT IN VARIABLE AUDIO OUT VIDEO AUDIO ANTENNA AV IN 3 MONO S-VIDEO VIDEO AUDIO (R) AUDIO (L) AUDIO/ VIDEO AV IN 3 S-VIDEO VIDEO AUDIO ANT IN S-VIDEO ANT OUT OUTPUT SWITCH (R) AUDIO (L) VIDEO AV 1 AV 2 COMPONENT IN...
  • Page 25 AV IN 4 V IN 4 AUDIO AUDIO L/MONO MONO VIDEO VIDEO AUDIO VIDEO...
  • Page 26 (R) AUDIO (L) AV 1 AV 2 COMPONENT IN VIDEO AUDIO AV IN 3 MONO S-VIDEO VIDEO AUDIO AV IN 3 S-VIDEO VIDEO AUDIO AV 1 AV 2 COMPONENT IN VIDEO AUDIO AV IN 3 MONO S-VIDEO VIDEO AUDIO (R) AUDIO (L) AUDIO/ VIDEO...
  • Page 27 COMPONENT IN VIDEO AUDIO (R) AUDIO (L) S-VIDEO AV 1 AV 2 COMPONENT IN VIDEO AUDIO AV IN 3 MONO S-VIDEO VIDEO AUDIO RGB IN RGB IN (PC/DTV) HDMI IN REMOTE AUDIO IN VARIABLE CONTROL IN (RGB) AUDIO OUT UDIO OUT HDMI RS-232C IN RS-232C IN...
  • Page 28 (R) AUDIO (L) AV 1 AV 2 COMPONENT IN VIDEO AUDIO AV IN 3 Component MONO S-VIDEO VIDEO AUDIO Signal Component RGB-DTV HDMI 480i/576i 480p/576p/720p/1080i AV IN 3 RGB IN (PC/DTV) (PC/DTV) HDMI IN HDMI IN S-VIDEO VIDEO AUDIO REMOTE AUDIO IN VARIABLE CONTROL IN...
  • Page 29 AUDIO OUT RS-232C IN (CONTROL & SERVICE) (R) AUDIO (L) RGB-DTV OUTPUT RGB IN RGB IN (PC/DTV) HDMI IN REMOTE AUDIO IN VARIABLE CONTROL IN (RGB) AUDIO OUT UDIO OUT RGB-DTV RS-232C IN RS-232C IN (CONTROL & SER SERVICE) RGB IN RGB IN (PC/DTV) HDMI IN...
  • Page 30: Connections And Setup

    CONNECTIONS & SETUP PC SETUP This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. When connecting with a D-sub 15 pin cable RGB-PC OUTPUT PC SOUND RGB IN RGB IN (PC/DTV) HDMI IN RGB [PC] REMOTE AUDIO IN...
  • Page 31 Supported Display Resolution (RGB[PC] mode) Supported Display Resolution (RGB[PC] mode) (26LC2R * / 27LC2R * / 32LC2R * / 32LC25R * / (42PC1RV * / 42PC3RV * ) 26LC3R * / 32LC3R * / 32LX2R * / 32LE2R * / 37LE2R * / Horizontal Vertical 42LE2R * / 42PC3RA * )
  • Page 32 INPUT POWER INPUT TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE TIME REVEAL INDEX...
  • Page 33 Special Language Country...
  • Page 34 INPUT POWER INPUT TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT...
  • Page 38 F / G Station Sound Picture Auto programme Manual programme Programme edit Balance Favourite programme Speaker Advanced Reset DE F G OK MENU DE F G OK MENU DE F G OK MENU Screen Special Time Auto config. Language Clock Manual config.
  • Page 39 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Station Station Auto programme Manual programme Programme edit Auto Favourite programme programme System DE F G OK MENU Station Auto programme To set Manual programme Programme edit Favourite programme Storage from...
  • Page 40 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Station Q.VIEW Manual MUTE programme Storage Station Auto programme Manual programme Programme edit Favourite programme System DE F G OK MENU Station Auto programme Manual programme To set Programme edit Band...
  • Page 41 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Station Q.VIEW Manual MUTE programme Fine Station Auto programme Manual programme Programme edit Favourite programme DE F G OK MENU Station Auto programme Manual programme To set Programme edit Favourite programme DE F G...
  • Page 42 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Station Q.VIEW Manual MUTE programme Name Station Auto programme Manual programme Programme edit Favourite programme DE F G OK MENU Station Auto programme Manual programme To set Programme edit Favourite programme DE F G...
  • Page 43: Programme Edit

    TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Station MUTE Programme edit Station Auto programme Manual programme Programme edit Favourite programme DE F G OK MENU Station Auto programme Manual programme Programme edit To set Favourite programme DE F G...
  • Page 44: Favourite Programme

    LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Station Favourite programme TIME REVEAL INDEX Station Auto programme Manual programme Programme edit Favourite programme DE F G OK MENU Station Auto programme Manual programme - - - - - - - - - - Programme edit - - - - - Favourite programme...
  • Page 45 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Programme List C 03 S 69 1 BLN 03 S 17 C 12 S 22 S 66 C 09 S 67 C 11 F G DE...
  • Page 46 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Picture Picture Advanced Reset DE F G OK MENU Dynamic Standard Mild User 1 User 2 Picture Dynamic Standard Mild User 1 Advanced User 2 Reset DE F G OK MENU...
  • Page 47 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Picture Picture Advanced Reset User DE F G OK MENU User 2 Picture Dynamic Contrast Brightness Colour Standard Sharpness Tint Mild User 1 Advanced User 2 Reset DE F G OK MENU...
  • Page 48 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Picture Picture Advanced Reset Cool Normal Warm User DE F G OK MENU Picture Cool Normal Warm Advanced User Reset DE F G OK MENU...
  • Page 49 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Picture Picture Advanced Reset User Red Green Blue DE F G OK MENU Picture Cool Normal Warm Advanced User Reset DE F G OK MENU User Green Blue...
  • Page 50 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Picture Q.VIEW MUTE Auto Manual Picture Advanced Reset DE F G OK MENU User1 User2 Picture Contrast XD Colour XD NR Auto Manual Advanced Reset DE F G OK MENU Manual XD Contrast...
  • Page 51 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Picture Picture Advanced Reset Advanced DE F G OK MENU Cinema Picture Off. Advanced To set Reset DE F G OK MENU Advanced Cinema Black Level OK MENU...
  • Page 52 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Picture MUTE Advanced Picture Black Level Advanced Reset High. DE F G OK MENU Picture Advanced To set Reset DE F G OK MENU Advanced Cinema Black Level High...
  • Page 53 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Picture Reset Q.VIEW MUTE Picture Advanced Reset DE F G OK MENU Picture Advanced Reset To set DE F G OK MENU...
  • Page 54 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Sound Balance Speaker DE F G OK MENU Sound Surround MAX Flat Music Balance Movie Speaker Sound Sports User DE F G OK MENU Surround Max Flat Music Movie Sports User...
  • Page 55 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Sound MUTE Sound User Balance Speaker DE F G OK MENU Sound Surround MAX Flat Music Balance Movie Speaker Sports User DE F G OK MENU User 0.1 0.5 1.5 5.0 10 kHz DE F G...
  • Page 56 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Sound Q.VIEW Sound Balance Speaker DE F G OK MENU Sound Balance Speaker DE F G OK MENU...
  • Page 57 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Sound Sound Balance Balance Speaker DE F G OK MENU Sound Balance Speaker DE F G OK MENU...
  • Page 58 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Sound Balance Sound Speaker Speaker DE F G OK MENU Sound Balance Speaker DE F G OK MENU...
  • Page 59 INPUT POWER INPUT TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT DUAL I LIST I/II MENU DUAL II EXIT SLEEP DUAL I+II Q.VIEW Broadcast On Screen Display Mono MONO Stereo STEREO Dual DUAL I DUAL I DUAL II DUAL I+II...
  • Page 60 NICAM MONO NICAM STEREO DUAL I NICAM DUAL II NICAM DUAL I+II MONO...
  • Page 61 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Time Time Clock Clock Off time On time Auto sleep DE F G OK MENU Time Clock - - : - - Off time On time Auto sleep DE F G...
  • Page 62: On/Off Timer

    TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Time Clock Off time On time Auto sleep Time DE F G OK MENU Off time On time Time Clock On Off timer - - : - - Off time On time Auto sleep...
  • Page 63: Auto Sleep

    Time Clock Off time On time Auto sleep Time DE F G OK MENU Auto sleep Time Clock Off time On time Auto sleep DE F G OK MENU LIST I/II MENU EXIT SLEEP Q.VIEW...
  • Page 64: Child Lock

    TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Special SPECIAL Language Country Child lock Child lock ISM Method Low Power Set ID Demo DE F G OK MENU SPECIAL Language Country Child lock ISM Method Low Power Set ID...
  • Page 65: Ism Method

    TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE SPECIAL Language Country Child lock ISM Method Low Power Set ID Demo DE F G OK MENU Special Language Country Special Child lock ISM Method Normal Low Power White wash...
  • Page 66: Low Power

    TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Special SPECIAL Language Country Child lock ISM Method Low power Low Power Set ID Demo DE F G OK MENU Special Language Country Child lock ISM Method Low Power Set ID...
  • Page 67 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Special SPECIAL Language Country Child lock ISM Method Low Power Set ID Demo DE F G OK MENU Special Language Country Child lock ISM Method Low Power Set ID Demo...
  • Page 68 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Screen Auto config. Manual config. VGA Mode Reset Screen DE F G OK MENU Auto config.. Screen To set Auto config. Manual config. Auto config.. VGA Mode Auto config Reset...
  • Page 69: Manual Config

    TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW MUTE Screen Auto config. Manual config. VGA Mode Reset DE F G OK MENU Screen Screen Auto config. Phase Manual config. VGA Mode Clock + 10 H-Position Manual config..
  • Page 70 INPUT POWER INPUT TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Screen Auto config. Screen Manual config. VGA Mode Reset Spectacle Full Original 4:3 16:9 14:9 Zoom1 Zoom2 DE F G OK MENU Screen Auto config.
  • Page 71: Vga Mode

    NOTE TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Screen Auto config. Manual config. VGA Mode Reset Screen DE F G OK MENU VGA Mode XGA Mode Screen Auto config. Manual config. VGA Mode 640x480 848x480 852x480...
  • Page 72 TEXT SIZE POSTION PIP PR- PIP PR+ PIP INPUT LIST I/II MENU EXIT SLEEP Q.VIEW Screen MUTE Reset Screen Auto config. Manual config. VGA Mode Reset DE F G OK MENU Screen Auto config. Manual config. VGA Mode Reset To set DE F G OK MENU...
  • Page 78: Product Specifications

    APPENDIX PRODUCT SPECIFICATIONS 26LC2R * 26LC3R * 27LC2R * Ω...
  • Page 79 PRODUCT SPECIFICATIONS 32LC2R * 32LC25R * 32LC3R * 32LX2R * Ω...
  • Page 80 APPENDIX PRODUCT SPECIFICATIONS 32LE2R * 37LE2R * 42LE2R * Ω...
  • Page 81 PRODUCT SPECIFICATIONS 42PC3RA * 42PC1RV * 42PC3RV * Ω...
  • Page 83: External Control Device Setup

    APPENDIX EXTERNAL CONTROL DEVICE SETUP Connect the RS-232C input jack to an external control device (such as a computer or an A/V con- trol system) and control the TV’s functions externally. Connect the serial port of the control device to the RS-232C jack on the TV back panel. RS-232C connection cables are not supplied with the TV.
  • Page 84: Communication Parameters

    APPENDIX RS-232C Configurations 7-Wire Configurations ( Standard RS-232C cable ) 3-Wire Configurations ( Not standard ) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID - Use this function to specify a set ID number. - Refer to ‘Real Data Mapping 1’. See page 6. Press the M M E E N N U U button and then button...
  • Page 85: Transmission / Receiving Protocol

    Command Reference List DATA DATA C C O O M M M M A A N N D D 1 1 C C O O M M M M A A N N D D 2 2 C C O O M M M M A A N N D D 1 1 C C O O M M M M A A N N D D 2 2 (Hexadecimal) (Hexadecimal) 01.
  • Page 86 APPENDIX 0 0 1 1 . . P P o o w w e e r r ( ( C C o o m m m m a a n n d d 2 2 : : a a ) ) 0 0 5 5 .
  • Page 87 1 1 0 0 . . S S h h a a r r p p n n e e s s s s ( ( C C o o m m m m a a n n d d 2 2 : : k k ) ) 1 1 5 5 .
  • Page 88 APPENDIX 2 2 0 0 . . A A b b n n o o r r m m a a l l S S t t a a t t e e ( ( C C o o m m m m a a n n d d 2 2 : : z z ) ) 2 2 4 4 .
  • Page 89 2 2 7 7 . . S S e e n n d d I I R R C C o o d d e e ( ( C C o o m m m m a a n n d d 1 1 : : m m , , C C o o m m m m a a n n d d 2 2 : : c c ) ) 2 2 9 9 .
  • Page 90: How To Connect

    APPENDIX IR CODES 1. How to Connect Connect your wired remote control to the Remote Control port on the TV. ■ 2. Remote Control IR Codes Output waveform ■ Single pulse, modulated with 37 .917KHz signal at 455KHz Carrier frequency FCAR = 1/TC = fOSC/12 Duty ratio = T1/TC = 1/3 Configuration of frame...
  • Page 91: Remote Control Ir Codes

    REMOTE CONTROL IR CODES Code Code Function Note Function Note (Hexa) (Hexa) R/C Button R/C Button INPUT R/C Button GREEN R/C Button POWER R/C Button (Power On/Off) YELLOW R/C Button POWER ON Discrete IR Code (Only Power On) BLUE R/C Button POWER OFF Discrete IR Code (Only Power OFF) VOL +...
