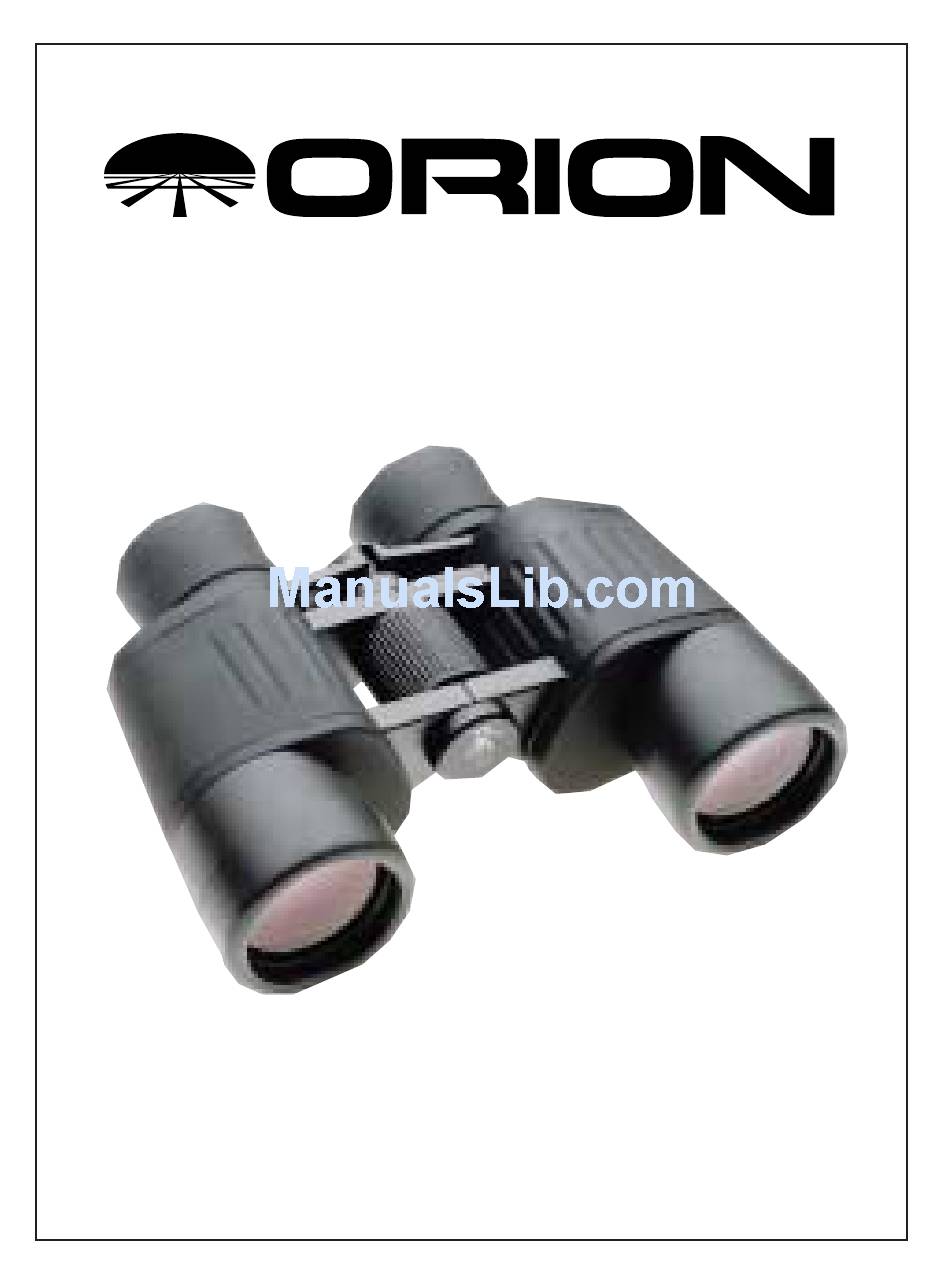

- Page 1 UltraView ™ Binoculars Care and Use...
- Page 2 ™ Binoculars Congratulations on your purchase of a precision Orion UltraView™ binocular. With proper care and use it will pro- vide many years of superb, enjoyable viewing. To get the most out of your binocular, please read the following instructions.
- Page 3 Lens Caps Your UltraView™ binocular is fitted with a plastic cap for each of the objective (large) lenses, and with a single cap, also called a “rain shield,” that covers both eyepieces. The rain shield may be threaded onto the neck strap for convenience.
- Page 4 Mounting Your Binoculars on a Tripod For steadier or extended viewing, you can mount your UltraView™ binocular on any standard camera tripod by means of an optional “L”-bracket (available from most binocular dealers). Unscrew the small cap bearing the white tripod symbol located at the front of the center shaft, between the two binocular barrels.
- Page 5 Cleaning and Care Although your UltraView™ binocular is rubber covered, it is not waterproof! Avoid exposure to excessive moisture. The lens surfaces of your binoculars are vacuum-covered with antireflection coatings that can be damaged with care- less handling. Avoid touching lens surfaces with your fingers or any course material.
- Page 6 This is not covered by the warranty. Repair If your UltraView™ binocular should require internal clean- ing, optical alignment, or other repairs, return it to Orion (if under warranty) or take it to a qualified optical repair shop for service.
-
Page 7: Specifications
Specifications 8x42 Magnification Objective lens aperture 42mm Eye relief 22mm Field of View 8.2° / 435 ft. @ 1000 yds. Close focus 12 ft. Prisms BAK-4, Porro Antireflection coatings Fully multi-coated Eyeguards Pop-down, rubber Tripod Adaptable Weight 27 oz. 7x50 and 10x50 Magnification 7x (7x50);... - Page 8 For further war- ranty service information, contact Customer Service, Orion Telescopes & Binoculars, P.O. Box 1815, Santa Cruz, CA 95061; phone (800) 676-1343. * UltraView compact binoculars excluded. IN 066 0696...
