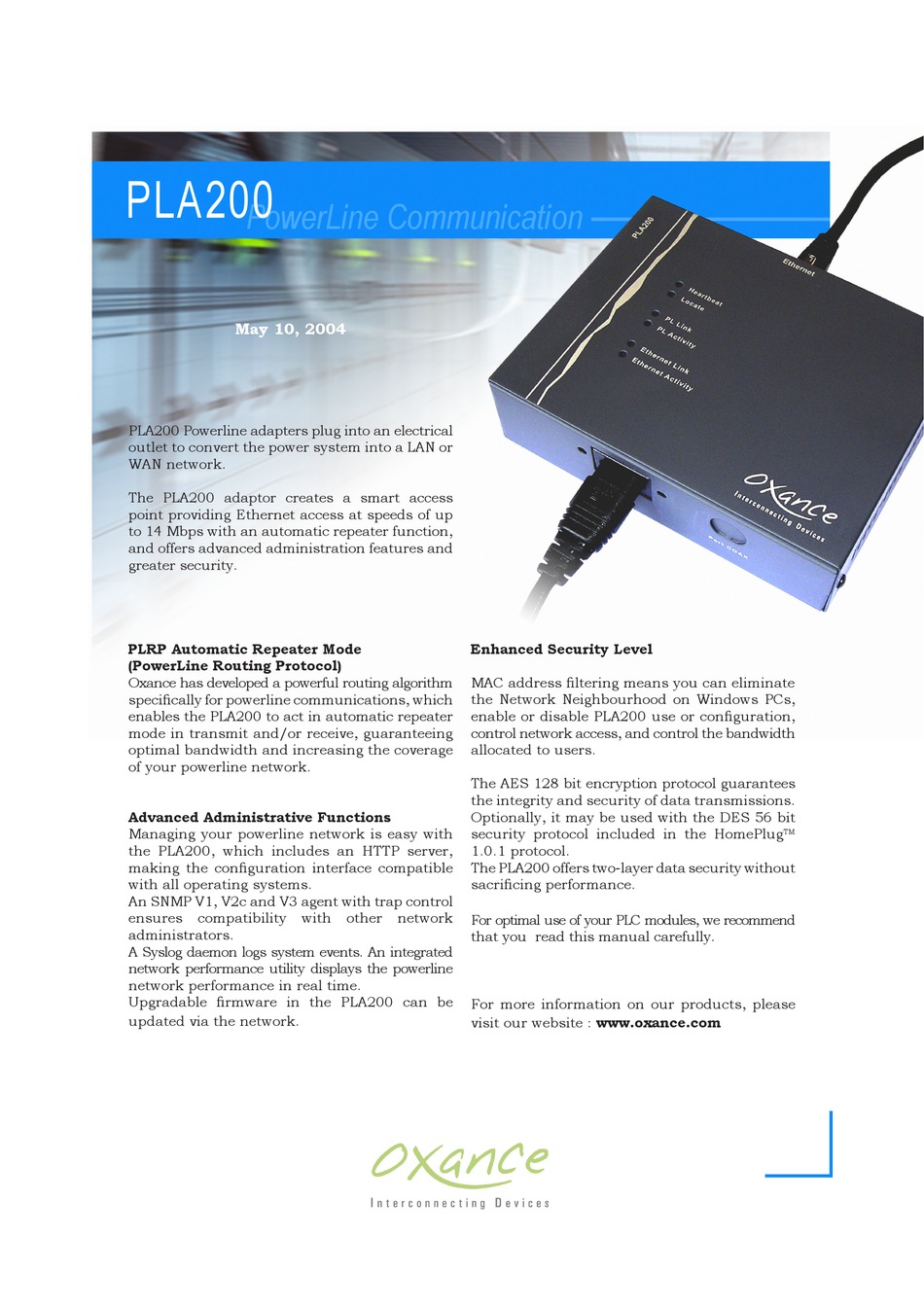

PLA200
PowerLine Communication
May 10, 2004
PLA200 Powerline adapters plug into an electrical
outlet to convert the power system into a LAN or
WAN network.
The PLA200 adaptor creates a smart access
point providing Ethernet access at speeds of up
to 14 Mbps with an automatic repeater function,
and offers advanced administration features and
greater security.
PLRP Automatic Repeater Mode
(PowerLine Routing Protocol)
Oxance has developed a powerful routing algorithm
specically for powerline communications, which
enables the PLA200 to act in automatic repeater
mode in transmit and/or receive, guaranteeing
optimal bandwidth and increasing the coverage
of your powerline network.
Advanced Administrative Functions
Managing your powerline network is easy with
the PLA200, which includes an HTTP server,
making the conguration interface compatible
with all operating systems.
An SNMP V1, V2c and V3 agent with trap control
ensures
compatibility
administrators.
A Syslog daemon logs system events. An integrated
network performance utility displays the powerline
network performance in real time.
Upgradable rmware in the PLA200 can be
updated via the network.
Enhanced Security Level
MAC address ltering means you can eliminate
the Network Neighbourhood on Windows PCs,
enable or disable PLA200 use or conguration,
control network access, and control the bandwidth
allocated to users.
The AES 128 bit encryption protocol guarantees
the integrity and security of data transmissions.
Optionally, it may be used with the DES 56 bit
security protocol included in the HomePlug
1.0.1 protocol.
The PLA200 offers two-layer data security without
sacricing performance.
with
other
network
For optimal use of your PLC modules, we recommend
that you read this manual carefully.
For more information on our products, please
visit our website : www.oxance.com
TM
