Charles C-Power 93-PS2415 Installation Instructions & Owner's Manual

12 vdc & 24 vdc 15- & 30-amp c-power, marine electronic power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LT93–PS1230–1
Issue 1 Print 2
INSTALLATION INSTRUCTIONS
C-POWER
& OWNER'S MANUAL
MARINE ELECTRONIC POWER SUPPLY
12 VDC & 24 VDC
15- & 30-Amp
Charles Industries, Ltd. All rights reserved. Printed in the United States of America.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-Power 93-PS2415 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charles C-Power 93-PS2415

Summary of Contents for Charles C-Power 93-PS2415

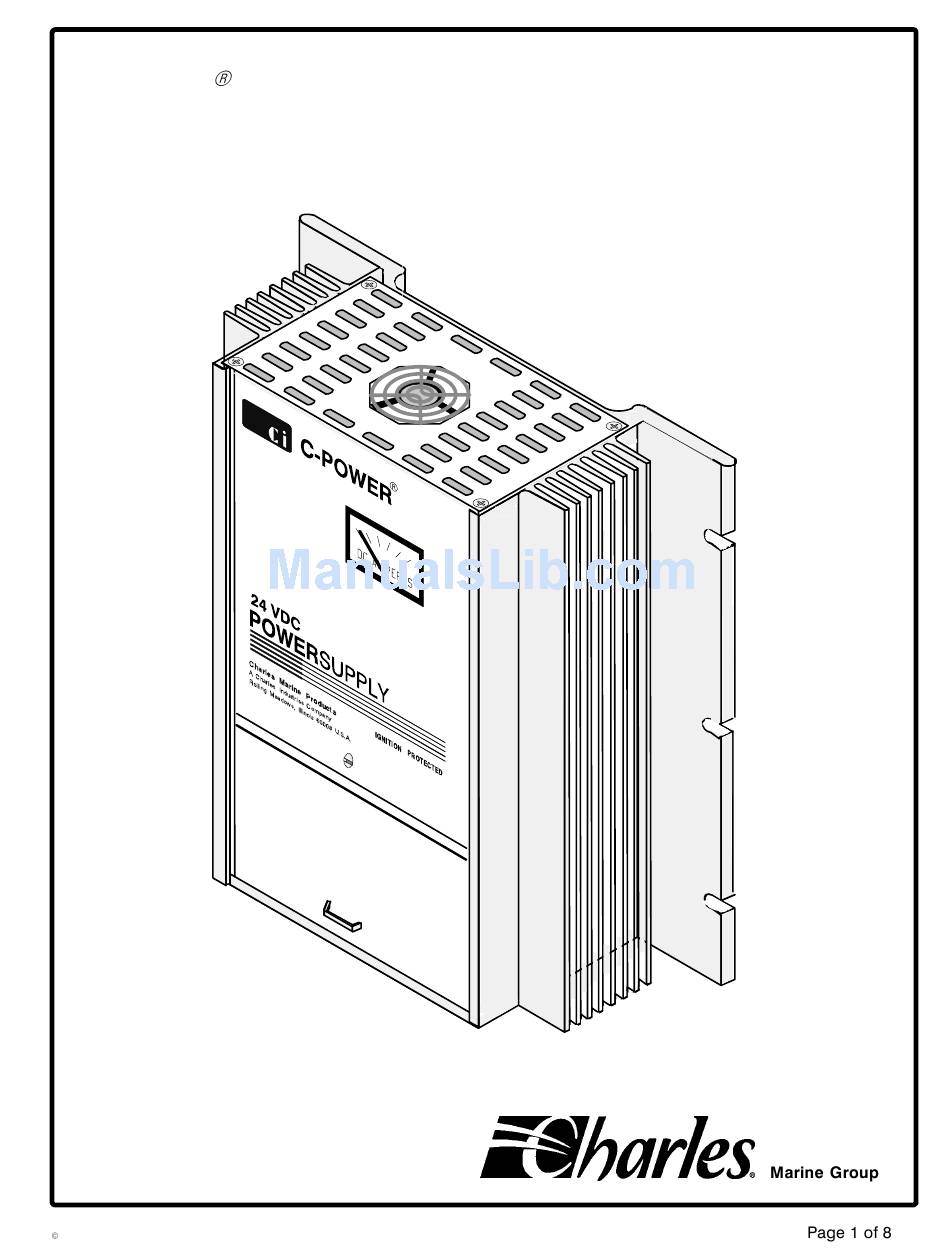

  • Page 1 LT93–PS1230–1 Issue 1 Print 2 INSTALLATION INSTRUCTIONS C-POWER & OWNER’S MANUAL MARINE ELECTRONIC POWER SUPPLY 12 VDC & 24 VDC 15- & 30-Amp Charles Industries, Ltd. All rights reserved. Printed in the United States of America.
