Summary of Contents for Sierra RAZ-IR MAX
-

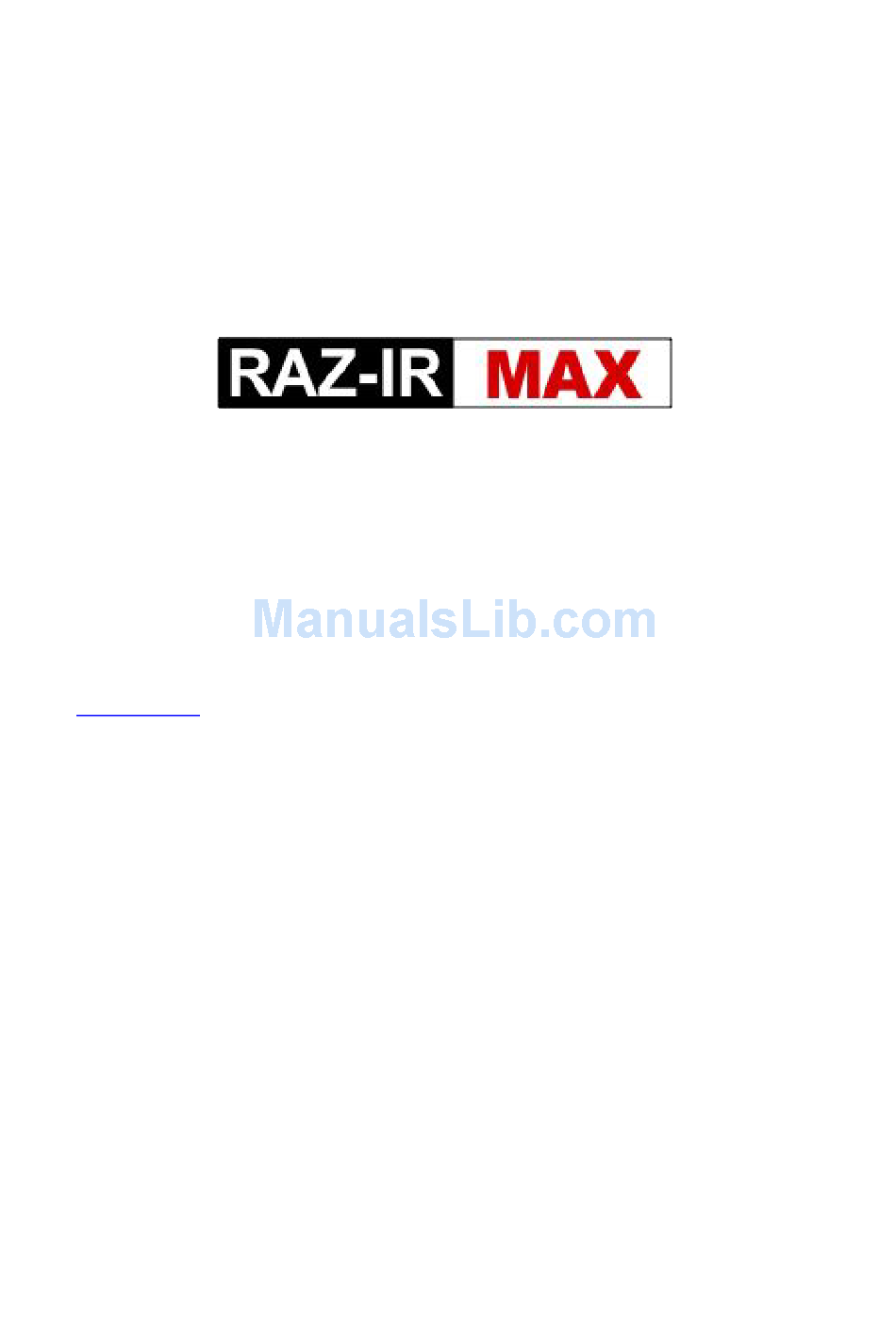

Page 1: User Manual
SPI CORP User Manual Sierra Pacific Innovations Corp 6620 S. Tenaya Way BLDG #100 Las Vegas, NV 89113 www.raz-ir.com 702-369-3966 HQ 702-369-3977 FAX accounting@x20.org... - Page 2 73/23/EEC). Copyright © Sierra Pacific Innovations Corp,, 2009 and © Wuhan Guide Infrared Co., Ltd, 2009 respectively. All rights reserved worldwide. No parts of the products may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of Wuhan Guide Infrared Co., Ltd and Sierra Pacific Innovations Corp.
-
Page 3: Table Of Contents
Calibration and Repair Philosophy ..................2 Technical Support ......................2 Feedback to Us........................2 System Overview....................... 2 System Configuration ......................2 Technical Specification ...................... 3 System Features........................ 4 Parts Described ......................... 6 RAZ-IR MAX Charging Instruction..................7 Buttons Introduction......................8 Function operation ......................11... -
Page 4: Table Of The Contents Table Of The Contents
• water, ensure that the unit is adequately guarded against splashes. When the SPI® RAZ-IR MAX Thermal Camera is not in use or is to be transported, ensure that the unit and • its accessories are stored in the protective carrying case. -
Page 5: Calibration And Repair Philosophy
User Manual Calibration and Repair Philosophy To ensure the accuracy and reliability of the SPI® RAZ-IR MAX Thermal Camera, it is highly recommended that the instrument be calibrated at 12 month intervals. Calibration or repair for the instrument can be obtained by either contacting the address/ telephone number on the cover of this User Manual, or by email to the following addresses: overseas@guide-infrared.com... -
Page 6: Technical Specification
User Manual 6 AA rechargeable batteries and battery charger • AC Adapter & cable • USB extension cable • USB driver • ® RAZ-IR Analyser Software • User manual • Carry case & strap • Options 30mm Tele lens • 7mm wide angle lens •... -
Page 7: System Features
User Manual Measurement Features: Automatic correction based on distance, relative humidity, atmospheric transmission and external optics Optics Transmission Correction: Auto, based on signals from sensors Image Storage Type: Removable 2GB SD card & built-in memory File Format: JPG with analysis records Voice Annotation: Up to 60 seconds Laser Locator... - Page 8 User Manual 2.0 Megapixels CMOS delivers an extremely crisp visual image. • Auto Gate Technology works as both a shutter and intelligent lens cap. The external shutter design prevents all • disturbing heat radiation caused by internal electronics to deliver crisp and uniform images. Auto focus function enables the auto focus of IR and visual image by simply pressing one button.
-
Page 9: Parts Described
User Manual Parts Described LCD Display Charging Indicator Function Softkeys Microphone Battery Cover Speaker Visual Camera Laser IR Lens Trigger Button USB Interface Video Interface AC Adapter/Charging Input Terminal SD Card Slot... -
Page 10: Raz-Ir Max Charging Instruction
BATTERIES IN THE BATTERY COMPARTMENT. How to operate the camera with Batteries Insert the batteries in the bottom of the RAZ-IR MAX handle. Be sure to follow the polarity guide marked on the battery compartment. Press the button to make the red indicator light blink. Hold the... -
Page 11: Buttons Introduction
Ensure the camera is powered off when charging the batteries Button Introduction There are three functional buttons and a trigger button on the SPI® RAZ-IR MAX From left to right, they are and a trigger button “T”. Power on /off the camera To turn on the camera press the button and hold for at least 3 seconds to power on. - Page 12 User Manual Use the appropriate button to focus. NEAR for closer objects, FAR for distant objects and AUTO let the camera select the appropriate image focus. In many cases it may be necessary to fine-tune the AUTOFOCUS with the NEAR and FAR buttons to achieve optimal image quality. Press the button to focus NEAR, press button to focus FAR and press the button to engage auto focus.
- Page 13 User Manual Manual calibration On the non-menu mode, keep pressing "T" button and then press button to run shutter calibration Image frozen and save On the non-menu mode, press T to freeze the image, the following info will be displayed on the screen: Save Voice Visual /IR...
-
Page 14: Function Operation
User Manual Manual Emiss Tamb Distance Palette RelHum Laser " On the sub-menu mode, press to confirm selecting the highlighted option and enter the next sub-menu, press T to exit main menu operation and return to real-time IR mode. On the main menu mode, press to enter file operation sub-menu : Filelist Del All... - Page 15 User Manual Thermal camera focusing There are two methods to adjust focus: motorized and automatic To motorizedly focus: Aim the lens at the target Press to activate the menu Press the softkey labeled “Far” and “Near” until the image on the LCD is as clear as possible To automatically focus: Aim the lens at the target Press...
- Page 16 User Manual The SPI® RAZ-IR MAX could be displayed in full visual mode, full thermal mode and the confusion mode, they could be switched. In real-time thermal status, press the button of to go into the picture mode, it would appear “Visual”, “Spot”...
- Page 17 Press for Celsius or for Fahrenheit. Doing spot analysis SPI® RAZ-IR MAX supports single spot measurement. The location of center spot can be adjusted in live image: Press button and then button to bring location adjustment mode of center spot.
- Page 18 Video Output Composite video output (PAL or NTSC mode) option is available in SPI® RAZ-IR MAX . With this option you can view the live image captured by the camera on a monitor or a recording device. Before trying to use this option, ensure that the SPI®...
- Page 19 Image export, image analysis, live video recording etc. can be done in the PC. Images saved in UFLASH can be transferred to PC via IrAnalyser. If SD card is inserted in SPI® RAZ-IR MAX , the PC will identify the SPI® RAZ-IR MAX as a removable hard disk, •...
- Page 20 User Manual Choose “Install from a list or specific location (advanced)” and include the folder where you save the driver program. Then Click button next to go further. Installation starts. When getting to the step as shown below, choose “Continue anyway” to proceed further.
- Page 21 Go to Device Manager to check and confirm whether the driver has been successfully installed. If there is “GUIDE SPI® RAZ-IR MAX ” listed under Universal Serial Bus Controller, it indicates the driver has been properly installed and you can transfer data from the camera to PC now.
- Page 22 User Manual...
