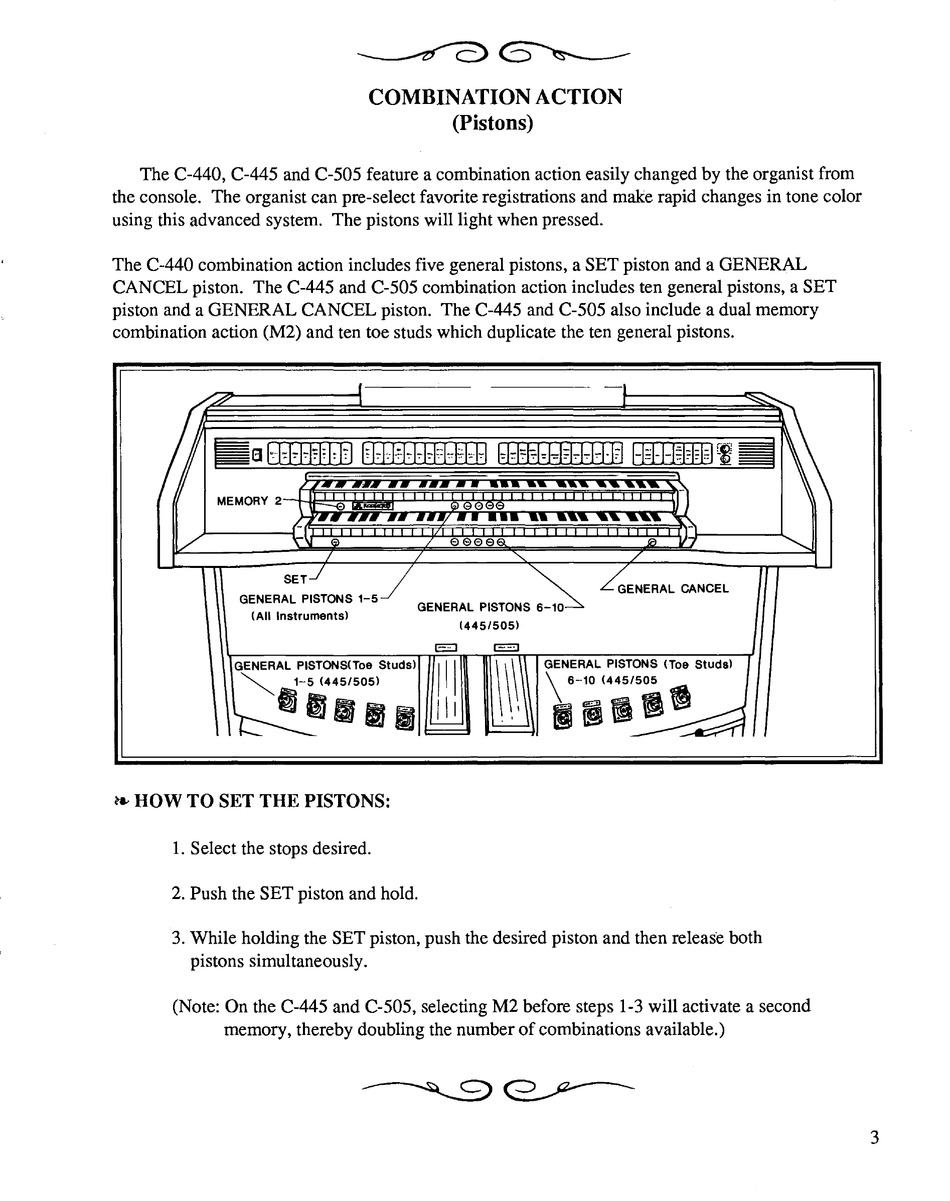

COMBINATION ACTION
(Pistons)
The C-440, C-445 and C-505 feature a combination action easily changed by the organist from
the console. The organist can pre-select favorite registrations and make rapid changes in tone color
using this advanced system. The pistons will light when pressed.
The C-440 combination action includes five general pistons, a SET piston and a GENERAL
CANCEL piston. The C-445 and C-505 combination action includes ten general pistons, a SET
piston and a GENERAL CANCEL piston. The C-445 and C-505 also include a dual memory
combination action (M2) and ten toe studs which duplicate the ten general pistons.
GENERAL PISTONS 1-5
(All Instruments)
GENERAL PISTONS 6-10
(445/505)
GENERAL PISTONS <Toe Studs)
\ 6-10
(4~-~/505
[118\1~
GENERAL PISTONS<Toe Studs)
Ill
~
1-5 (445/505)
leall 1
111
~HOW TO SET THE PISTONS:
1. Select the stops desired.
2. Push the SET piston and hold.
3. While holding the SET piston, push the desired piston and then release both
pistons simultaneously.
(Note: On the C-445 and C-505, selecting M2 before steps 1-3 will activate a second
memory, thereby doubling the number of combinations available.)
3
